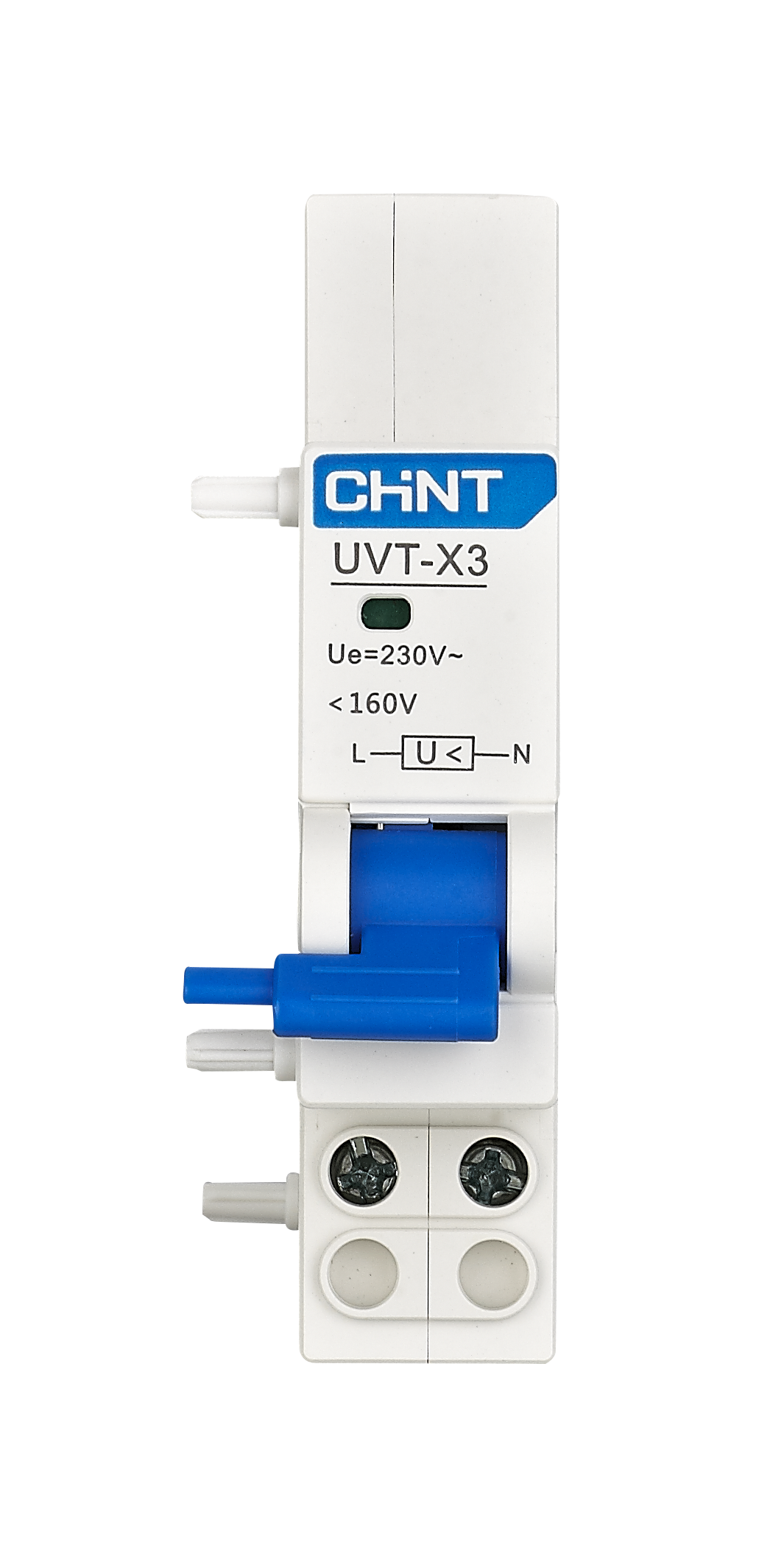

UVT X3 Accessories (Final Power Distribution) Front

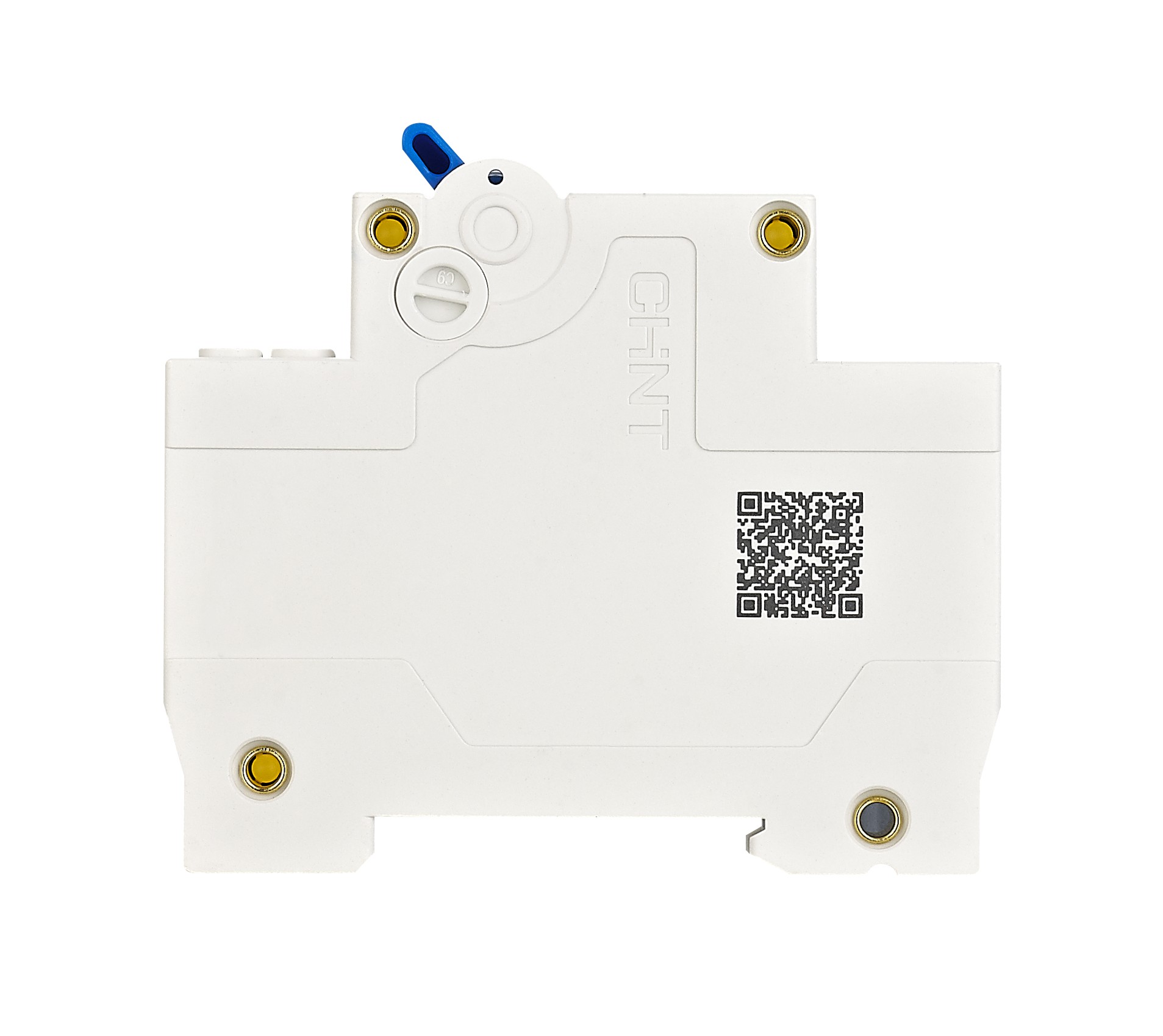

UVT X3 Accessories (Final Power Distribution) Side

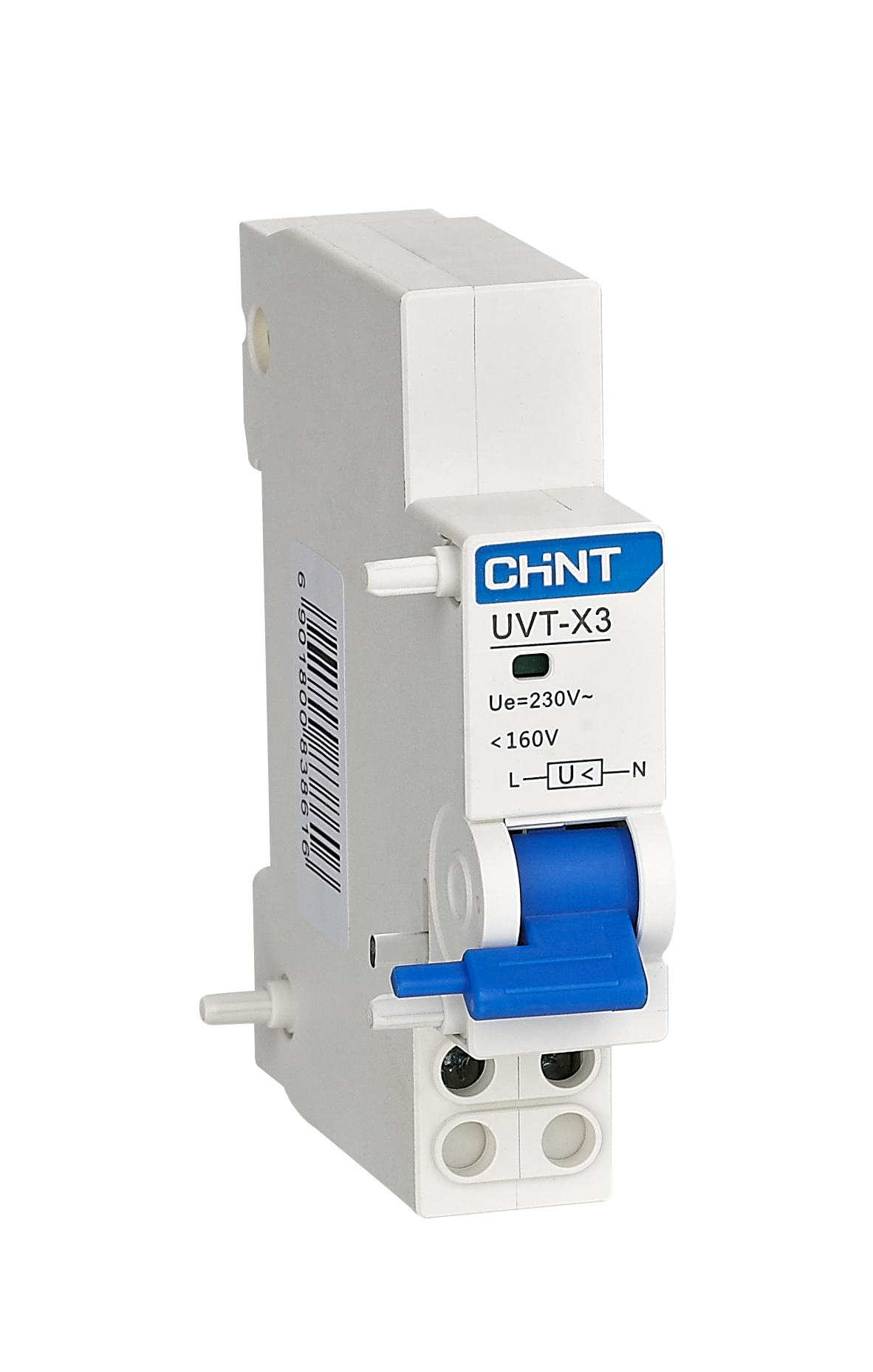

UVT X3 Accessories (Final Power Distribution)

UVT X3 Accessories (Final Power Distribution) Front

UVT X3 Accessories (Final Power Distribution) Side

UVT X3 Accessories (Final Power Distribution)

UVT-X3 Under-voltage Release

To be assembled with the circuit breaker to achieve under-voltage protection

Rated operation voltage Ue: AC230V 50Hz (or 60Hz)

Rated insulation voltage Ui: 500V

Life: the operating life of the release is 4000 cycles.

Action characteristics: when the applied voltage ≤35% Ue, the product should

prevent circuit breaker from closing; when 35% Ue≤applied voltage ≤70% Ue, the

product should operate and drive the circuit breaker open; when the applied

voltage ≤85% Ue, the product should be able to close. The applied voltage should

not exceed 110%Ue.

Product Information

To be assembled with the circuit breaker to achieve under-voltage protection

Rated operation voltage Ue: AC230V 50Hz (or 60Hz)

Rated insulation voltage Ui: 500V

Life: the operating life of the release is 4000 cycles.

Action characteristics: when the applied voltage ≤35% Ue, the product should

prevent circuit breaker from closing; when 35% Ue≤applied voltage ≤70% Ue, the

product should operate and drive the circuit breaker open; when the applied

voltage ≤85% Ue, the product should be able to close. The applied voltage should

not exceed 110%Ue.

Name

Size

Release time

Operate

UVT-X3-Accessories (Final Power Distribution)-Catalog.pdf

54.22KB

2024-09-22

Download

Name

Size

Release time

Operate

2004-UVT-X3-Accessories (Final Power Distribution)-Manual.pdf

445.07KB

2024-09-22

Download
