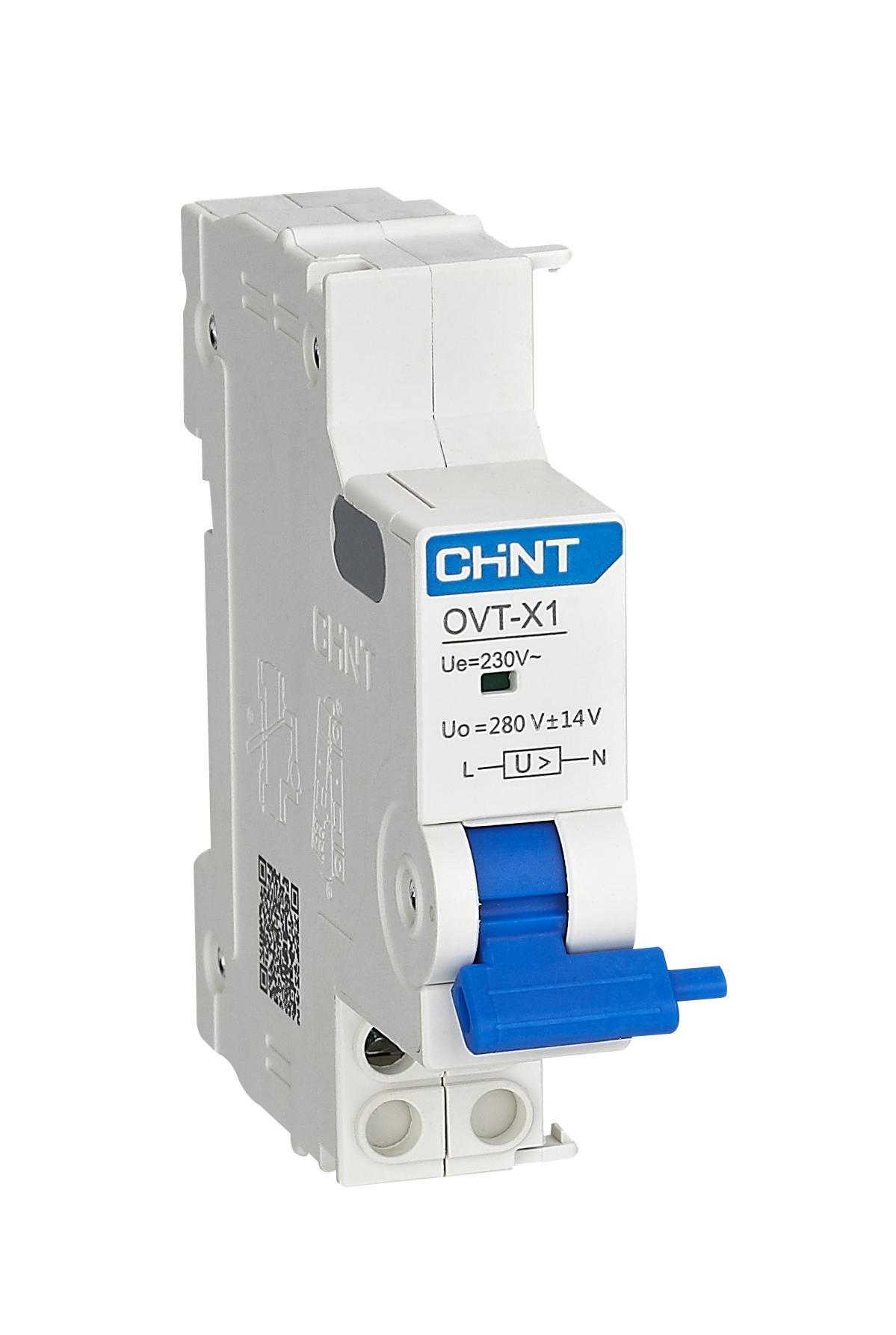

OVT X1 Accessories (Final Power Distribution)

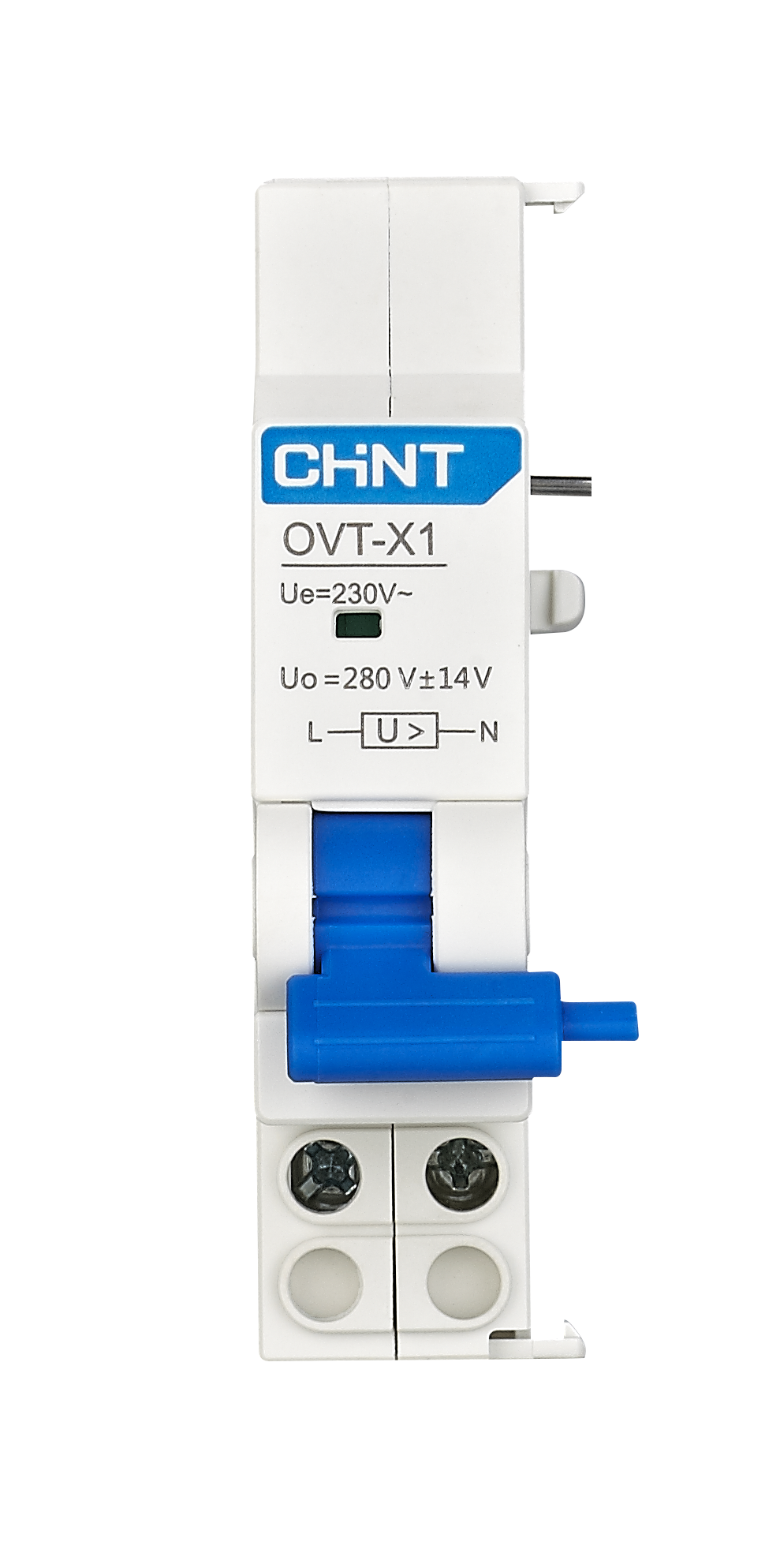

OVT X1 Accessories (Final Power Distribution) Front

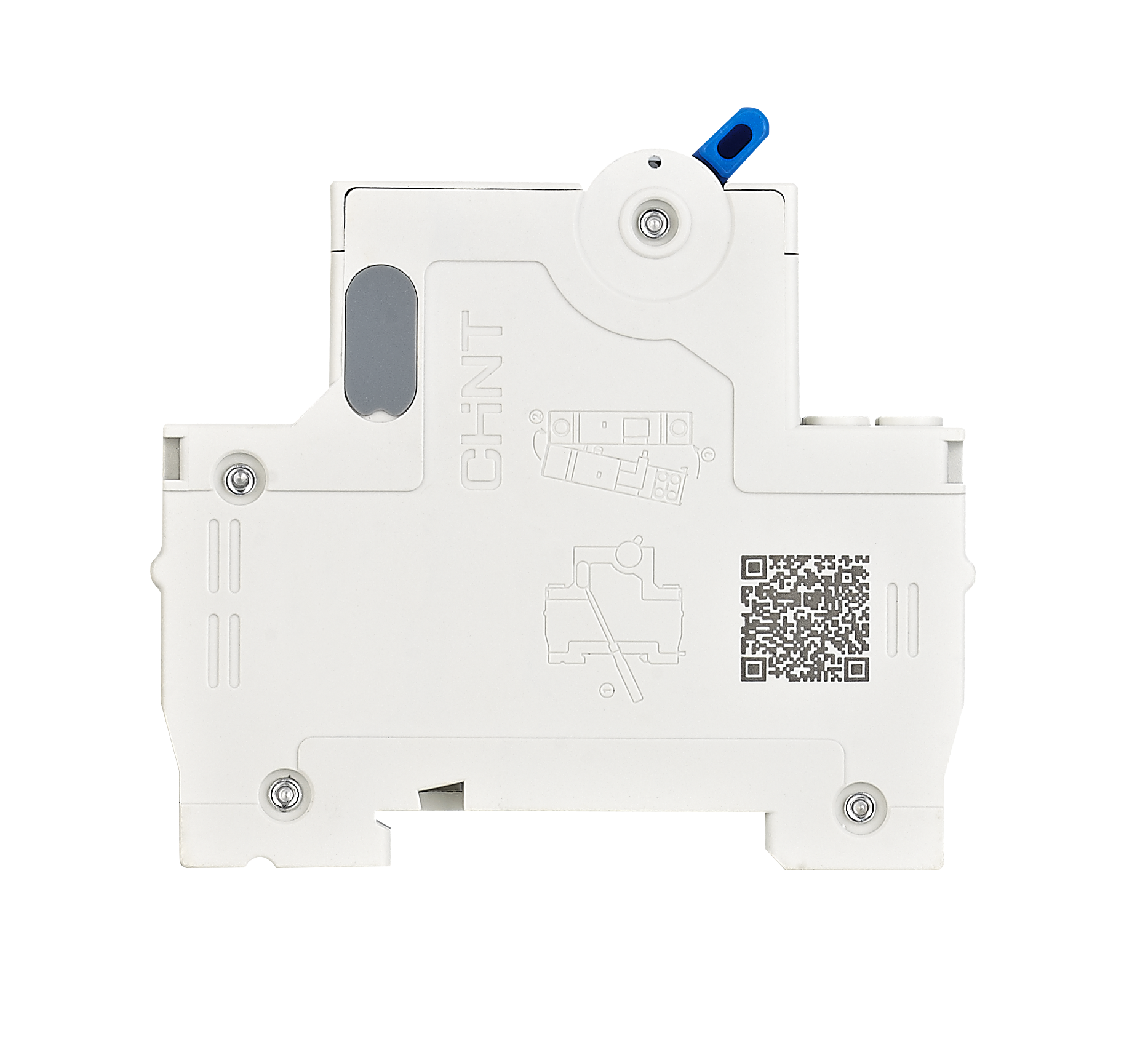

OVT X1 Accessories (Final Power Distribution) Side 1

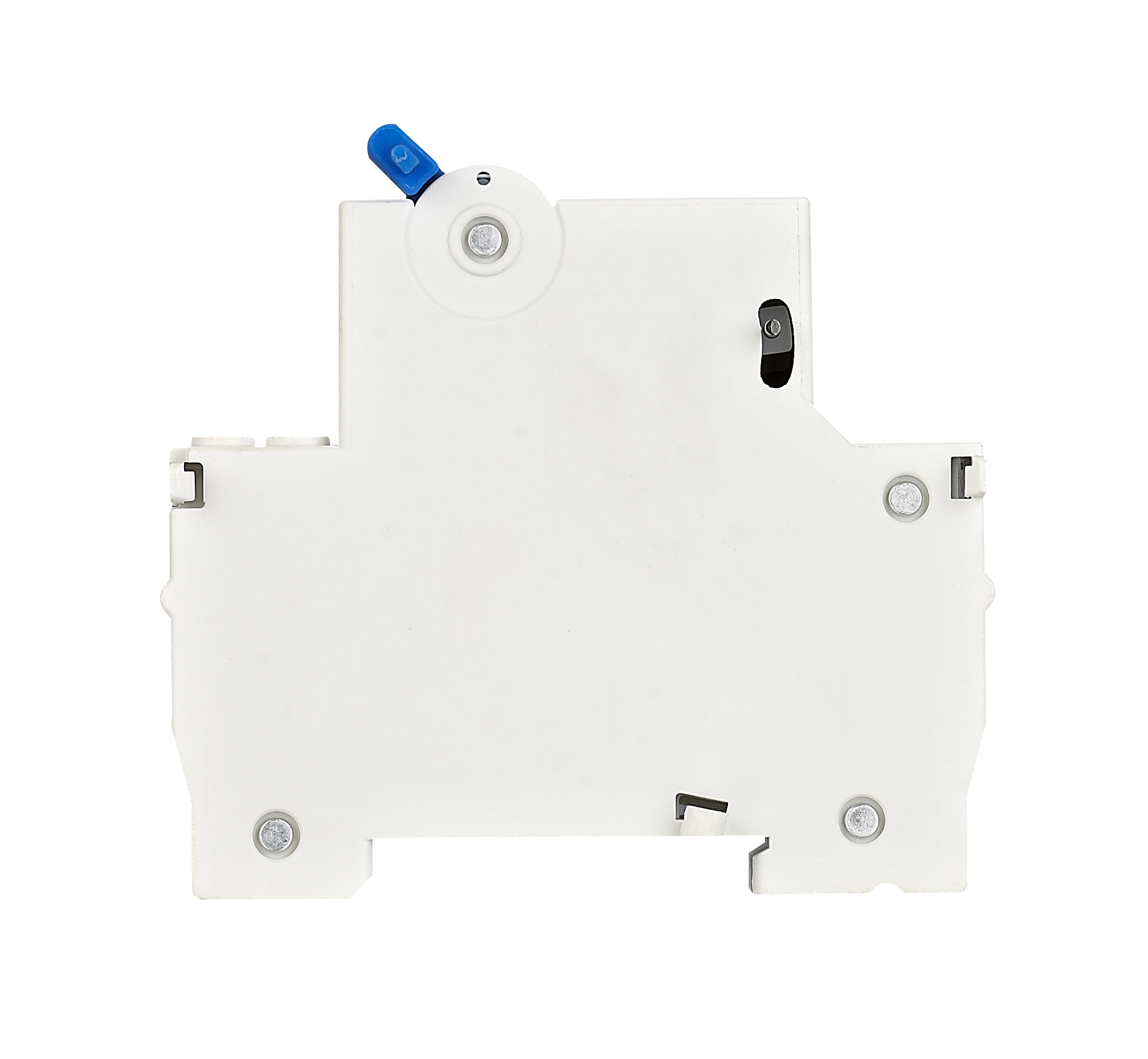

OVT X1 Accessories (Final Power Distribution) Side 2

OVT X1 Accessories (Final Power Distribution)

OVT X1 Accessories (Final Power Distribution) Front

OVT X1 Accessories (Final Power Distribution) Side 1

OVT X1 Accessories (Final Power Distribution) Side 2

OVT-X1 Overvoltage Release

To be assembled with the circuit breaker to achieve overvoltage protection.

Rated operation voltage Ue: AC 240V 50Hz (or 60Hz).

Rated insulation voltage Ui: 500V.

Overvoltage setting value Uvo: 280V.

Release action characteristics: when the main circuit voltage is in the range of (85% ~

110%) Ue, the release shall be able to keep the circuit breaker to work reliably for long

term. When the main circuit voltage is increased to 280 (1 ± 5%) V, the release assembled

with NXB-63 series circuit breaker should act and trip open NXB-63 circuit breaker.

Mechanical and electrical life: the mechanical and electrical life of release is ≥4000

operation cycles.

Product Information

To be assembled with the circuit breaker to achieve overvoltage protection.

Rated operation voltage Ue: AC 240V 50Hz (or 60Hz).

Rated insulation voltage Ui: 500V.

Overvoltage setting value Uvo: 280V.

Release action characteristics: when the main circuit voltage is in the range of (85% ~

110%) Ue, the release shall be able to keep the circuit breaker to work reliably for long

term. When the main circuit voltage is increased to 280 (1 ± 5%) V, the release assembled

with NXB-63 series circuit breaker should act and trip open NXB-63 circuit breaker.

Mechanical and electrical life: the mechanical and electrical life of release is ≥4000

operation cycles.

Name

Size

Release time

Operate

OVT-X1-Accessories (Final Power Distribution)-Catalog.pdf

54.04KB

2024-09-22

Download

Name

Size

Release time

Operate

2004-OVT-X1-Accessories (Final Power Distribution)-Manual.pdf

828.51KB

2024-09-22

Download

Name

Size

Release time

Operate

OVT-X1-Accessories (Final Power Distribution)-Drawing-3D.igs

2024-09-22

Download

OVT-X1-Accessories (Final Power Distribution)-Drawing-2D.dwg

5.98MB

2024-09-22

Download
