AX-5 Auxiliary Contact Datasheet & Manual

AX-5 Auxiliary Contact

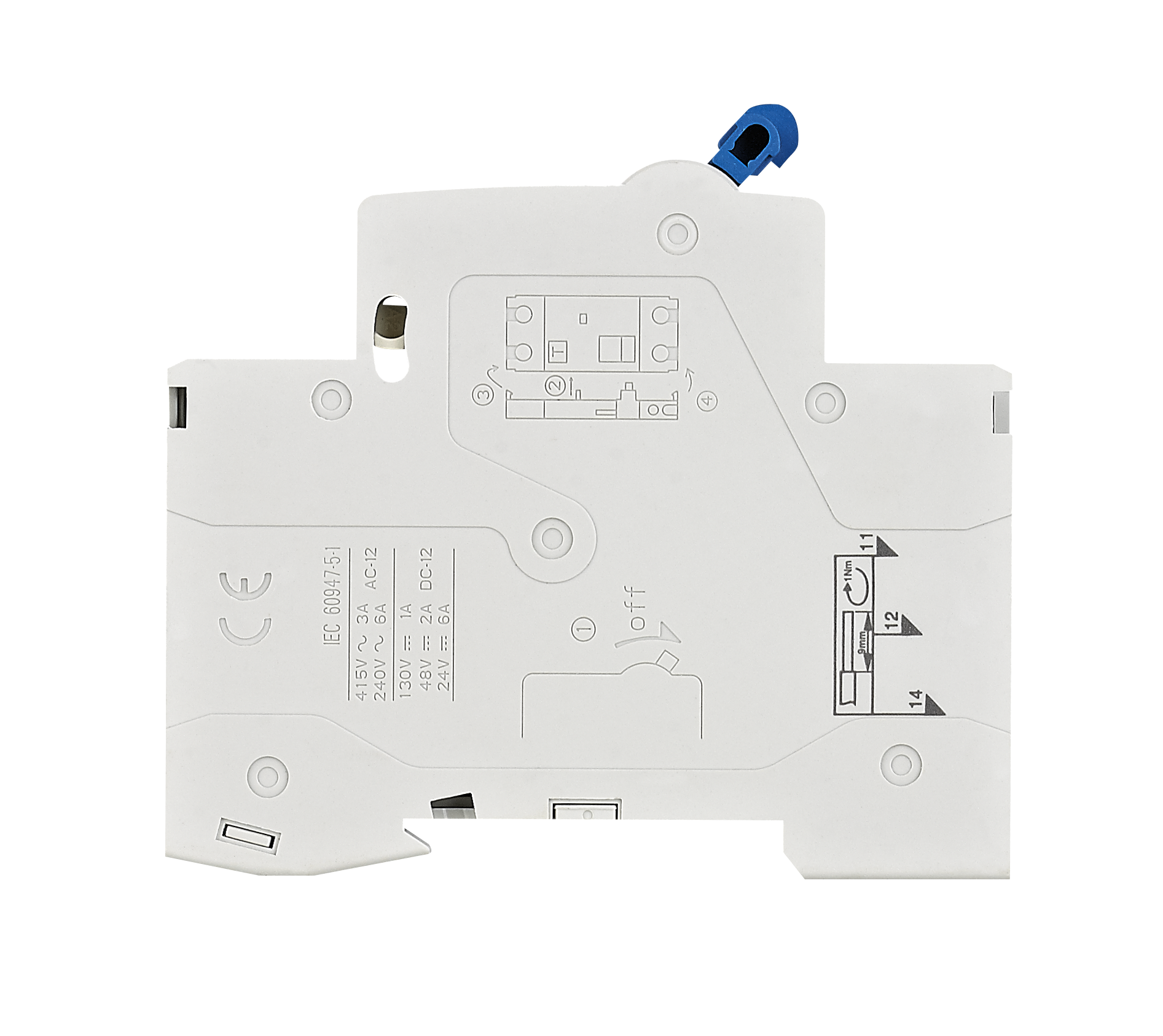

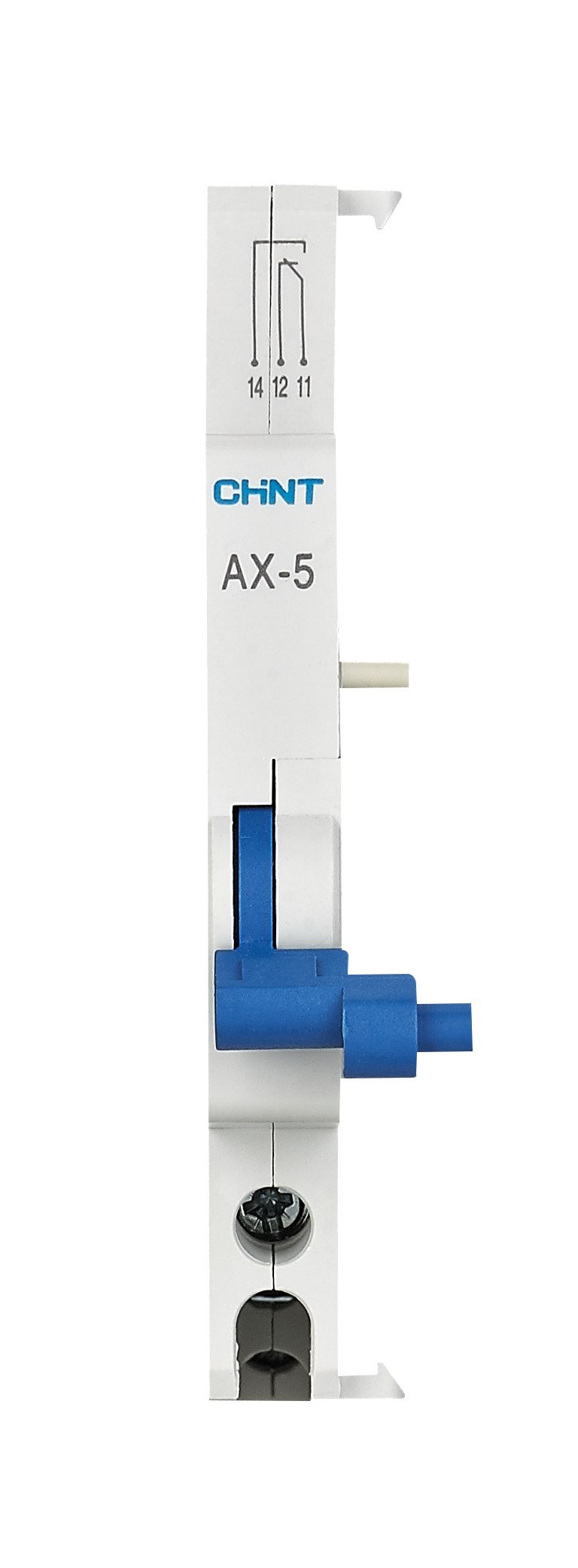

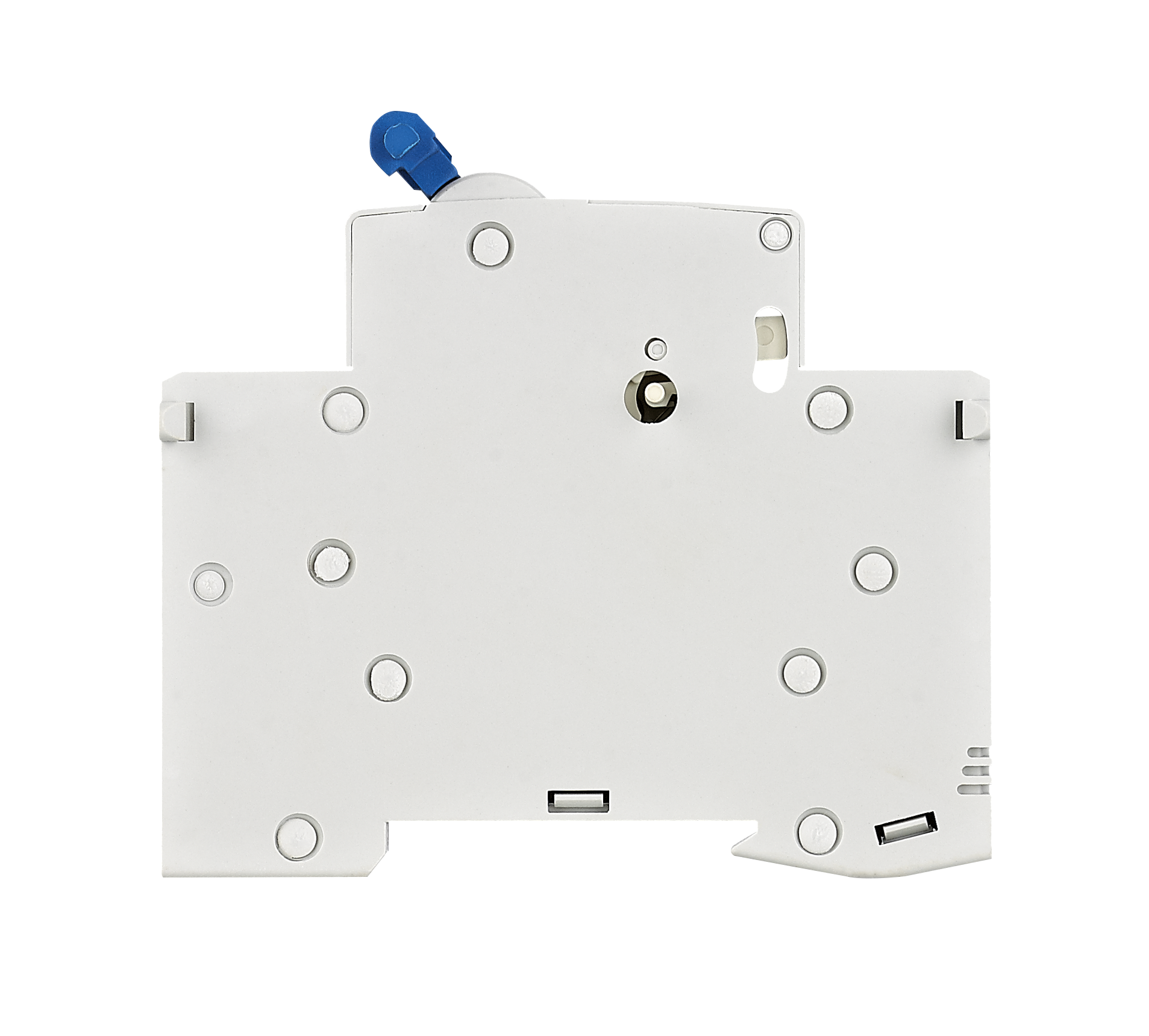

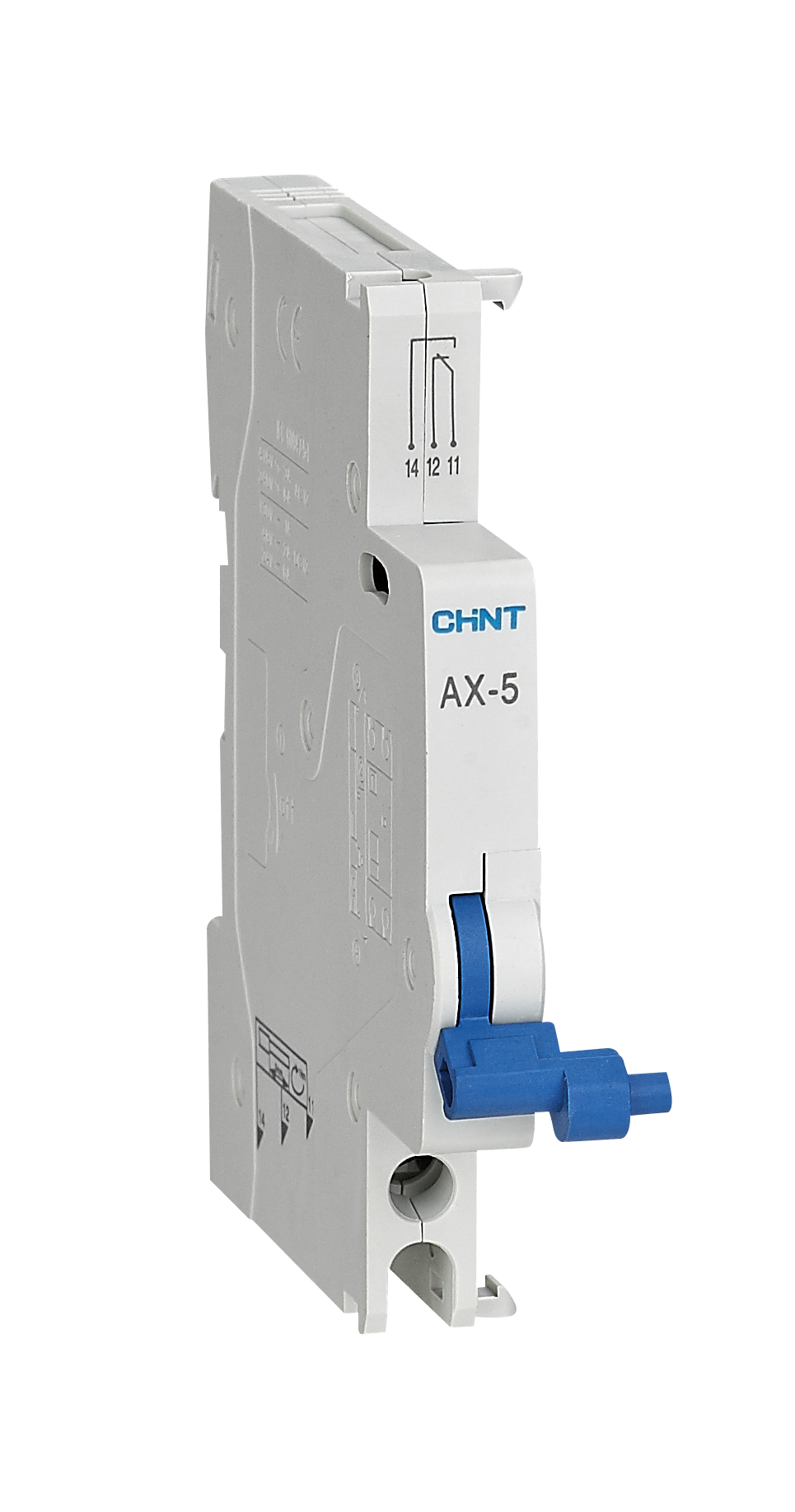

The CHINT AX-5 Auxiliary Contact is an accessory designed for use with the NL1 Residual Current Circuit Breaker (RCCB). It provides remote ON/OFF signal indication for AC and DC circuits, enhancing system monitoring and control. Rated at 6A heating current and suitable for AC 415V or DC 130V, the AX-5 ensures reliable operation across diverse low-voltage applications. Built to IEC 60947-5-1 and GB/T 14048.5 standards, it offers high durability with over 10,000 operating cycles, compact design, and straightforward DIN-rail mounting

Need Support From Us?

Blog

Find expert perspectives on the trends and technologies driving your business.

View Now

Download Center

Download new and previously released documents including product document, solutions, cases, coporate report.

View Now

Reach out to us to receive more information, technical support, assistance with complaints and more.

Collapsed

Expand

FAQs

What is the main function of the AX-5 Auxiliary Contact?

It provides remote ON/OFF signal indication when assembled with an NL1 RCCB, enabling system monitoring or interlocking in automated control setups

Can the AX-5 be used independently?

No. It is designed as an accessory module and functions only when attached to an NL1 Residual Current Circuit Breaker

What are the environmental limits for operation?

The AX-5 operates reliably between –35°C and +70°C and up to 95% relative humidity, making it suitable for varied indoor environments

How is the AX-5 installed?

Installation involves removing the left cover plate of the RCCB and clipping the AX-5 onto the DIN rail alongside the breaker, as illustrated in the assembly diagram (page P-063)

What ensures its long-term reliability?

It conforms to IEC 60947-5-1 standards, supports 10,000+ mechanical operations, and features high-quality contacts for consistent signal transmission under both AC and DC conditions
