Standards:IEC/EN 60947-2、VC8036、SANS 556-1、SANS 60947-2
Certificate:CE, CB, LoA
Rated current: 1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Rated voltage: 230V~/240V~(1P), 400V~/415V~(2P, 3P, 4P);
Frequency: 50/60Hz;

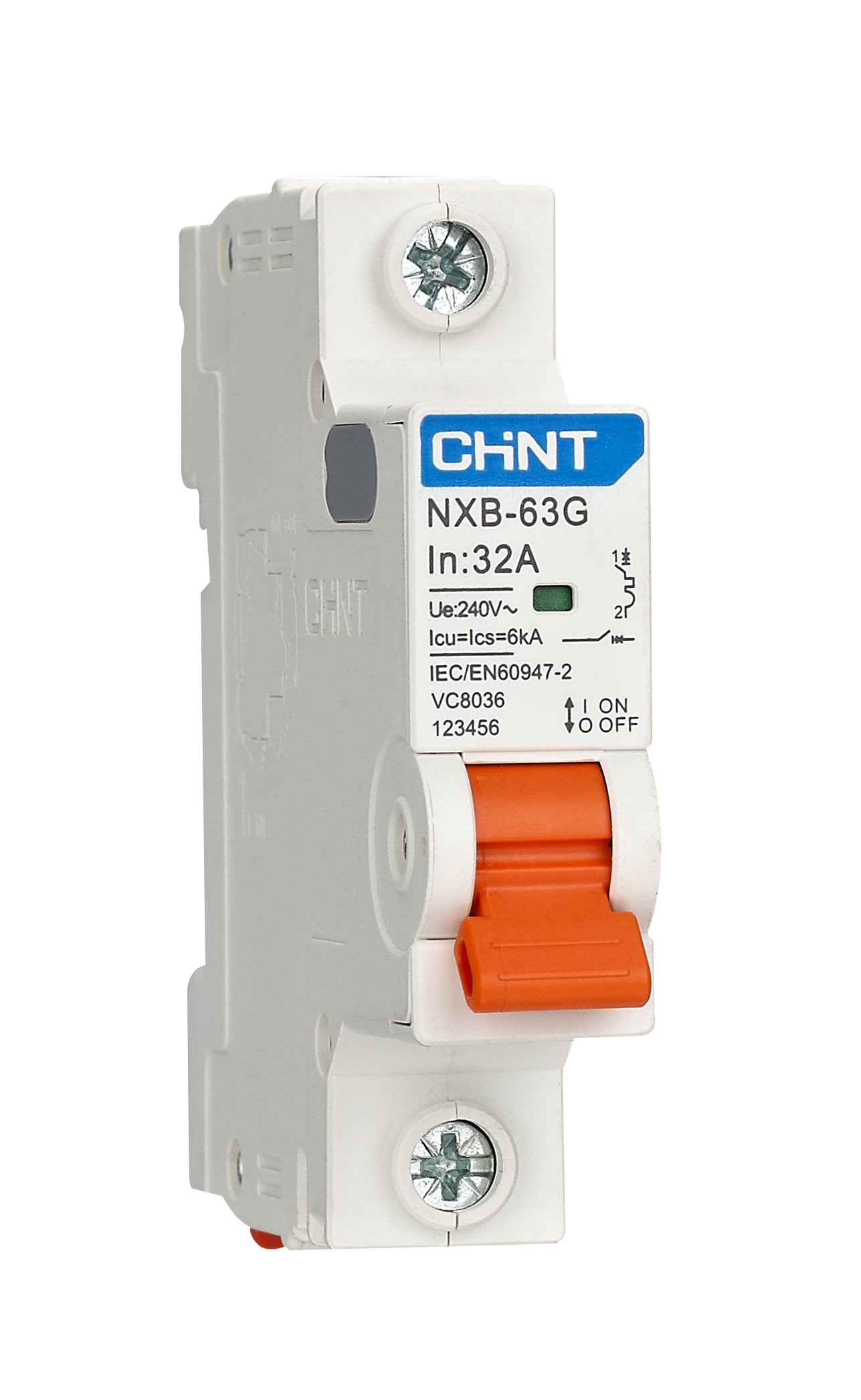

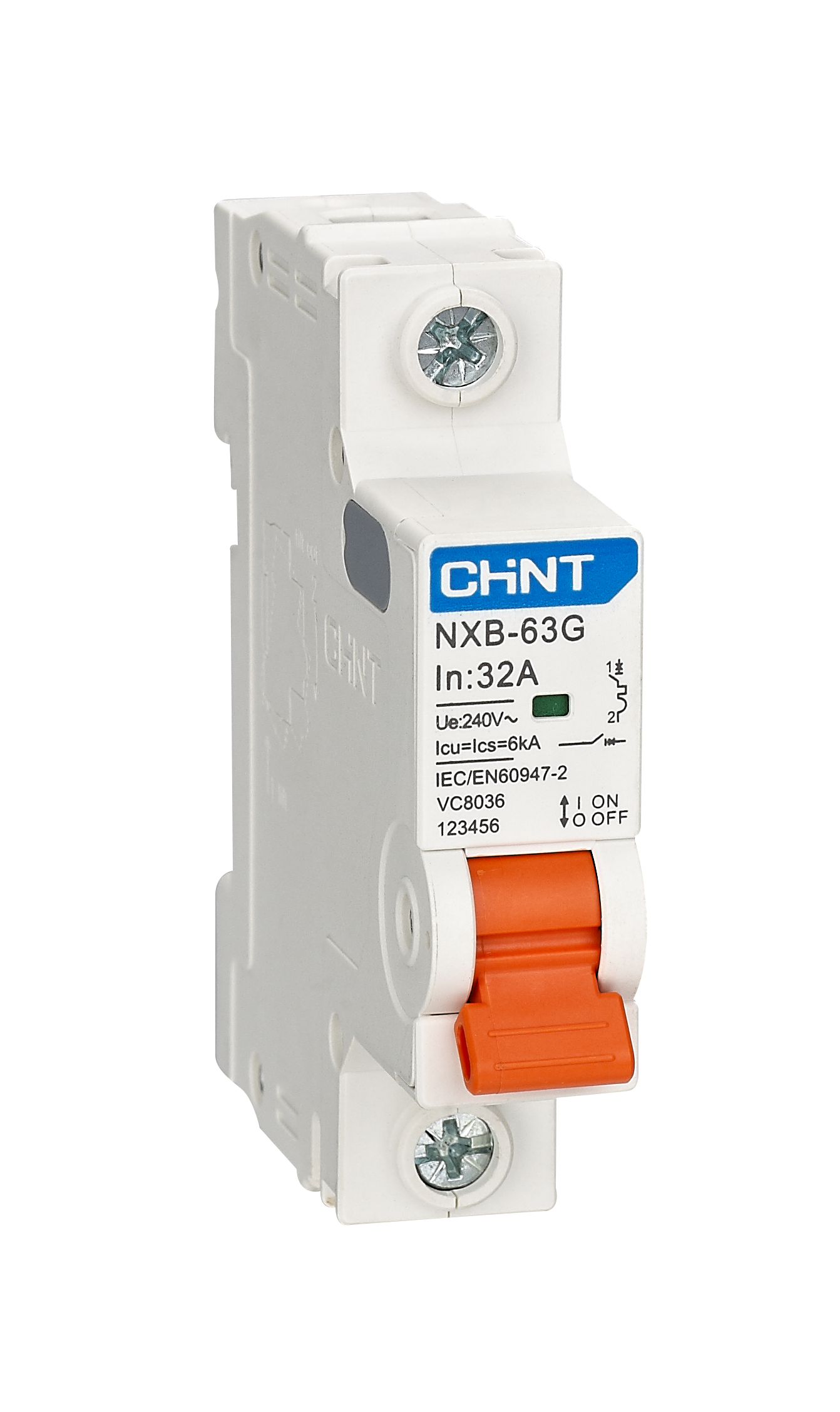

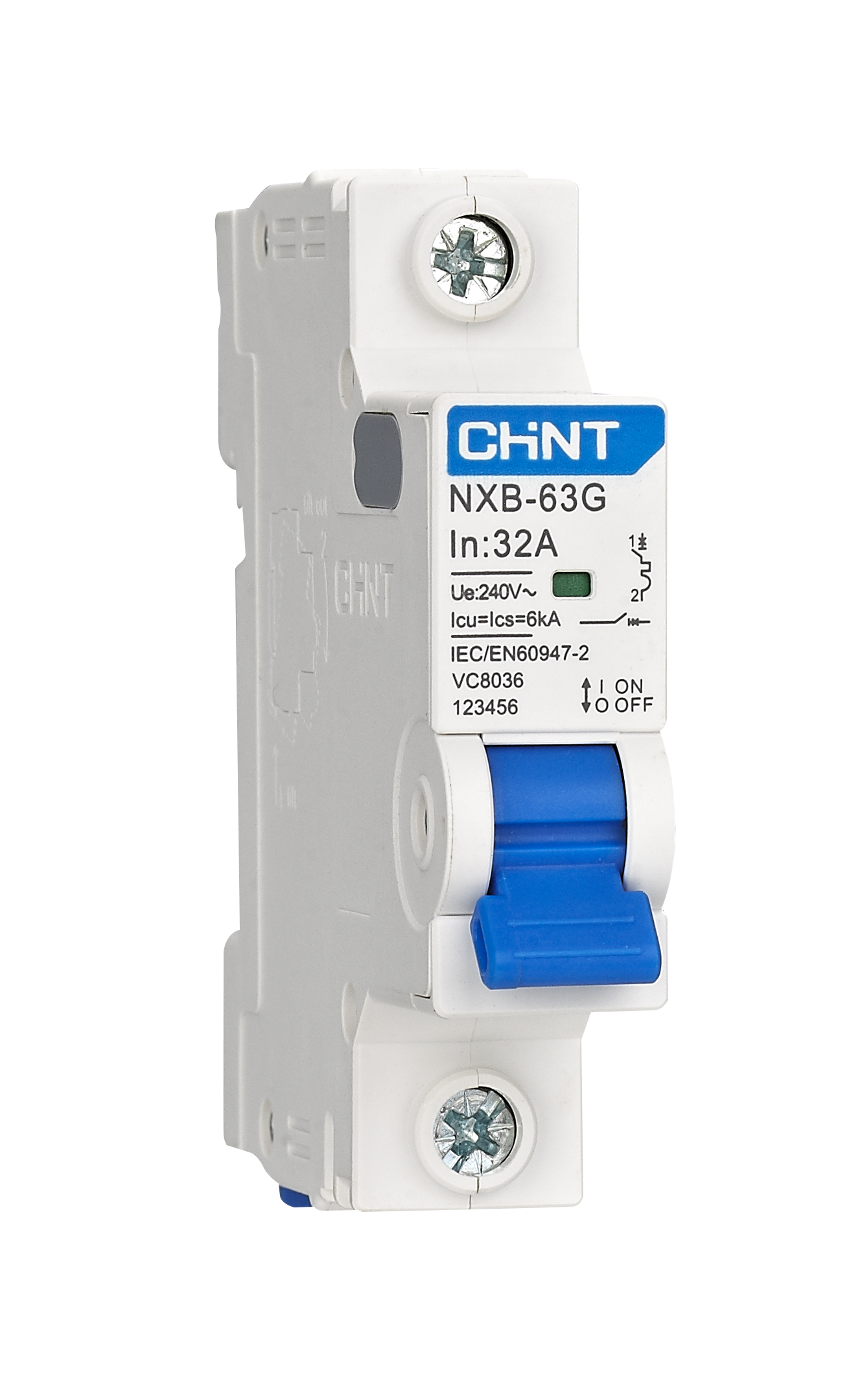

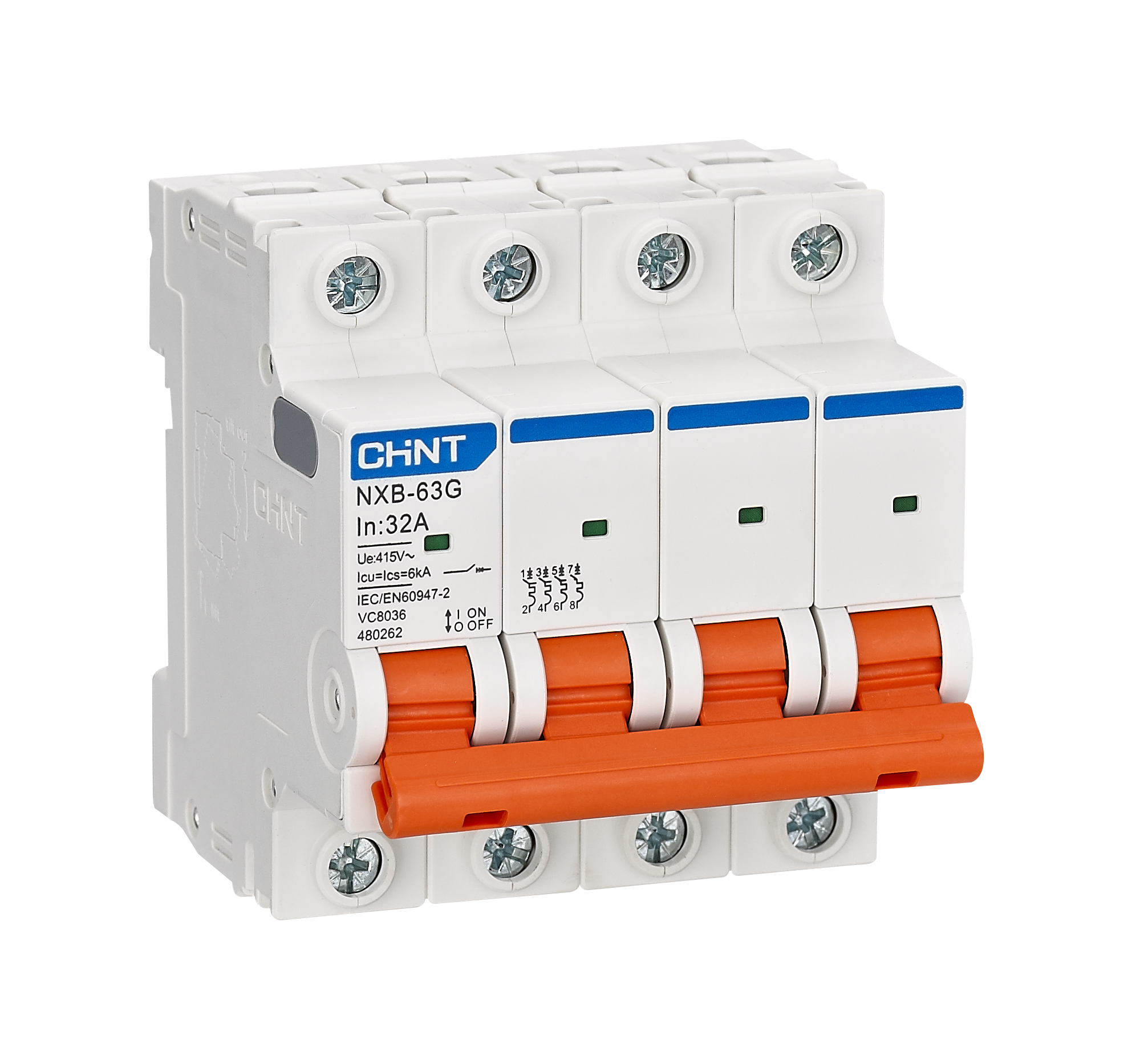

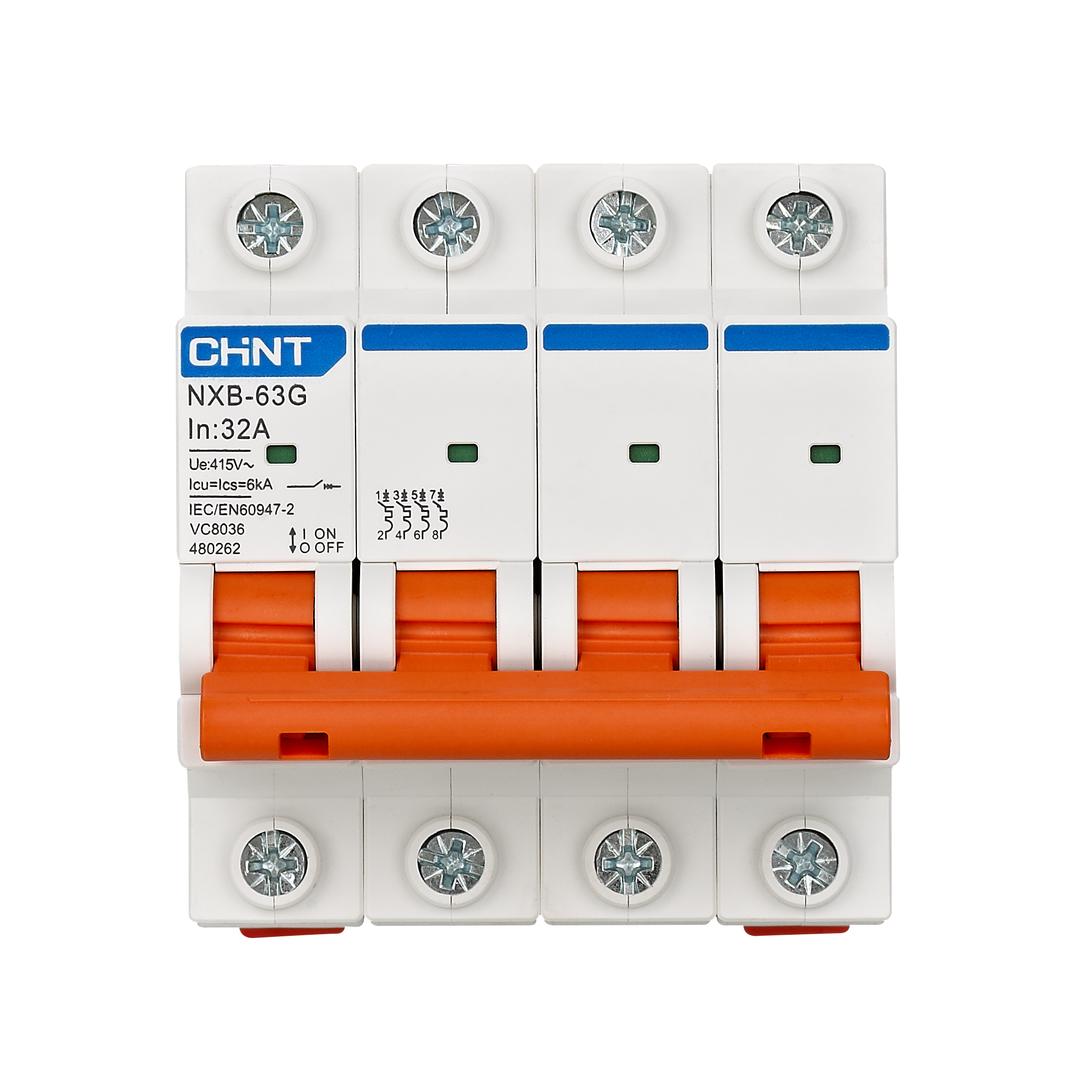

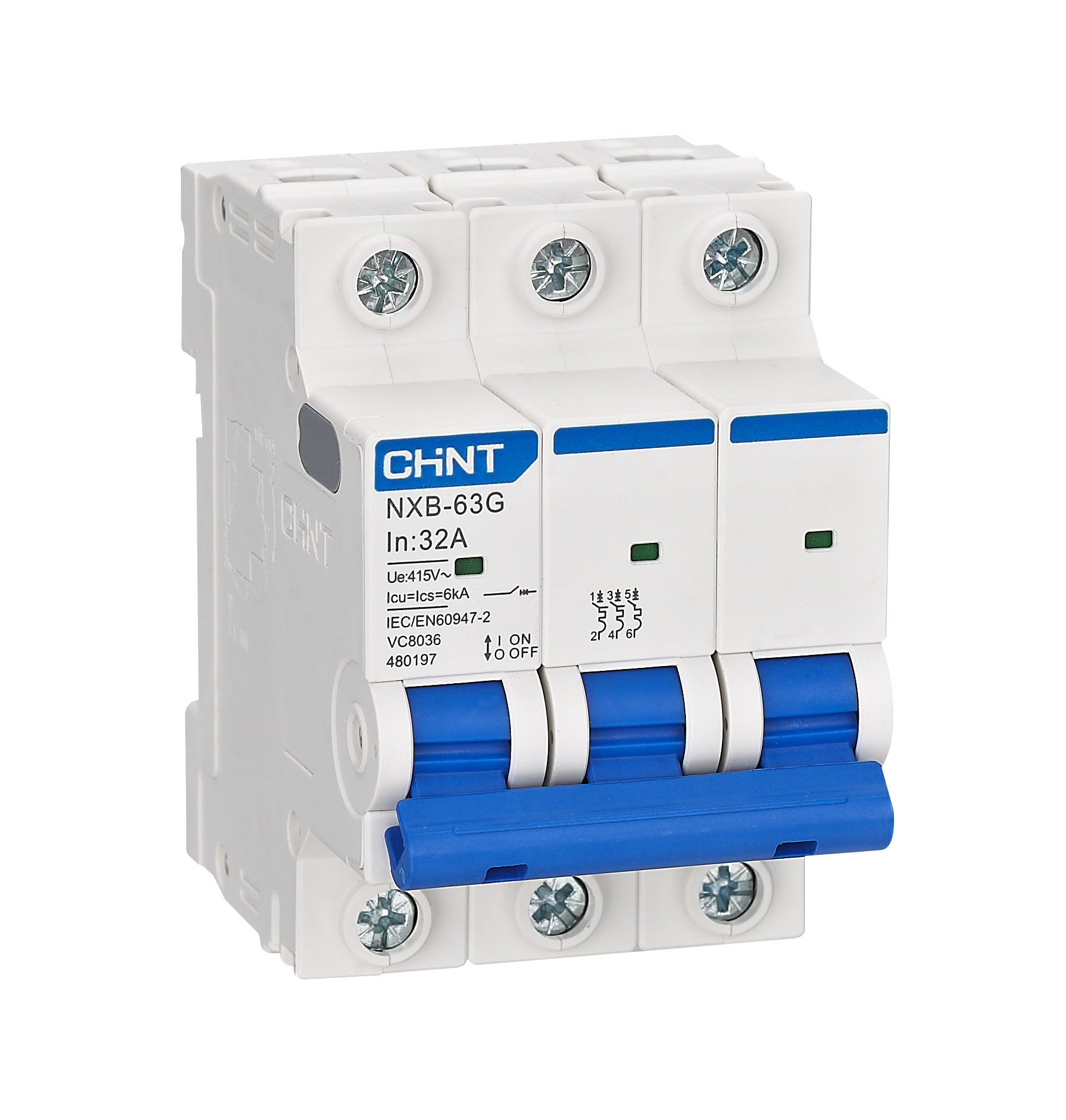

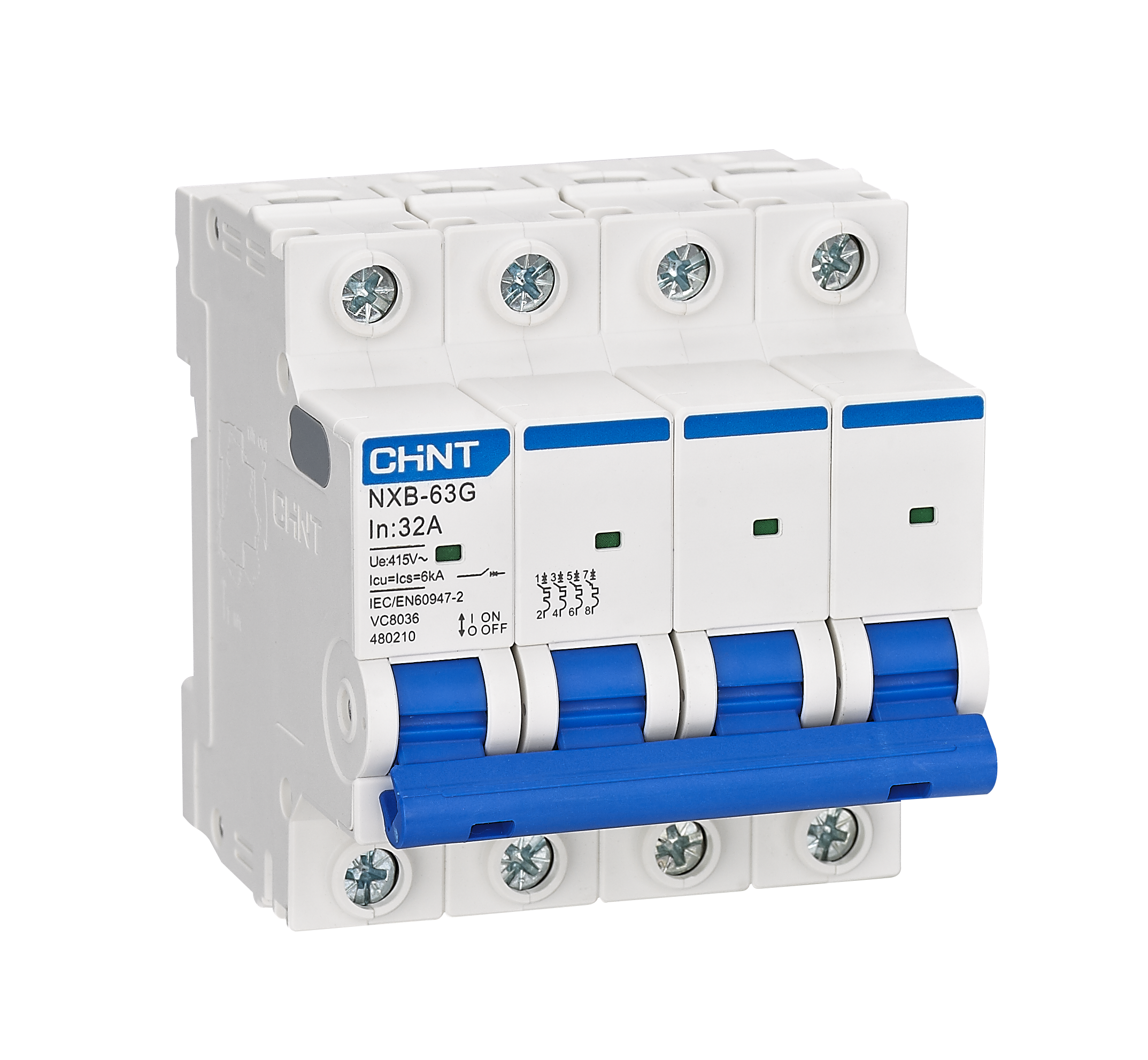

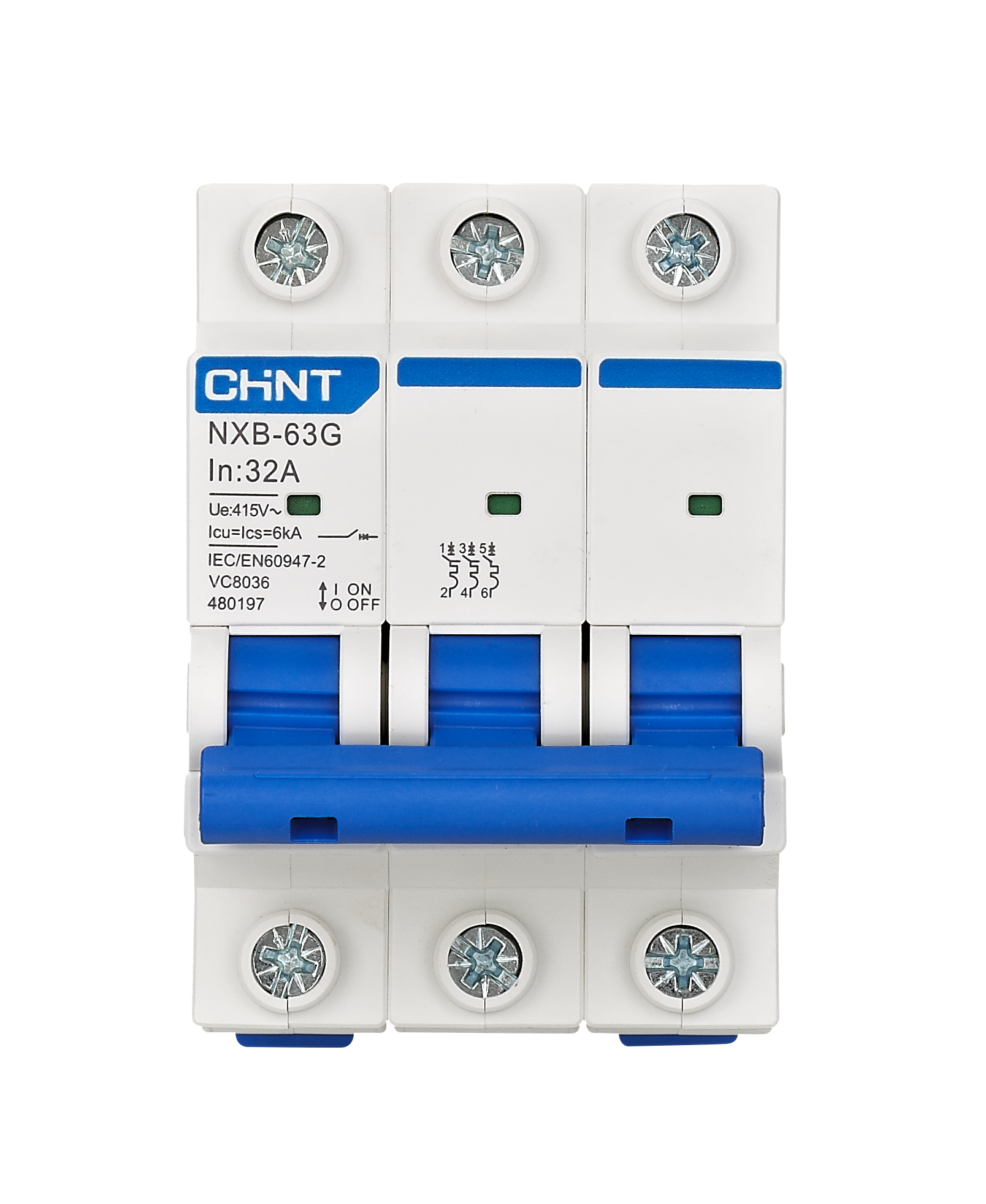

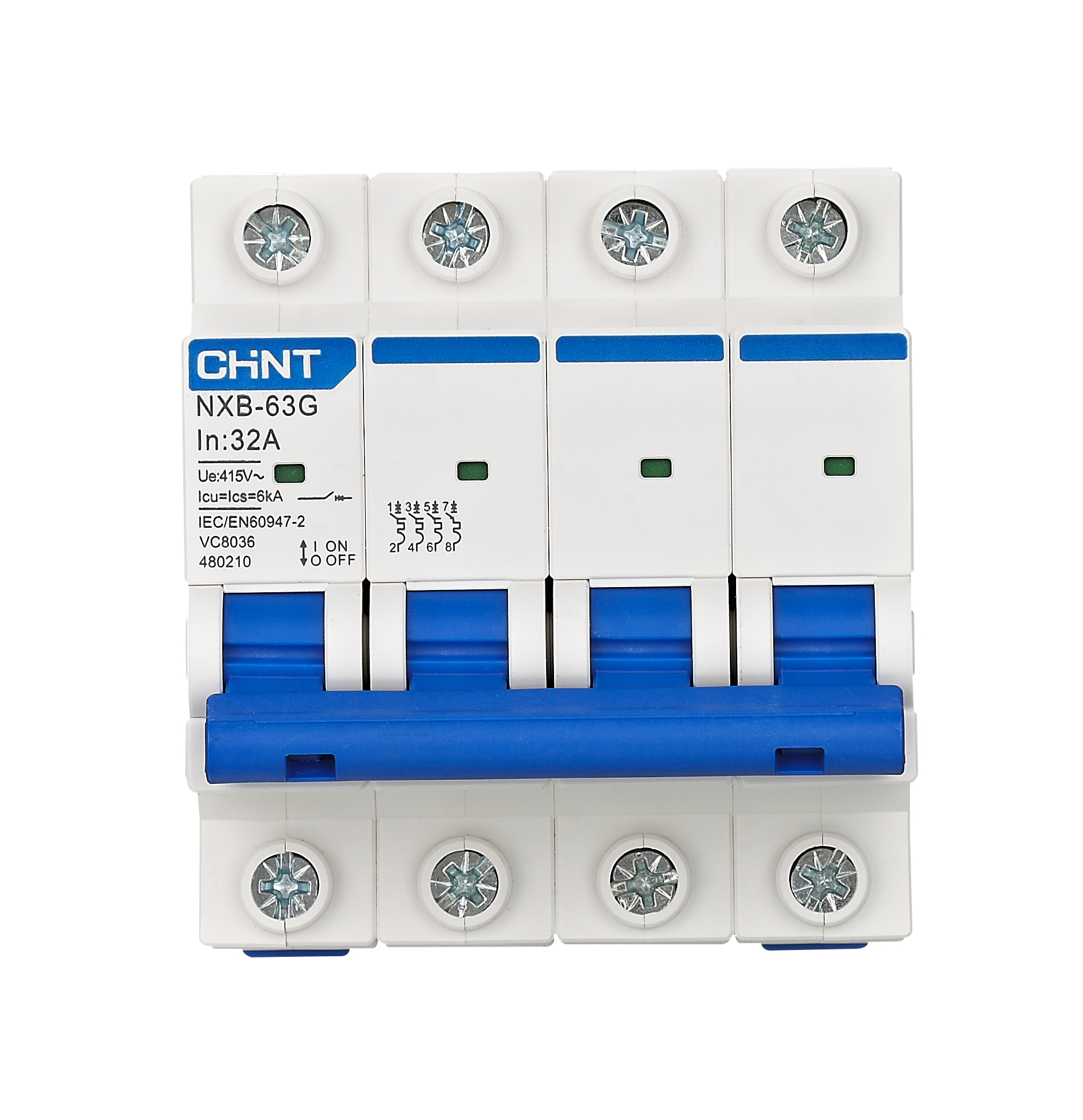

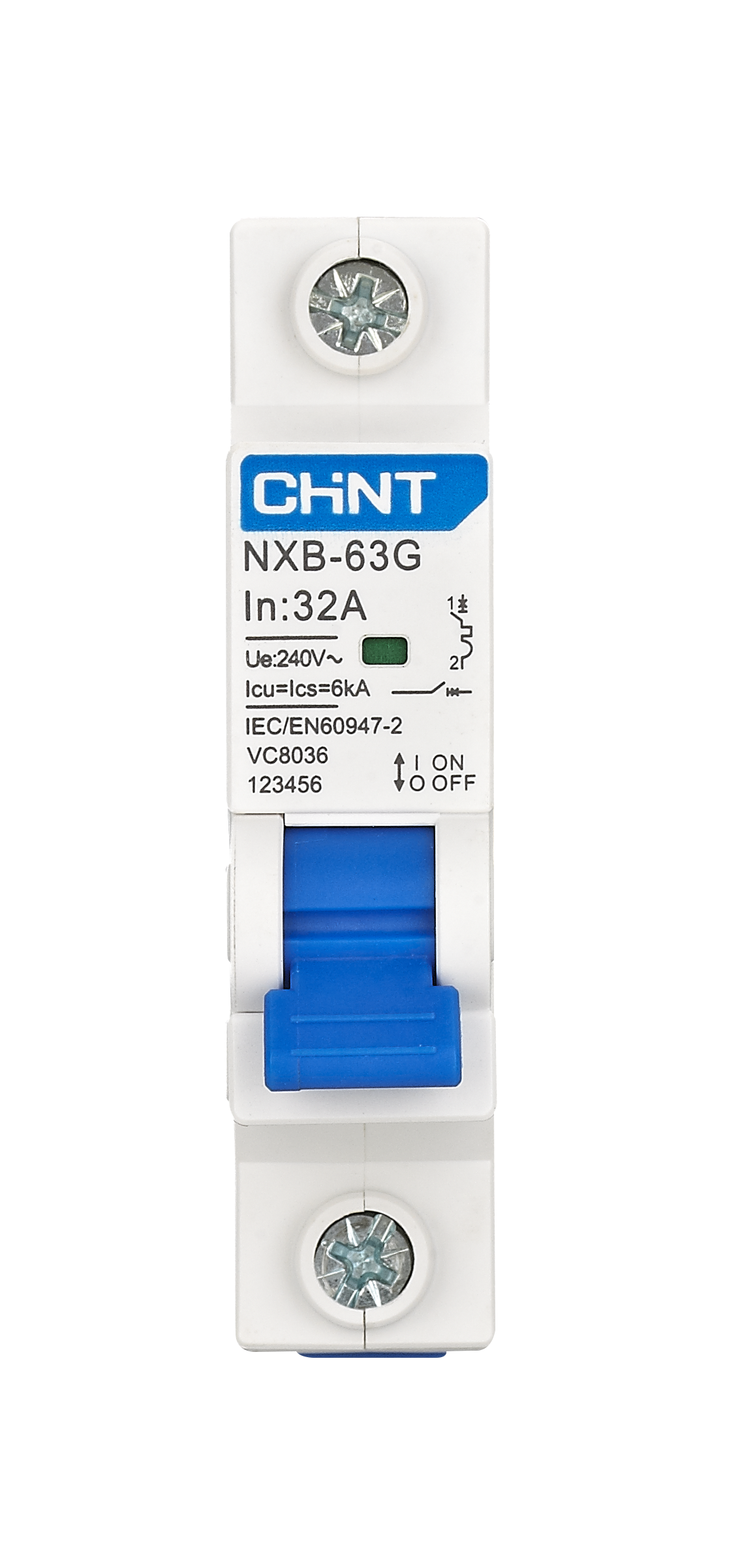

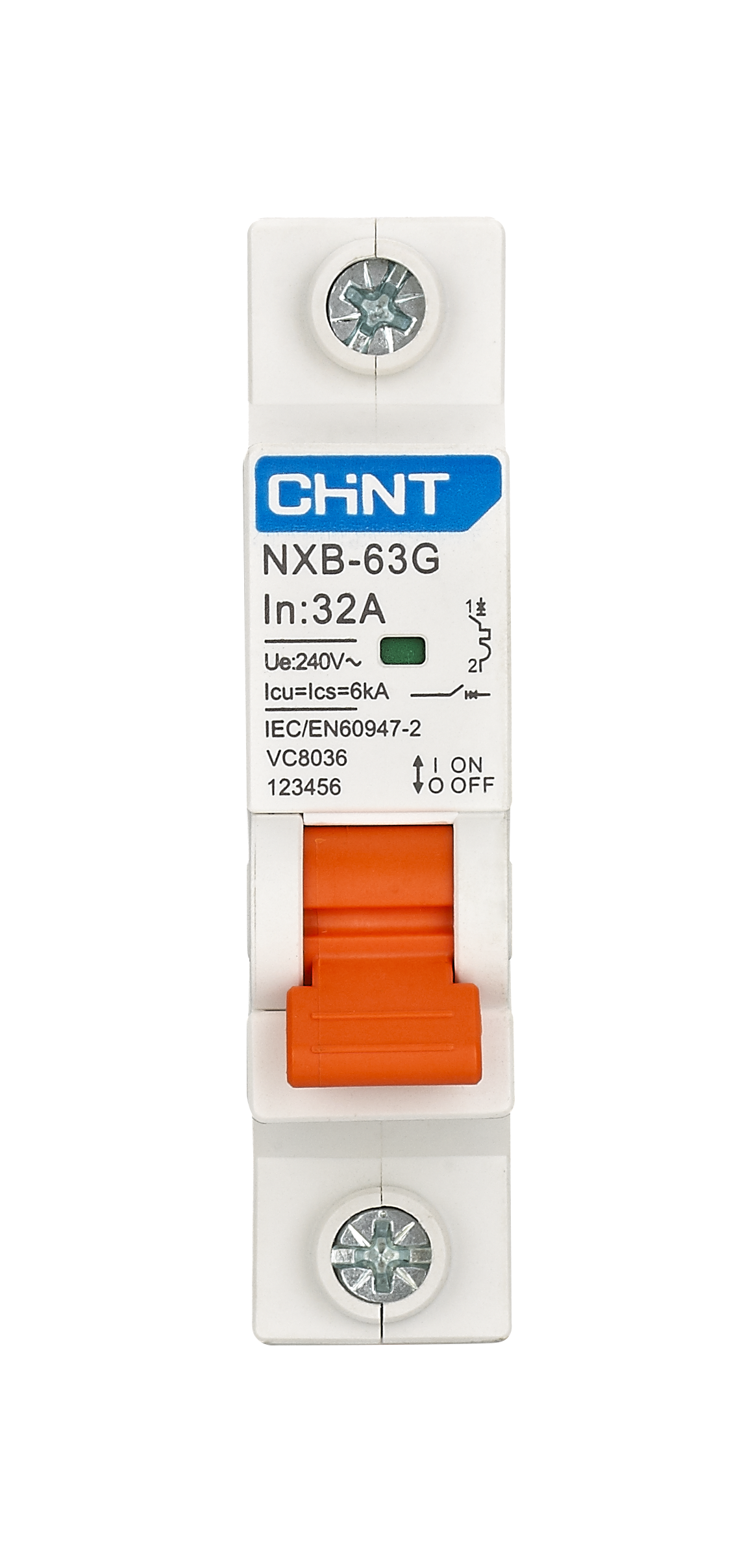

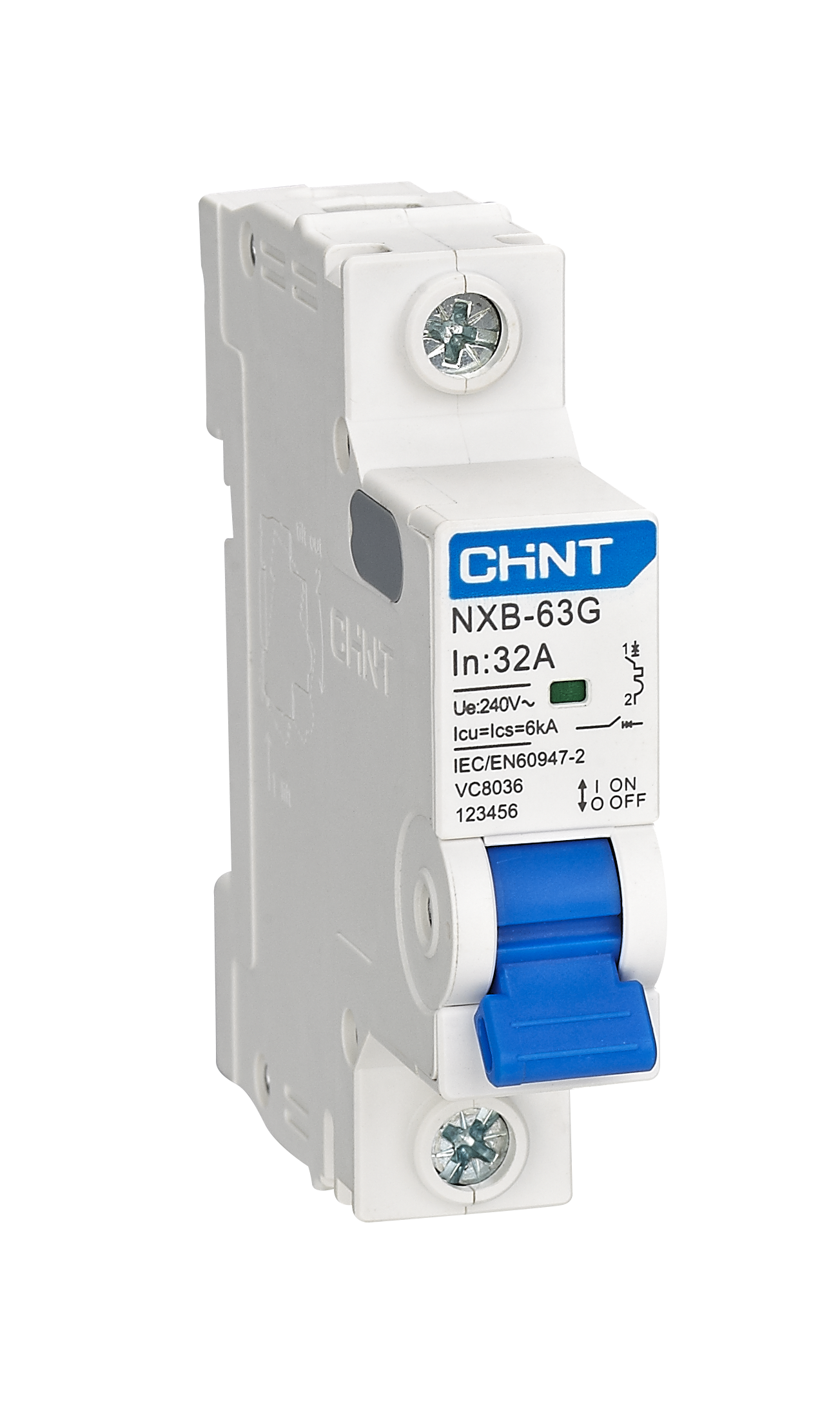

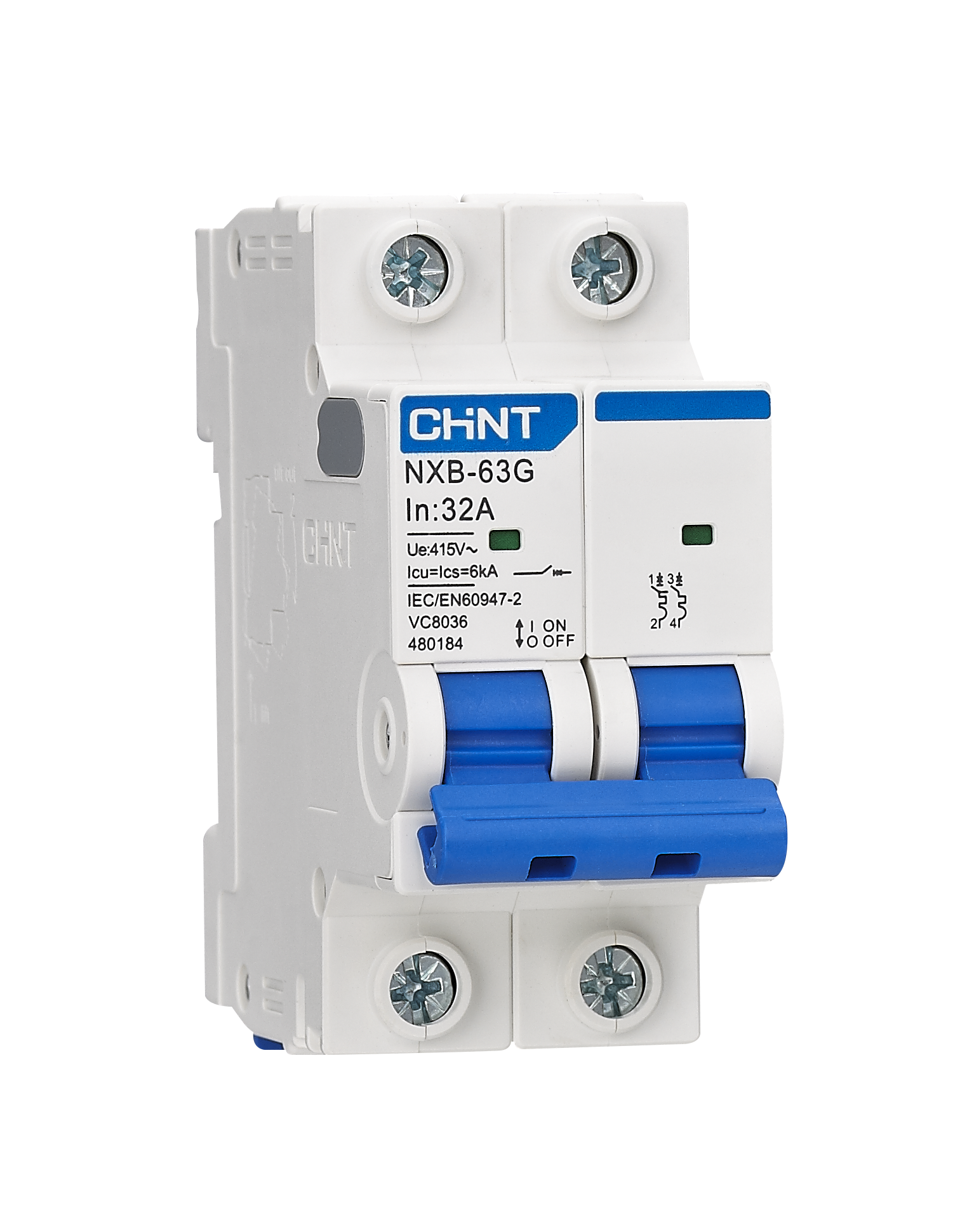

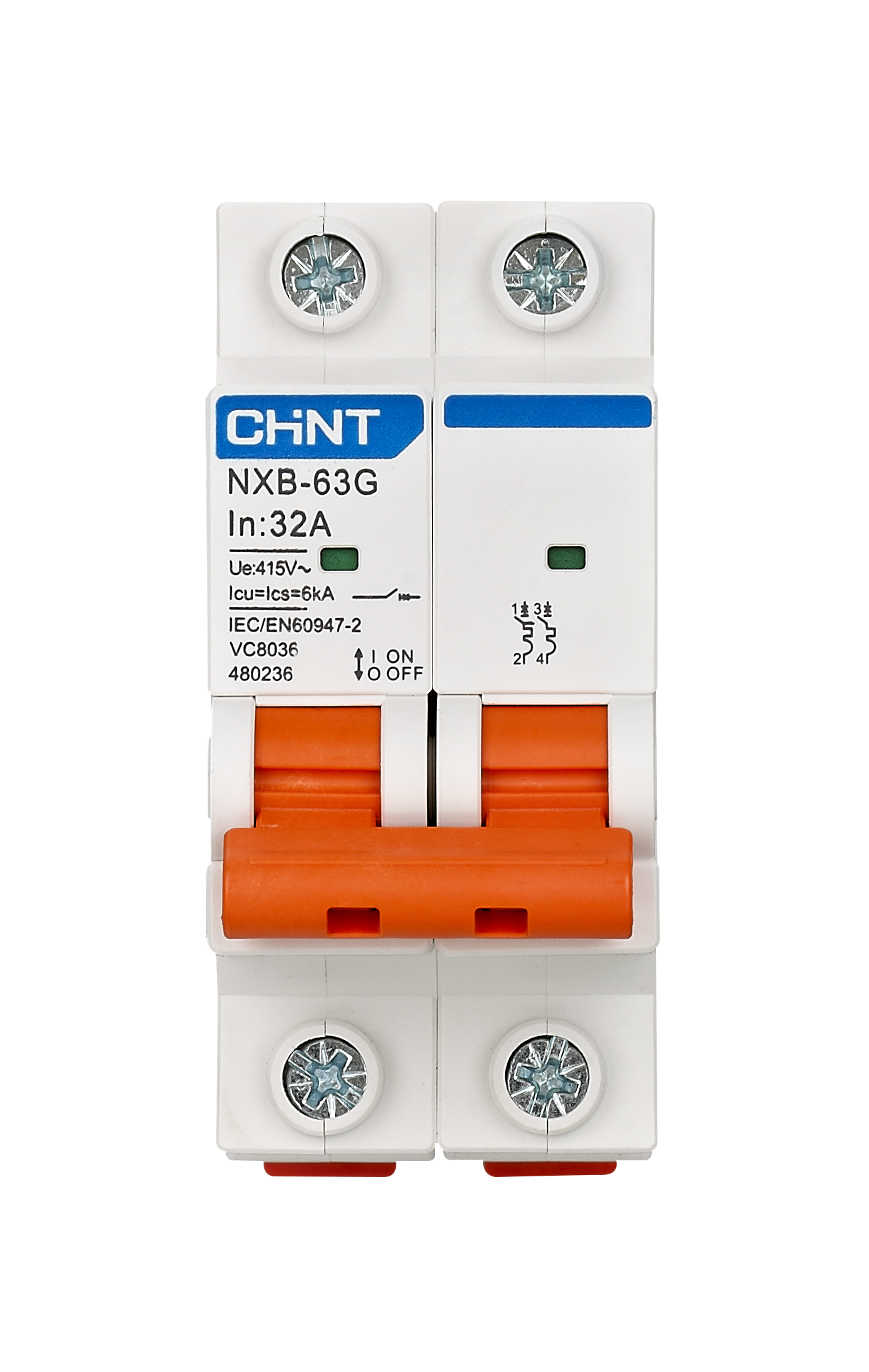

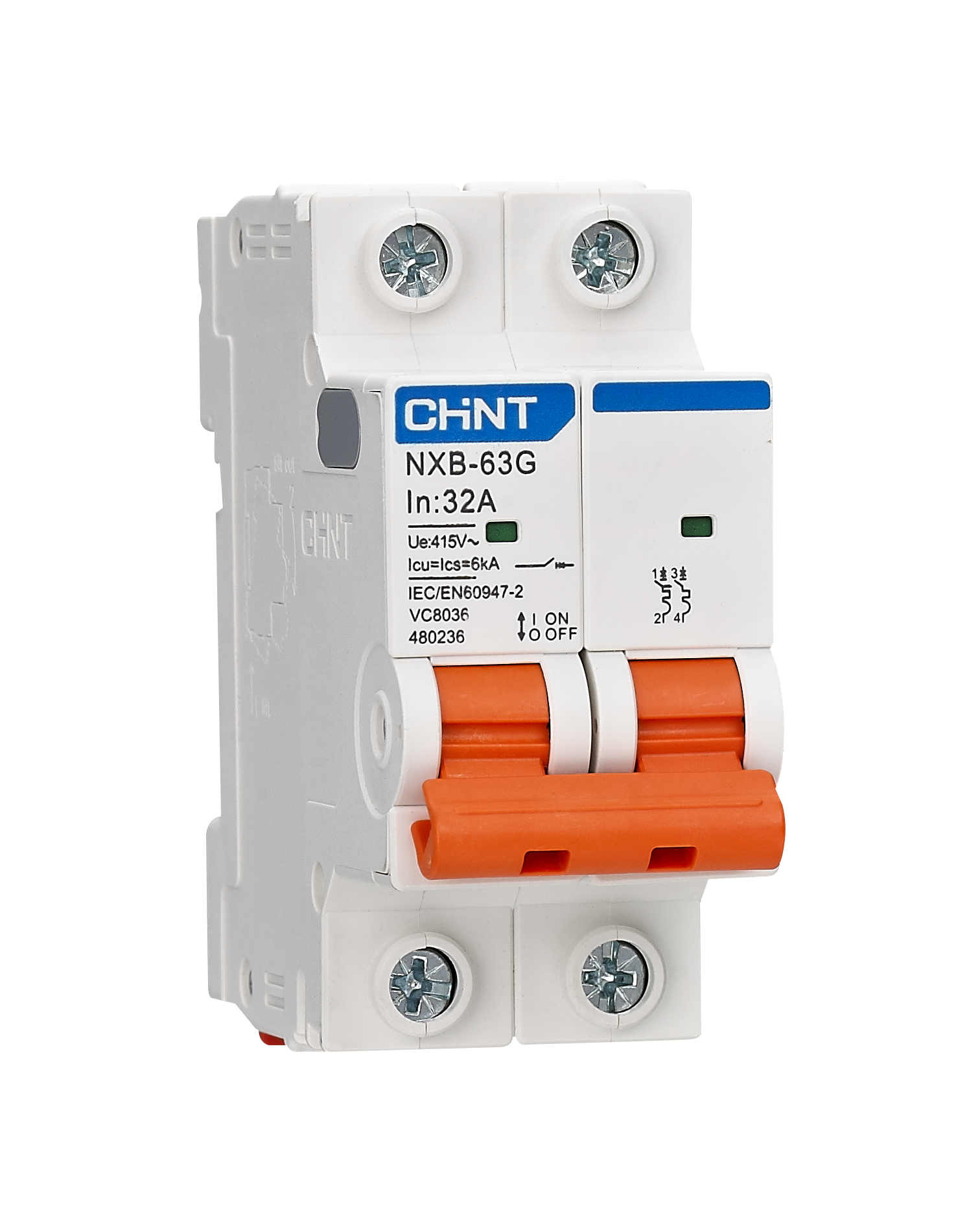

Rated instantaneous short-circuit current setting: 10In(blue), 14.2In(orange);

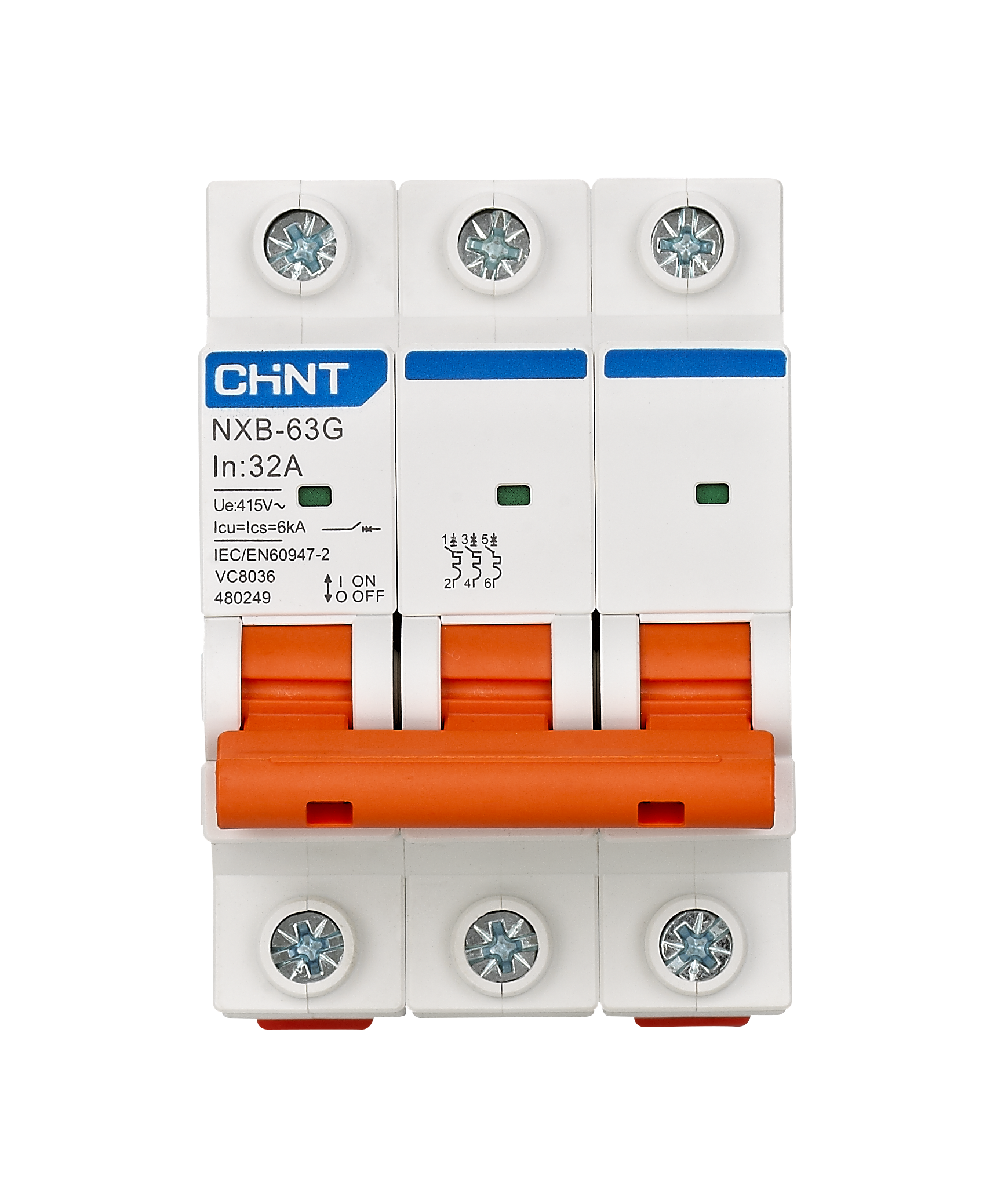

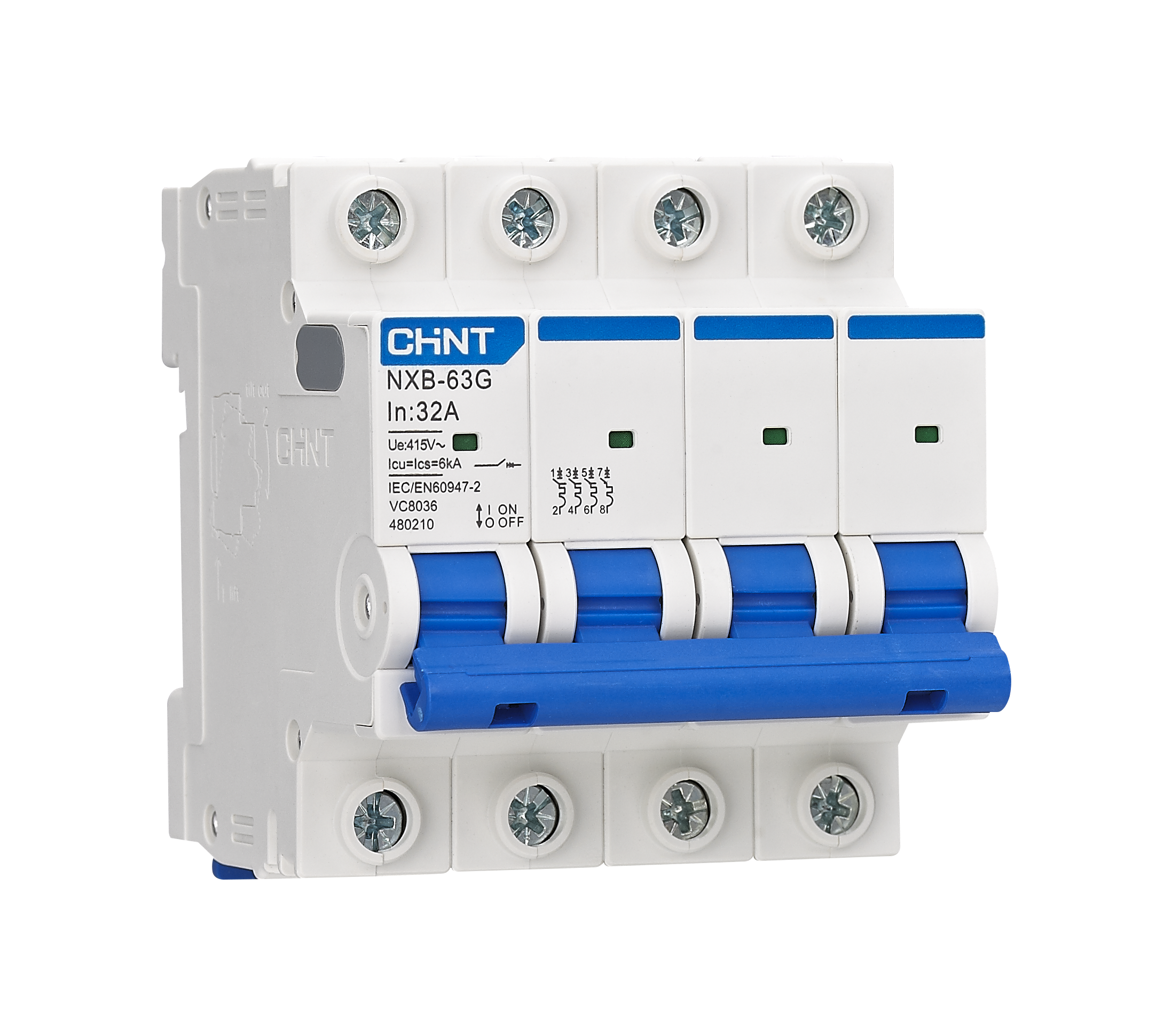

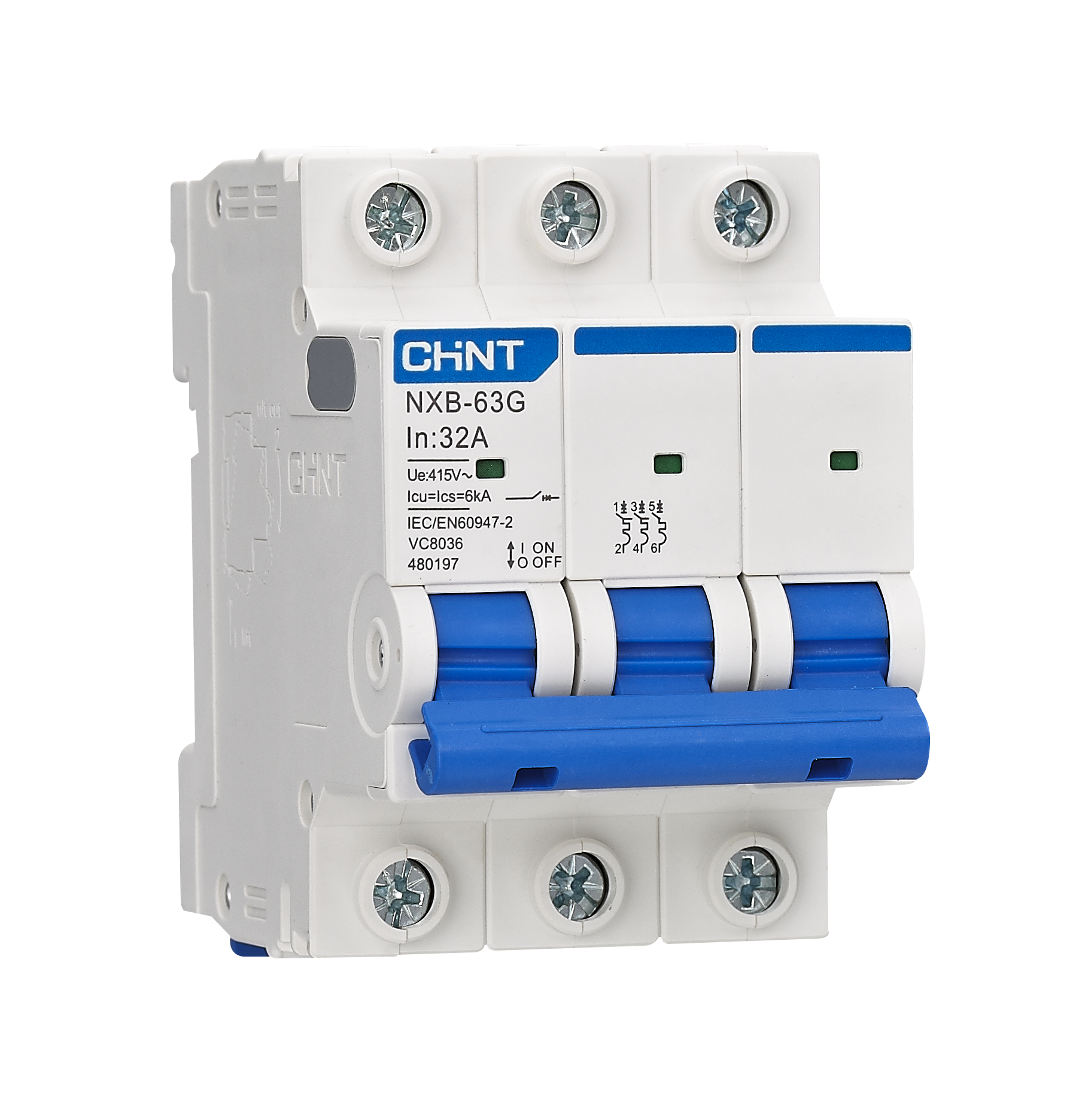

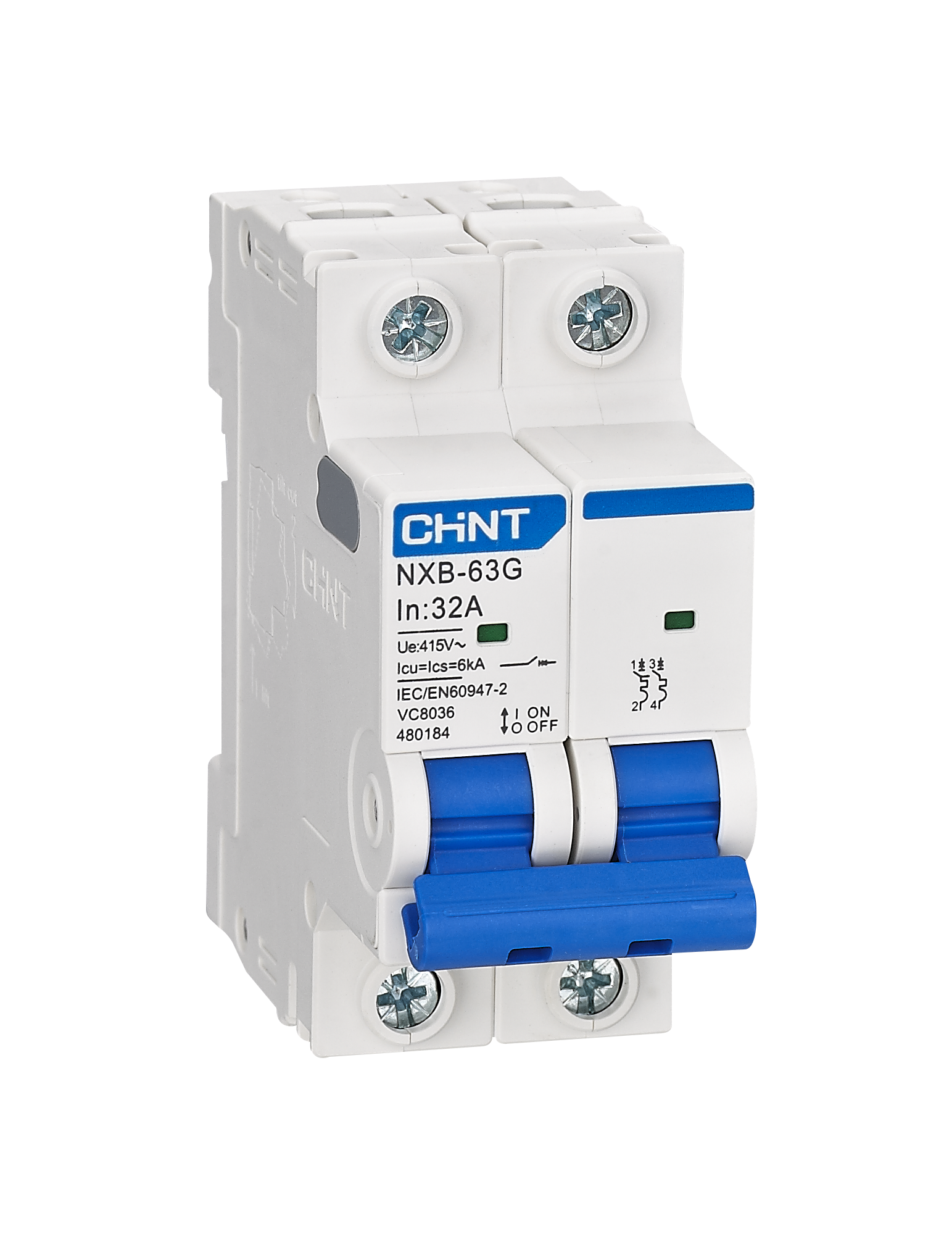

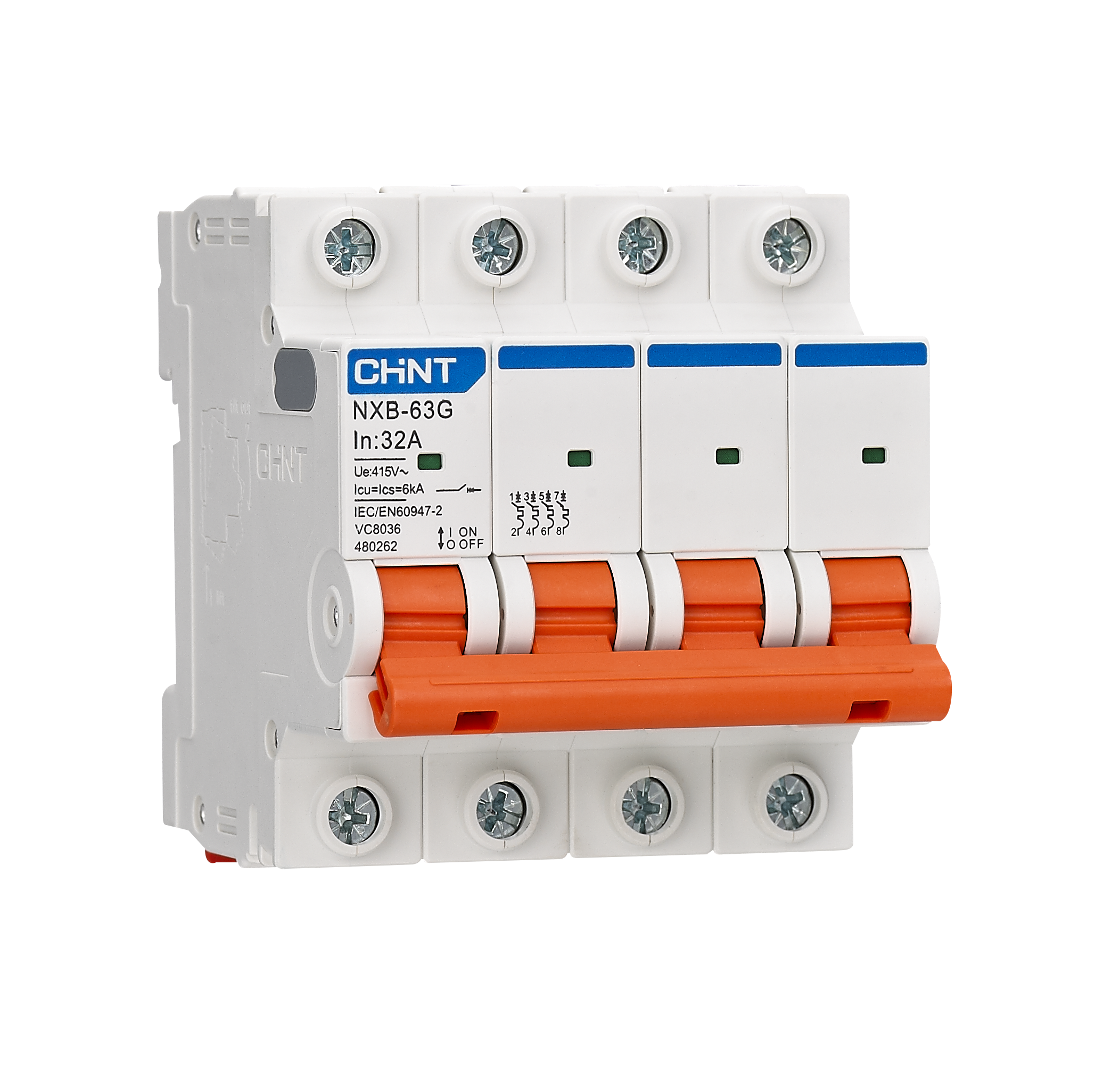

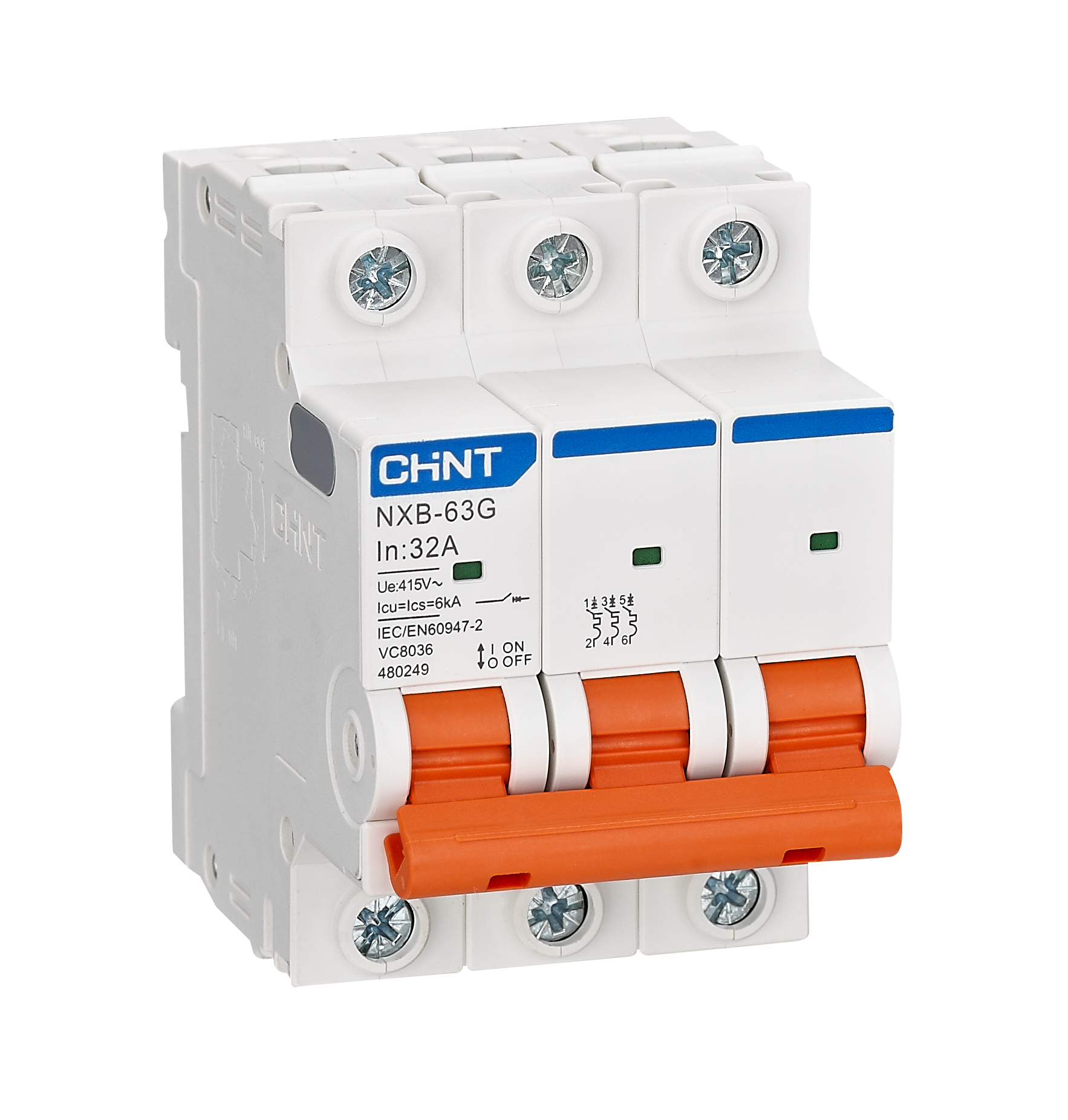

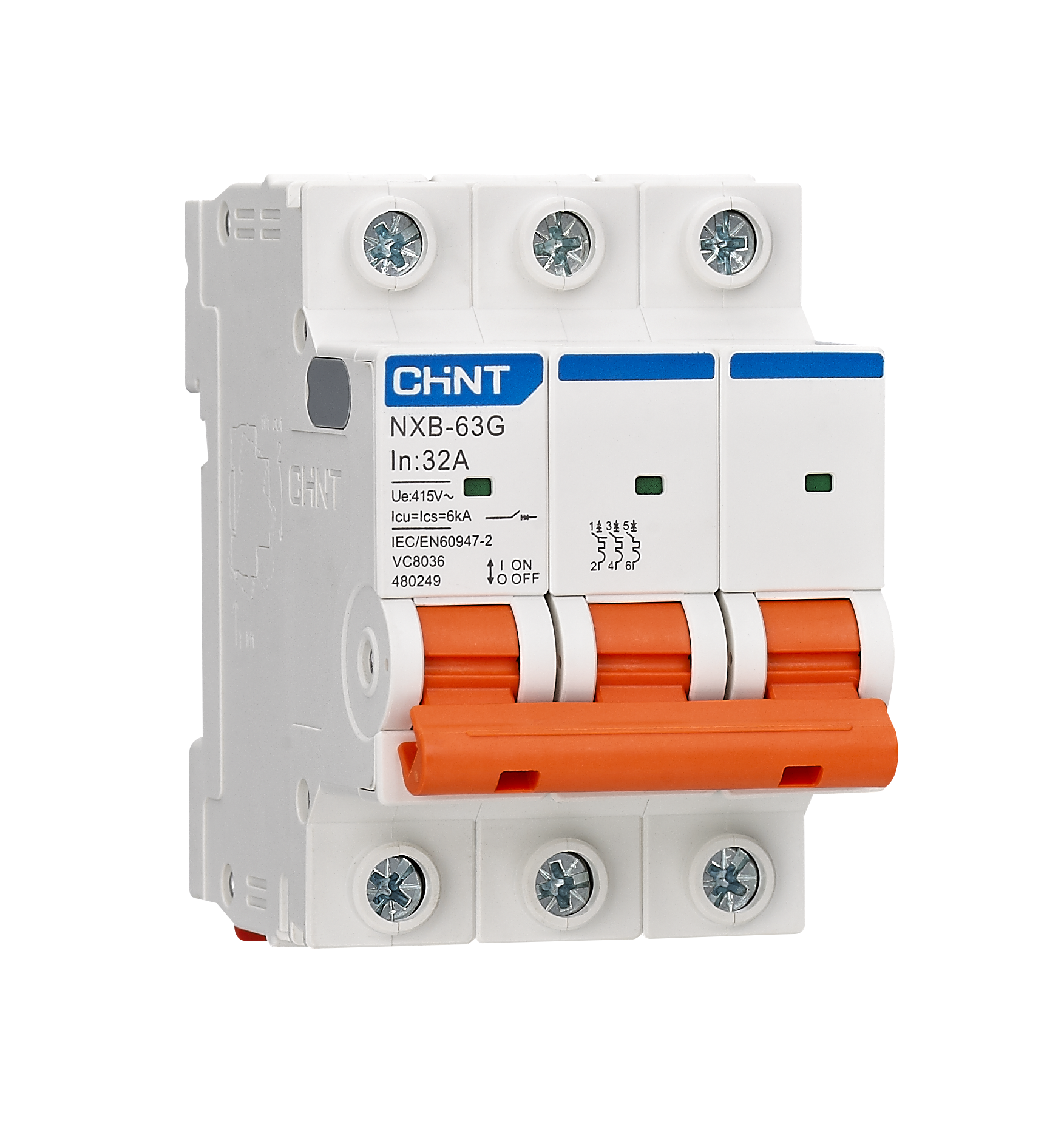

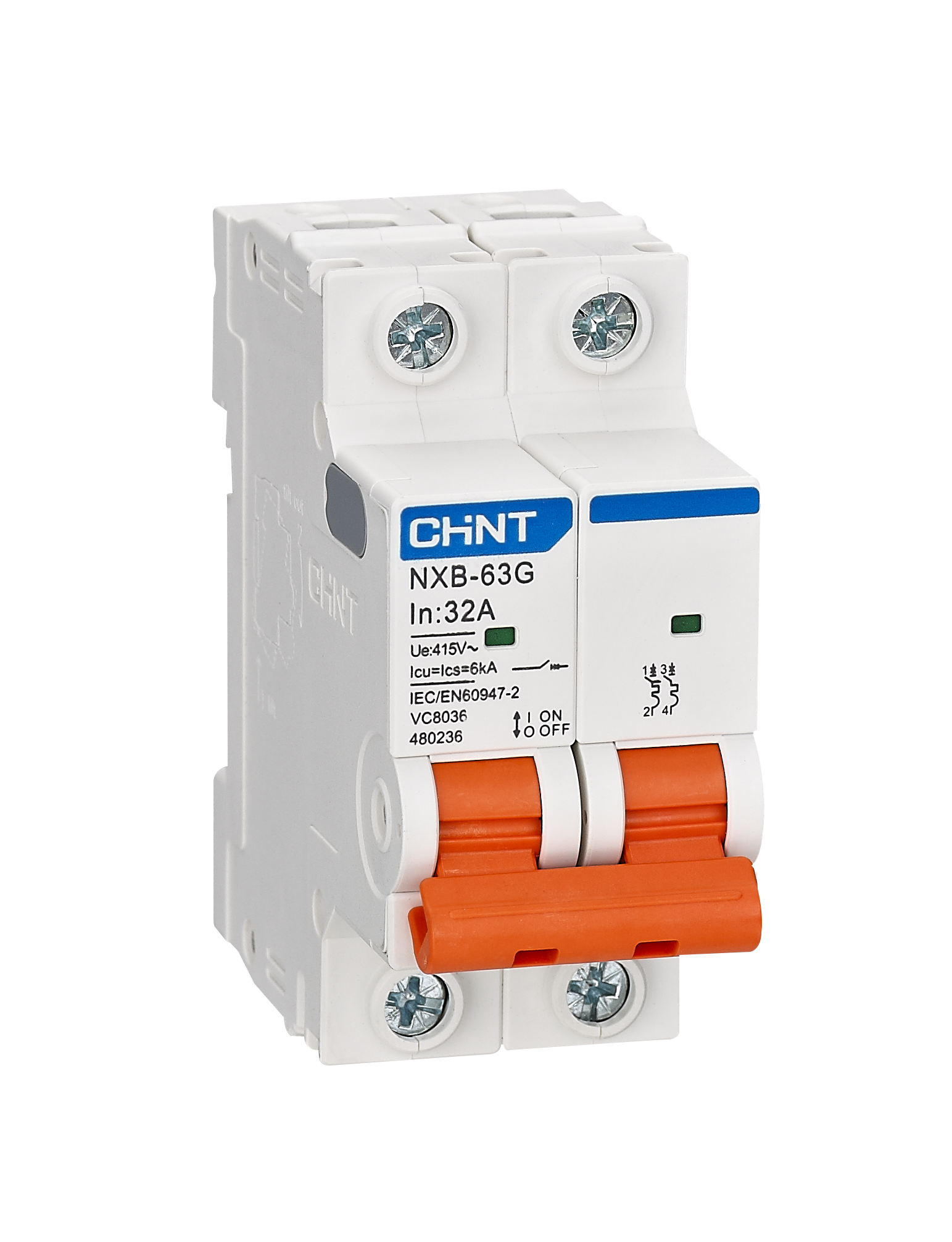

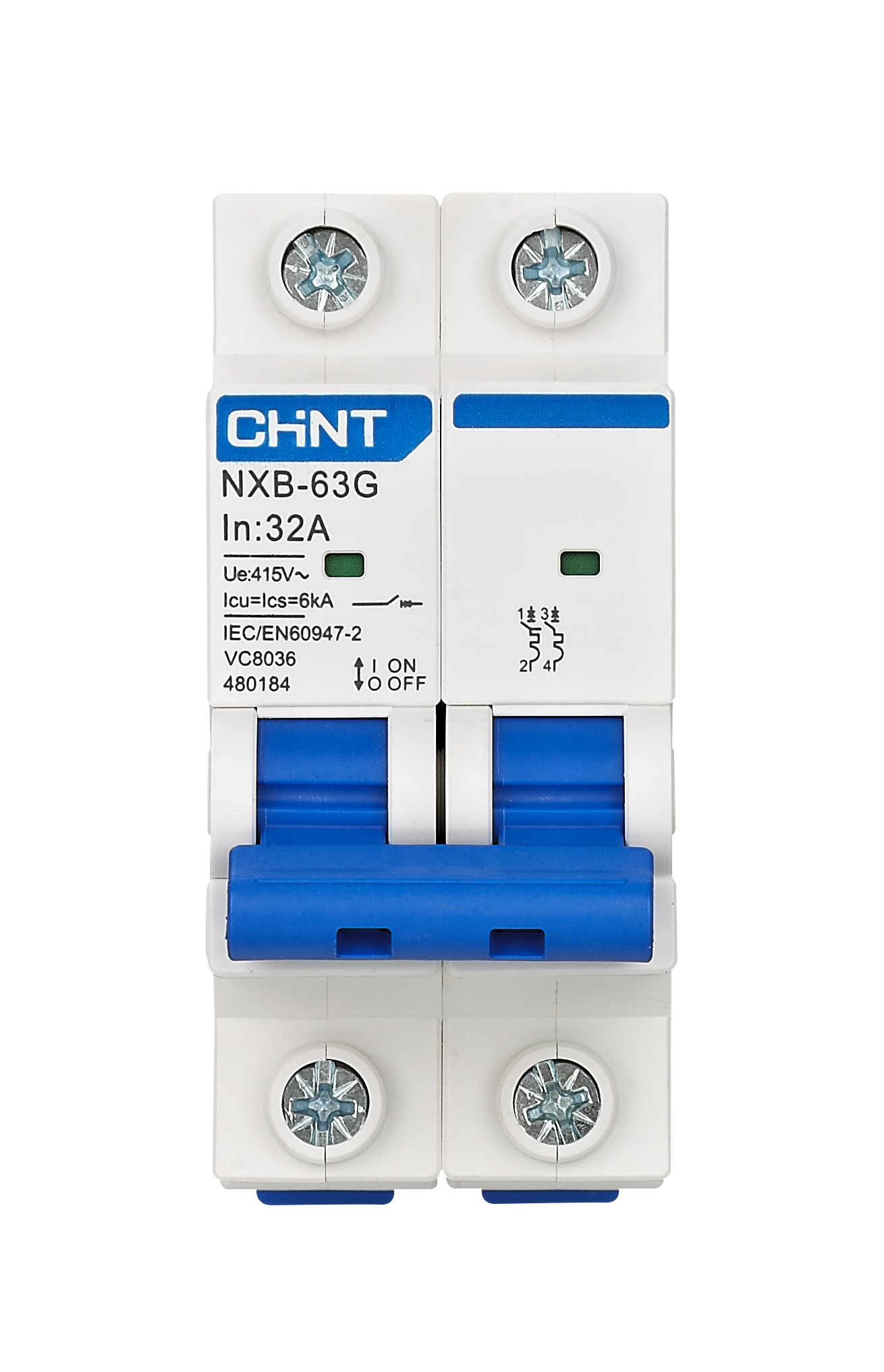

Number of poles: 1P, 2P, 3P, 4P;
Mechanical life: 20000 cycles;
Electrical life: 10000 cycles;
Rated ultimate short-circuit breaking capacity(Icu): 6000A;
Service short-circuit breaking capacity (Ics): 6000A;
Rated insulation voltage Ui: 500V;

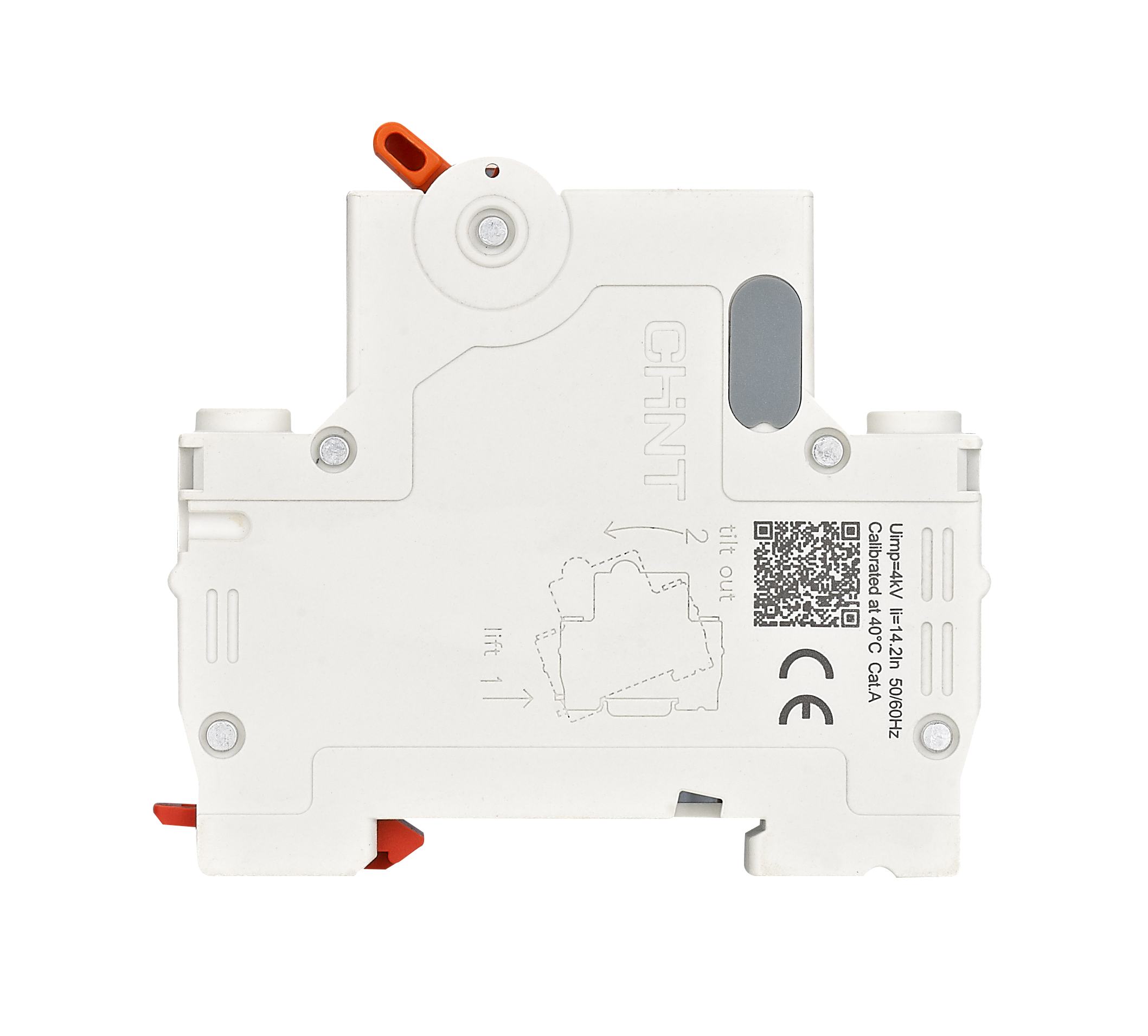

Rated impulse withstand voltage (Uimp): 4kV;
Reference temperature for setting of thermal element: 40℃
