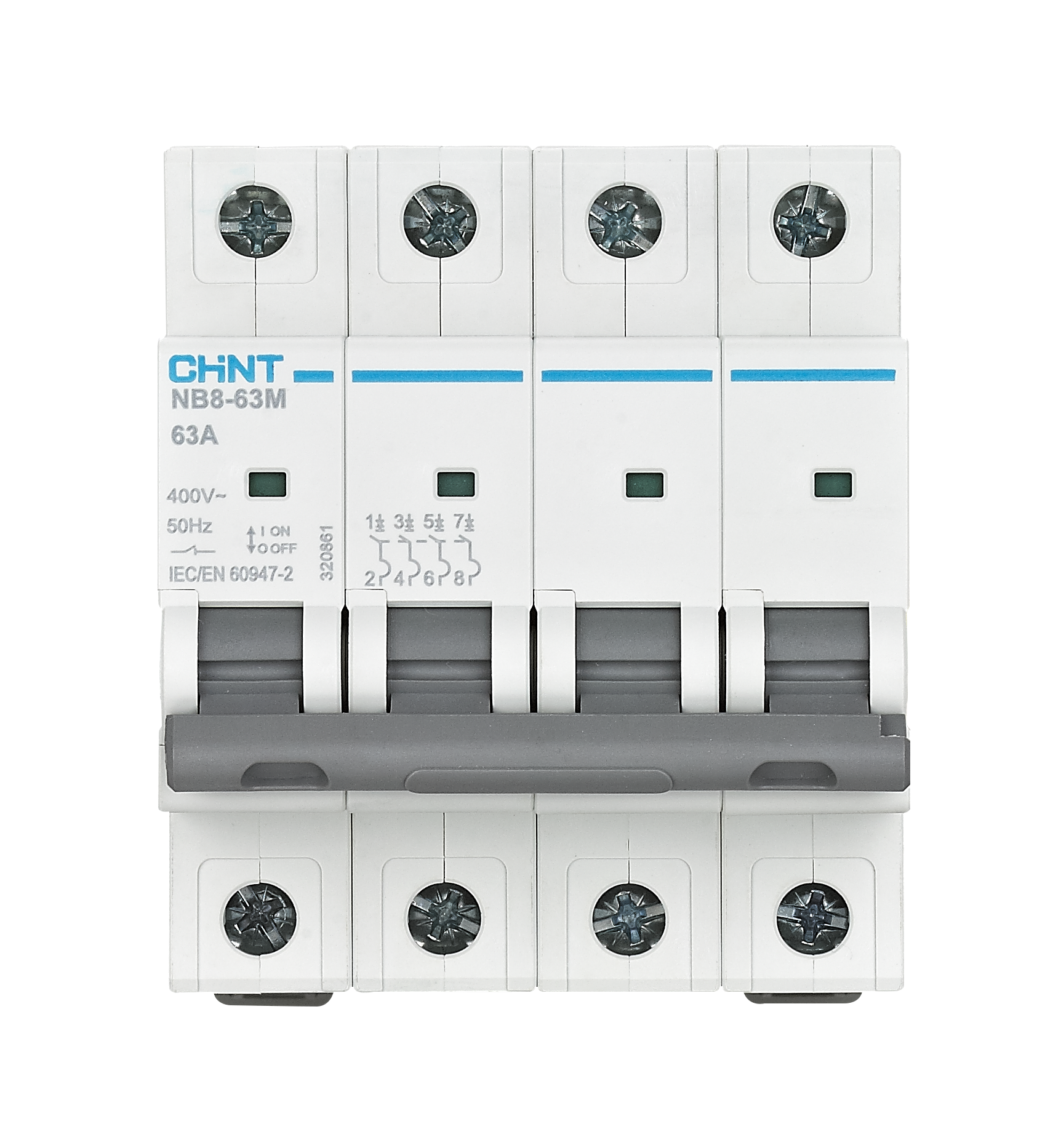

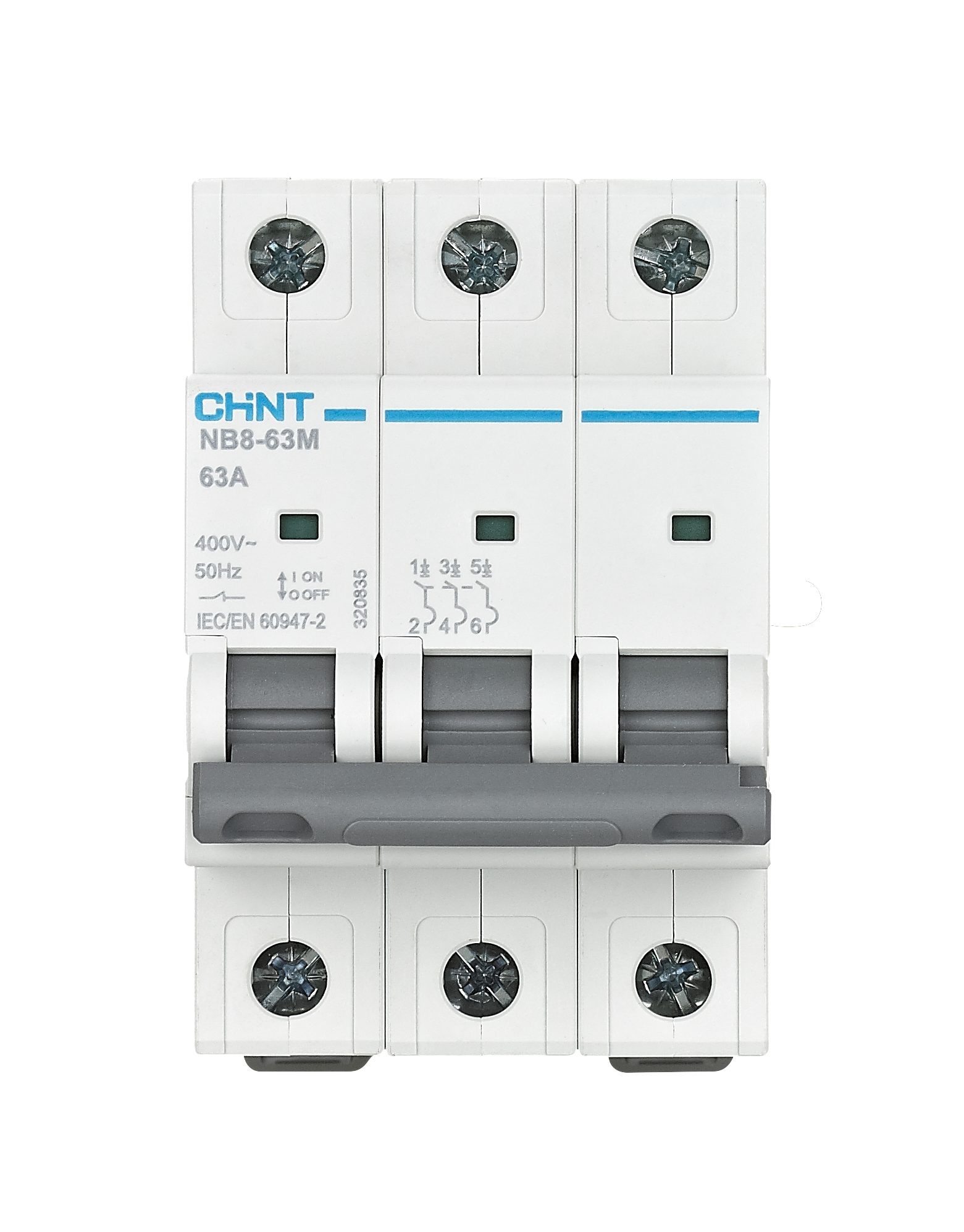

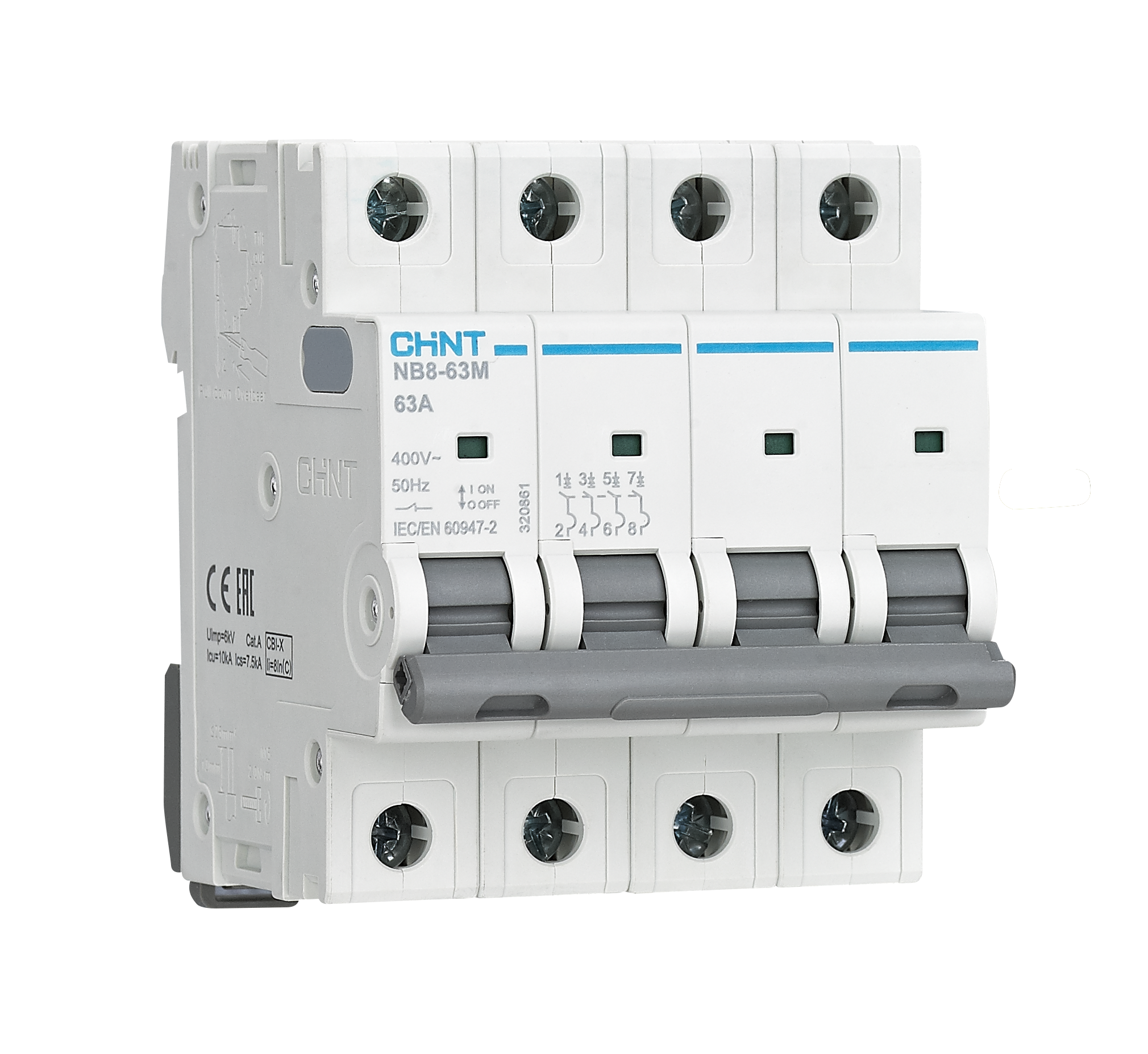

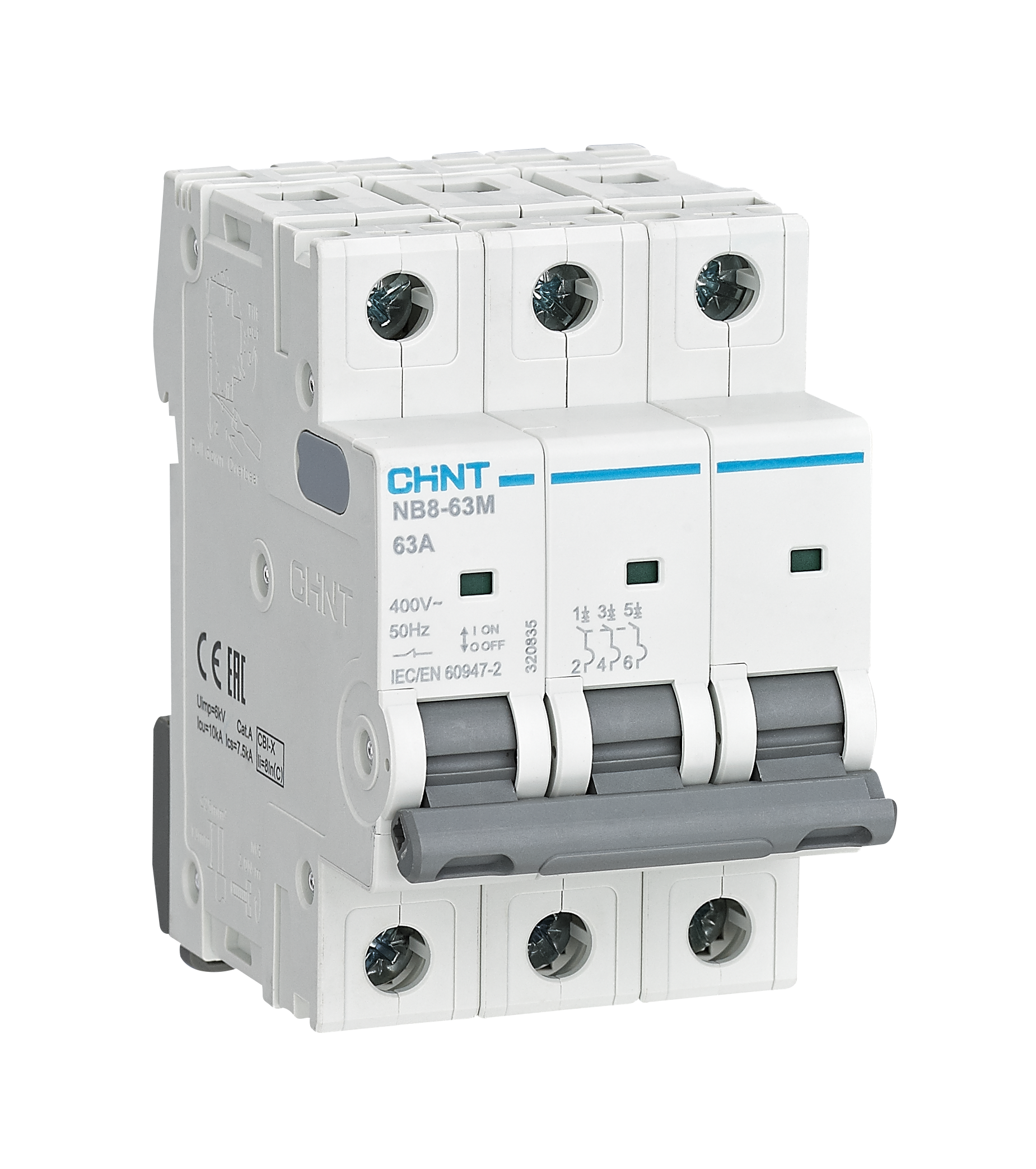

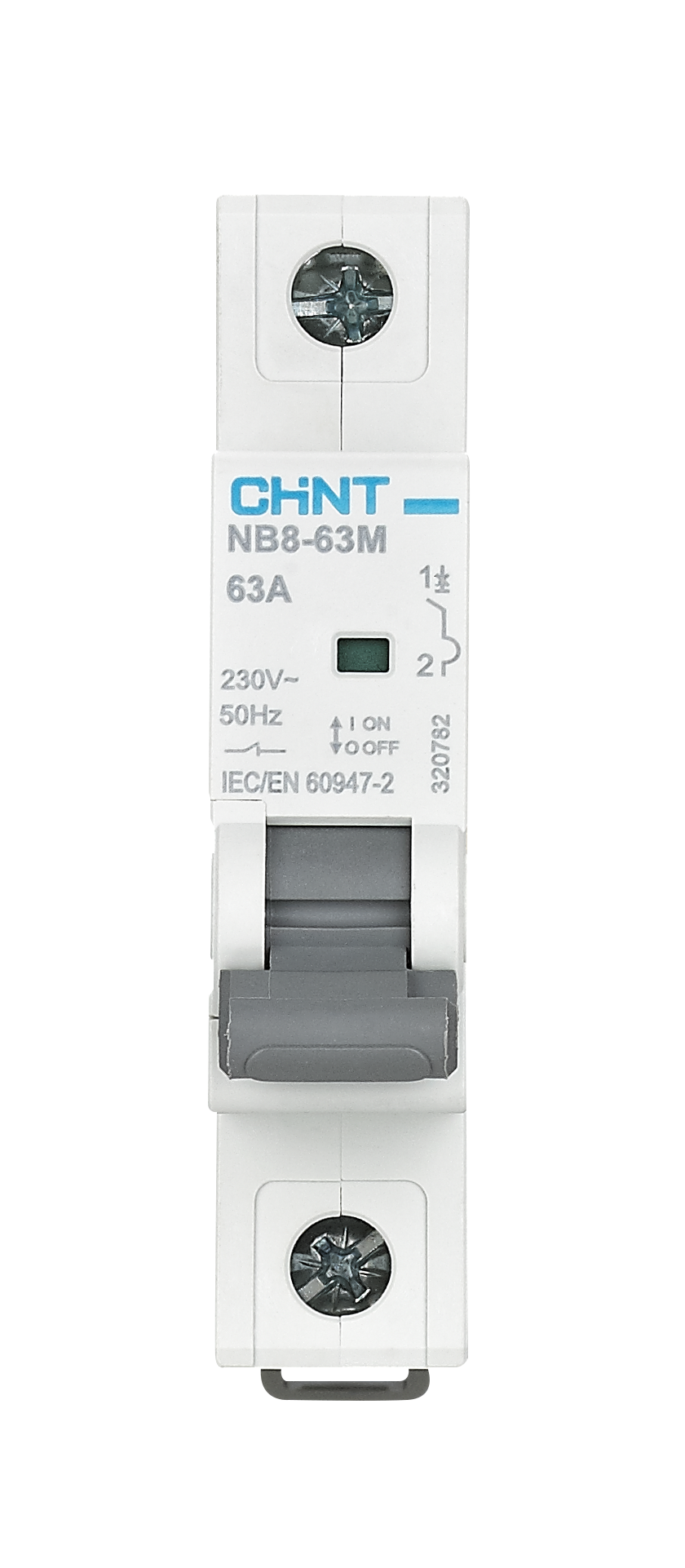

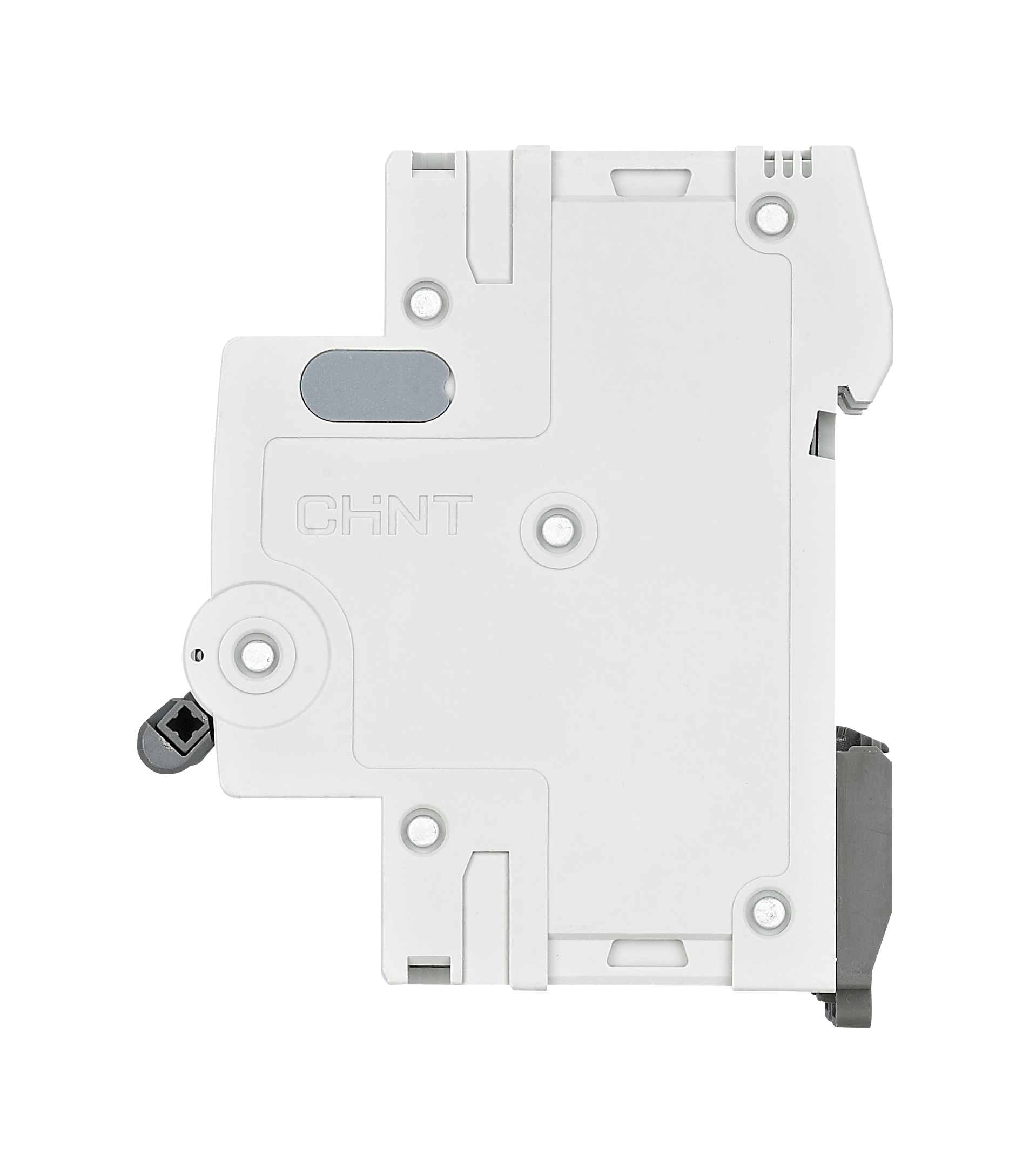

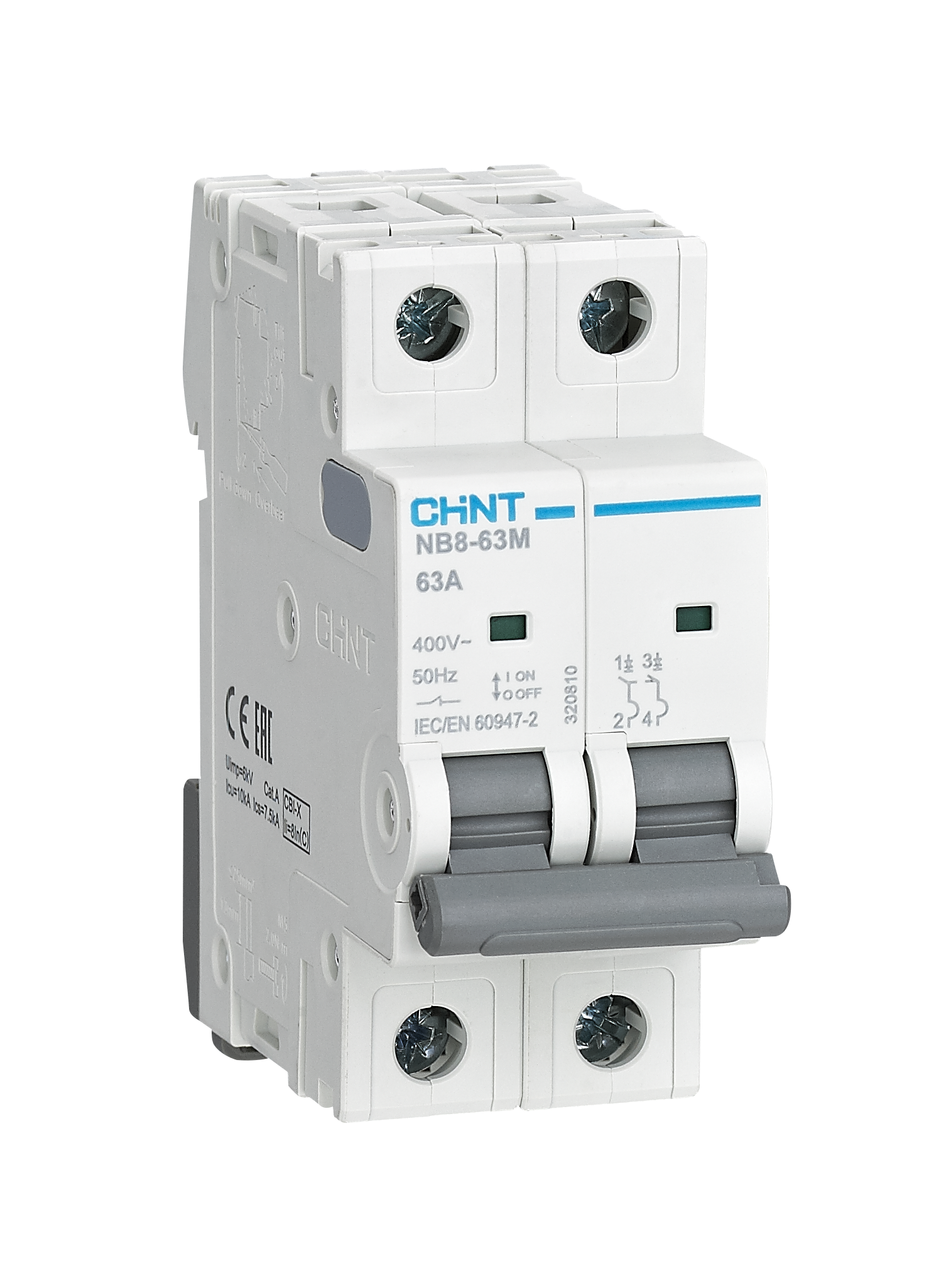

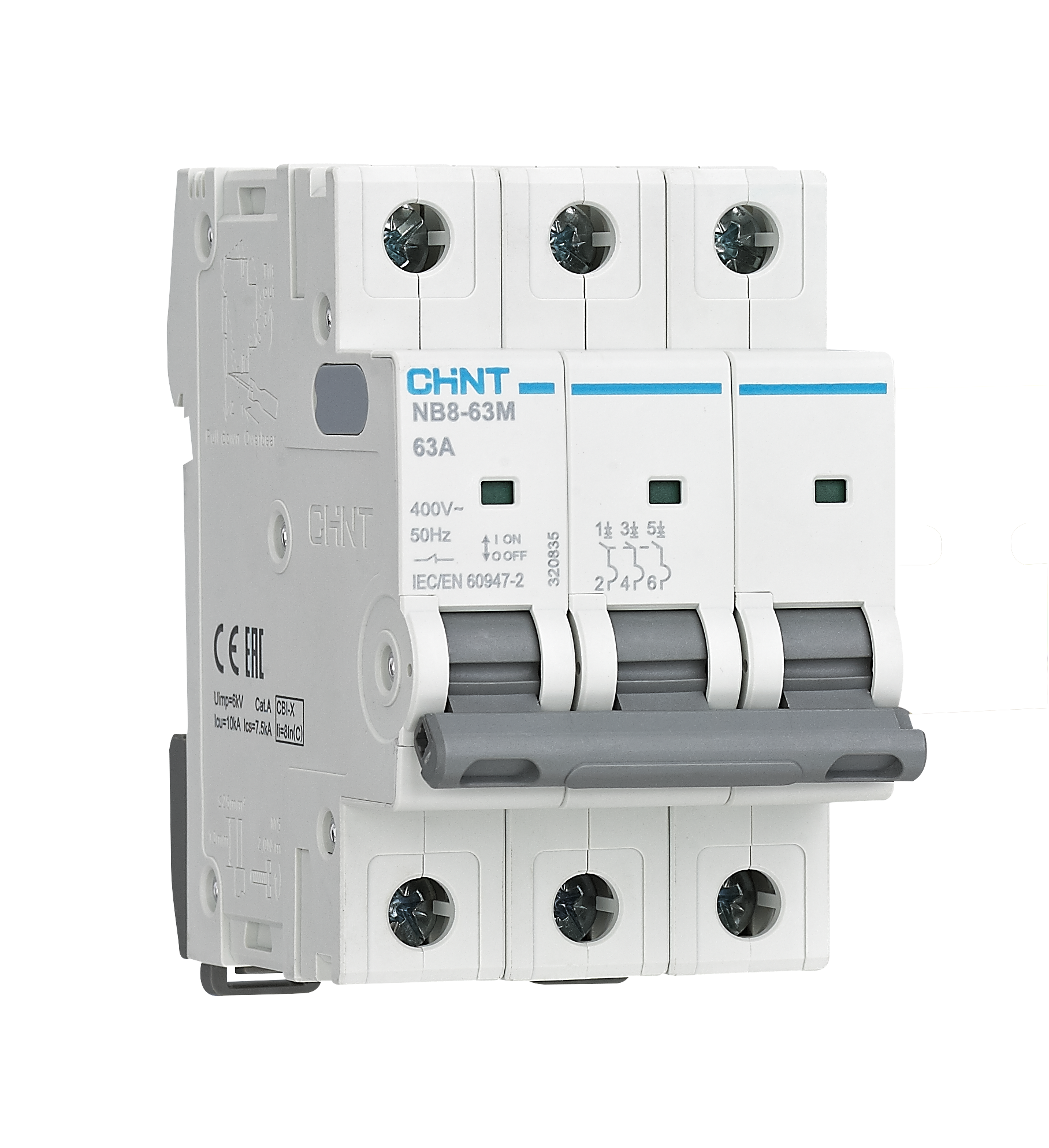

Name: NB8 -63M Moulded Case Circuit Breaker
Brand: Chint

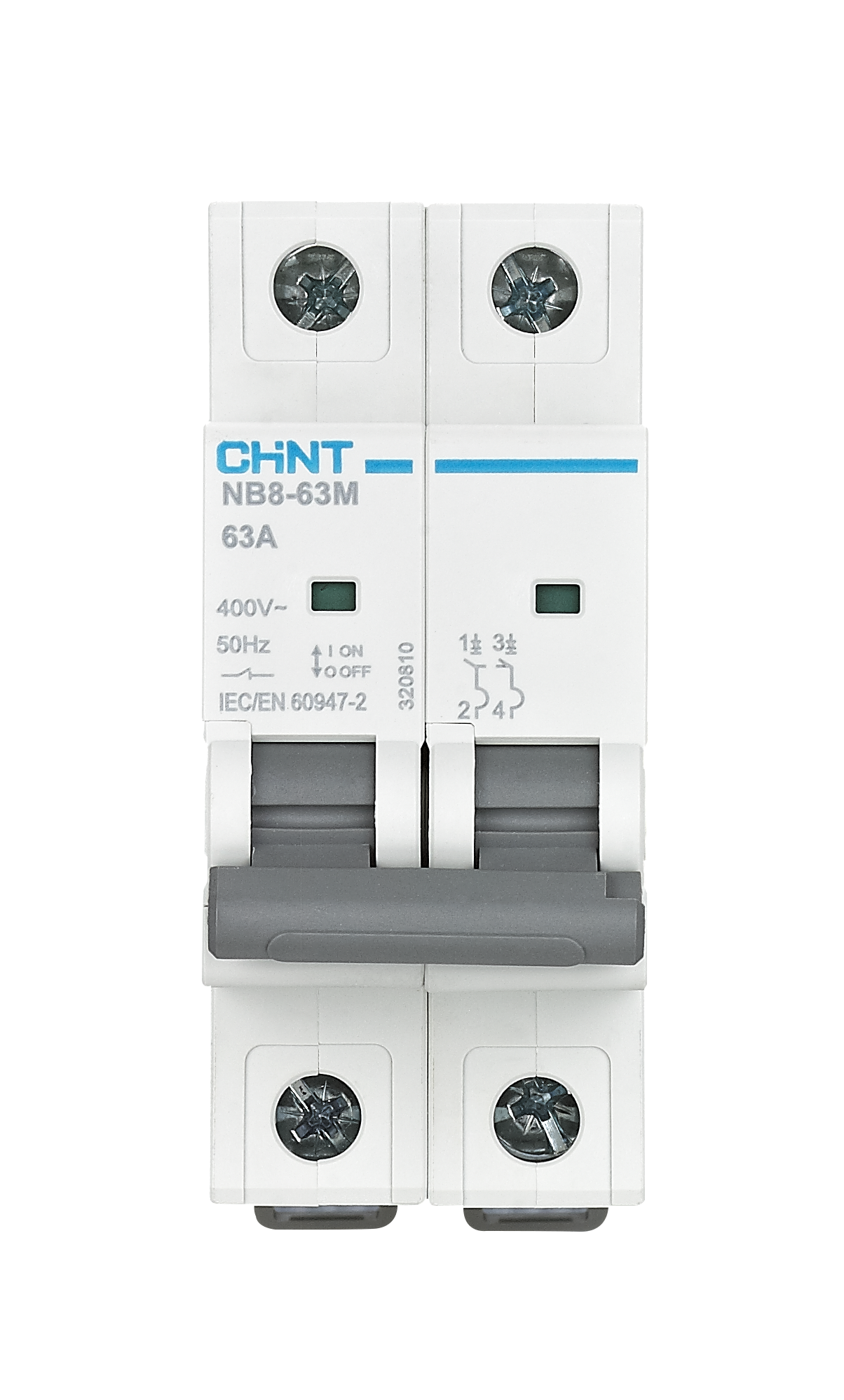

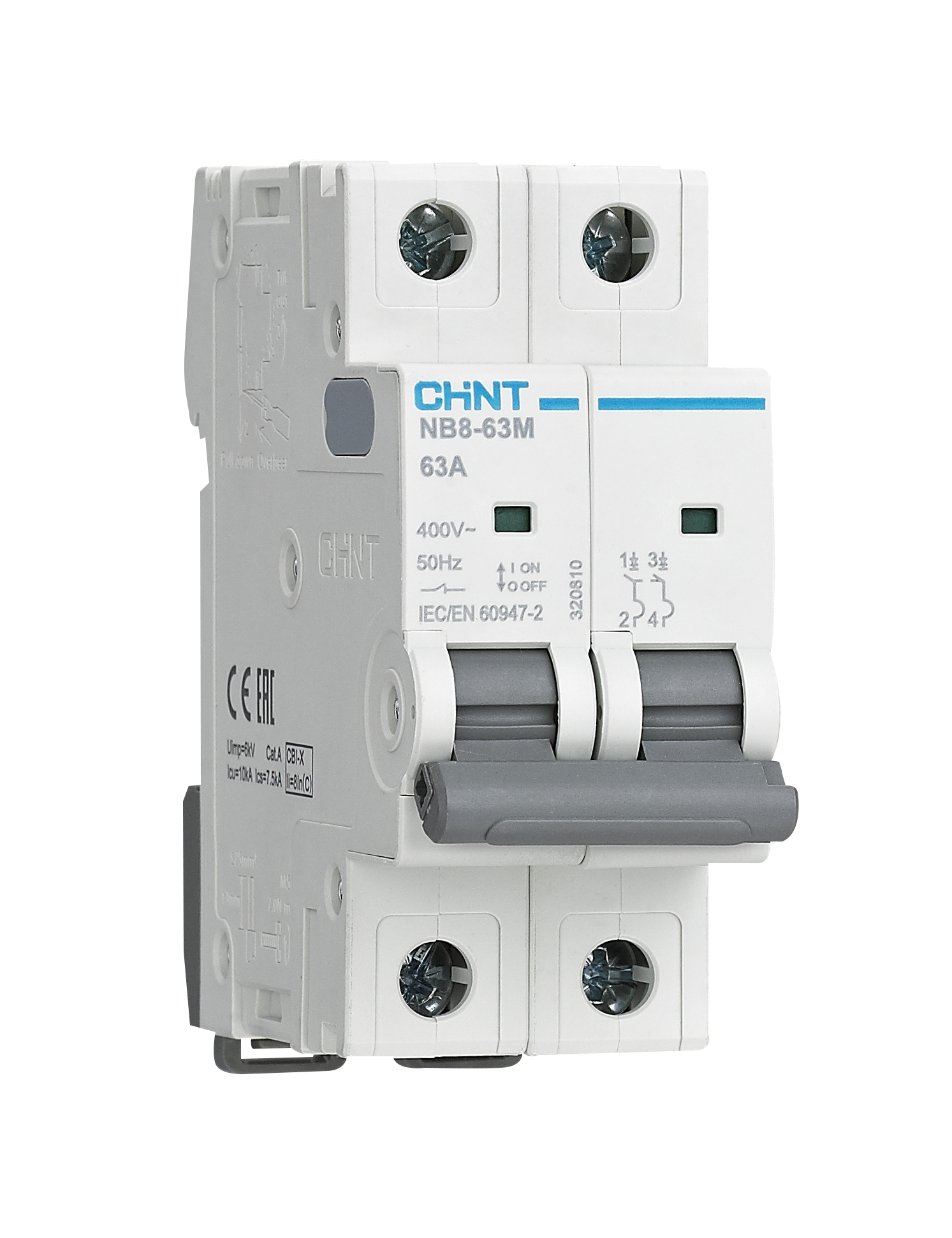

NB8 -63M Moulded Case Circuit Breaker

The NB8-63M Miniature Circuit Breaker (Magnetic type) by CHINT provides short-circuit protection, switching, and isolation for residential, commercial, and industrial installations. Engineered to IEC 60947-2 standards, it features C and D tripping curves for low and high inrush current applications. With a 10kA breaking capacity, up to 63A rated current, and compact DIN-rail design, the NB8-63M offers stable, efficient, and safe circuit protection under varying load conditions.

Need Support From Us?

Blog

Find expert perspectives on the trends and technologies driving your business.

View Now

Download Center

Download new and previously released documents including product document, solutions, cases, coporate report.

View Now

Reach out to us to receive more information, technical support, assistance with complaints and more.

Collapsed

Expand

FAQs

What type of protection does the NB8-63M provide?

It offers short-circuit protection, circuit isolation, and switching functions, ensuring safety and reliability for domestic and industrial electrical networks.

What is the difference between the C and D tripping curves?

C Curve: For resistive and inductive loads with low inrush current (lighting, sockets).

D Curve: For high inrush loads such as transformers or discharge lamps.

What is the rated short-circuit capacity of this breaker?

The NB8-63M features a 10kA rated breaking capacity, making it suitable for installations with high short-circuit currents.

What are the available rated currents and poles?

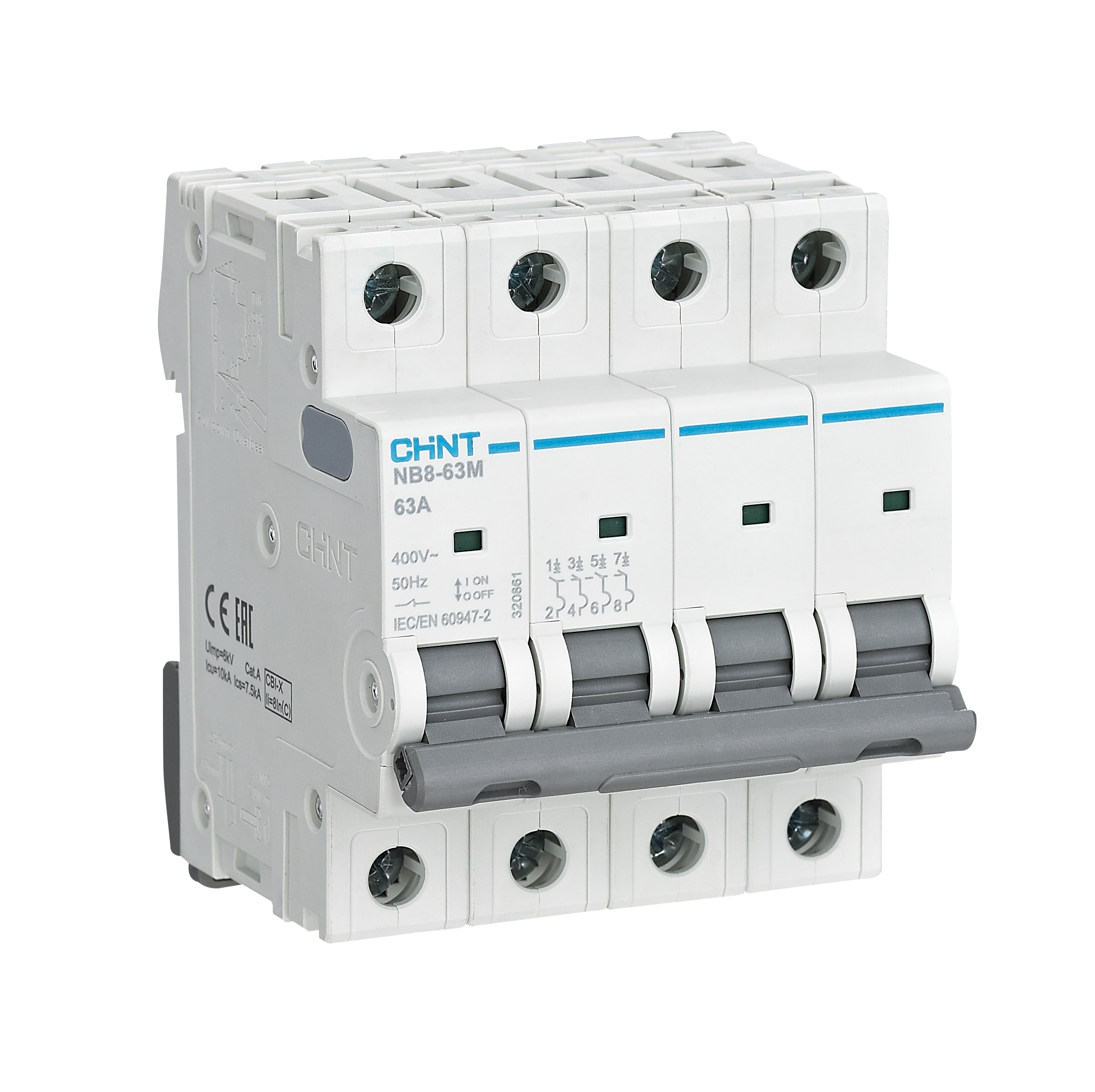

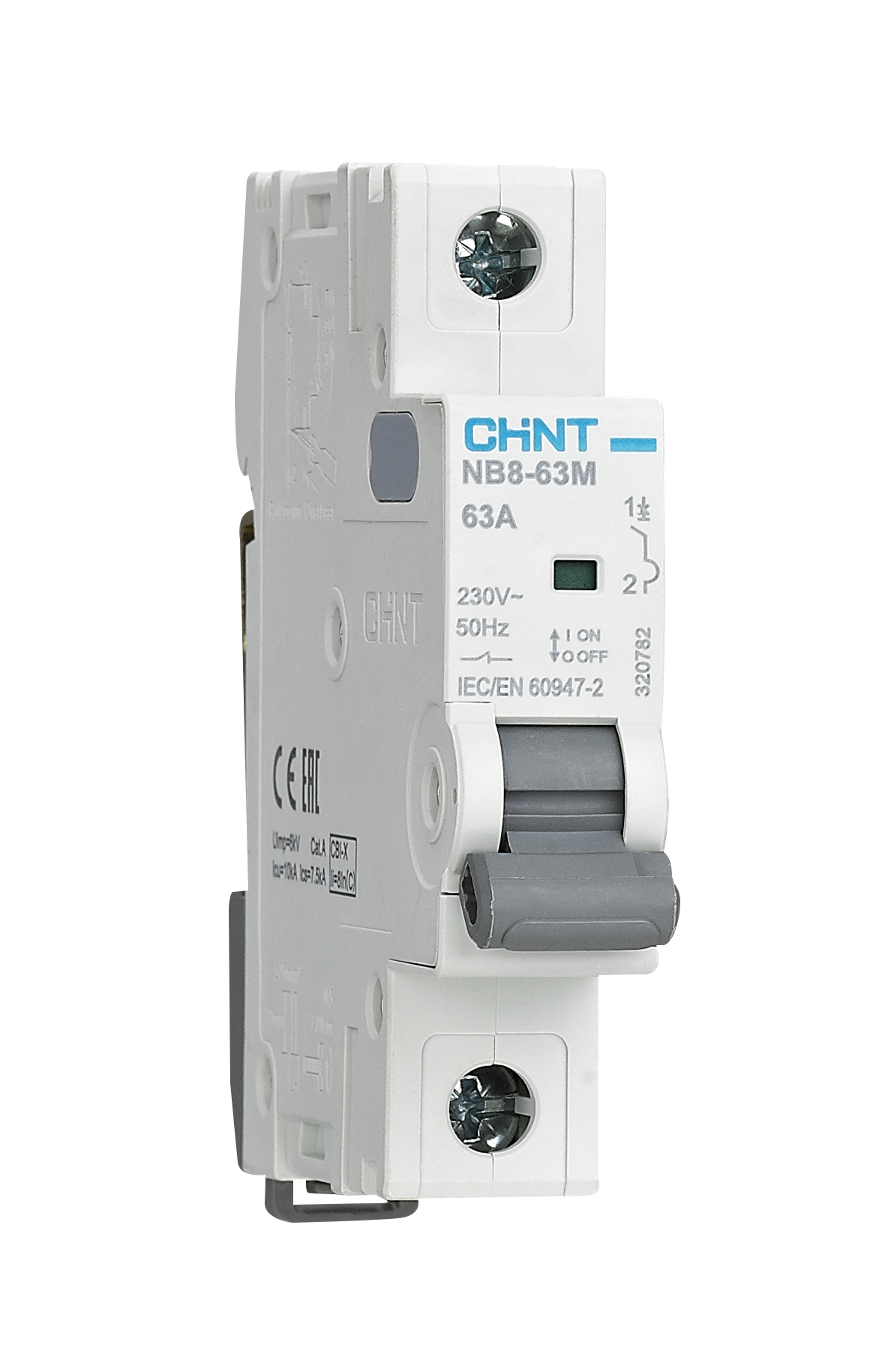

It is available from 6A to 63A, in 1P, 2P, 3P, and 4P configurations, adaptable for diverse single-phase and three-phase applications.

Which accessories can be used with the NB8-63M?

The breaker is compatible with S9, V9, XF9, XF9J auxiliary contacts, and OVT-1/OUVT-1 voltage releases for enhanced monitoring and remote control.
