NBP-63R Moulded Case Circuit Breaker Datasheet & Manual

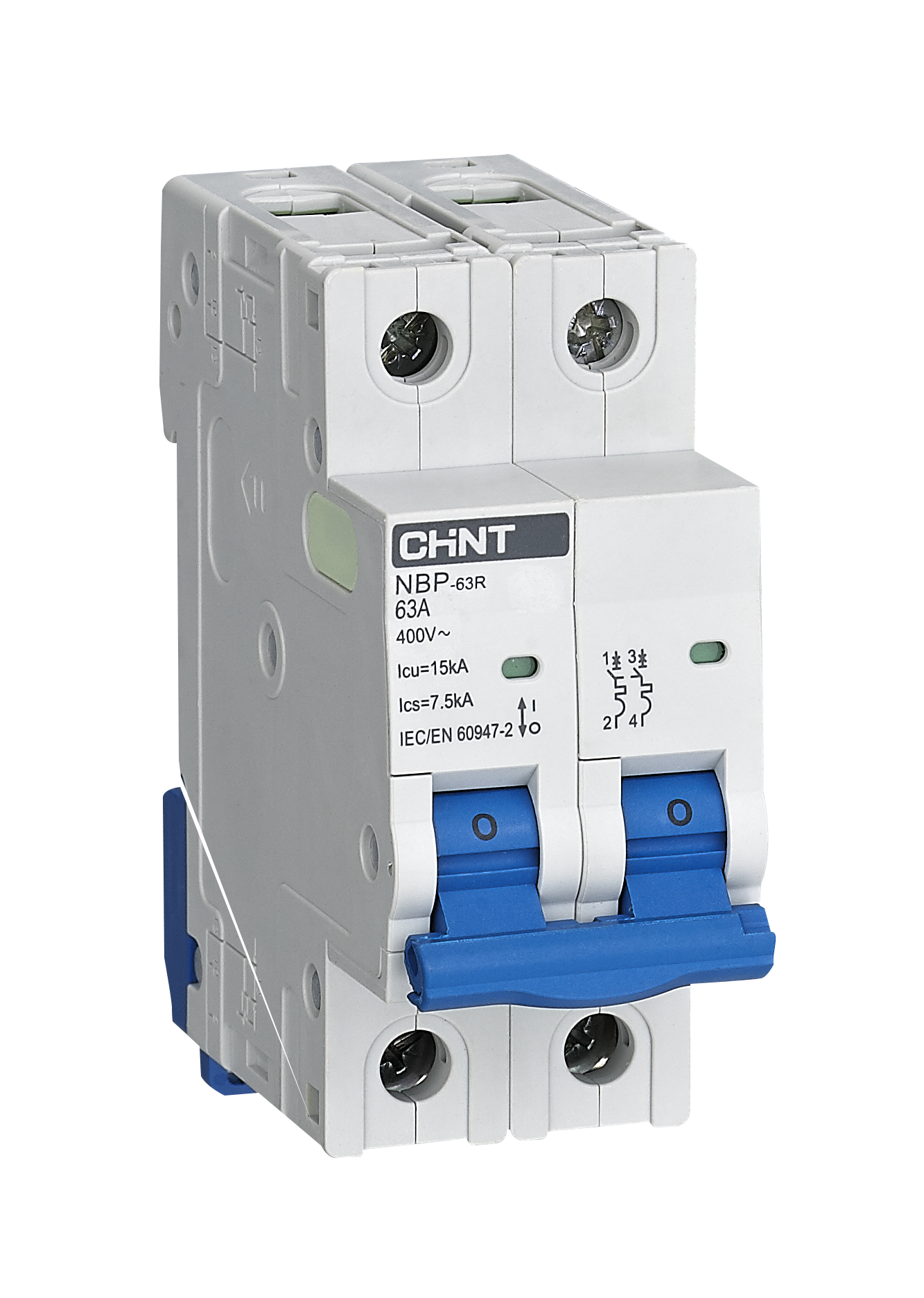

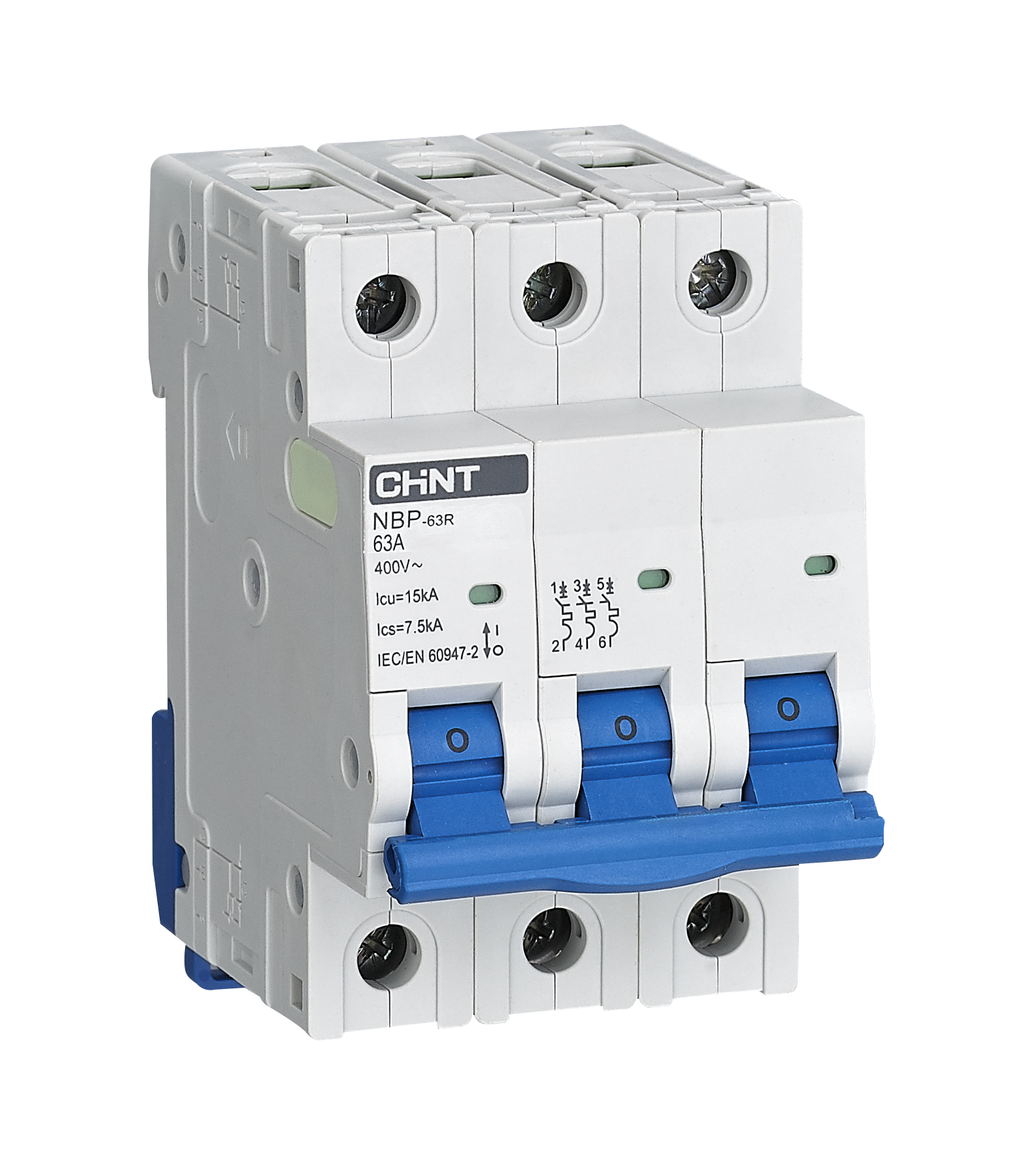

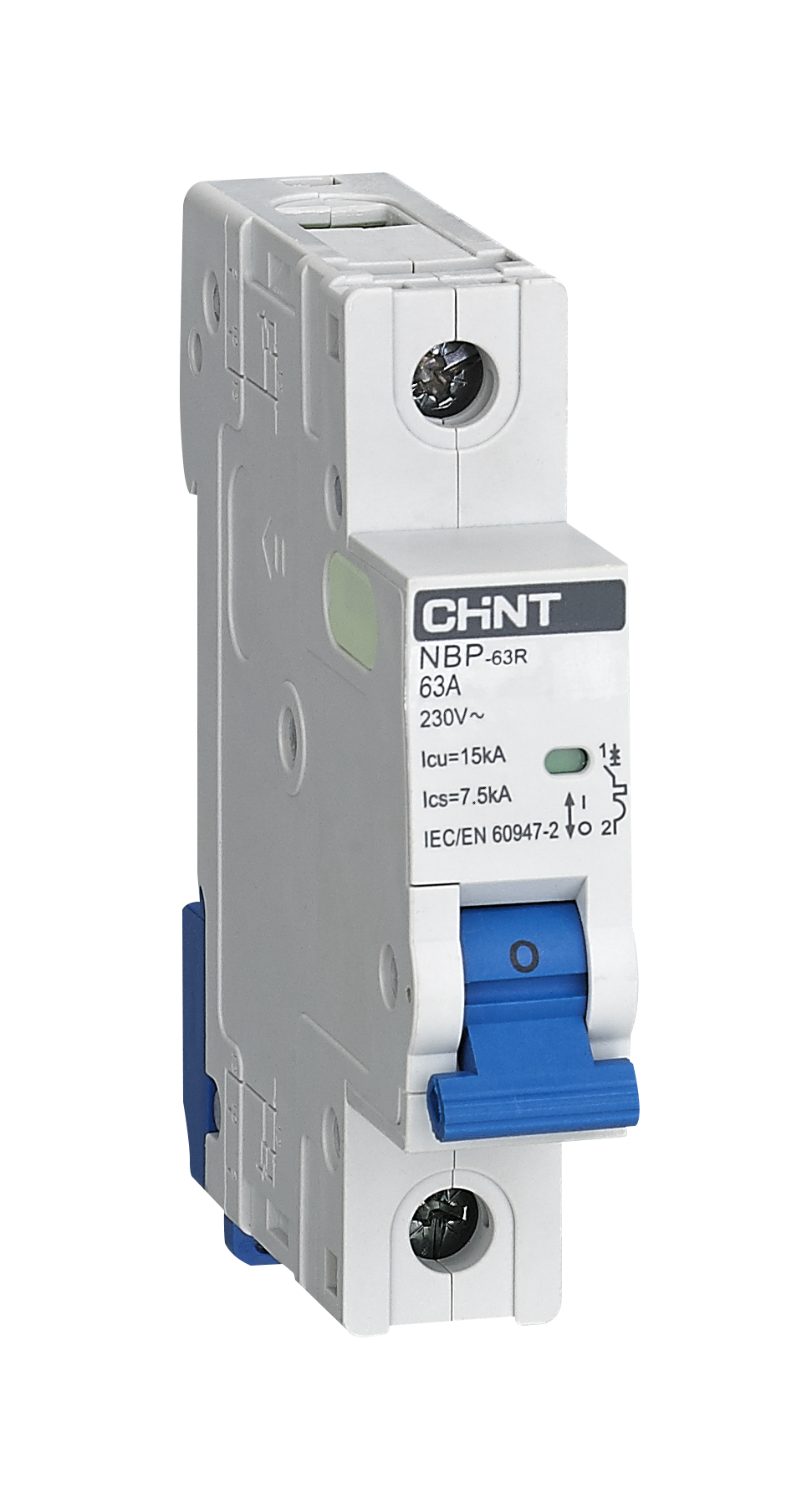

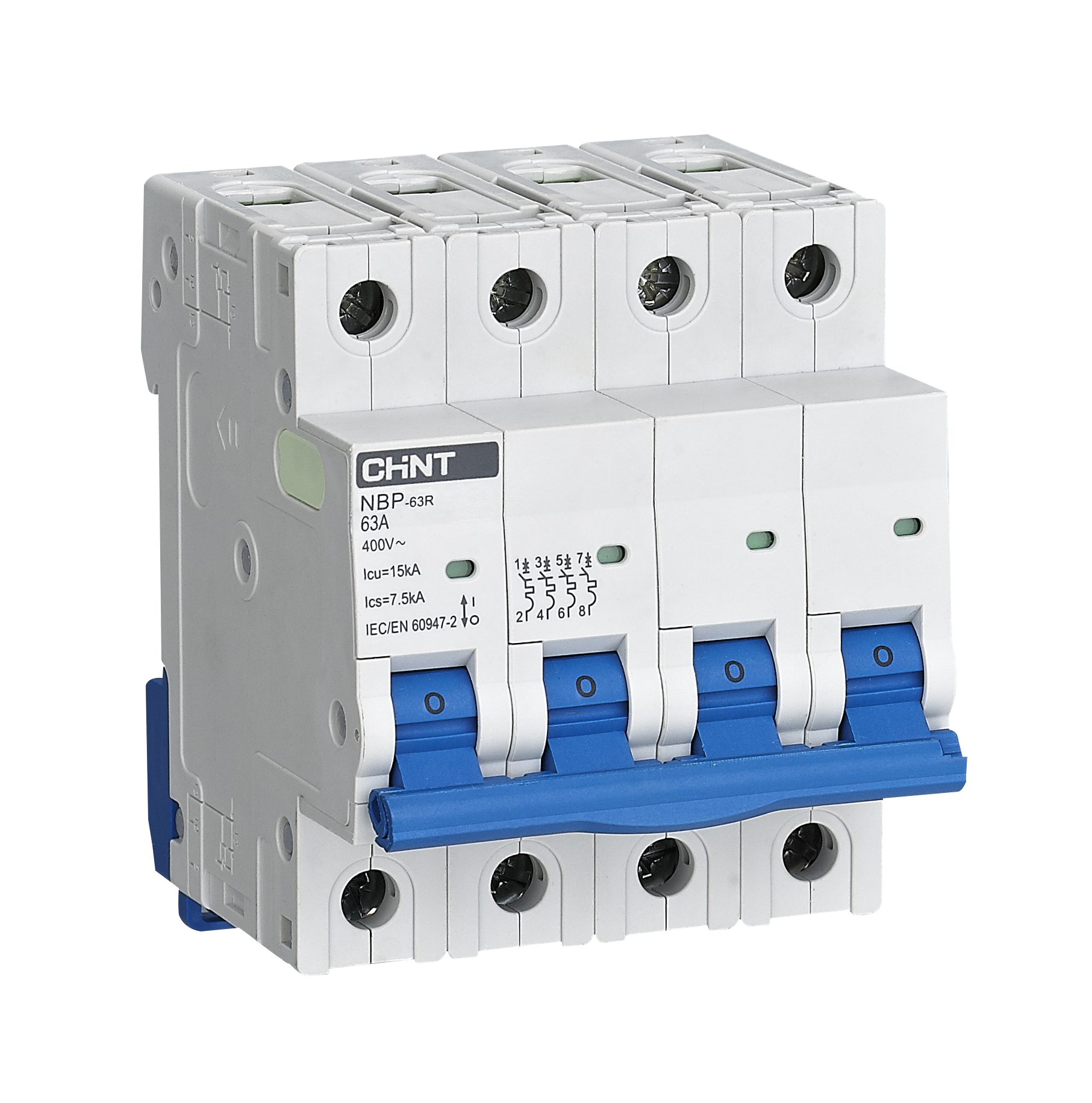

NBP-63R Moulded Case Circuit Breaker

The NBP-63R Moulded Case Circuit Breaker (MCCB) is designed for overload and short-circuit protection in AC 50/60Hz power systems with rated voltages up to 400V and currents up to 63A. It can also be used as an isolating switch for equipment maintenance. With a breaking capacity of 15kA, compact size, and quick DIN-rail installation, it’s ideal for JP cabinets, distribution panels, and low-voltage switchgear requiring high safety and performance reliability.

Need Support From Us?

Blog

Find expert perspectives on the trends and technologies driving your business.

View Now

Download Center

Download new and previously released documents including product document, solutions, cases, coporate report.

View Now

Reach out to us to receive more information, technical support, assistance with complaints and more.

Collapsed

Expand

FAQs

What applications is the NBP-63R MCCB suitable for?

It is ideal for low-voltage distribution systems, JP cabinets, and industrial switchgear, offering protection for circuits and equipment up to 63A under AC 400V.

How does the NBP-63R protect electrical systems?

It provides instantaneous tripping at 8×In to prevent damage during short circuits and includes thermal and magnetic protection for overloads.

What makes the NBP-63R different from standard breakers?

It offers a 15kA high breaking capacity, long service life, and compact design, ensuring durability and space efficiency in high-performance electrical panels.

How should the NBP-63R be installed?

The breaker is designed for DIN-rail mounting (TH35-7.5), with options for cable or busbar connections and a large snap stroke for quick installation.

Is the NBP-63R suitable for high-altitude environments?

Yes. Performance remains stable up to 5000m altitude, with current derating coefficients provided for precise configuration.
