Electrical Protection in Mining and Petrochemical Environments

Introduction

Electrical protection for mining and petrochemical sites starts with a narrower margin for error than standard industrial facilities. In hazardous atmospheres, an arc, spark, hot surface, or fault can become an ignition source. Dust, gas, corrosion, vibration, and long cable runs also increase electrical stress. Let this guide help project engineers, HSE managers, and specifiers plan petrochemical electrical safety, select explosive atmosphere electrical equipment, and define protection systems that support uptime and classified-area requirements.

Why Standard LV Components Are Not Enough In Hazardous Environments

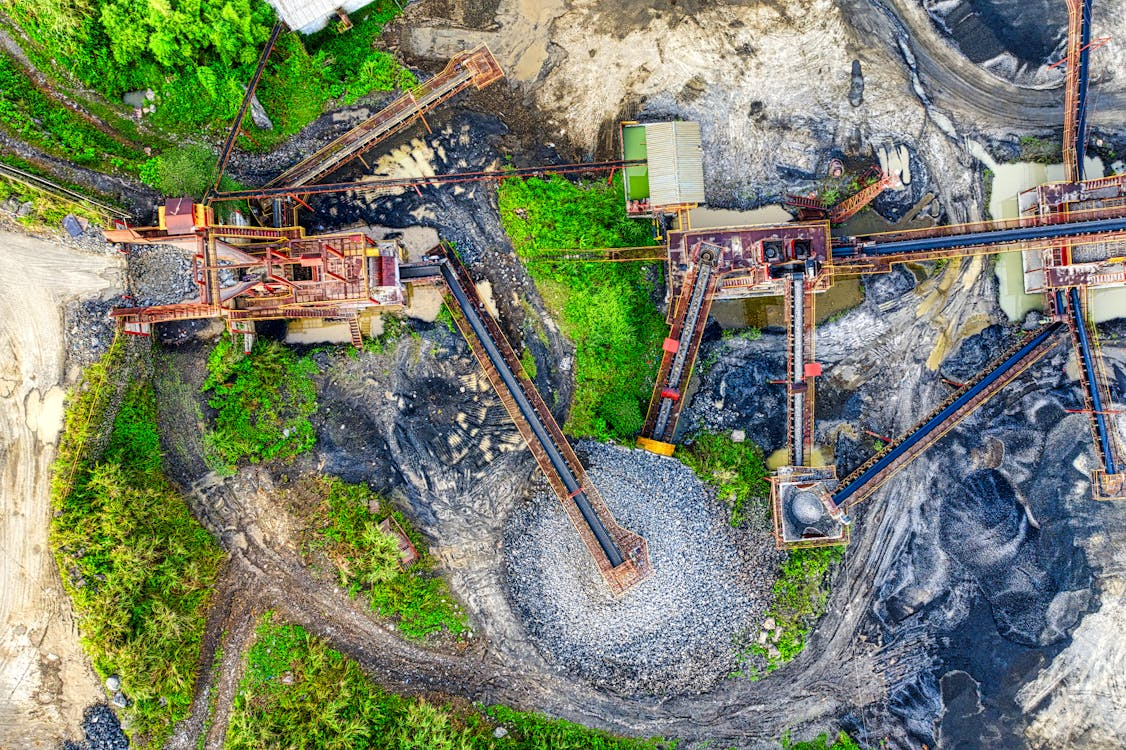

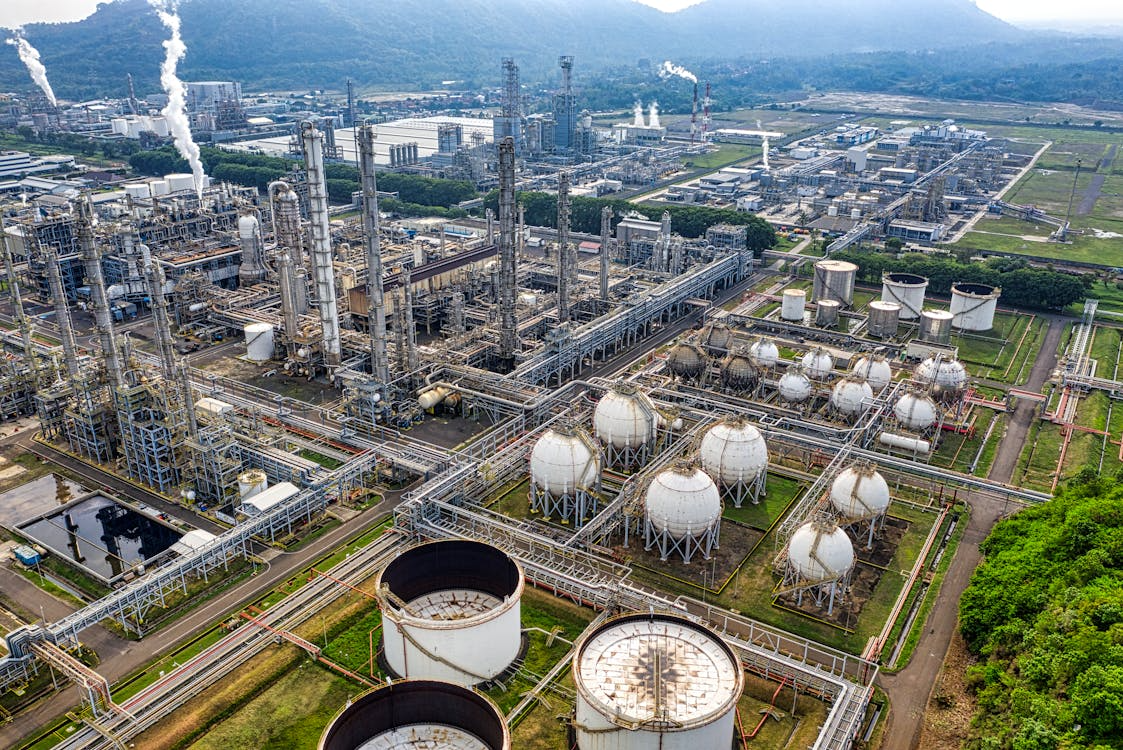

Mining and petrochemical environments expose low-voltage equipment to conditions that standard industrial components may not handle. Coal dust, ore dust, metallic particles, methane, hydrocarbon gases, solvent vapors, corrosive chemicals, high humidity, shock, vibration, and long cable runs can affect electrical performance. Other factors affecting power quality include long distribution lines and harsh site conditions, which raise exposure to voltage instability and phase imbalance in mining and oil and gas operations.

Hazardous area classification should guide equipment selection from the first design review. Under IEC 60079 and ATEX practice, gas and vapor risks are commonly grouped as Zone 0, Zone 1, and Zone 2, while combustible dust risks are grouped as Zone 20, Zone 21, and Zone 22. The zone reflects how often an explosive atmosphere is expected to be present, then shapes the permitted equipment type.

For explosive atmosphere electrical equipment, Ex d flameproof, Ex e increased safety, and Ex n protection concepts may apply, depending on classification and local rules. A device suitable for a lower-risk zone should not be moved into a higher-risk zone for convenience.

Ingress and impact protection also matter. IEC states that IP codes use two numerals: the first rates protection against solid objects and dust, while the second rates protection against liquids, up to high-pressure hot water.

When it comes to IP protection in electrical installations, processing and chemical plants may need IP66 to IP69K for regular washdowns, while mining environments may require IP67 where splash or immersion is possible. For mining switchgear hazardous area projects, Ex certification, IP rating, IK rating, corrosion resistance, and temperature range should be reviewed together.

Motor Protection In High-Load, Variable-Speed Mining Applications

Large motors drive the production chain in mines and petrochemical facilities. Conveyors, crushers, pumps, fans, mills, and hoists may run near rated current for long periods, then face sudden overloads from a jammed crusher, stalled belt, blocked pump, or braking event. Strong motor protection mining design must separate process overload from electrical fault.

Electronic overload relays are preferred for these applications because they can support current imbalance detection, phase loss detection, earth fault monitoring, faster response, and thermistor inputs from embedded motor sensors. Thermistor protection helps when high ambient temperature, restricted cooling, or repeated duty cycles raise winding temperature faster than current alone shows.

Variable Frequency Drives (VFDs) also help mining and petrochemical motor applications. They support controlled ramp-up on conveyors, lower belt slip, reduced mechanical shock, and speed matching on pumps and fans. Pumps & Systems reports that a 20% motor speed reduction can reduce energy consumption by up to 50% in relevant pump and fan applications. VFDs still need environmental review, harmonic assessment, and suitable filtering where the study requires it.

For hazardous areas, starters and LV distribution mining equipment may need certified enclosures such as Ex d or Ex e, depending on zone classification. A good LV motor control solution covers start-up schemes for mine and petrochemical pump loads, plus protection against overload, locked rotor, phase loss, and leakage.

See the table below for more context:

Each motor package still needs fault current review, cable sizing, temperature rise assessment, relay testing, and classified-area verification.

Intelligent LV Distribution: Reducing Unplanned Shutdowns

Modern LV distribution mining systems should do more than feed panels and motors. Distributed sites need visibility into load behavior, earth faults, breaker status, and power quality before a trip shuts down production.

In practice, intelligent distribution can include breakers with communication, energy meters, earth fault indicators, arc detection where specified, temperature monitoring, SCADA connection, and run-hour data. Real-time load data helps teams see repeated overloads before they turn into trips. Earth fault indicators can guide technicians toward the affected feeder instead of forcing a full search across the network.

This matters in mines, terminals, tank farms, and process plants because equipment may sit far from the main switchroom. Remote monitoring reduces unnecessary field travel and helps operators isolate the right section faster.

CHINT’s LV control and protection solution covers low-voltage distribution products such as ACBs, MCCBs, meters, VFDs, and soft starters, along with short-circuit, overload, and leakage protection. It also utilizes Modbus communication for remote monitoring and data analysis.

But for wider site networks, CHINT’s power transmission and distribution solution uses real-time monitoring of production processes, SCADA-compatible instrument transformers, and ATEX certification for underground mining applications. These capabilities are relevant when mining switchgear hazardous area assets are spread across long feeders and remote process zones.

Reactive Power Compensation In Large Motor-Driven Sites

Mining and petrochemical sites use many induction motors. These motors need reactive power to create magnetic fields, but high reactive demand increases apparent current. That extra current loads cables, transformers, and switchgear without creating useful mechanical output.

Poor power factor can raise losses, increase voltage drop on long cable runs, reduce spare transformer capacity, and trigger utility penalty charges where tariffs include power factor rules. In harsh or remote facilities, voltage instability and phase imbalance can add further stress to motors and protection devices, especially where feeders are long and loads change quickly.

Reactive power compensation helps keep the electrical system closer to its intended operating range. Static capacitor banks suit stable loads with predictable reactive demand. They can be a practical choice for steady pump groups or process equipment with limited variation.

Fast-changing loads need a different review. Crushers, mills, large conveyors, and variable pump systems can change load quickly, so SVG compensation can offer faster response than fixed capacitor steps. In those cases, dynamic reactive power support can help voltage regulation while reducing equipment stress.

For petrochemical electrical safety, power quality should be linked to protection behavior. Voltage drop, harmonics, and imbalance can affect relay operation, motor temperature, and nuisance trips. There are two considerations:

1. Reactive power monitoring should sit inside the LV distribution plan so site teams can see power factor trends, harmonic levels, and compensation status.

2. Where VFDs are widely used, harmonic mitigation through line reactors, filters, or other approved measures should be checked against the power quality study.

What Specifiers Should Verify Before Commissioning In Hazardous Locations

Pre-commissioning should confirm that the installed system matches both the design and the hazardous area schedule.

• Start with certificates. Every item of explosive atmosphere electrical equipment installed in a classified area should match the zone, temperature class, gas or dust group, certificate, and installation method.

• Check cable glands, seals, reducers, stopping plugs, and unused entries. Incorrect glands or open entries can compromise Ex integrity and IP protection. For mining switchgear hazardous area panels, verify enclosure ratings after field drilling, cabling, and gland installation, not only from the original datasheet.

• Test motor protection settings against the final motor schedule. Confirm overload class, phase loss, current imbalance, earth fault, locked rotor, restart delay, and thermistor input. For motor protection mining circuits, relay curves should match the starting method, cable size, upstream breaker, and actual duty cycle.

• Document bonding and earth continuity across motors, glands, cable trays, skids, transformers, junction boxes, and switchboards. Weak bonding can turn a localized fault into a broader site risk.

• VFD installations require their own checks. Confirm that harmonic mitigation, EMC practices, cable shielding, ventilation, and heat dissipation match the study. High-IP or Ex enclosures can trap heat, so temperature rise needs review under the expected operating load.

• Finally, compare labels, drawings, settings files, certificates, test sheets, and as-built records before energization. Commissioning documentation helps HSE, operations, and maintenance teams understand what is installed, what has been tested, and what limits apply.

Conclusion

Mining and petrochemical environments leave little room for electrical specification errors. Strong electrical protection for mining starts with hazardous area classification, then moves to Ex equipment, ingress protection, motor control, intelligent distribution, reactive power compensation, and commissioning proof. The same discipline supports petrochemical electrical safety where gas, vapor, dust, corrosion, and high-load motors shape daily risk.

So, if you’re looking for mining & petrochemical solutions, contact CHINT for project-specific guidance. Explore solutions built around safety, energy saving, intelligent monitoring, and low-voltage and distribution scenarios for process industries.

Frequently Asked Questions

What makes electrical equipment "suitable for explosive atmospheres"?

Equipment suitable for explosive atmospheres must be designed and certified to prevent internal sparks, arcs, or hot surfaces from igniting the surrounding flammable gas or dust. Under IEC 60079 and the ATEX framework, this is achieved through various protection concepts, the most common being: flameproof enclosures (Ex d), which contain any internal explosion and prevent it from propagating; increased safety (Ex e), which uses design measures to eliminate potential ignition sources; and intrinsically safe (Ex i), which limits the electrical energy available to below the ignition threshold.

What is Zone 1 vs Zone 2 in hazardous area classification?

Zone 1 is an area in which an explosive gas atmosphere is likely to occur in normal operation. Zone 2 is an area where an explosive gas atmosphere is unlikely to occur in normal operation, but may occur in abnormal conditions. Equipment used in Zone 1 must meet more stringent protection requirements (typically Ex d or Ex e) than Zone 2 (where Ex n and similar lighter protection concepts may be permissible). Zone 0, where an explosive atmosphere is present continuously or for long periods, requires the highest level of protection (Ex ia intrinsically safe).

Why do large motor-driven sites have poor power factors?

Large induction motors draw reactive current in addition to active (working) current. This reactive component does not perform useful work but does flow through cables, transformers, and metering. A high proportion of motor load, combined with motors running at partial load, produces a poor power factor, usually below 0.8 in mining and processing sites without compensation. Poor power factor increases current throughout the distribution system, causes voltage drop, increases losses, and may attract utility penalty charges.

What is the role of VFDs in mining applications?

VFDs are used in mining primarily to: control conveyor acceleration and deceleration (avoiding belt slip and mechanical shock), match fan and pump speed to actual demand (significant energy savings on ventilation and dewatering systems), enable dynamic braking on hoists and inclined conveyors (converting kinetic energy back to electricity rather than dissipating it as heat), and provide soft start capability to reduce inrush on large motors. In explosive atmospheres, VFDs must be installed in appropriate Ex-rated enclosures or in segregated, non-hazardous areas with long cable runs to Ex-rated motors.

What electrical checks should be done before commissioning in a hazardous location?

Before commissioning, an electrical engineer should verify: that all equipment in each classified zone carries the correct and current Ex certification; that all cable glands are rated and installed without damage or compromise to Ex integrity; that motor protection relay settings are configured and tested, including earth fault and thermistor inputs; that earth continuity is verified throughout the system; and that a power quality assessment has been completed, with harmonic mitigation installed where VFDs or other non-linear loads are present.
