NXV

NXV

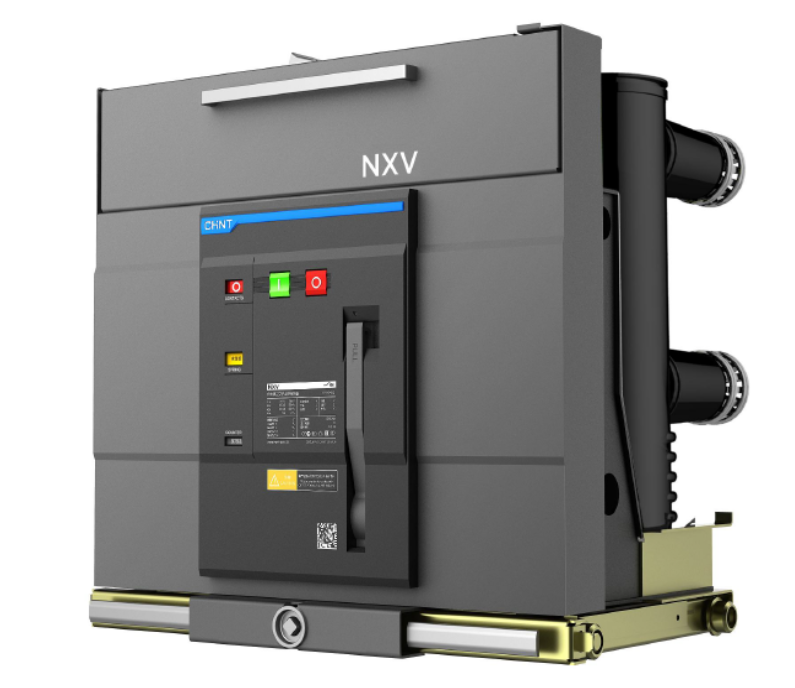

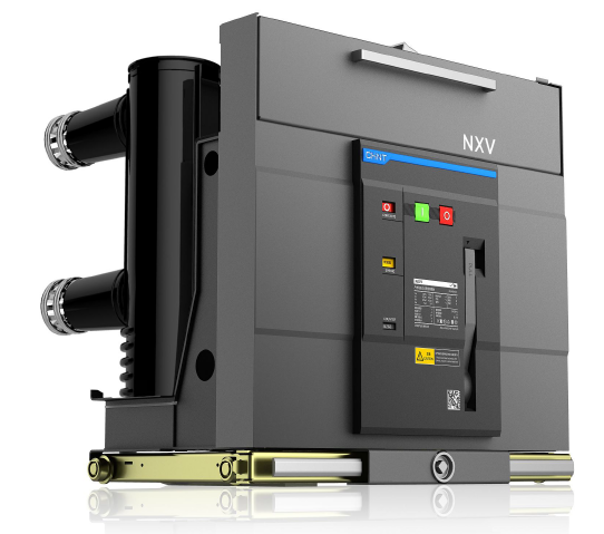

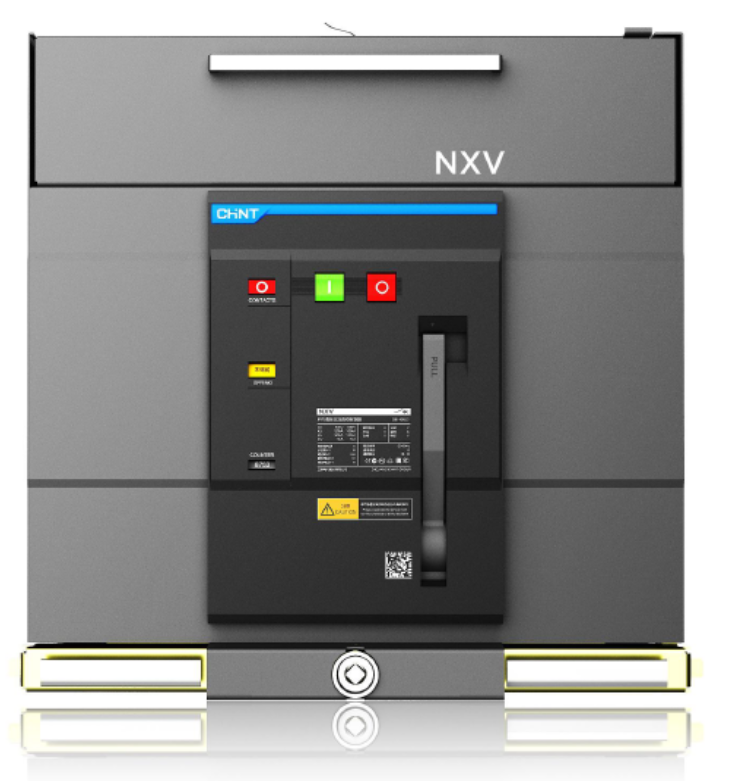

NXV series indoor high voltage AC vacuum circuit breakers are indoor switching equipment with rated voltage of 12kV. It can be used for the control and protection of electrical facilities in industry and mining, buildings and substations, as well as in places with frequent operation. The products have high reliability and stability. The circuit breaker is equipped with low power consumption modular spring operating mechanism to meet the requirements of electric and manual operation. After the mechanism stored energy, the closing operation is completed after receiving the closing signal or pressing the closing button by hand; After the closing action is completed, after receiving the opening signal or press the opening button by hand to complete the opening operation. The main electrical circuit breaker part of the external insulation materials using environmental protection electrical plastic, at the end of the life of the product can choose to be buried or recycled by the manufacturer, compared with epoxy resin materials more green environmental protection.

Product Information

Overview
Catalog

NXV series indoor high voltage AC vacuum circuit breakers are indoor switching equipment with rated voltage of 12kV. It can be used for the control and protection of electrical facilities in industry and mining, buildings and substations, as well as in places with frequent operation. The products have high reliability and stability. The circuit breaker is equipped with low power consumption modular spring operating mechanism to meet the requirements of electric and manual operation. After the mechanism stored energy, the closing operation is completed after receiving the closing signal or pressing the closing button by hand; After the closing action is completed, after receiving the opening signal or press the opening button by hand to complete the opening operation. The main electrical circuit breaker part of the external insulation materials using environmental protection electrical plastic, at the end of the life of the product can choose to be buried or recycled by the manufacturer, compared with epoxy resin materials more green environmental protection.

Name

Size

Release time

Operate

2411-VCB-EN-Catalog.pdf

3.54MB

2025-05-16

Download
