ZFW34-550
Product Consultation
Power Transmission and Distribution Transmission ZFW34-550
Clear all
Transmission
ZFW34-550-GIS-Studio
ZFW34-550-GIS-Studio

ZFW34-550

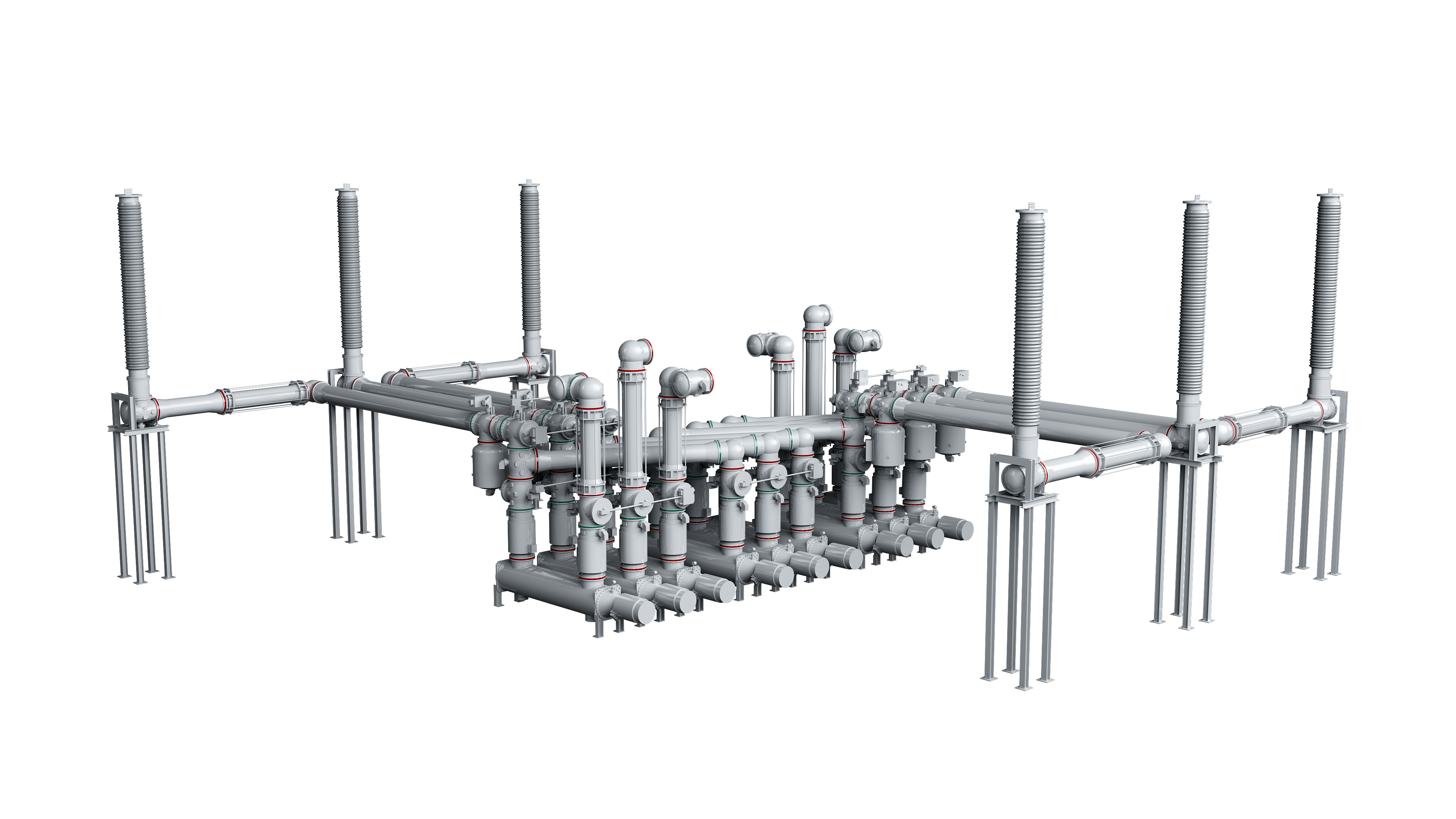

ZFW34-550 GIS is composed of standard components , which can meet the demand for substation optimization design through the flexible combination between modules. It saves space and conforms to technical requests.

Advantages:

1) Inspected　to be qualified by KEMA High level of parameters, advanced structural design;

2)Low Partial discharge, full bay≤3Pc; partition≤2Pc;

3)The operating mechanism adopts aluminum alloy integral casting, Circuit Breaker Mechanical endurance, 11,000 times;

4) Double sealing ring structure,annual leakage rate ≤0.1%.

5) Compact design, the minimum width of a single bay is 3m;

6) It is applied to cold, humid, salt fog, coastal, high altitude areas;

7) Partition and Enclosure are produced by Chint, so we can give a very short lead time.
