How to Test an Arc Fault Detection?

FEBRUARY 10, 2023

CHINT Arc Fault Detection Devices Products
CHINT Arc Fault Detection Devices Products
CHINT-Arc-Fault-Detection-Devices-Products

Table of Contents

  1. What is Arc Fault Detection?
  2. How Does Arc Fault Detection Work?
  3. How Does an Arc Fault Detection Device Work?
  4. Conclusion

Arc fault protection is an important component of any electrical system, as it prevents dangerous electrical arcs and fires from occurring. Testing arc fault detection systems are essential to ensure they are working properly, but it can be complex and require specific tools and knowledge.

This article provides a comprehensive guide on how to test your arc fault detection system, including preparation beforehand, the necessary tools, how to conduct the test itself, and safety precautions.

What is Arc Fault Detection?

Arc fault detection is an important safety measure when dealing with an electrical system. It detects dangerous arcs caused by a sudden and intense burst of energy jumps across two or more conductors, such as those found in wiring, circuit breakers, or other electrical equipment.

These arcs can cause a short circuit, heat up the surrounding components, and even lead to the start of a fire. To prevent these dangers, arc fault detection devices are used to detect and interrupt the circuit when a dangerous arc is detected.

Arc fault detection devices can detect single-phase arcs, multi-phase arcs, or ground faults. Single-phase arcs occur when an electric current jumps between two phases of a three-phase circuit. Multi-phase arcs occur when an electric current jumps between two or more phases of a three-phase circuit. Ground faults occur when an electric current escapes its intended path and connects to the ground instead.

Arc fault detection devices generally have several components that work together to detect arcs. These include sensors, which are responsible for detecting the presence of an arc by measuring the current or voltage in the system, and interrupters, which are responsible for cutting off the power when an arc is detected. In some cases, these components may be combined into a single device.

Knowing the ins and outs of arc fault detection can safeguard you, your home, and all its contents from hazardous sparks. If set up effectively in your electrical system, arc fault protection can help prevent catastrophic repercussions stemming from dangerous arcs.

How Does Arc Fault Detection Work?

Arc fault detection is a form of electrical system protection designed to detect potentially hazardous arcs in an electrical circuit and de-energize it before any damage can be done. The arc fault detection system consists of several components, including an arc detector, a control unit, and a switching device.

Arc detectors are the primary components of the system, and they detect any arcing or sparking between two conductors that may indicate a problem with the current flow. The control unit then receives signals from the detector and determines if there is indeed an arc fault present. If so, the switching device will interrupt the current flow and shut off power to the affected area to reduce further damage or potential injury.

Arc faults can come in many forms, such as loose connections, damaged cables, overheated wires, and short circuits; these forms are sorted into types – single-phase, multi-phase, and ground faults:

  • Single-phase arcs occur when two conductors come in contact, causing a spark between them. This arc is typically short-lived but can cause significant damage if left unchecked.
  • Multi-phase arcs occur when three or more conductors come in contact with one another, creating a much larger spark and resulting in a higher current load. This type of arc can cause more serious damage to the electrical system as it creates a larger spark and can cause extensive damage to the conductors.
  • Ground-fault arcs result from current flowing through the ground, either due to loose connections or damaged components. This arc type is more difficult to detect as it often involves low current levels but can cause serious damage to equipment due to its high current load.

Arc fault detection and discrimination methods are essential in any electrical system to ensure safety and reliability. Quickly detecting and de-energizing any arc fault is the key to preventing further harm or damage. Educating yourself on how arc fault detection works are essential for assuring your home, appliances, and wiring remain safe from dangerous arcs.

Preparing for the Test

Preparing for the arc fault detection test is an essential step in ensuring safety and accurate results. To ensure success, it is important to have all the necessary materials and tools on hand before beginning.

To start, you will need a CO monitor, an AC voltmeter, a ground resistance tester, a digital multimeter, and an insulation resistance tester. You should also have appropriate safety equipment, such as gloves and eyewear. Additionally, make sure to review the instructions for your specific arc fault detection device before beginning the test.

It is important to always use caution when working with electricity and to follow all safety protocols. Before beginning the test, it is a good idea to read the safety instructions included with your arc fault detection device. This will help ensure that you take all necessary precautions and have a successful test.

Finally, conduct the test in an area free of potential obstructions. The testing area should be free from debris and any other objects which could cause interference with the test.

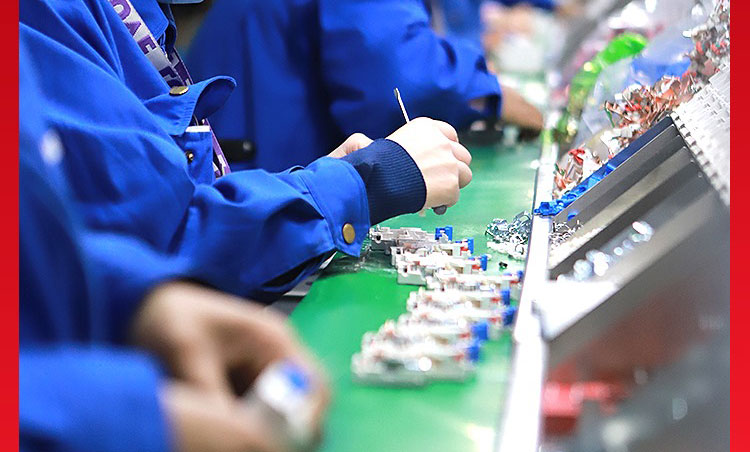

Conducting the Test

Conducting an arc fault detection test is a relatively straightforward process that can be completed in just a few simple steps. Firstly, the necessary equipment should be gathered, which usually includes an arc fault detector, a test leads and probe set, an electrical circuit tester, and safety gear.

Once the required tools have been acquired, the electrical circuit should be disconnected at the service panel, and the test leads should be connected to both ends of the exposed wiring. With that done, the arc fault detection device can be plugged in and tests initiated.

The results will appear on a digital display or an analog meter gauge. The amount of arcing present can then be established by comparison with pre-determined thresholds.

Finally, the test equipment should be removed and the circuit reconnected.

Careful documentation of the results should also be made, as this will help to identify any potential arc faults that may need to be addressed to improve safety. With all these steps, an arc fault detection test can be successful.

Troubleshooting Arc Fault Detection Issues

If you are experiencing issues with your arc fault detection system, it is important first to check the wiring and connections. Ensure that everything is properly connected and that all components are rated for the current being used. Any loose or damaged wires should be replaced promptly.

It may also be helpful to try different system configurations before performing a full test. This will help determine where the problem is located and can prevent costly repairs or replacements down the line. Additionally, it is important to regularly check for faults to ensure that the system is working correctly.

Lastly, always remember to follow safety guidelines when troubleshooting any electrical issues. Be sure to wear proper protective gear, and never work with live wires.



Related Article: Why Arc Fault Detection Device (AFDD) can minimize Electrical Fire

How Does an Arc Fault Detection Device Work?

An arc fault detection device (AFDD) is an electrical safety device that protects your home from fires caused by arcing faults, which occur when electric current travels along an unintended path. For the AFDD to work, it must contain several different components.

First, there are specialized sensors that detect any arcing faults within the electrical wiring. These sensors are able to quickly detect even the smallest of arcs and immediately alert other components of the device, such as its built-in electronics.

The AFDD’s electronic components then take over and analyze the data that is transmitted by the sensors in order to determine whether an arc fault is present. Depending on the make and model, some AFDDs may even be able to identify what type of arcing fault is occurring within your home’s electrical system.

Finally, sophisticated software allows the AFDD to quickly shut off power to a particular circuit or area where an arc fault has been detected. This helps to protect your home from potential fires and other dangers.

An AFDD is critical for any electrical system, as it can help to detect arcing faults before they become a hazard.

Conclusion

Arc fault detection is an important part of any electrical system and should not be overlooked. Regular testing and proper maintenance are the best ways to identify potential hazards before they become a problem. Those responsible for these systems must take proactive steps to ensure safety.

At Chint Global, we offer high-quality, top-rated AFDDs that can help protect your home from arcing faults and other electrical hazards. Contact us today for more information about our products, or browse our AFDD catalog for the solutions you need.
