NB3L-40 Residual Current Operated Circuit Breaker with over-current protection (Magnetic) Datasheet & Manual

NB3L-40 Residual Current Operated Circuit Breaker with over-current protection (Magnetic)

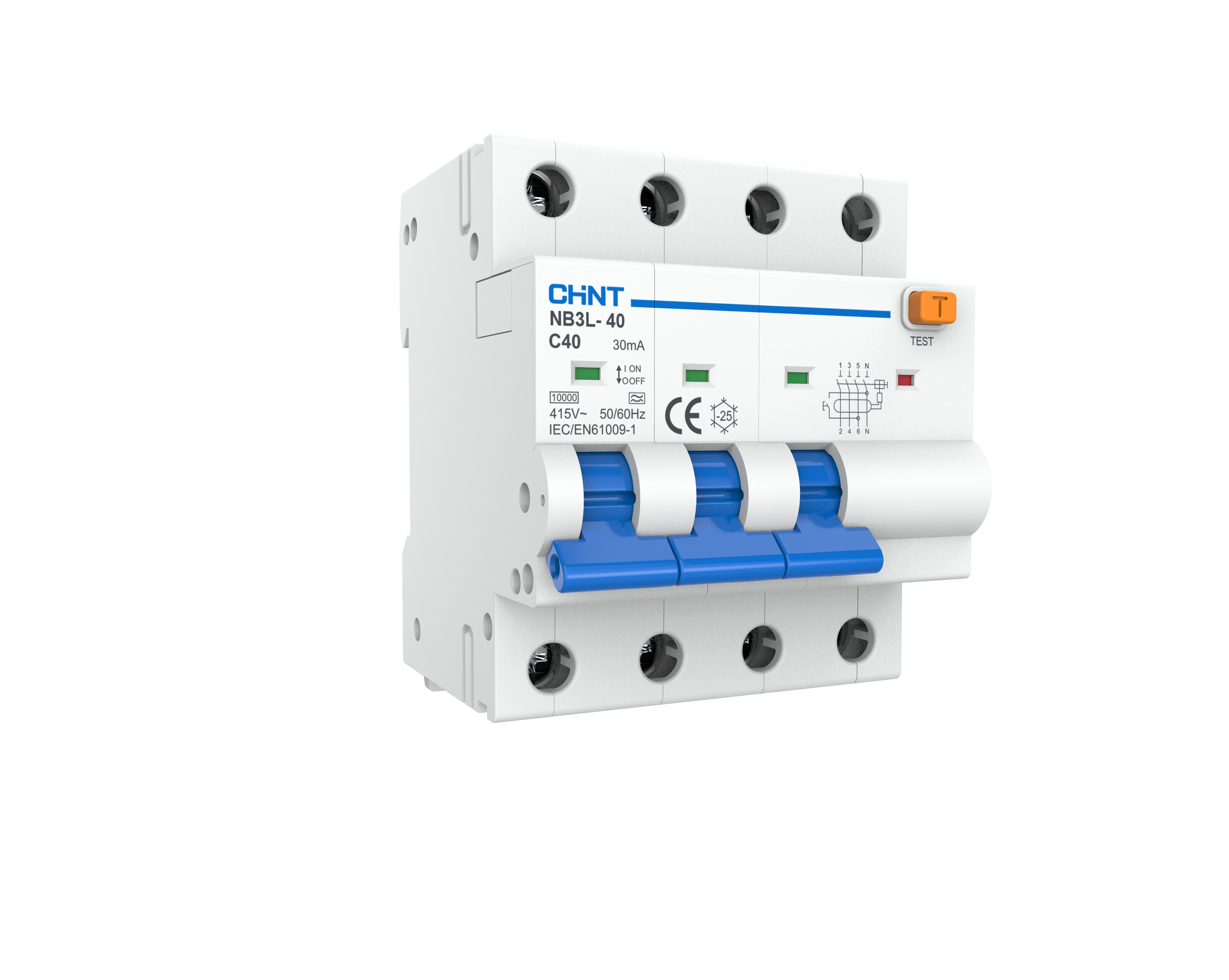

The CHINT NB3L-40 RCBO combines residual current protection and over-current protection in one compact unit, offering reliable performance in low-voltage electrical systems. It safeguards circuits against overloads, short-circuits, and earth leakage faults, ensuring both equipment and personnel protection. Designed for 400/415 V AC networks, it provides 10 kA breaking capacity, precision tripping through magnetic release technology, and flexible configurations for different load types (B, C, and D curves). The NB3L-40 is ideal for industrial and commercial installations requiring dependable safety and performance.

Need Support From Us?

Blog

Find expert perspectives on the trends and technologies driving your business.

View Now

Download Center

Download new and previously released documents including product document, solutions, cases, coporate report.

View Now

Reach out to us to receive more information, technical support, assistance with complaints and more.

Collapsed

Expand

FAQs

What is the primary function of the NB3L-40 RCBO?

It provides dual protection against residual current (earth leakage) and over-current (overload and short circuit), ensuring both electrical safety and fire prevention in low-voltage systems.

What types of electrical systems is it suitable for?

It’s ideal for TN and IT systems, particularly for mixed loads — resistive, inductive, or with high inrush currents such as motors and transformers.

What is the difference between Type A and Type AC tripping classes?

Type A: Detects both sinusoidal AC and pulsating DC residual currents.

Type AC: Detects only sinusoidal alternating currents.

How does the tripping curve affect selection?

Choose the B curve for resistive circuits, C curve for mixed loads, and D curve for circuits with heavy inductive equipment such as compressors or pumps.

Can the NB3L-40 operate in high-temperature environments?

Yes, but current ratings must be derated at higher ambient temperatures — e.g., at 60 °C, the permissible current is approximately 85% of the rated value.
