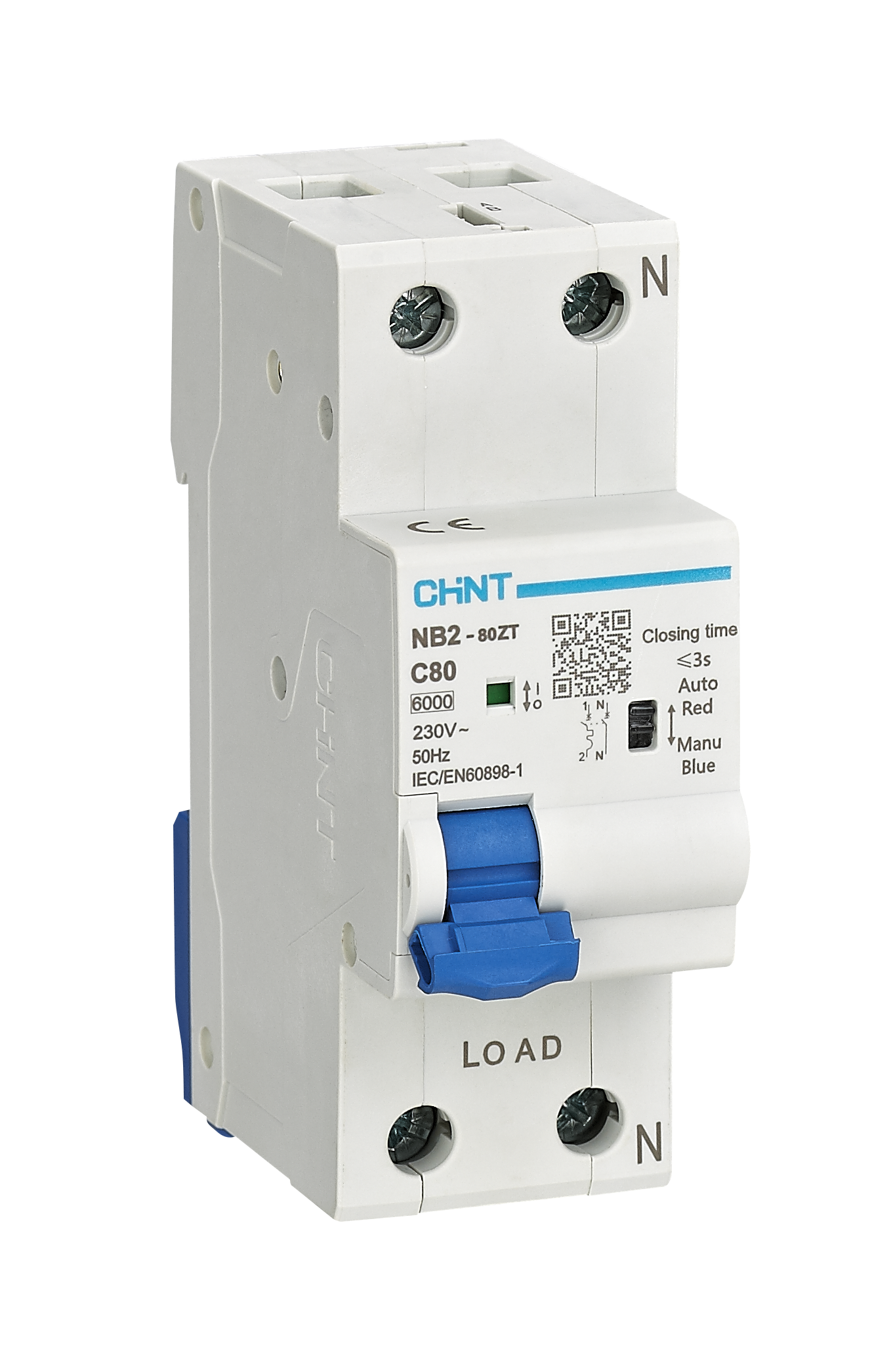

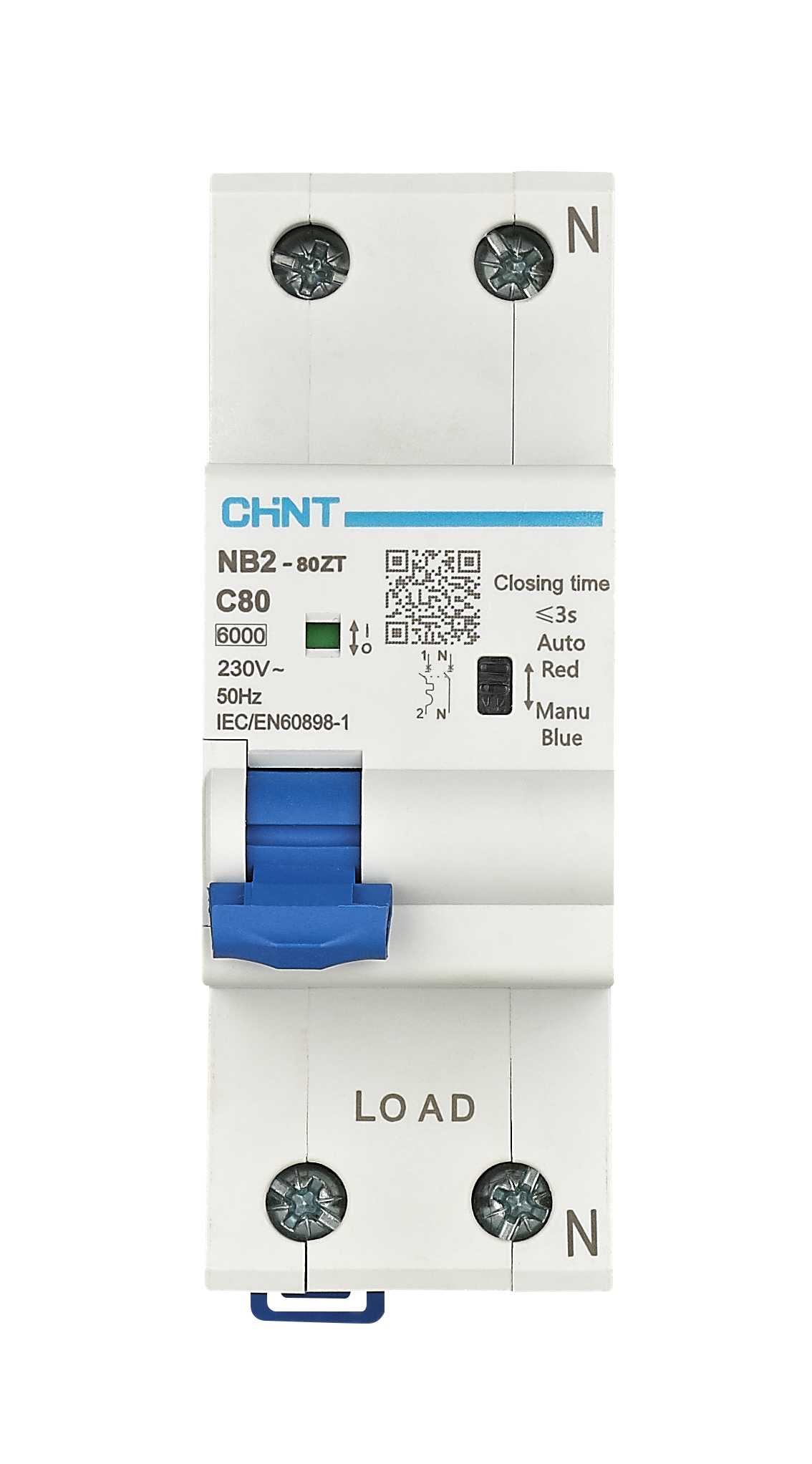

The CHINT NB2-80ZT Smart Miniature Circuit Breaker (MCB) is designed for intelligent power protection in low-voltage AC circuits up to 80A. Supporting overload, short-circuit, and over/undervoltage protection, it also enables remote switching, metering, and communication via RS485 or Bluetooth. With a compact modular design, 6 kA breaking capacity, and compliance with IEC/EN 60898-1, it’s ideal for smart energy management, industrial panels, and modern building automation systems.

Product Information

Rated Current (In): 6 A – 80 A
Rated Voltage (Ue): AC 230 V (1P+N) / AC 400 V (3P+N), 50 Hz
Tripping Curve: Type C
Rated Breaking Capacity: 6 kA
Protection Features: Overload, short-circuit, over/undervoltage (settable parameters)
Default Thresholds:
- OVP 280 V ± 5 V / Recovery 250 V ± 5 V
- UVP 165 V ± 5 V / Recovery 190 V ± 5 V
Remote Control & Comms: RS485 (Modbus-RTU) / Bluetooth BLE 5.0 (backward compatible 4.0–4.2)
Measurement Accuracy: Voltage ±0.5 % | Current ±1.0 % | Power ±1.5 %
Mechanical Life: 10 000 cycles Electrical Life: 6 000 cycles
Operating Temperature: −25 °C ~ +70 °C | Storage −40 °C ~ +70 °C
Installation: DIN rail TH35-7.5 | Top feed | Cable/Pin busbar ( max 25 mm² , 3 N·m )
Protection Degree: IP20 | Pollution Degree 2 | Flame Retardant V-0
Standards & Certifications: IEC/EN 60898-1 | CE | RoHS | REACH

Name

Size

Release time

Operate

NB2-80ZT-MCB-Catalog.pdf

1.23MB

2025-02-24

Download

Name

Size

Release time

Operate

2306-NB2-80ZT-MCB-Manual EN.pdf

3.77MB

2024-09-22

Download

Name

Size

Release time

Operate

2405-NB2-80ZT-MCB-REACH Declaration Certificate.pdf

387.42KB

2024-09-22

Download

2308-NB2-80ZT-MCB-CE RoHS Declaration Certificate.pdf

287.29KB

2024-09-22

Download

2205-NB2-80ZT-MCB-CB Certificate.pdf

600.57KB

2024-09-22

Download

2205-NB2-80ZT-MCB-CE Certificate.pdf

664.77KB

2024-09-22

Download

Name

Size

Release time

Operate

NB2-80ZT-MCB-Drawing- 1P+N-3D.stp

4.93MB

2024-09-22

Download

NB2-80ZT-MCB-Drawing- 3P+N-3D.stp

16.45MB

2024-09-22

Download

Play Video

Need Support From Us?

Blog

Blog

Find expert perspectives on the trends and technologies driving your business.

View Now

Download Center

Download Center

Download new and previously released documents including product document, solutions, cases, coporate report.

View Now

Contact Us

Reach out to us to receive more information, technical support, assistance with complaints and more.

Collapsed

Expand

FAQs

What makes the NB2-80ZT a “Smart” MCB?

It integrates remote control, metering, and communication functions through RS485 (Modbus-RTU) or Bluetooth BLE 5.0. This allows real-time monitoring, energy statistics, and remote ON/OFF operations without manual intervention.

Which protections are built in?

It provides overload, short-circuit, and over/undervoltage protection. Voltage thresholds are adjustable, with factory defaults set at OVP 280 V / UVP 165 V and corresponding recovery levels to ensure safety and stability.

Can it replace a conventional MCB in existing panels?

Yes — the NB2-80ZT has a compact 18 mm width per pole and DIN-rail compatibility, making it a drop-in replacement for traditional MCBs while adding smart monitoring and control.

What are its communication and networking options?

It supports RS485 (Modbus-RTU) wired communication and Bluetooth BLE 5.0 wireless networking, with automatic address configuration through CHINT’s SMG gateway, enabling integration into smart distribution systems.

What is the environmental endurance and safety rating?

Designed for −25 °C to +70 °C operation and up to 2000 m altitude, the device carries IP20 protection, Pollution Degree 2, and V-0 flame-retardant housing for reliable industrial and building applications.
