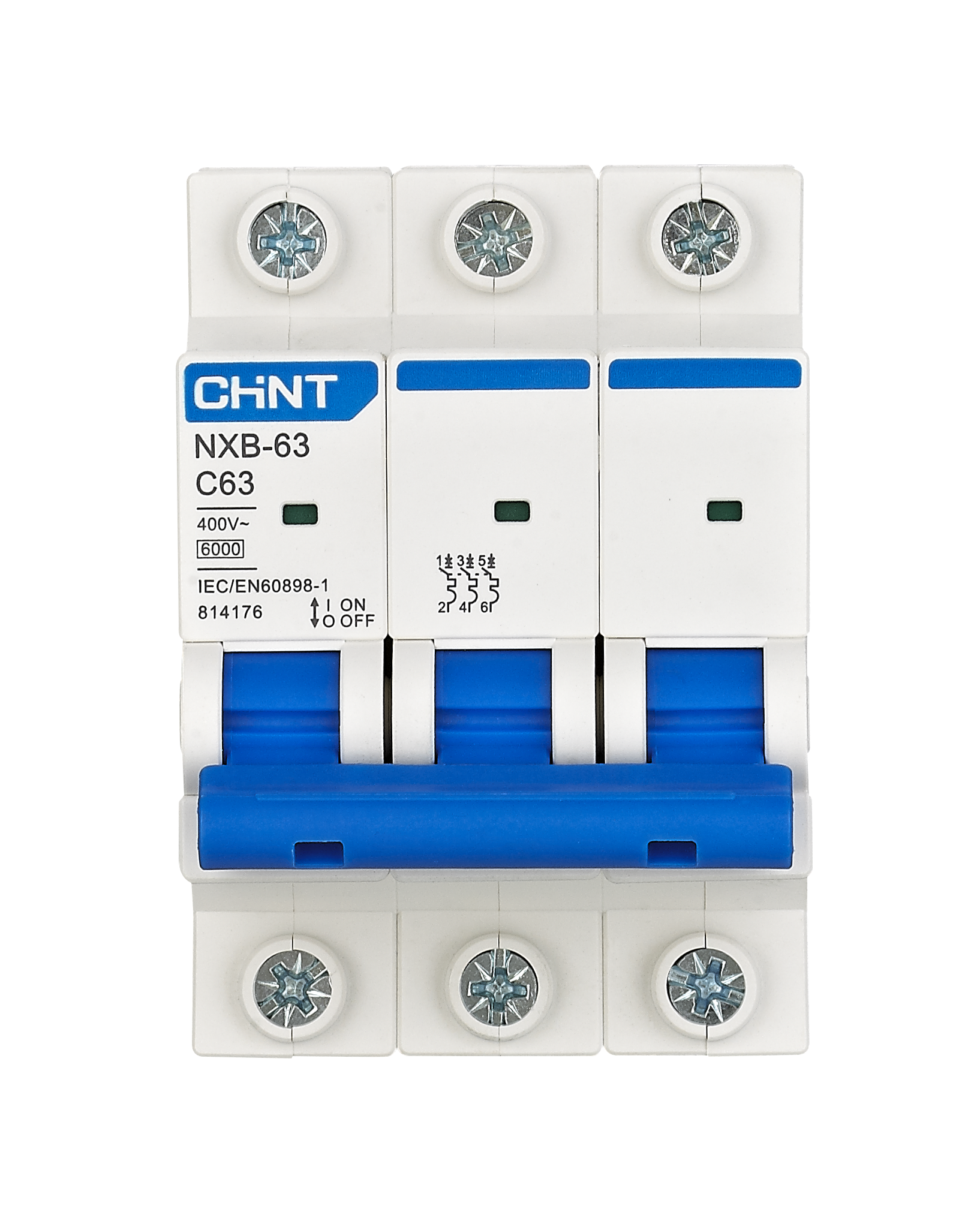

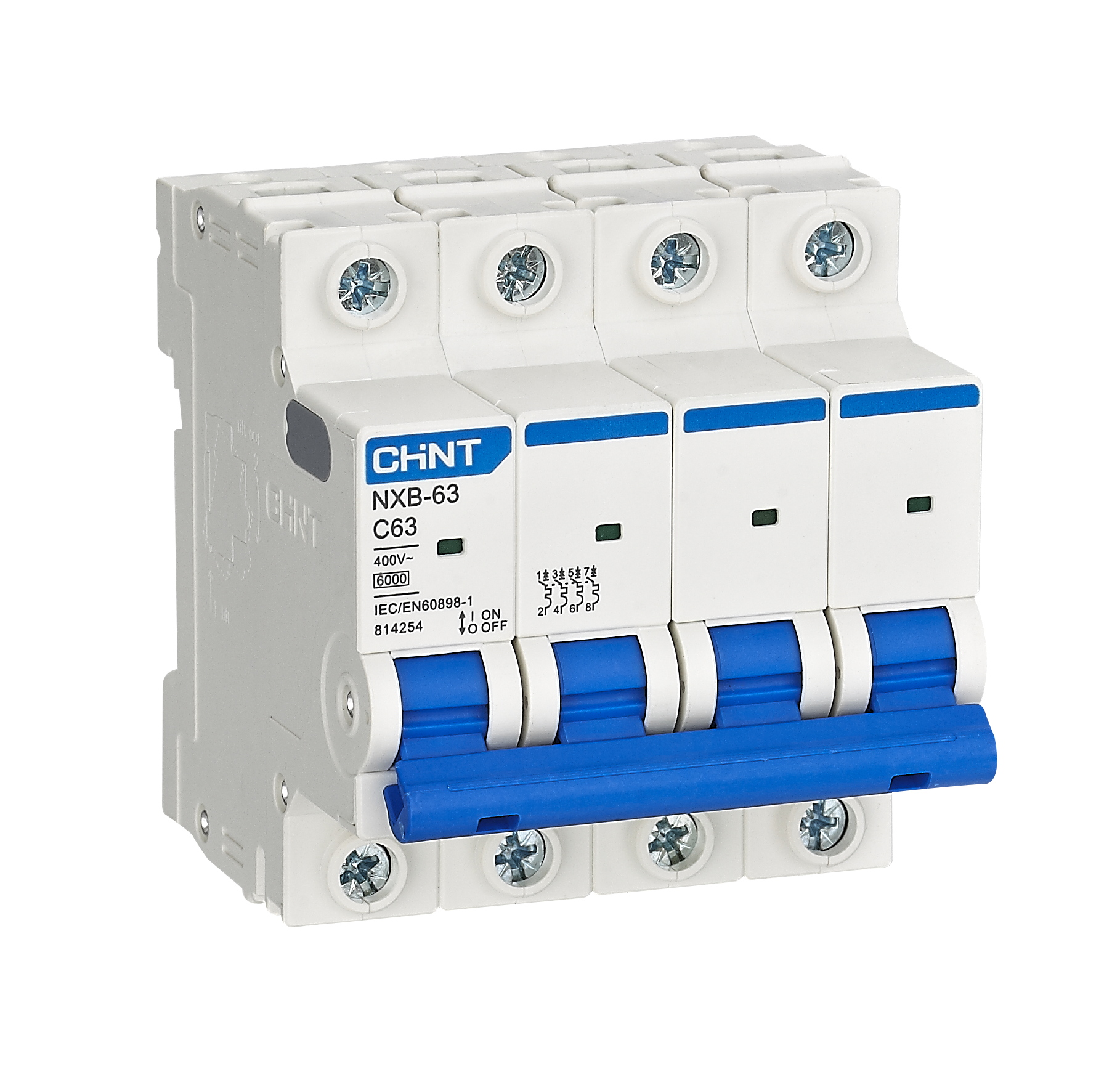

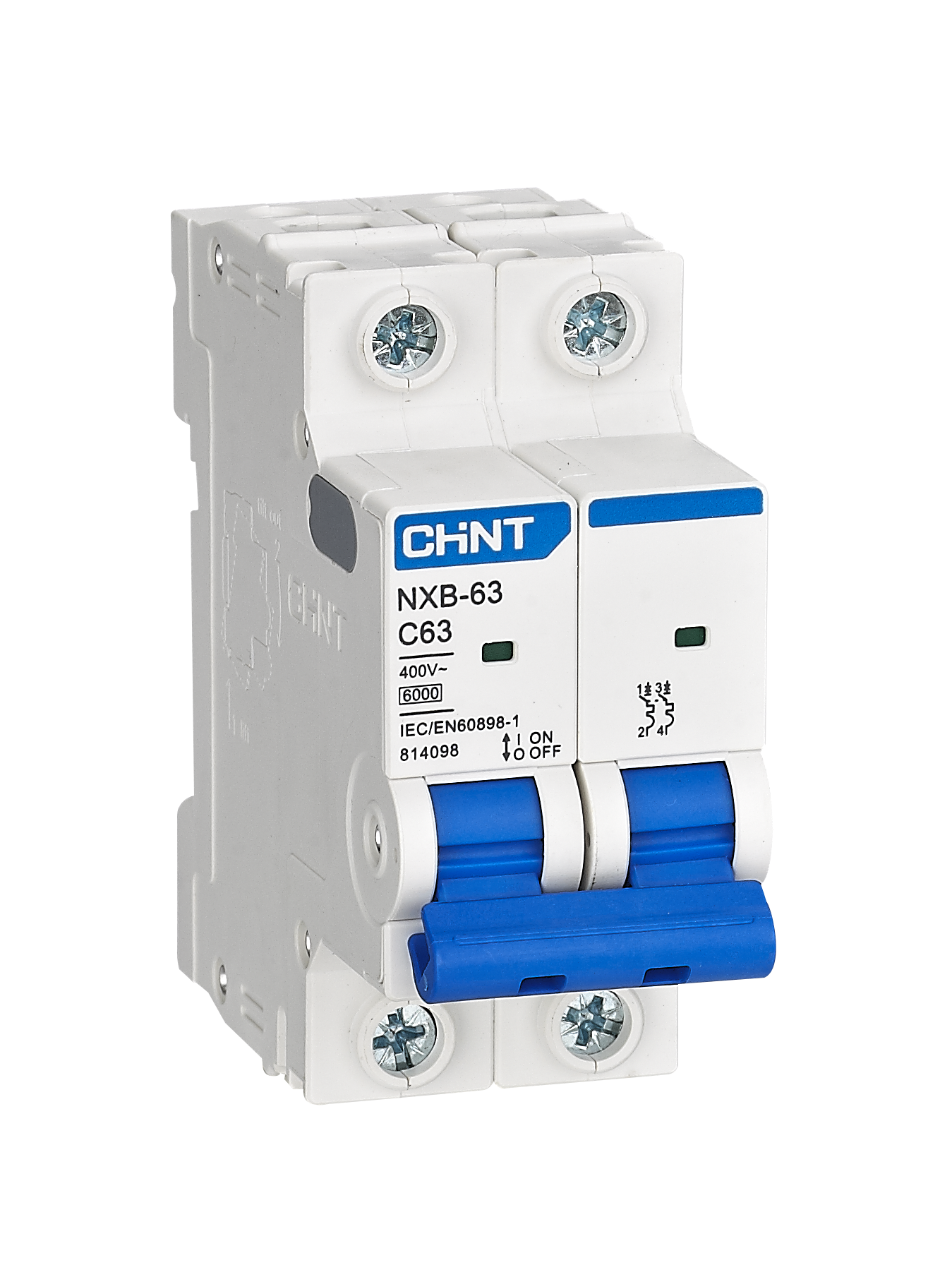

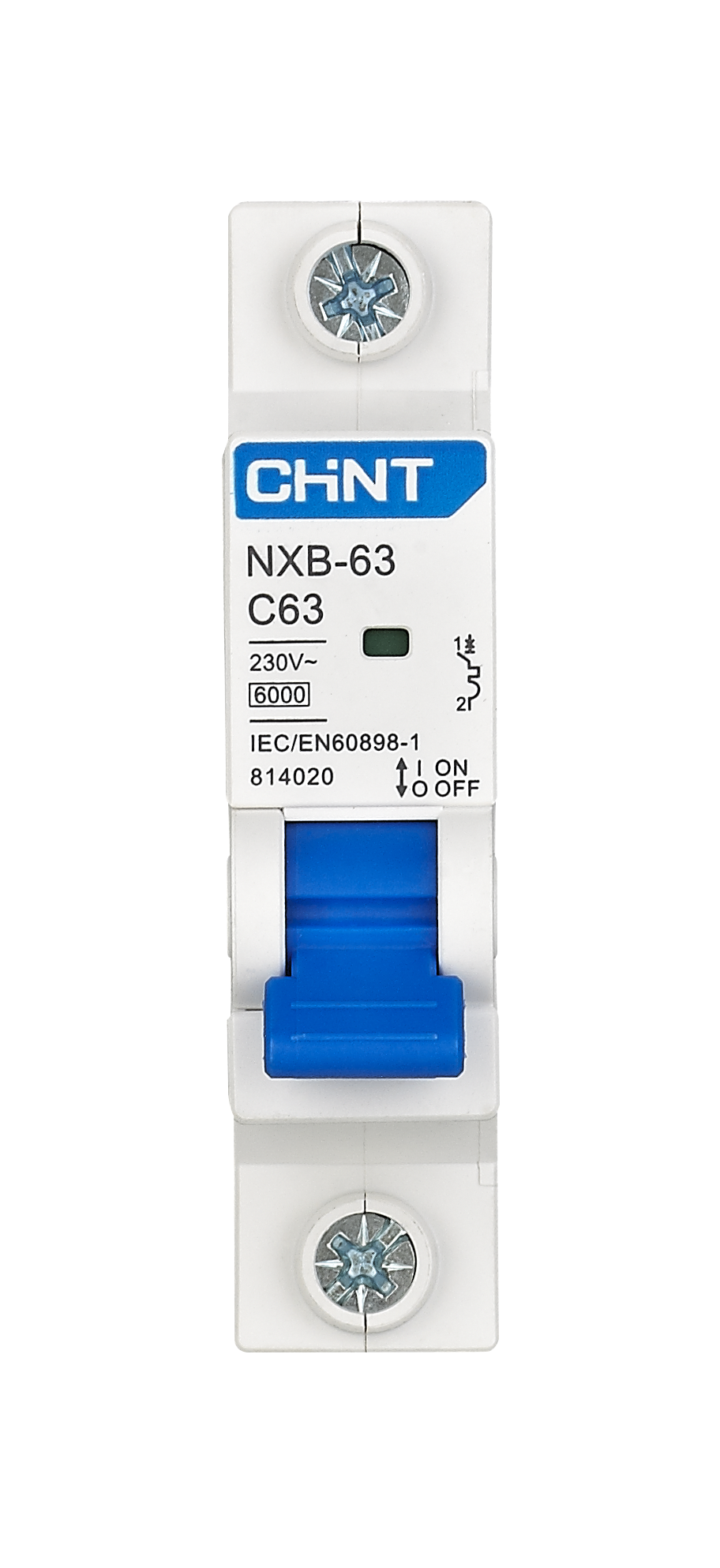

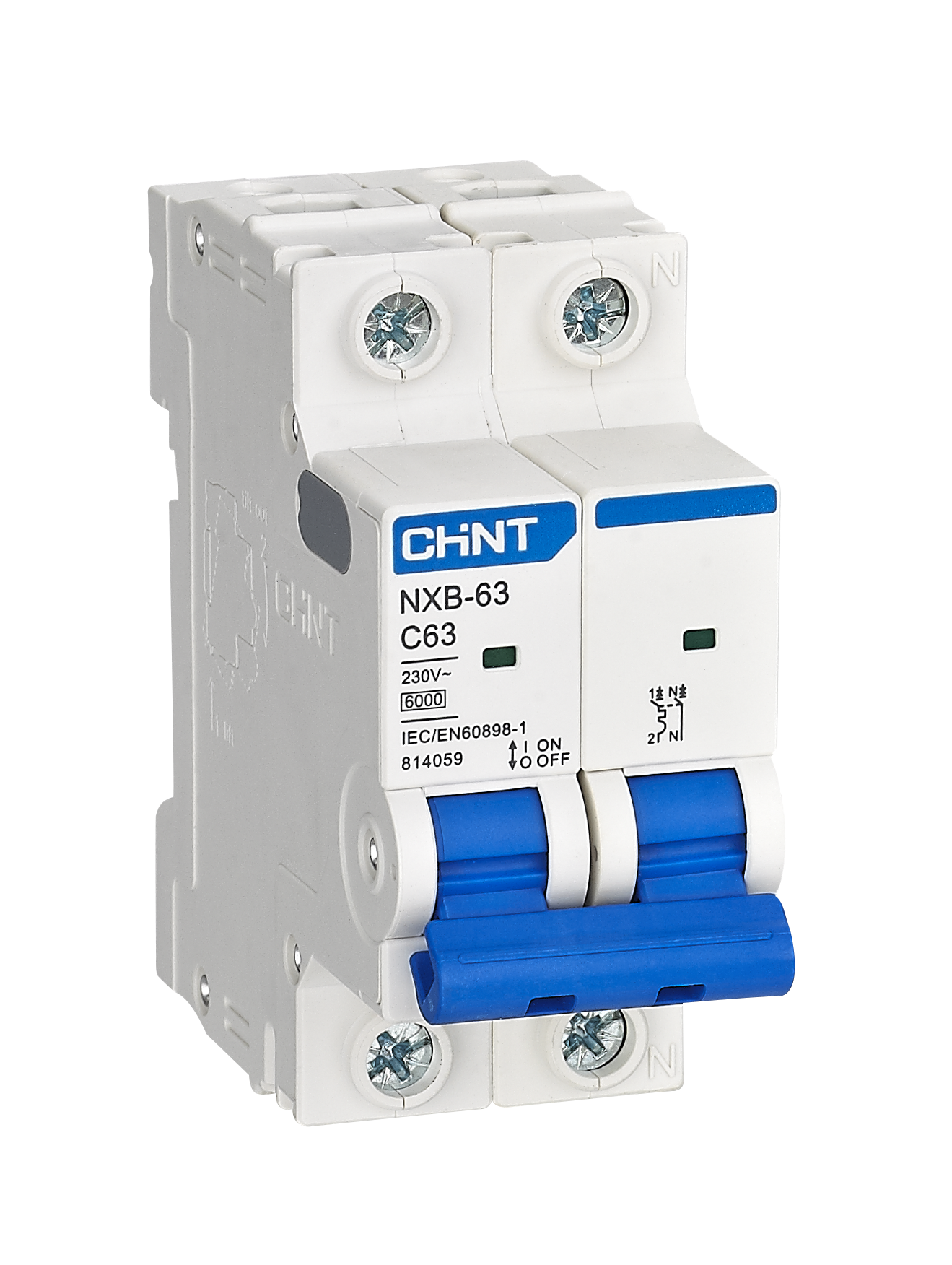

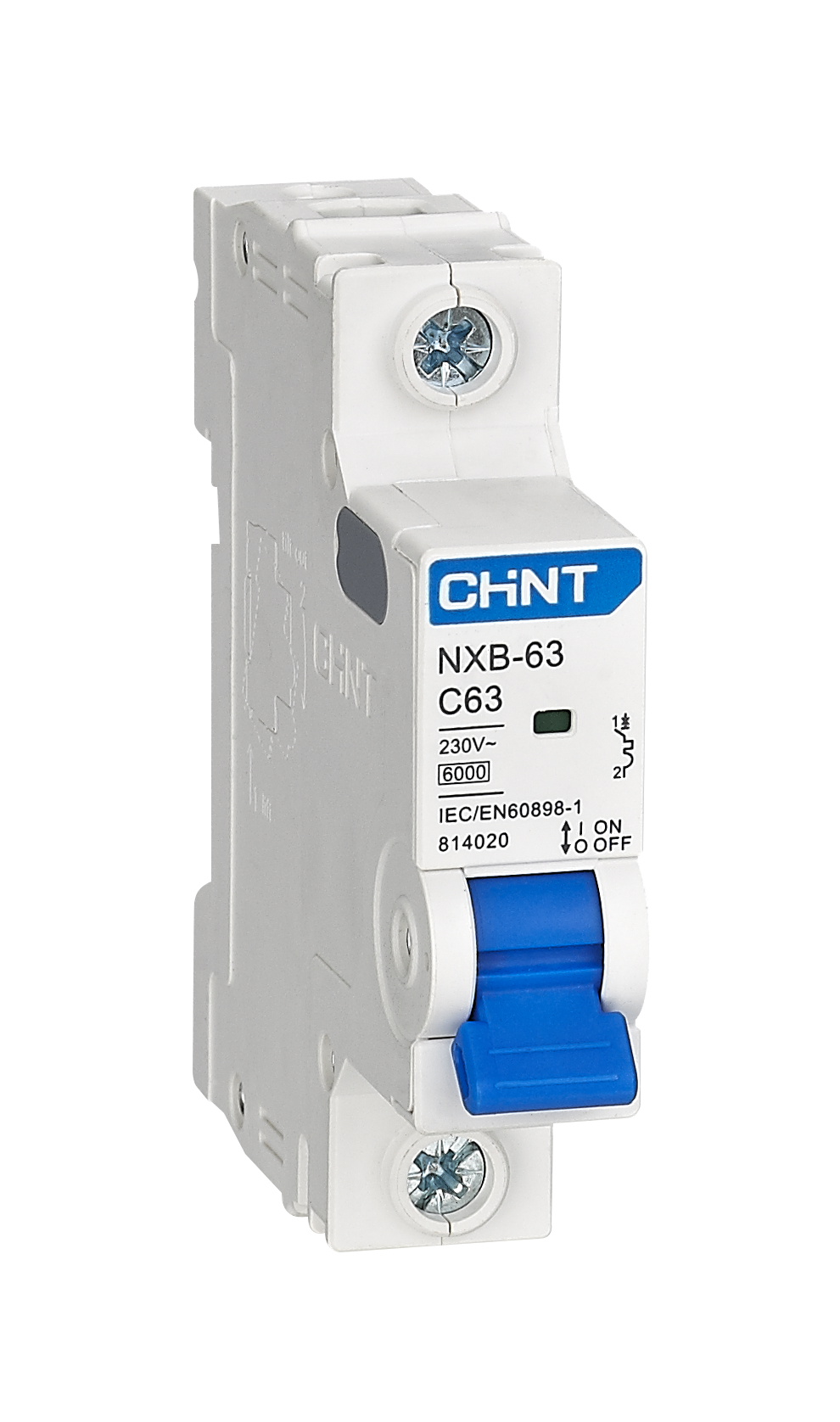

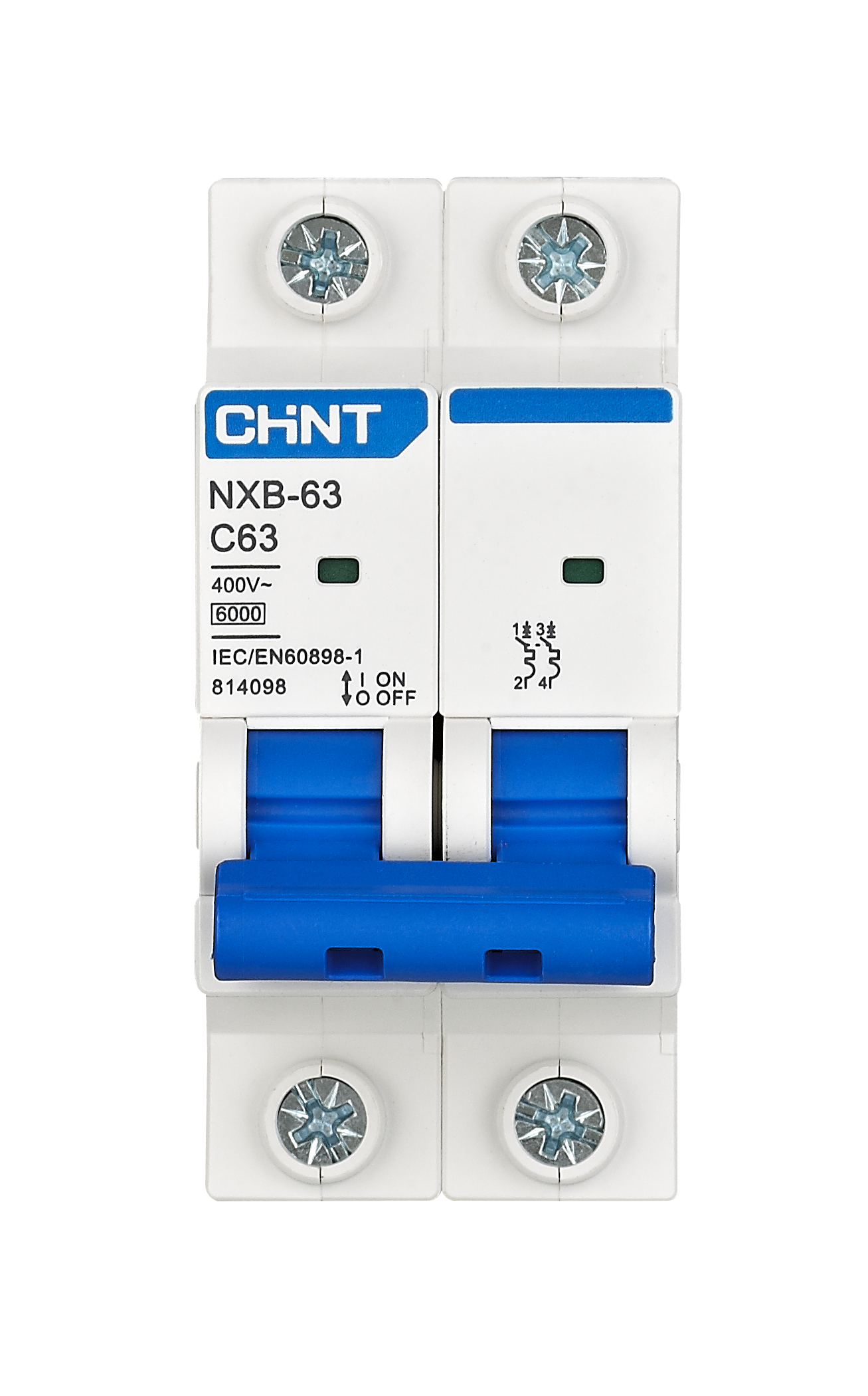

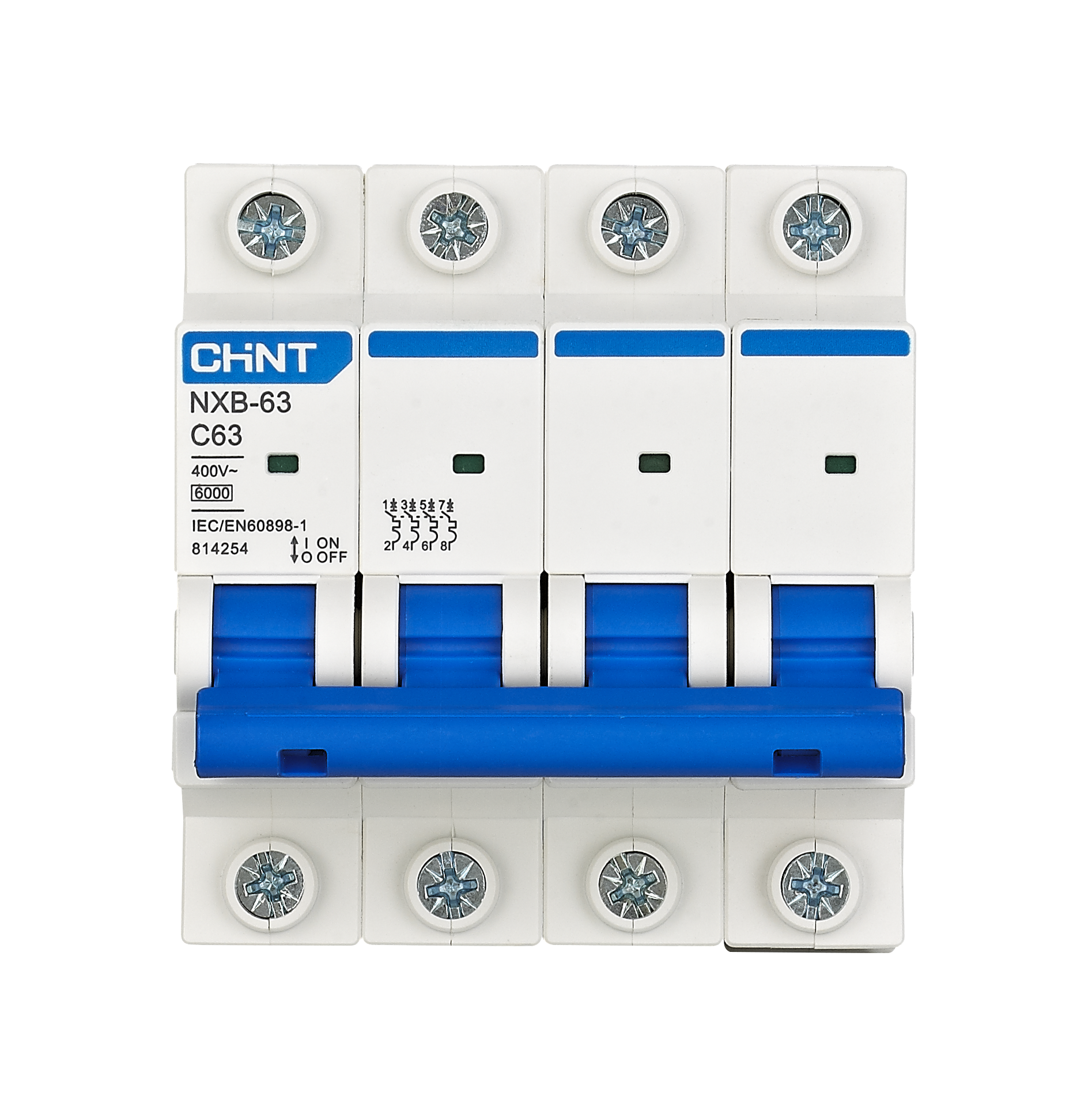

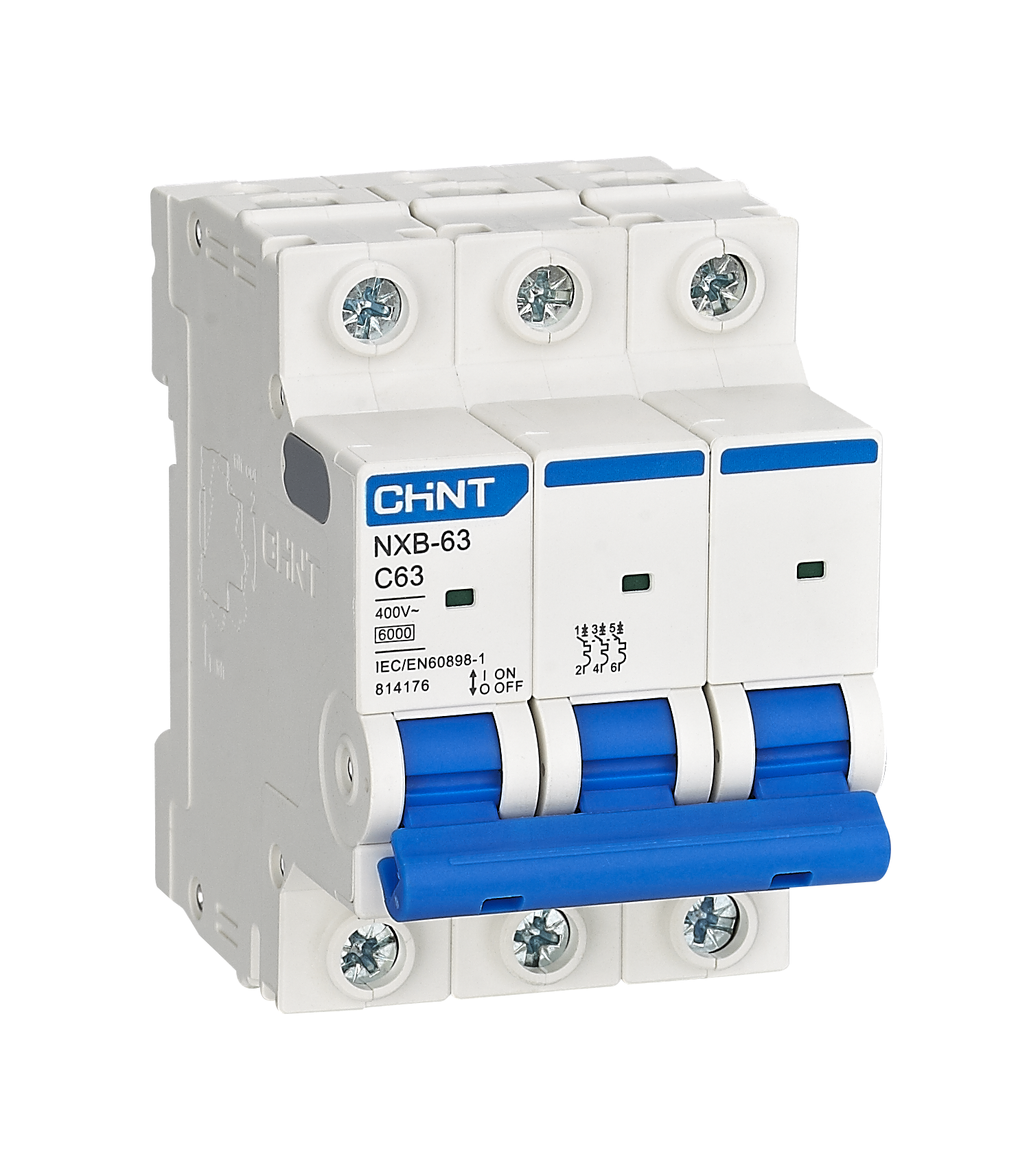

The CHINT NXB-63 is a modular miniature circuit breaker (MCB) designed to provide reliable overload and short-circuit protection in AC circuits up to 415 V. Built to IEC/EN 60898-1 standards, it is suitable for residential, commercial, and light-industrial distribution applications requiring precise circuit isolation and safety.

Product Information

Standards: IEC/EN 60898-1
Rated current (In): 1 A – 63 A
Rated operating voltage (Ue): 220/230/240 V ~ (1P, 1P+N, 2P); 380/400/415 V ~ (2P – 4P)
Rated frequency: 50/60 Hz
Rated short-circuit breaking capacity (Icn): 6 kA (standard); 10 kA optional (H type only)
Rated insulation voltage: (Ui) 500 V
Rated impulse withstand voltage (Uimp): 4 kV
Tripping characteristics: Type B (3–5 × In), C (5–10 × In), D (10–16 × In)
Mechanical life: 20 000 operations
Electrical life: 10 000 operations
Protection degree: IP20 (device only) / IP40 (in distribution box)
Mounting: TH35-7.5 DIN rail
Terminal capacity: 1 – 25 mm² (copper only)
Operating temperature: –35 °C to +70 °C

Name

Size

Release time

Operate

NXB-63-MCB-catalog.pdf

820.41KB

2025-04-02

Download

Name

Size

Release time

Operate

2004-NXB-63-MCB-Manual.pdf

323.32KB

2024-09-22

Download

Name

Size

Release time

Operate

2407-NXB-63-MCB-CB Certificate.pdf

761.5KB

2024-09-22

Download

2407-NXB-63-MCB-CE Certificate.pdf

721.12KB

2024-09-22

Download

2404-NXB-63-MCB-CE RoHS Declaration Certificate.pdf

136.19KB

2024-09-22

Download

2404-NXB-63-MCB-SAA Certificate.pdf

670.18KB

2024-09-22

Download

2404-NXB-63-MCB-CE Declaration Certificate.pdf

136.17KB

2024-09-22

Download

2402-NXB-63-MCB-SIRIM Certificate.pdf

1.28MB

2024-09-22

Download

2401-NXB-63-MCB-SII Certificate.pdf

789.77KB

2024-09-22

Download

2311-NXB-63 3P C6-MCB-KC Certificate.pdf

741.8KB

2024-09-22

Download

2311-NXB-63 2P C6-MCB-KC Certificate.pdf

779.34KB

2024-09-22

Download

2311-NXB-63 1P C32-MCB-KC Certificate.pdf

714.56KB

2024-09-22

Download

2311-NXB-63-MCB-Carbon Footprint Certificate.pdf

540.54KB

2024-09-22

Download

2311-NXB-63 2P C32-MCB-KC Certificate.pdf

724.58KB

2024-09-22

Download

2311-NXB-63 2P C63-MCB-KC Certificate.pdf

721.86KB

2024-09-22

Download

2311-NXB-63 1P C63-MCB-KC Certificate.pdf

723.4KB

2024-09-22

Download

2311-NXB-63 4P C6-MCB-KC Certificate.pdf

818.75KB

2024-09-22

Download

2311-NXB-63 4P C32-MCB-KC Certificate.pdf

753.72KB

2024-09-22

Download

2311-NXB-63 4P C63-MCB-KC Certificate.pdf

747.44KB

2024-09-22

Download

2311-NXB-63 3P C32-MCB-KC Certificate.pdf

737.01KB

2024-09-22

Download

2311-NXB-63 3P C63-MCB-KC Certificate.pdf

751.24KB

2024-09-22

Download

2307-NXB-63-MCB-SNI Certificate.pdf

1.17MB

2024-09-22

Download

2305-NXB-63-MCB-SLS Certificate.pdf

3.16MB

2024-09-22

Download

2303-NXB-63-MCB-NOM Certificate.pdf

784.87KB

2024-09-22

Download

2211-NXB-63-MCB-INMETRO Certificate.pdf

798.35KB

2024-09-22

Download

2211-NXB-63-MCB-REACH Declaration Certificate.pdf

576.32KB

2024-09-22

Download

2206-NXB-63-MCB-EAC Certificate.pdf

617.76KB

2024-09-22

Download

2205-NXB-63-MCB-TUV Certificate.pdf

1.28MB

2024-09-22

Download

2104-NXB-63-MCB-UKCA Certificate.pdf

410.41KB

2024-09-22

Download

1808-NXB-63-MCB-IRAM Certificate.pdf

5.34MB

2024-09-22

Download

Name

Size

Release time

Operate

NXB-63-MCB-Drawing-1P-2D.dwg

92.41KB

2024-09-22

Download

NXB-63-MCB-Drawing-2P-2D.dwg

284.82KB

2024-09-22

Download

NXB-63-MCB-Drawing-3P-2D.dwg

288.15KB

2024-09-22

Download

NXB-63-MCB-Drawing-4P-2D.dwg

292.51KB

2024-09-22

Download
