Electricity cables have long been used simply for power transmission. However, the same cables can also serve as conduits for communication if the right technology is applied. Power Line Communication (PLC) is the answer. It allows data to be transmitted through low and medium-voltage power lines. It turns the existing power grid infrastructure into a communication network. This innovative cable communication idea is now being realized through G3-PLC technology and solutions from seasoned providers like CHINT.

G3-PLC refers to the ITU-T G.hn/G. 9960 global standard for powerline communications. It was established by the G3-PLC Alliance. It’s an industry association that includes leading brands to develop interoperable PLC systems. By complying with open international standards, G3-PLC assures compatibility, security, and future upgrades.

Understanding the G3 Alliance

The G3-PLC Alliance was formed in 2011 by leading utility and advanced cable communications companies. Its goal is to set global PLC standards that maximize network potential. Early work contributed specifications for the G.9903 narrowband PLC guideline. Building on this, the seminal G.hn/G.9960 standard was finalized later. Commonly called G3-PLC, it allows broadband transmission over power lines and more.

Notably, G3-PLC utilizes OFDM to split data across frequencies, ensuring reliability despite noise. This enabled vast throughput cable communication improvements over older technologies. Security is also prioritized through authentication and encryption mandates.

By establishing common rules backed by major brands, the G3 Alliance facilitated universal compatibility for seamless integration now and as specifications evolve further. Utilities can confidently deploy solutions, and knowing requirements will continually align with innovation.

Communication Advantages of G3-PLC Technology

G3-PLC technology has proven to be the ideal networking medium for smart grid applications. This is thanks to its inherent technical advantages over legacy PLC methods. Being based on OFDM, it provides highly robust cable communication even in the harshest powerline noise conditions. The top advantages include:

- Performance Comparison Between FSK and OFDM

Where FSK manages only 2kbps at low BER, OFDM achieves 32kbps at the same reliability level using a fraction of the signal power. It transmits data through multiple frequencies simultaneously, minimizing distortions.

- Data Transmission Reliability and Efficiency

OFDM employs forward error correction and adaptive modulation. In this way, it ensures reliable data transmission in the presence of multi-path noise over powerlines. This cuts downtime risks.

- Long-Distance Coverage and Broader Communication Range

Because of its superior noise immunity, G3-PLC networks can span across a broader communication over power line range from substation to distribution transformer vs. lower range for older techniques.

- Future Scalability and Compatibility with Global Standards

Being true IPv6 compatible and globally standardized, G3-PLC guarantees future-proofing through access to the latest technological advancements. Its inherent coexistence with other PLC methods also permits seamless upgrades.

CHINT’s G3-PLC Solutions

As a global leader in smart energy with a history of many years, CHINT focuses on industry digitalization through reliable and future-proof solutions. Our range includes smart meters, intelligent distribution equipment, energy management systems, and IoT platforms. These solutions are offered for utilities, industrial, and commercial segments. We aim to address key challenges in the power sector through its G3-PLC-based cable communication portfolio. It seeks to address:

- High Energy Losses

Automated metering infrastructure enabled by G3-PLC helps curb technical energy losses during delivery. It also prevents non-technical losses due to theft/errors through remote disconnect. Advanced data also aids targeted reinforcement.

- High Operational Costs

Remote monitoring of primary/secondary equipment conditions helps minimize high operational costs. This is because monitoring power quality parameters allows pre-emptive repair/maintenance. Analytics further optimize workforce deployment routes.

- Asset Management Difficulties

On asset management difficulties, CHINT’s G3-PLC solutions establish cable communication between all grid devices to provide full visibility. Real-time alerts on faults/operational parameters streamline response, while historized data helps evidence-based investment planning.

- Lack of Real-Time Monitoring

The lack of monitoring is resolved through smart meters supporting G3-PLC/mixed technologies. Captured parameters like demand profiles empower strategic planning. They also improve loss analysis while tamper detection enhances security.

- Unscheduled Demand Management

Unscheduled demand management becomes practical using automatic demand response programs integrated into energy management systems. These leverage demand response signals via the G3-PLC cable communication network to stabilize load curves during peaks.

- Customer Awareness and Satisfaction

Finally, consumer satisfaction improves via mobile apps delivering usage insights. Pre-paid functionality and curbing peak demands supported via incentives prove beneficial. They cultivate sensible usage behavior and, hence, satisfaction among customers.

Key Features of CHINT’s Products and Solutions

CHINT’s comprehensive suite aims to transform utility operations and consumer energy experience. Key offerings and features include:

- Smart Meters

Modular meters like CHS120 & CHS320 support multiple cable communication modes, including G3-PLC. Advanced security, authentication, and flexible installation of these meters boost reliability. Additionally, consumption and power quality data provide enhanced revenue protection, lower O&M, and demand management.

- PowerEasy2.0 Energy Management System

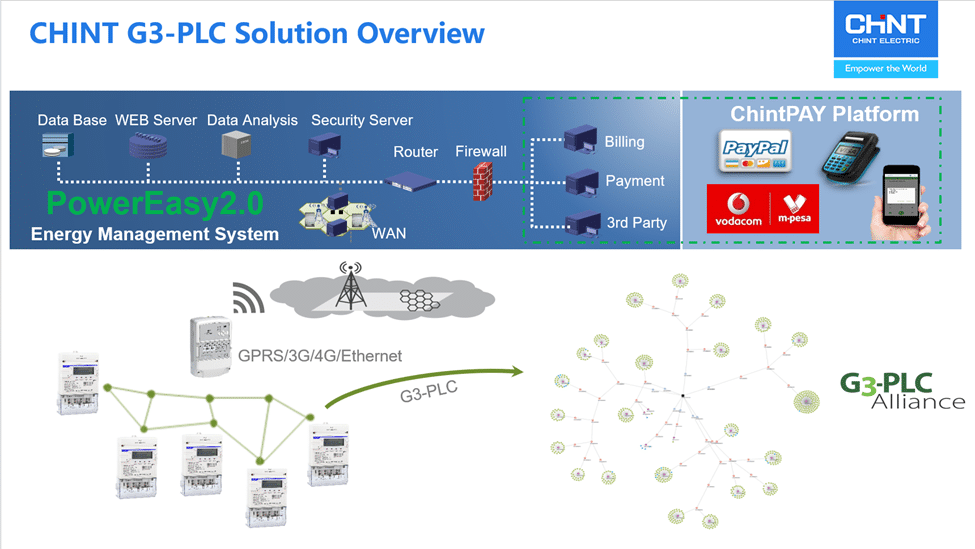

This next-gen centralized AMI system spans the entire smart grid IT infrastructure. Its platform architecture delivers unified management of customers, assets, demand response, and more through a data analytics-driven interface.

- High Security

Robust encryption mechanisms along the entire cable communication pathway protect sensitive grid and consumer information. CHINT’s intelligence feature implementation protects against cyber threats while maintaining access controls.

- Strong Compatibility

CHINT’s solutions seamlessly integrate current infrastructure and are forward-compatible with evolving technologies. PowerEasy2.0 enables seamless interconnection with third-party applications through open APIs.

CHINT’s Global Deployment and Certification

With years of industry leadership, CHINT has proven smart energy expertise worldwide. The brand has established a strong global presence. Our comprehensive range of solutions has benefitted utilities, industrial, and commercial clients in over 140 countries across all continents, delivering projects across the Americas, Europe, Asia Pacific, Africa, and the Middle East. A dedicated team in 16 manufacturing hubs ensures prompt localized services to diverse markets.

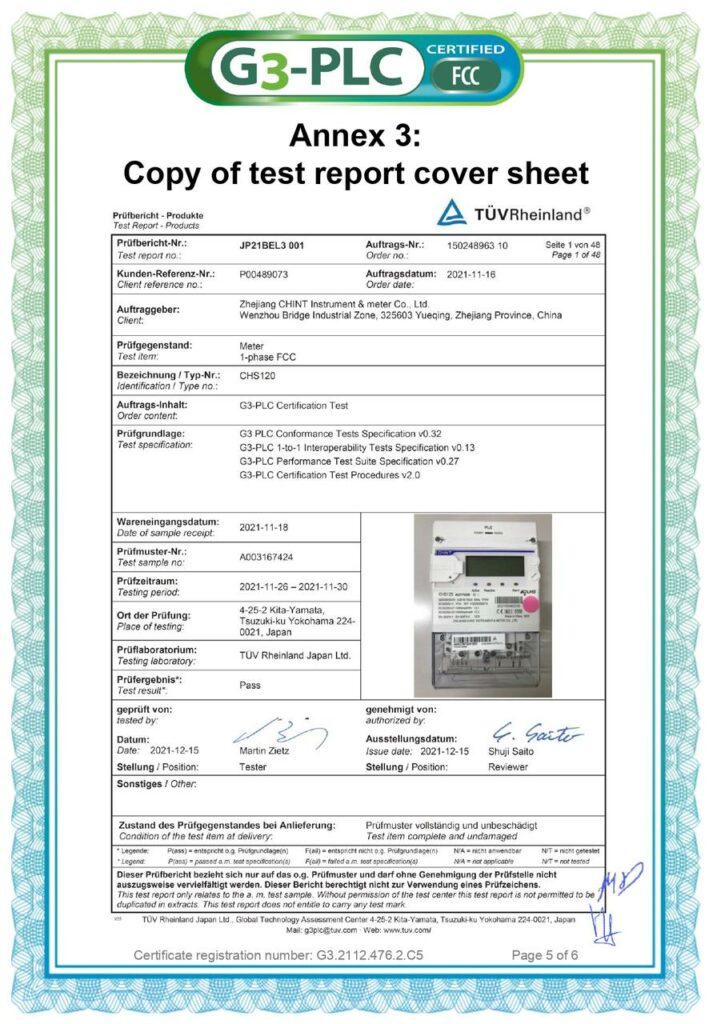

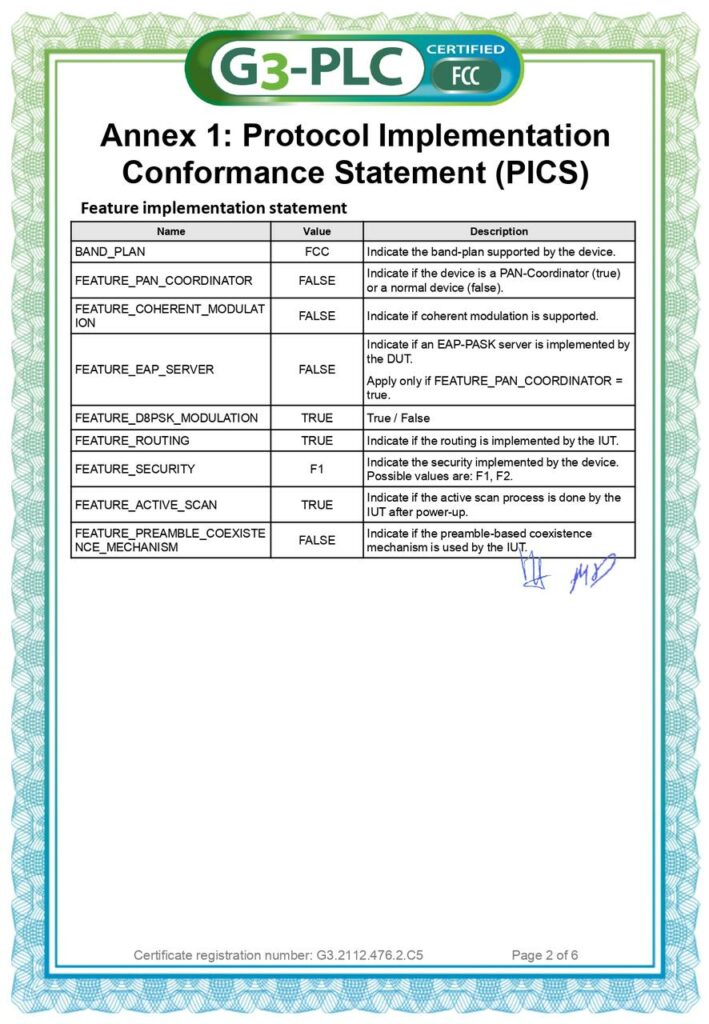

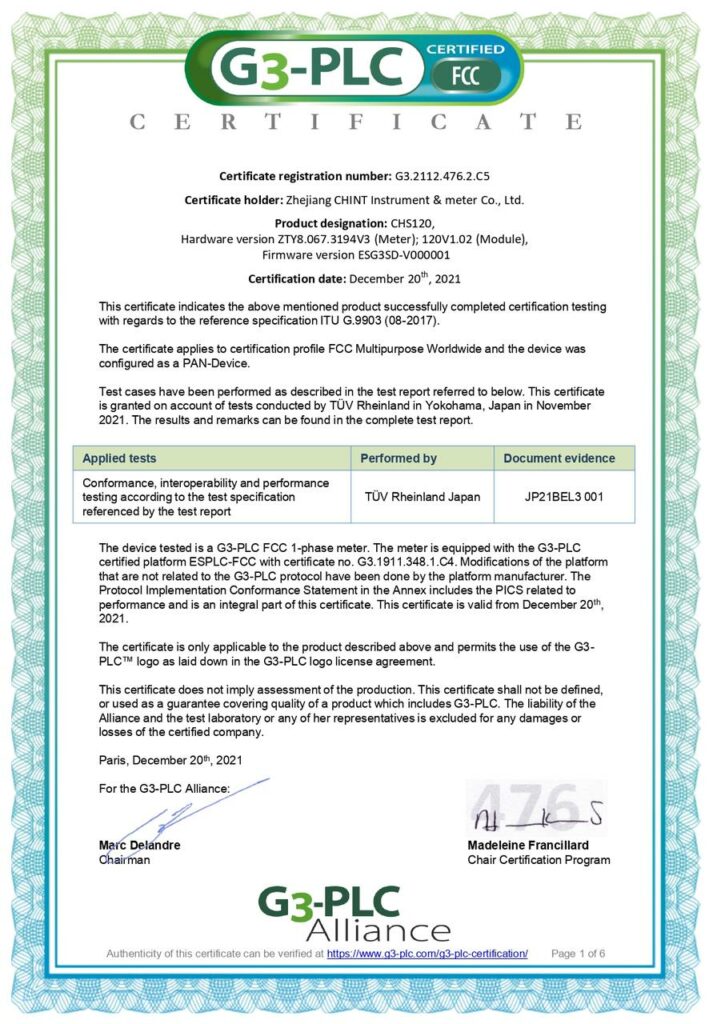

Our G3-PLC product profile has achieved FCC Multipurpose certification. It was granted after thorough validation testing conducted by TUV Rheinland Japan in 2021. Furthermore, all critical infrastructure meets GB, UL, and CE safety norms as applicable.

Conclusion

Utilizing the globally standardized G3-PLC framework, CHINT ensures robust and reliable data transmission over existing power lines, even in noisy environments. By integrating OFDM for efficient communication and ensuring compatibility with global standards, CHINT’s solutions provide a future-proof foundation for smart grid applications, addressing challenges such as energy losses, operational efficiency, and real-time monitoring. Visit our website to learn more about our smart metering and energy management offerings.
