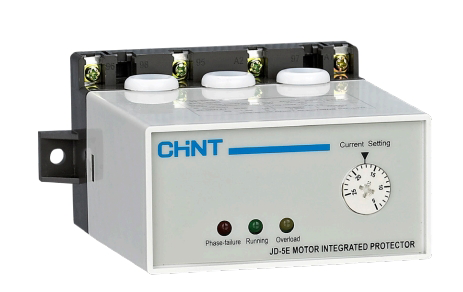

JD-5E Integrated Motor Protector

JD-5E Integrated Motor Protector

JD-5E Integrated Motor Protector

JD-5E Integrated Motor Protector

The CHINT JD-5E Integrated Motor Protector provides reliable overload and phase-failure protection for AC motors up to 400 A and 690 V. Designed for long-term or intermittent operation, it ensures efficient motor performance with adjustable current settings, LED status indication, and precise tripping characteristics. Ideal for industrial automation and motor control panels, the JD-5E combines accuracy, safety, and easy installation for dependable motor protection.

Product Information

Standards compliance: IEC 60947-4-1
Rated insulation voltage: 690 V
Control power supply voltage: AC 220 V / AC 380 V (50 Hz), 85 %–110 % Us
Operating current range: 1 A – 400 A
Applicable motor power: 0.5 kW – 200 kW
Rated impulse withstand voltage (Uimp): 4 kV
Rated short-circuit current: 30 kA
Protection class: IP00 / IP20
Pollution class: Class 3
Rated duty system: 8-hour or continuous duty
Electromagnetic environment: Class B
Ambient temperature: −5 °C to +40 °C (avg ≤ +35 °C in 24 h)
Storage temperature: −25 °C to +55 °C
Altitude: ≤ 2000 m
Relative humidity: ≤ 50 % at +40 °C (higher at lower T)
Installation method: Screw-mounted prefabricated enclosure
Setup method: Rotary knob (continuous adjustment)
Display method: LED indicators for phase failure, operation, and overload
Protection functions: Overload and phase-failure protection
Contact configuration: 1 NC + 1 change-over contact
Auxiliary circuit voltage: 380 V
Auxiliary circuit impulse withstand voltage: 2.5 kV
Conventional free-air thermal current (Ith): 5 A
Application category: AC-15, Ie = 1.5 A @ 220 V / 0.95 A @ 380 V
Tripping classes: Level 10 A (for 1–80 A models), Level 10 / 20 / 30 (for 80–400 A models)
Main circuit connection: Pass-through-core type wiring
Dimensions: 113 × 64 × 110 mm (JD-5E/80); 156 × 65 × 133 mm (JD-5E/400)
Mounting holes: 2 × Φ5.6 mm (front) / Φ12 mm terminal openings
Installation category: III
Indicators: Three LEDs for phase-failure, running, and overload states

Name

Size

Release time

Operate

JD-5E-Motor Protective Controller-Catalog.pdf

345.06KB

2024-09-19

Download

Name

Size

Release time

Operate

2111-JD-5E-Motor Protector-Manual.pdf

1.86MB

2025-03-13

Download

Need Support From Us?

Blog

Blog

Find expert perspectives on the trends and technologies driving your business.

View Now

Download Center

Download Center

Download new and previously released documents including product document, solutions, cases, coporate report.

View Now

Contact Us

Reach out to us to receive more information, technical support, assistance with complaints and more.

Collapsed

Expand

FAQs

What is the purpose of the JD-5E Integrated Motor Protector?

It safeguards three-phase AC motors from overload and phase failure, preventing motor damage during voltage imbalance or excessive load conditions.

What is the rated current and voltage range?

The JD-5E operates up to 400 A and 690 V, suitable for motors from 0.5 kW to 200 kW.

How is the current adjusted?

A rotary knob allows for continuous adjustment of the setting current within the model’s rated range.

What are its tripping characteristics?

For currents up to 80 A, the tripping level is Class 10A. For 80–400 A models, users can select Class 10A, 10, 20, or 30, depending on the application.

How does the JD-5E indicate operational status?

Three LED indicators display phase-failure, running, and overload conditions for quick visual diagnostics.
