JD-5 Integrated Protector
Product Consultation
Low Voltage IEC Industrial Control JD-5 Integrated Protector
Clear all
Industrial Control
JD-5 Integrated Protector

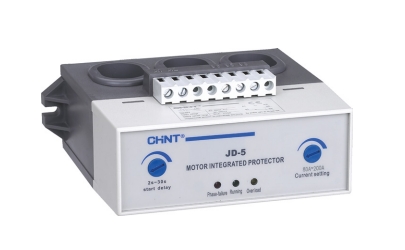

JD-5 Integrated Protector

JD-5 Integrated Protector

JD-5  Integrated Protector (hereinafter referred to as protector) is applicable for overload and phase-failure protection of AC motor @ A.C.50Hz, less than AC690V rated insulation voltage and 0.5A~400A rated operating current for its continuous working or discontinuous working. Protector and AC contactor are generally used cooperatively.
This product meets the requirements of IEC 60947- 4-1.

Contact Us

Product Information

Name
