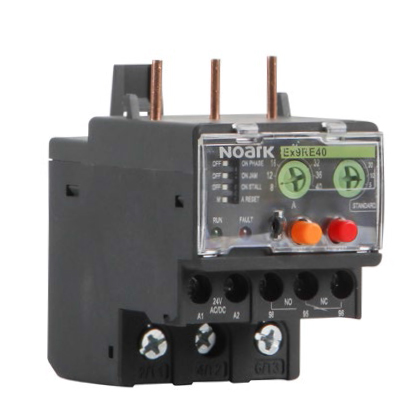

Ex9RE Electronic Overload Relay
Product Consultation
Low Voltage UL Industrial Control(UL) Ex9RE Electronic Overload Relay
Industrial Control(UL)
Ex9RE Electronic Overload Relay
Ex9RE Electronic Overload Relay

Ex9RE Electronic Overload Relay

Ex9RE40 electronic thermal overload relays are designed to provide dependable and accurate protection for motors if an overload or phase failure occur. They also offer jam, stall and current unbalance protection. The Ex9RE40 is available with coil voltages of 24Vac/dc, 110Vac and 220Vac with current ranges from 0.1A to 40A. Each unit has selectable trip class settings of 5, 10, 20 and 30 providing a wide range of coverage with fewer products. They are also equipped with integrated diagnostics via LED lights to allow for quick status identification. Control settings are protected by a clear plastic cover.

Contact Us

Product Information

Name
Size
Release time
Operate
2010-Ex9RE40 Electronic Overload Relay-Manual.pdf
5.06MB
2024-09-27
Download
Name
Size
Release time
Operate
2007-Ex9RE Electronic Overload Relay-IEC Certificate.pdf
382.72KB
2024-09-27
Download
2007-Ex9RE Electronic Overload Relay-CQC Certificate.pdf
381.71KB
2024-09-27
Download
1307-Ex9RE Electronic Overload Relay-UL Certificate.pdf
275.91KB
2024-09-27
Download
Name
Size
Release time
Operate
Ex9RE40 Electronic Overload Relay.stp
2024-09-27
Download
Ex9RE40 Electronic Overload Relay.x_t
2024-09-27
Download
Ex9RE Electronic Overload Relay Accessory_AD57.stp
2024-09-27
Download
Ex9RE Electronic Overload Relay Accessory_AD57.x_t
2024-09-27
Download
Ex9RE Electronic Overload Relay.dwg
2024-09-27
Download
