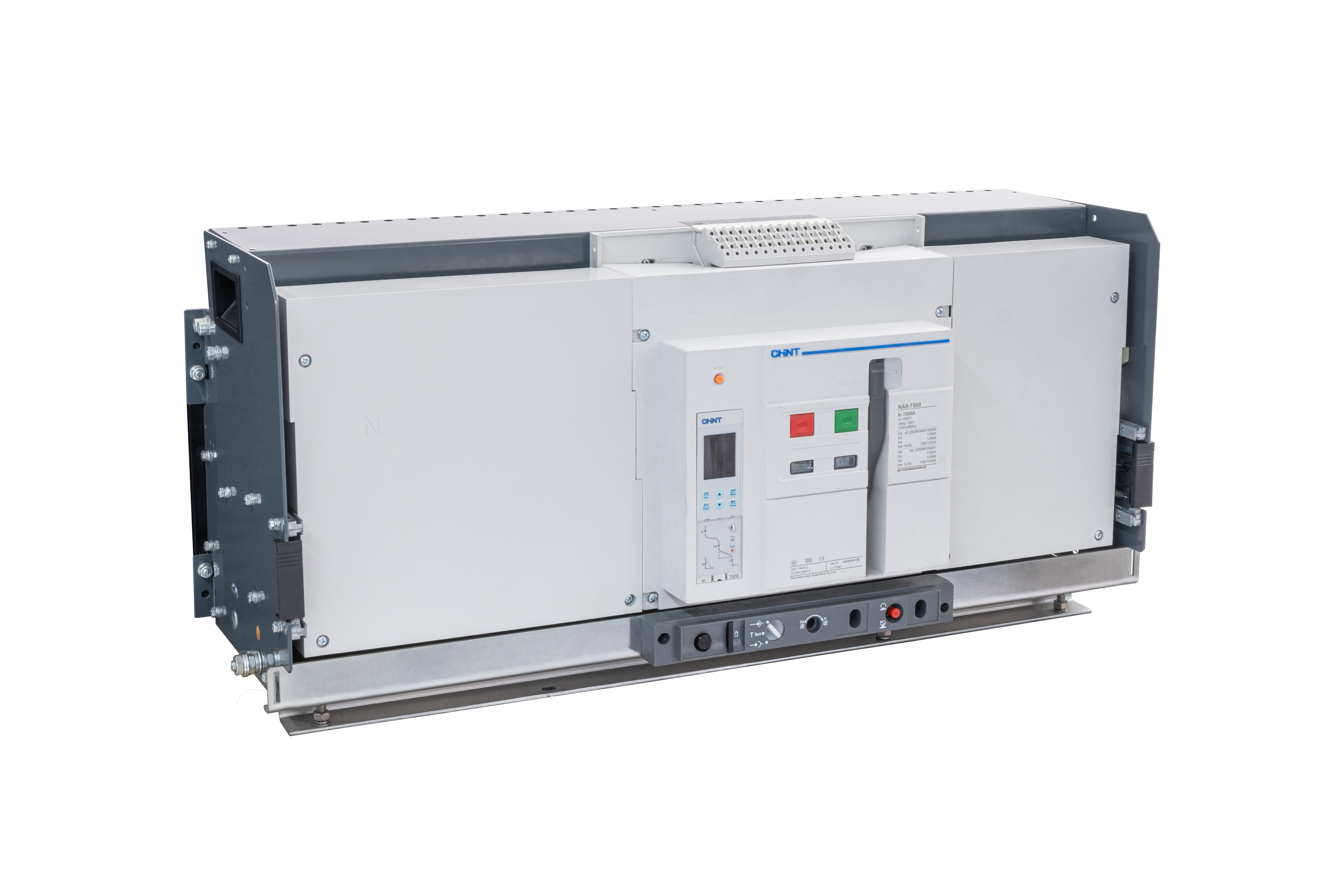

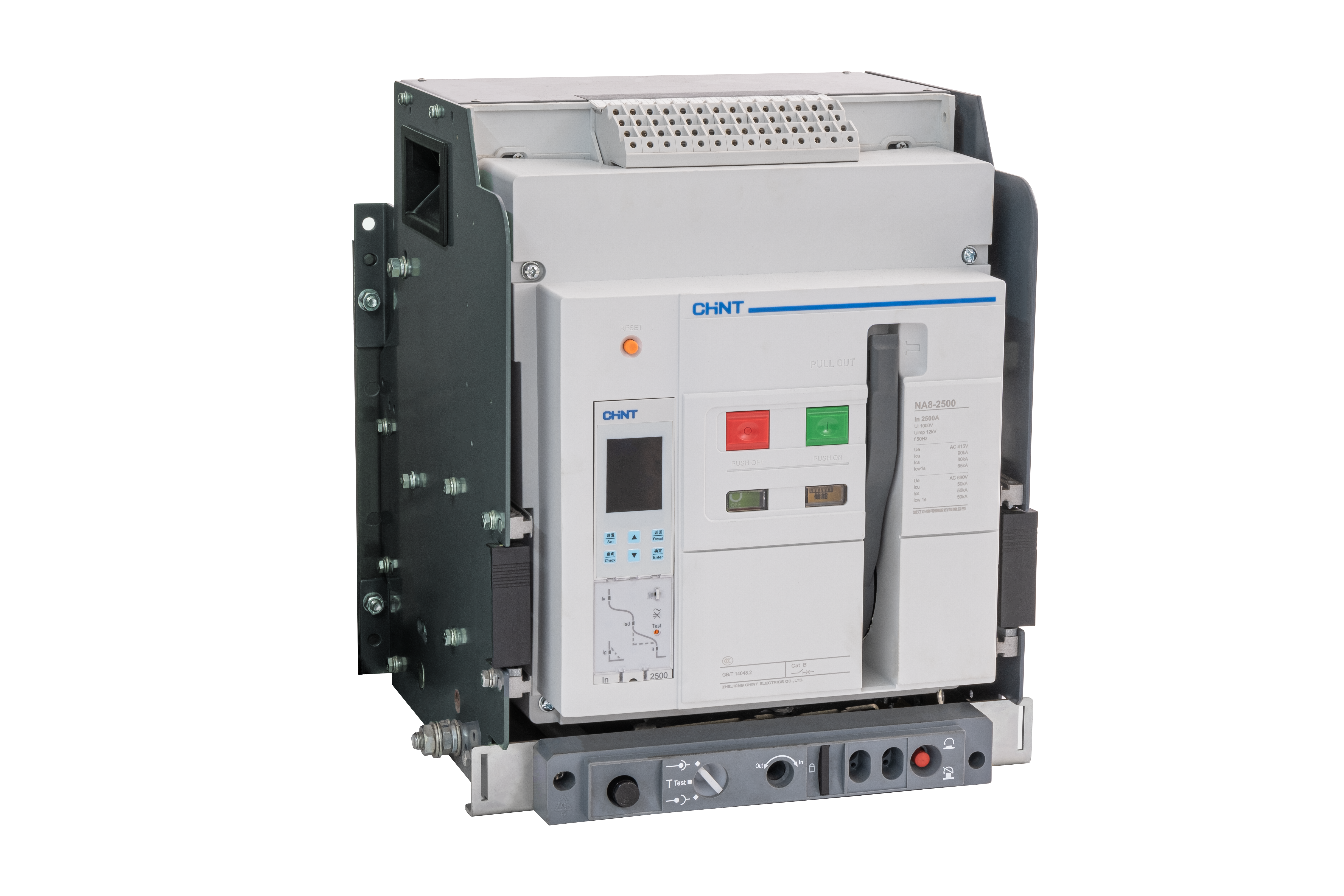

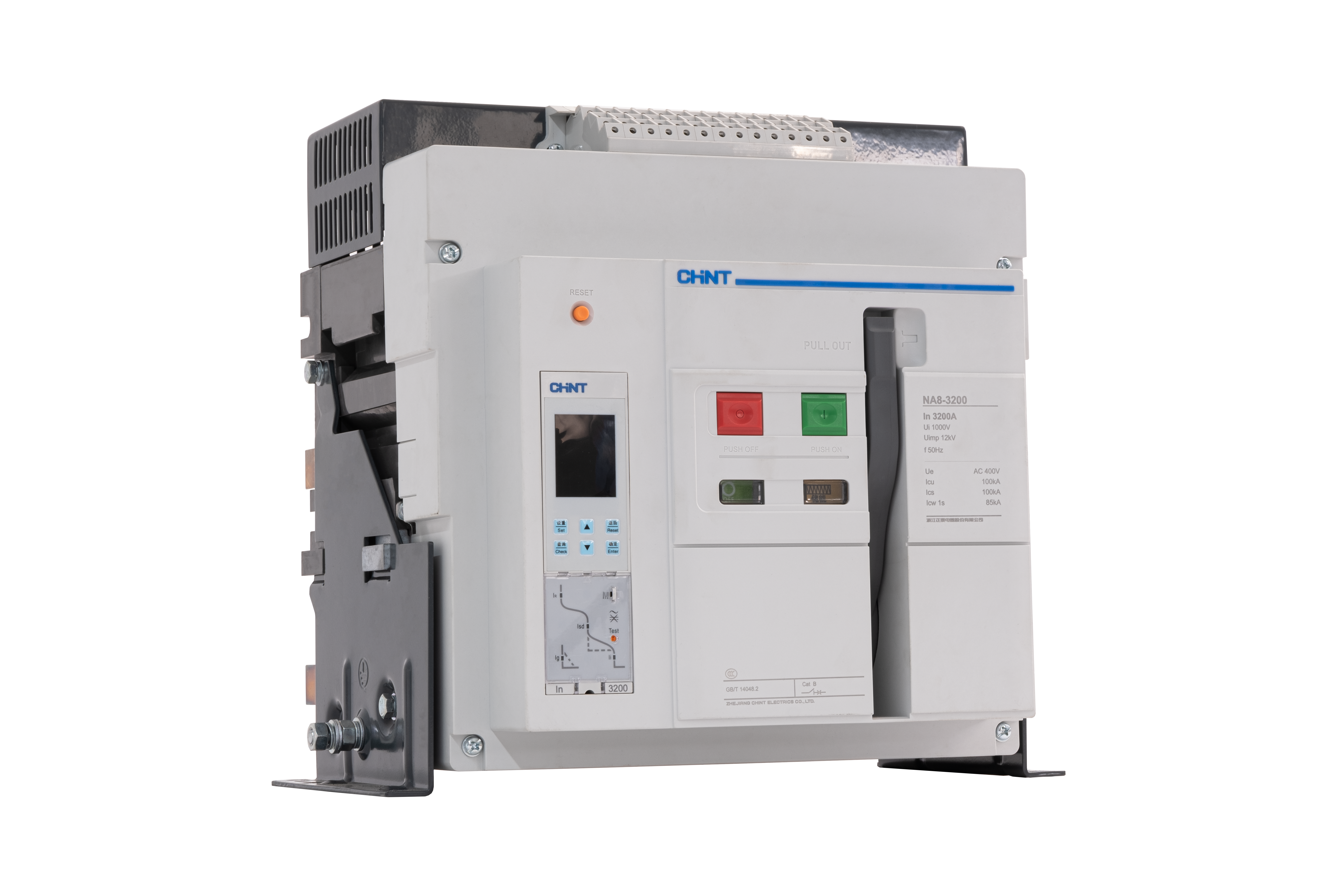

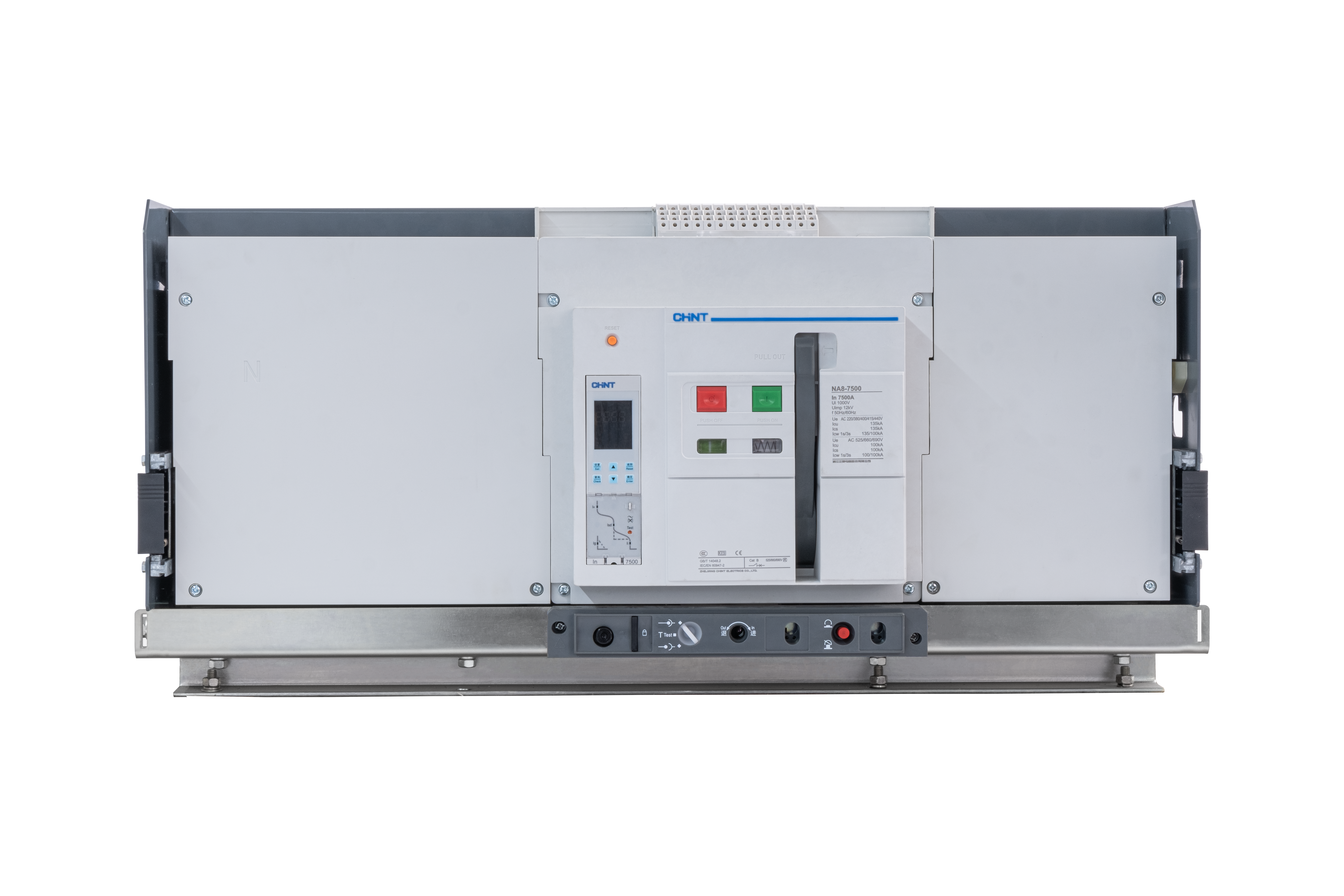

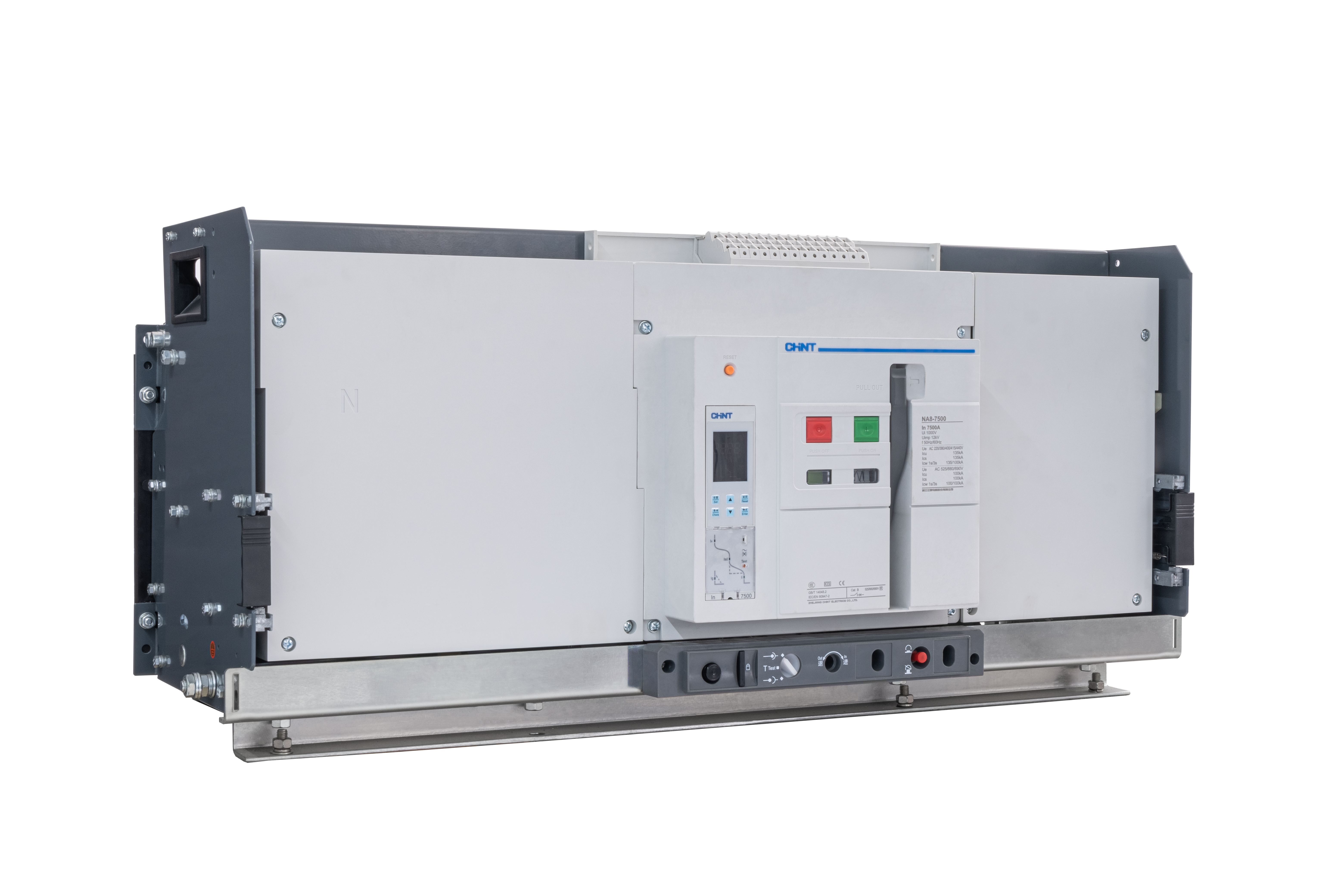

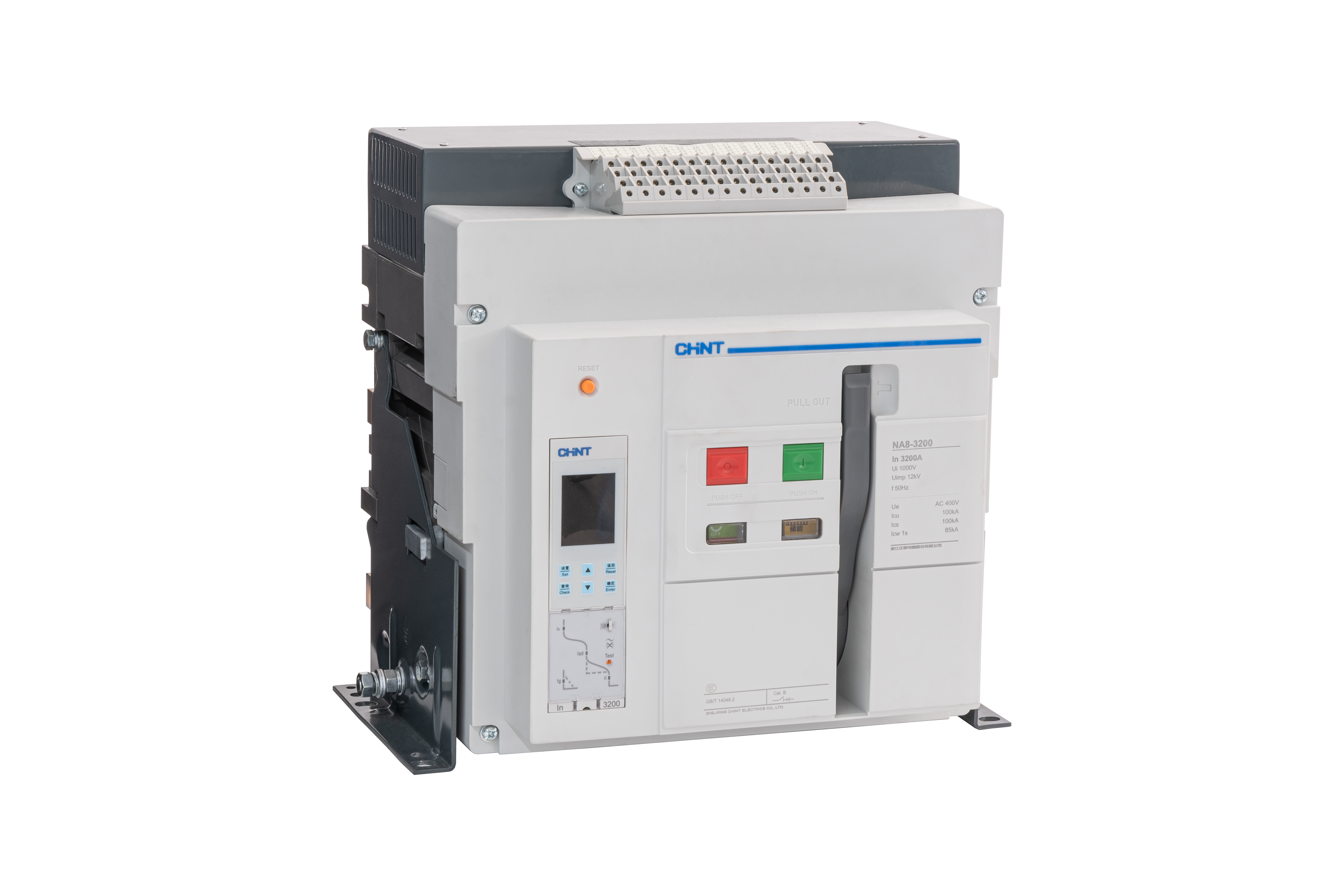

• Frame size (A): 1600 , 2500, 4000, 7500
• Two kinds of breaking capacity: N, H ,HU
• Rated voltage Ue (VAC): 380/400/415, 690, 800, 1000/1150.
• Number of poles: 3 or 4 poles
• Mounting mode: withdrawable type or fixed type
• Mode of connection: horizontal connection, vertical connection, mixed connection
• Frame size (A): 1600 , 2500, 4000, 7500
• Two kinds of breaking capacity: N, H ,HU
• Rated voltage Ue (VAC): 380/400/415, 690, 800, 1000/1150.
• Number of poles: 3 or 4 poles
• Mounting mode: withdrawable type or fixed type
• Mode of connection: horizontal connection, vertical connection, mixed connection
Features:
Intelligent:
• Equipped with loT type smart controller
• Support ERMS function
• Able to monitor temperature of controller
• ACB health evaluation
High Compatibility:
• Internal accessories can be matched with 1600A~4000A frame ACB
Application Scenario: Building / Industrial / Solar Energy→Main Switchgear→New NA8 Series
