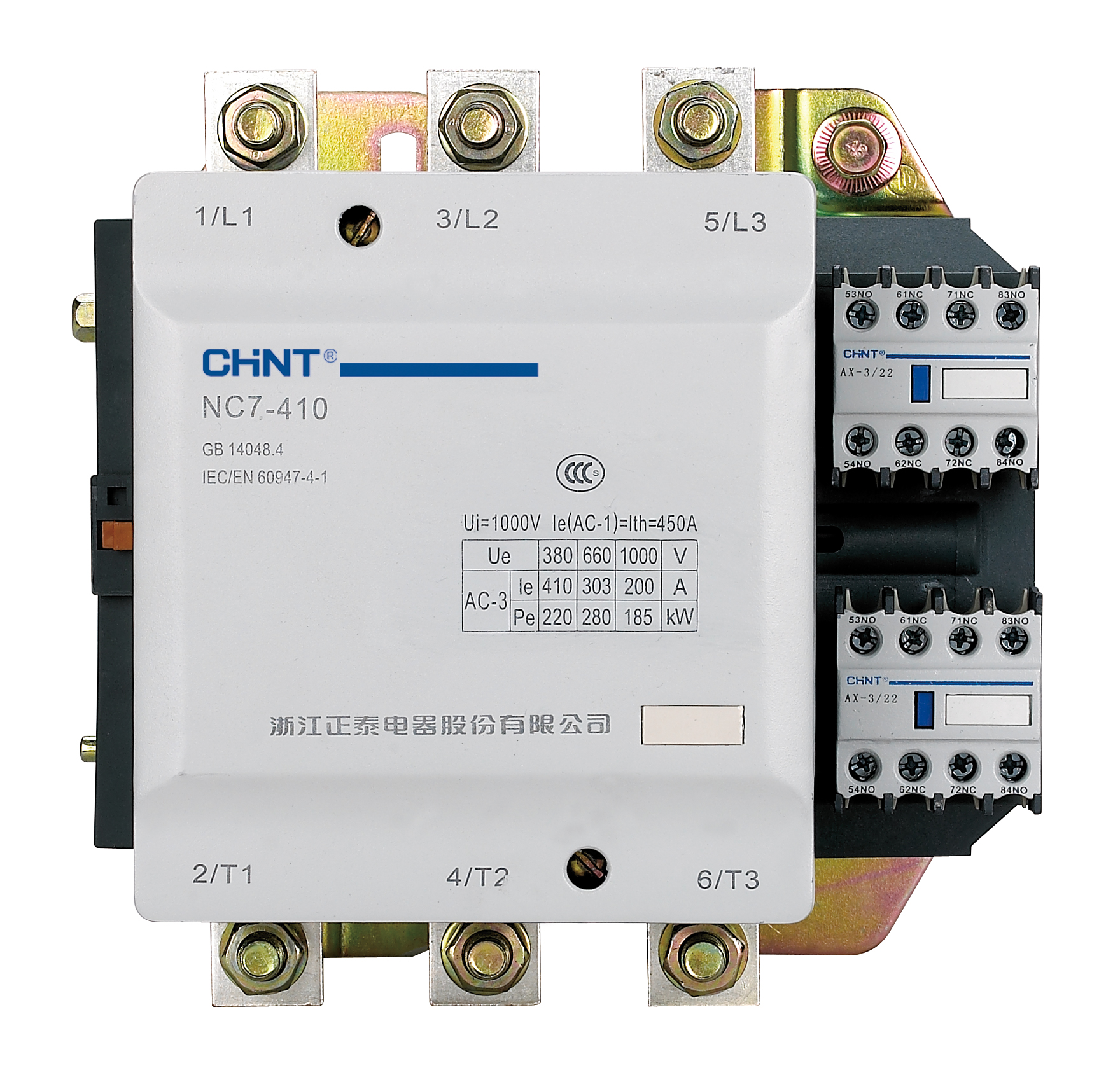

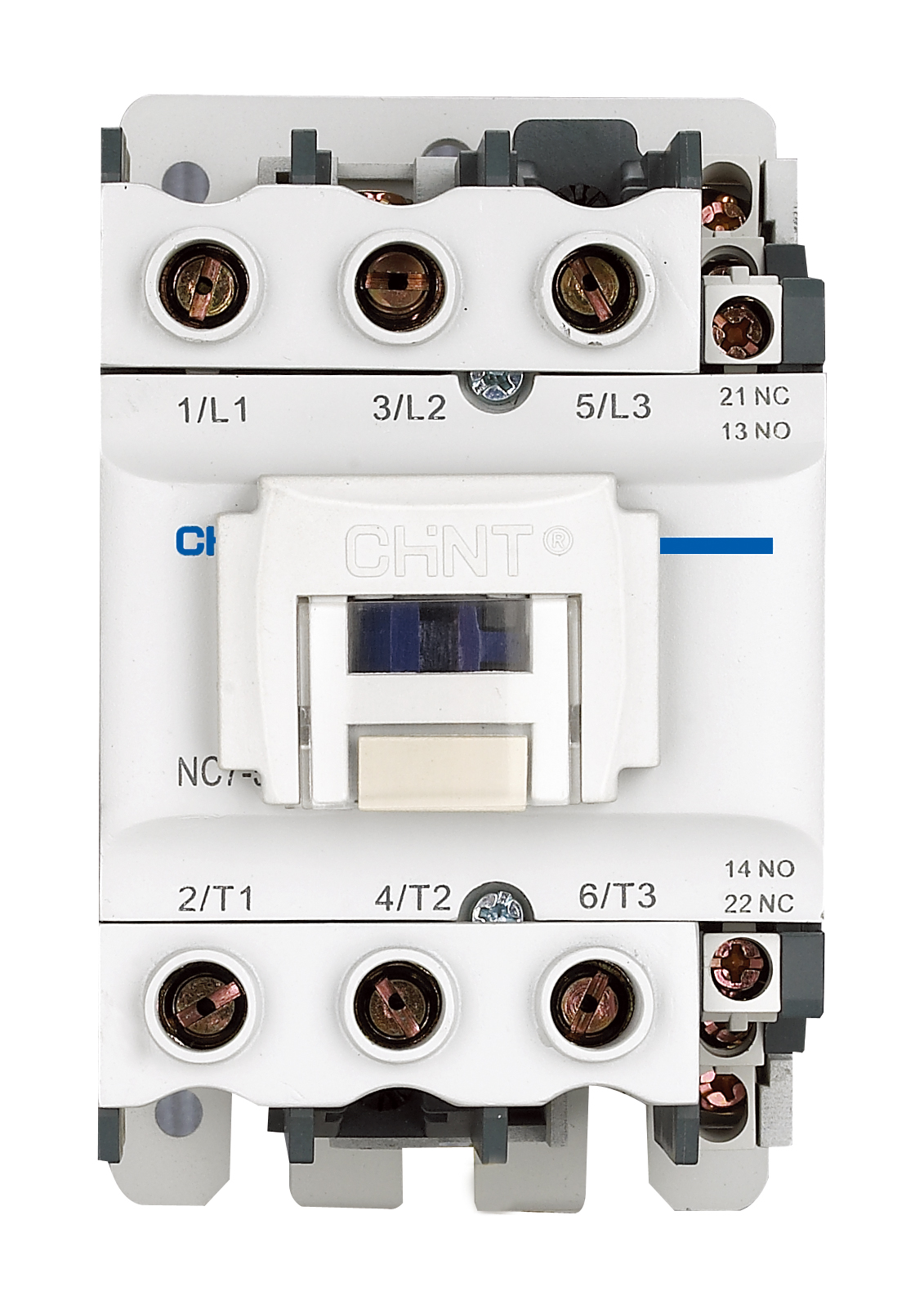

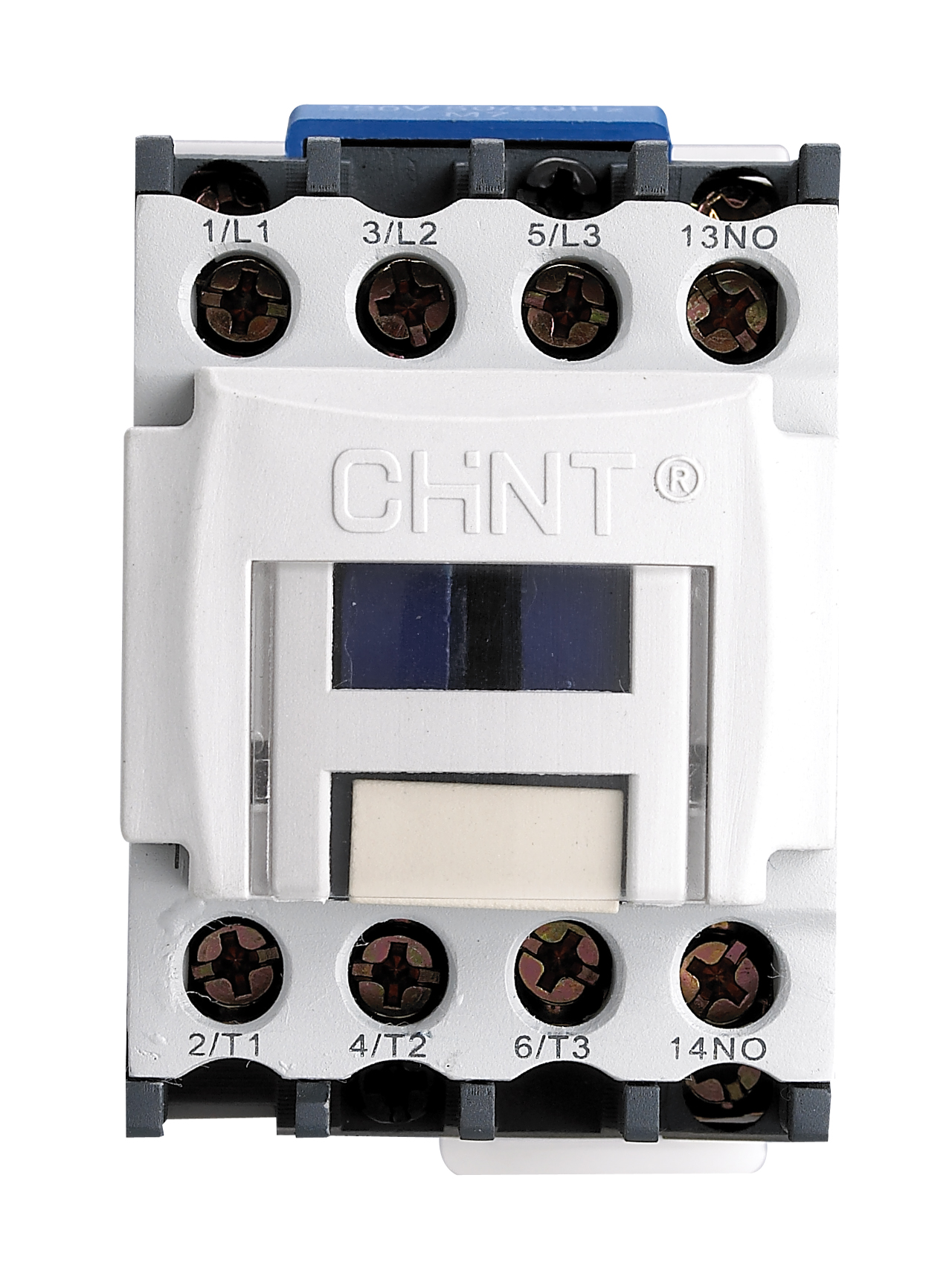

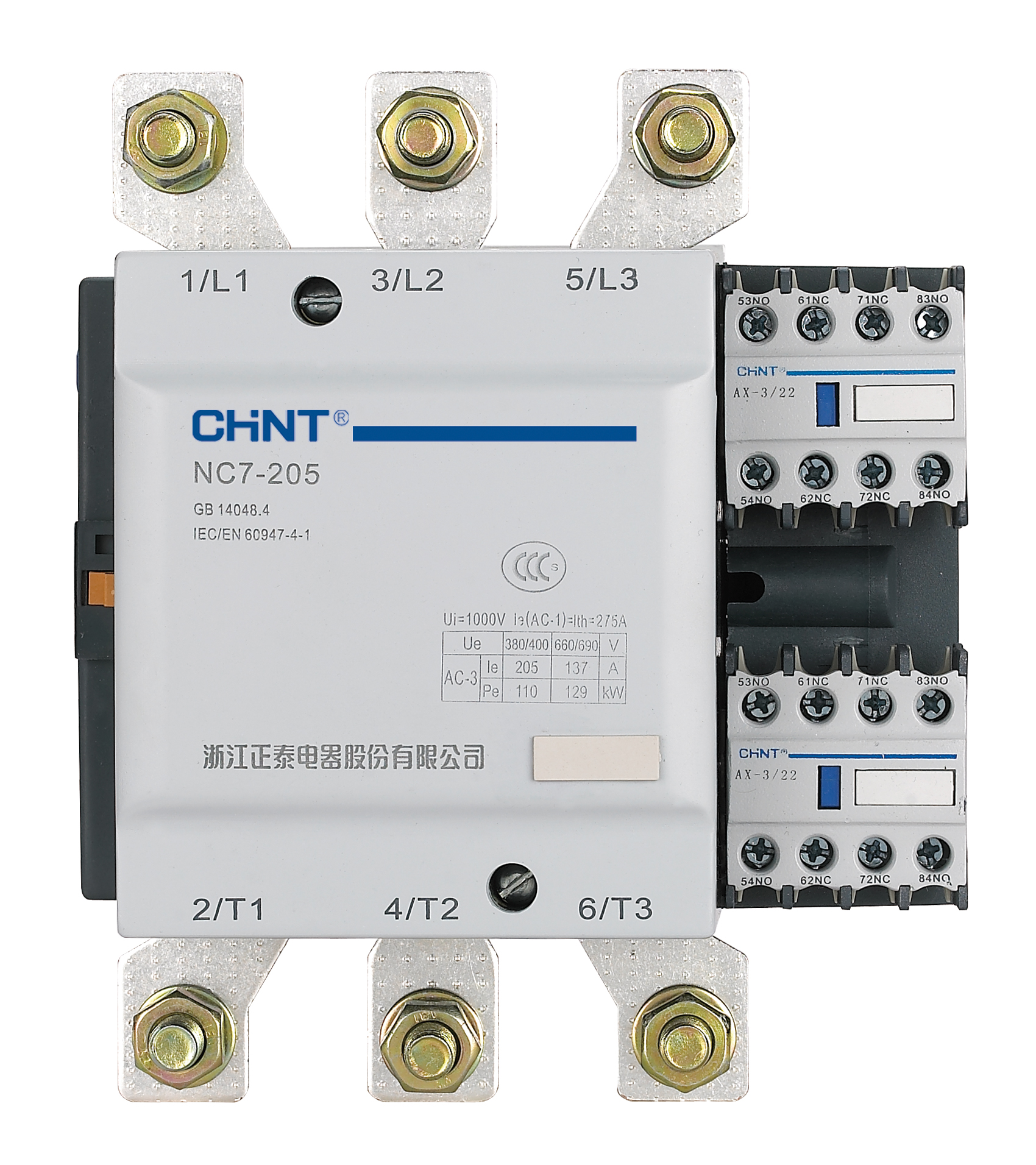

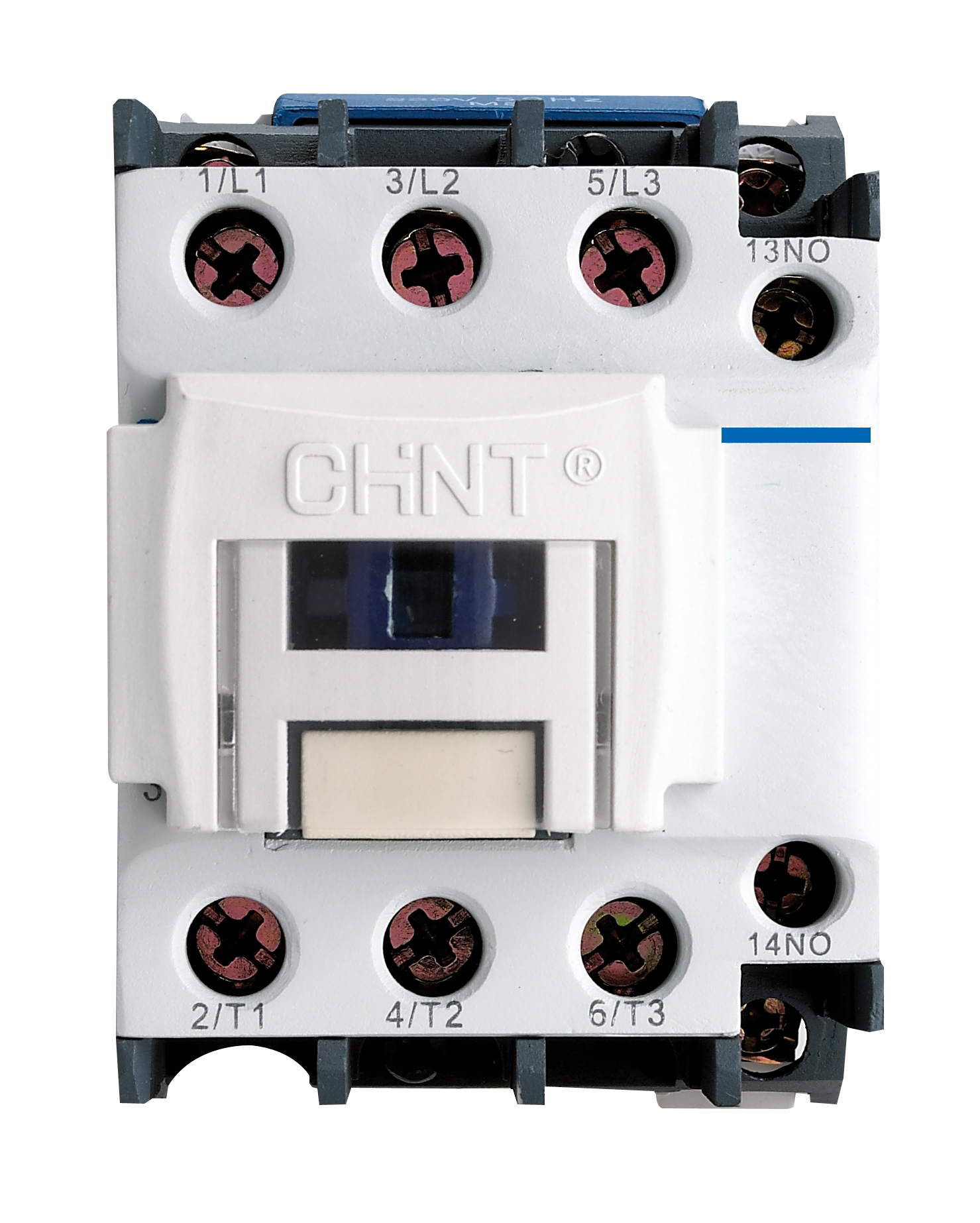

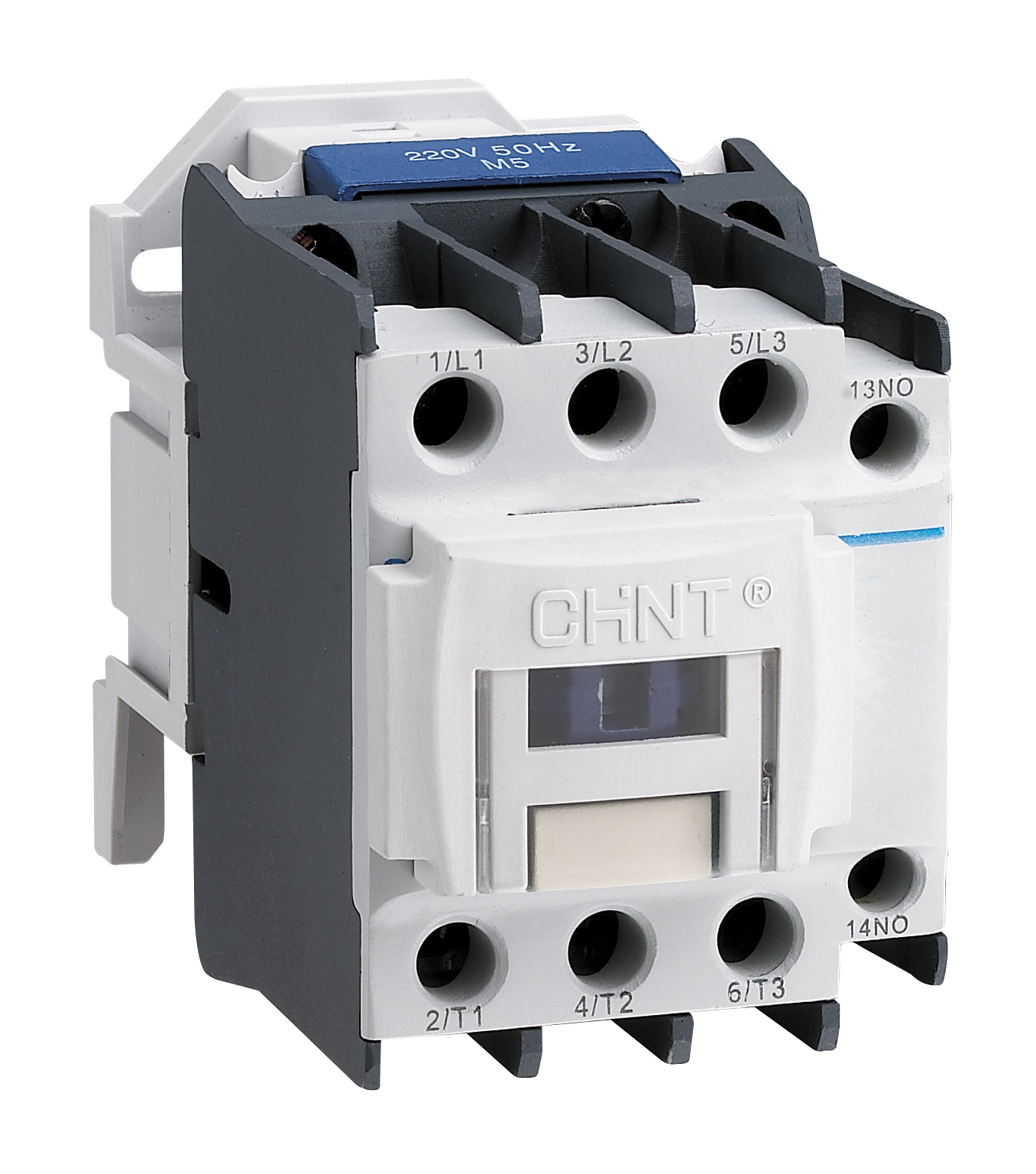

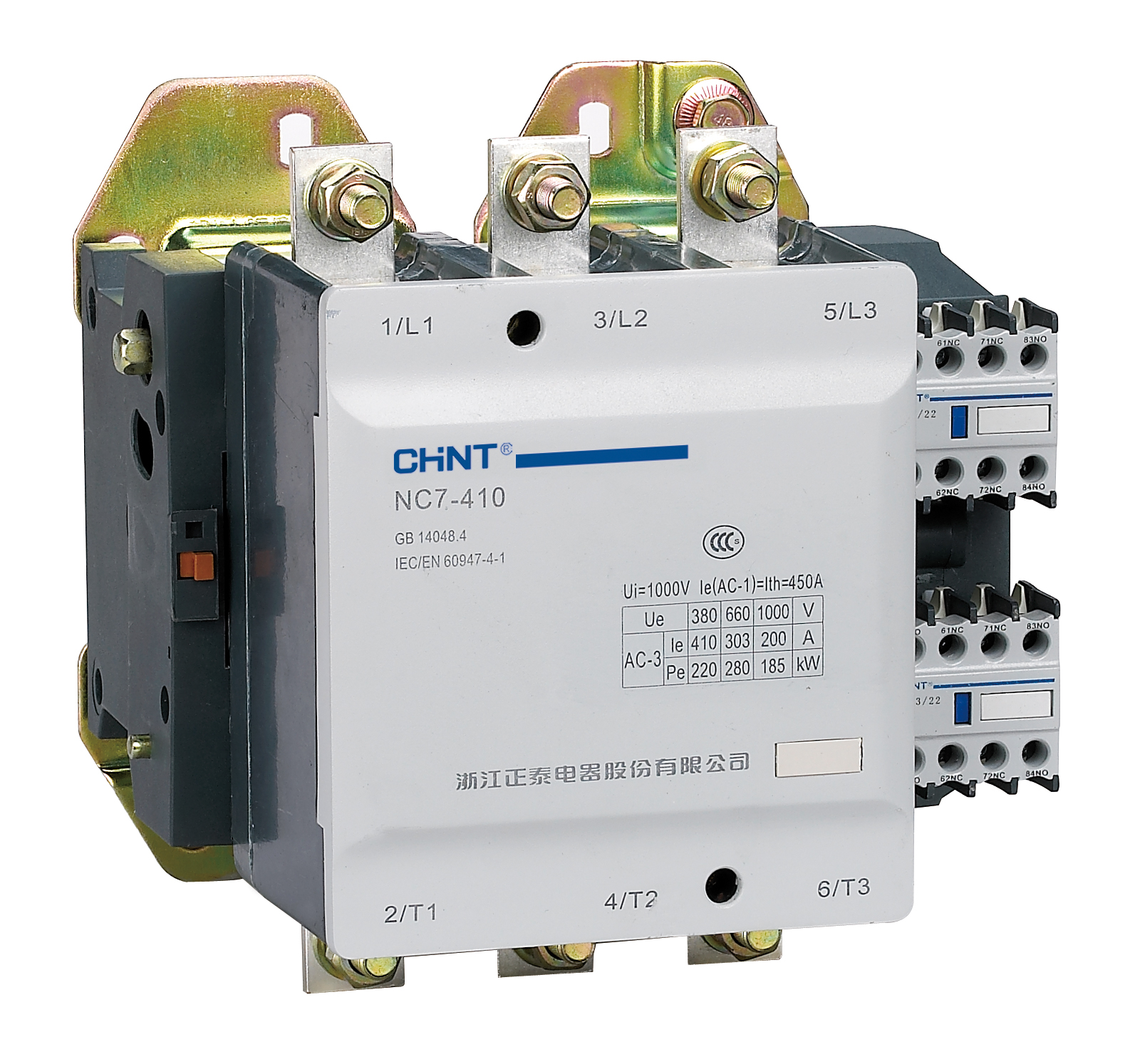

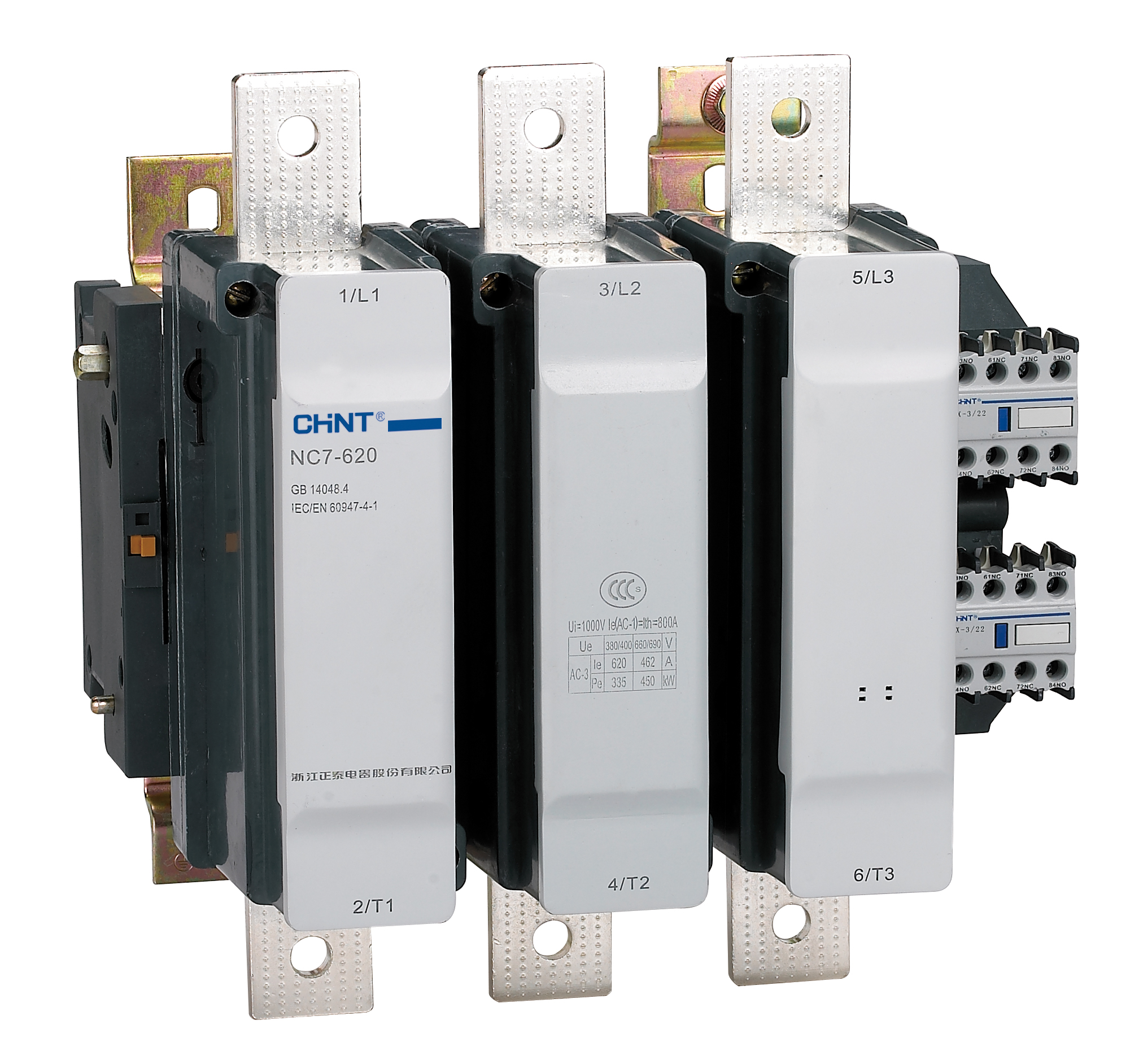

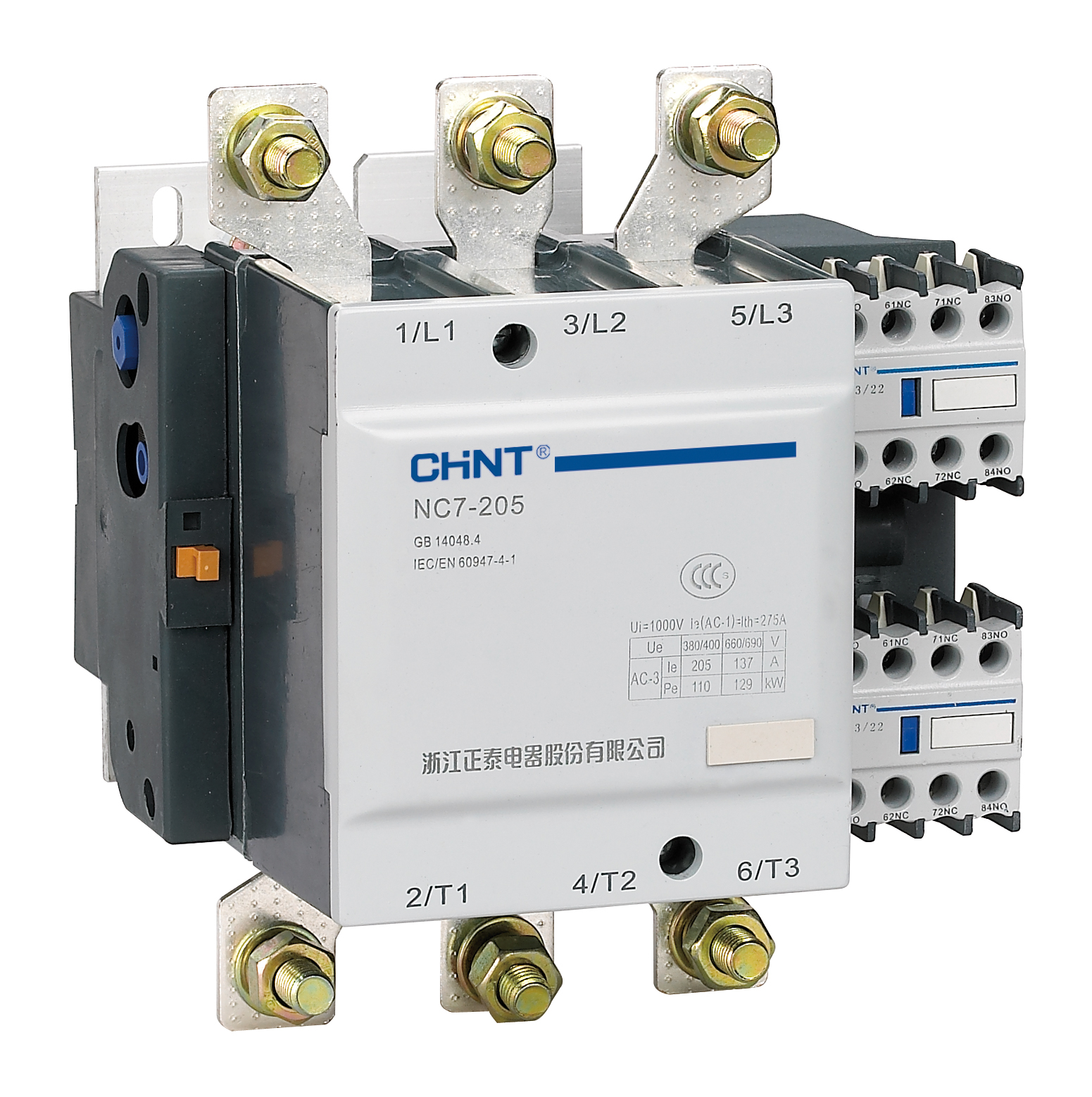

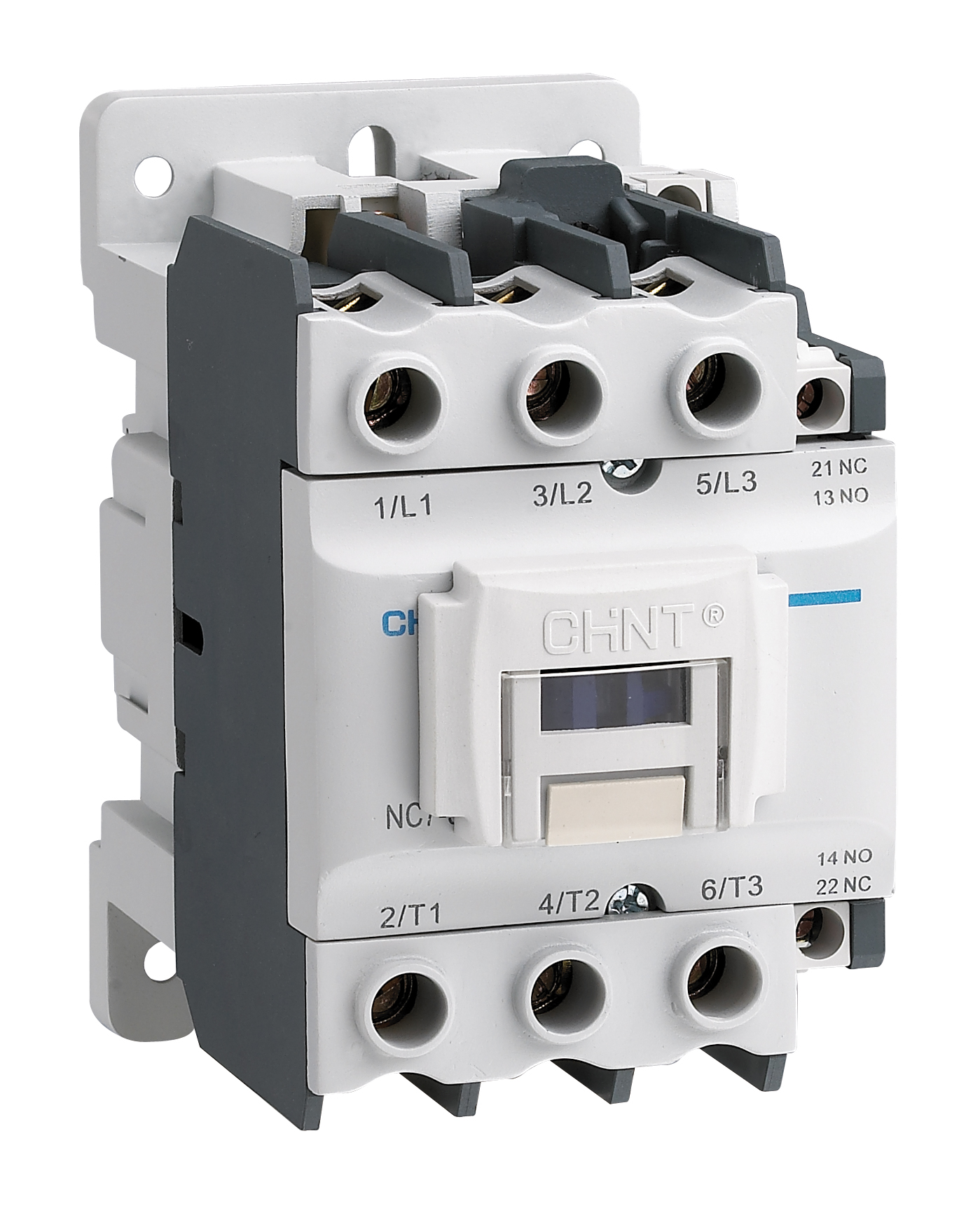

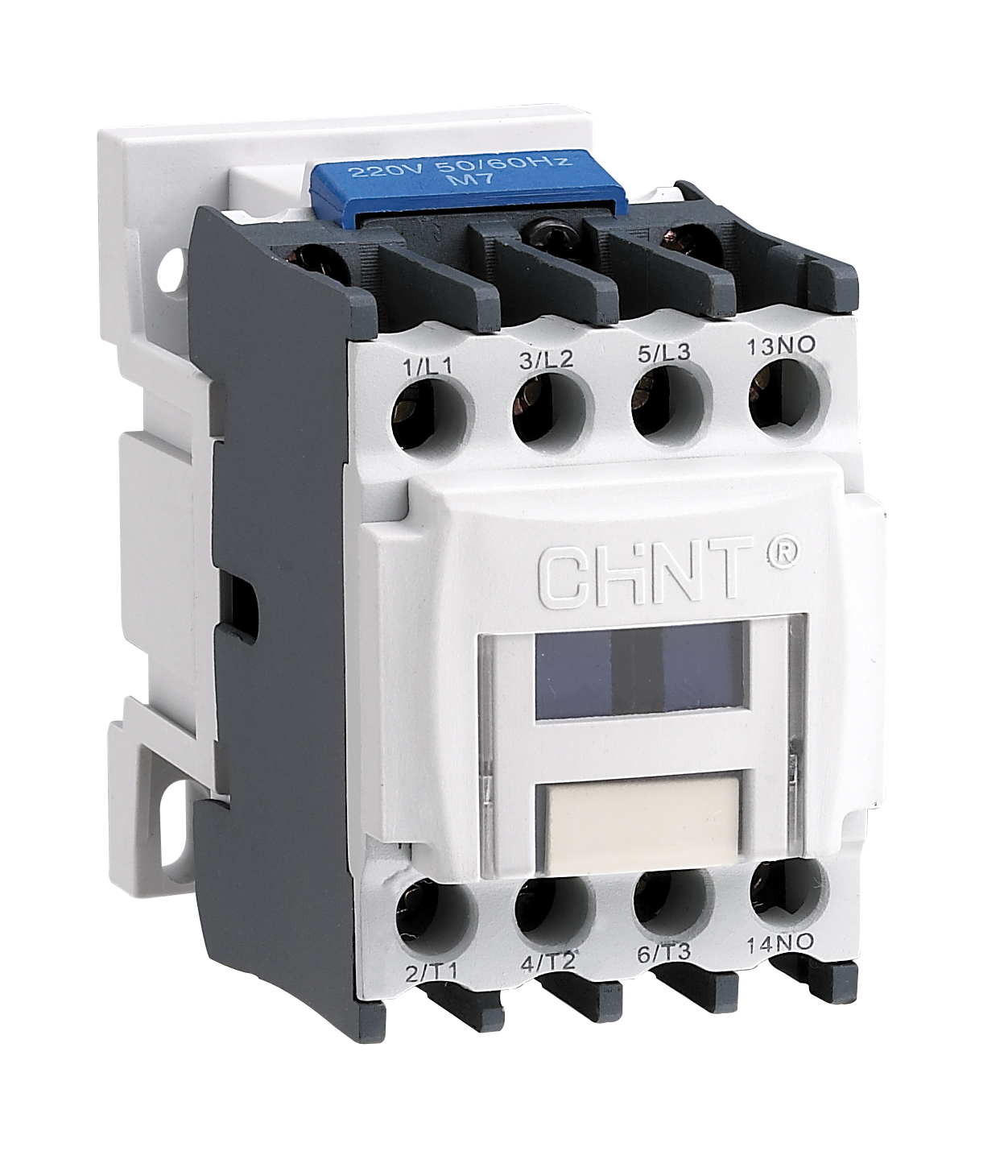

NC7 AC Contactor

Name: NC7 AC Contactor
Brand: Chint

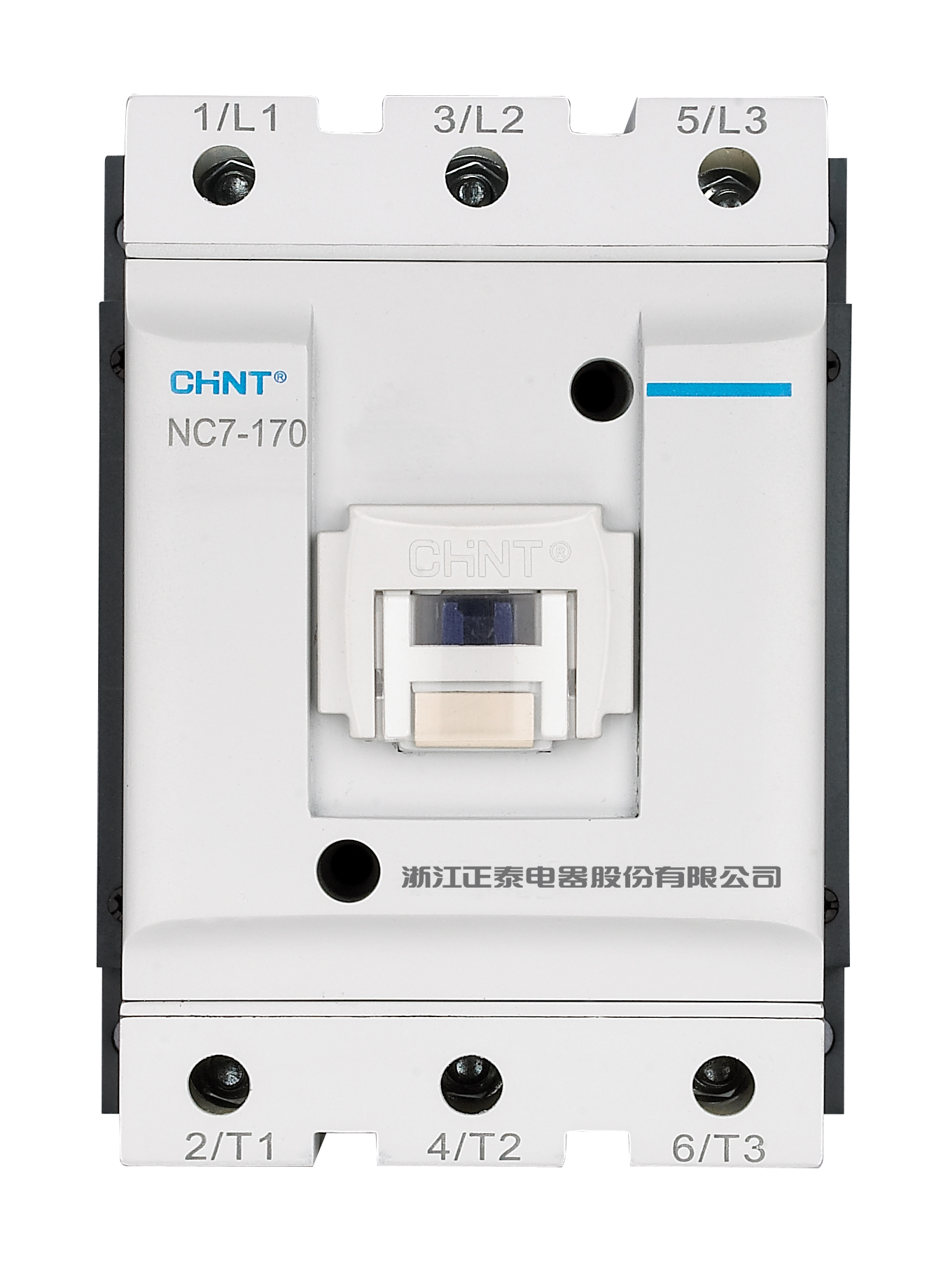

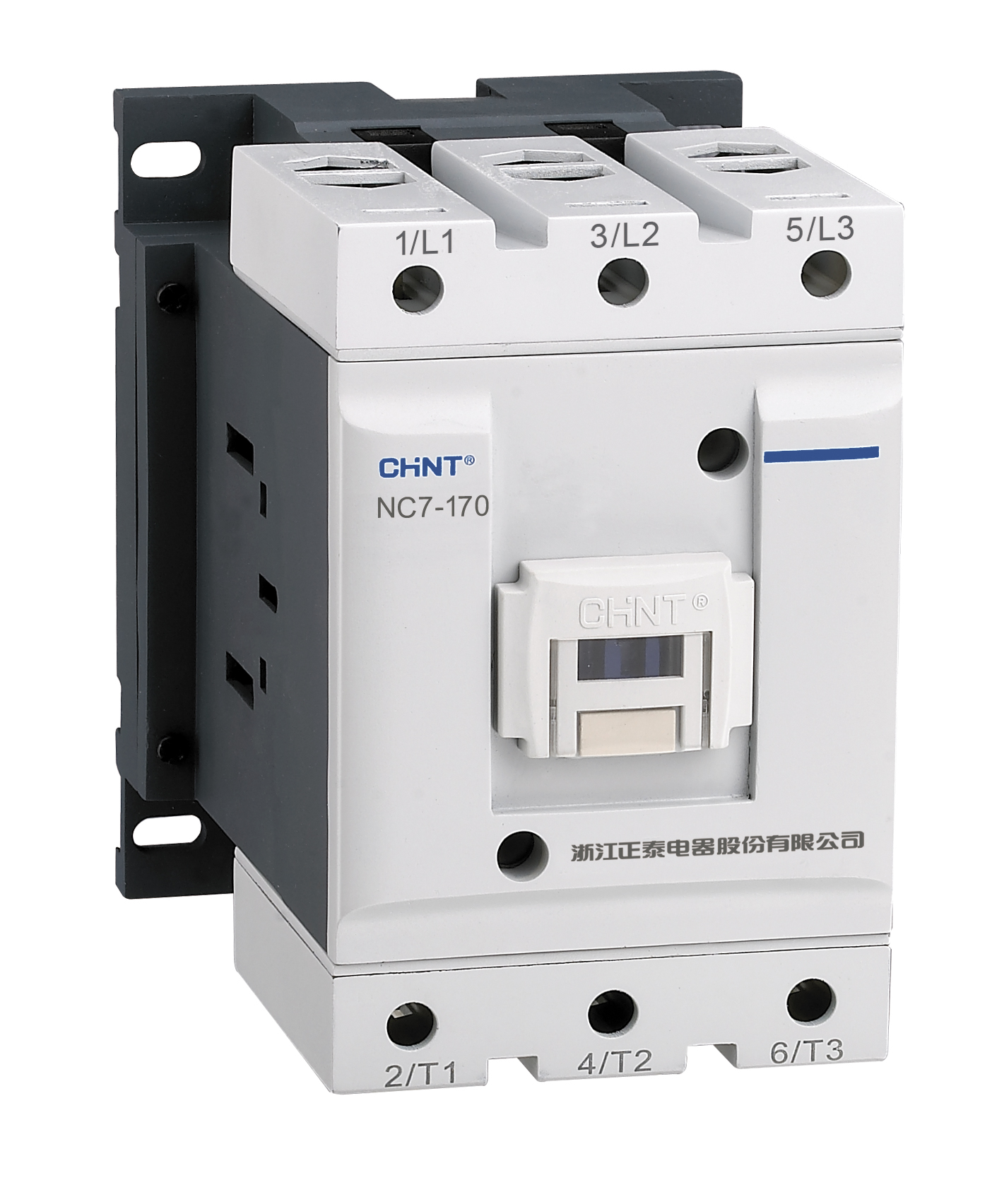

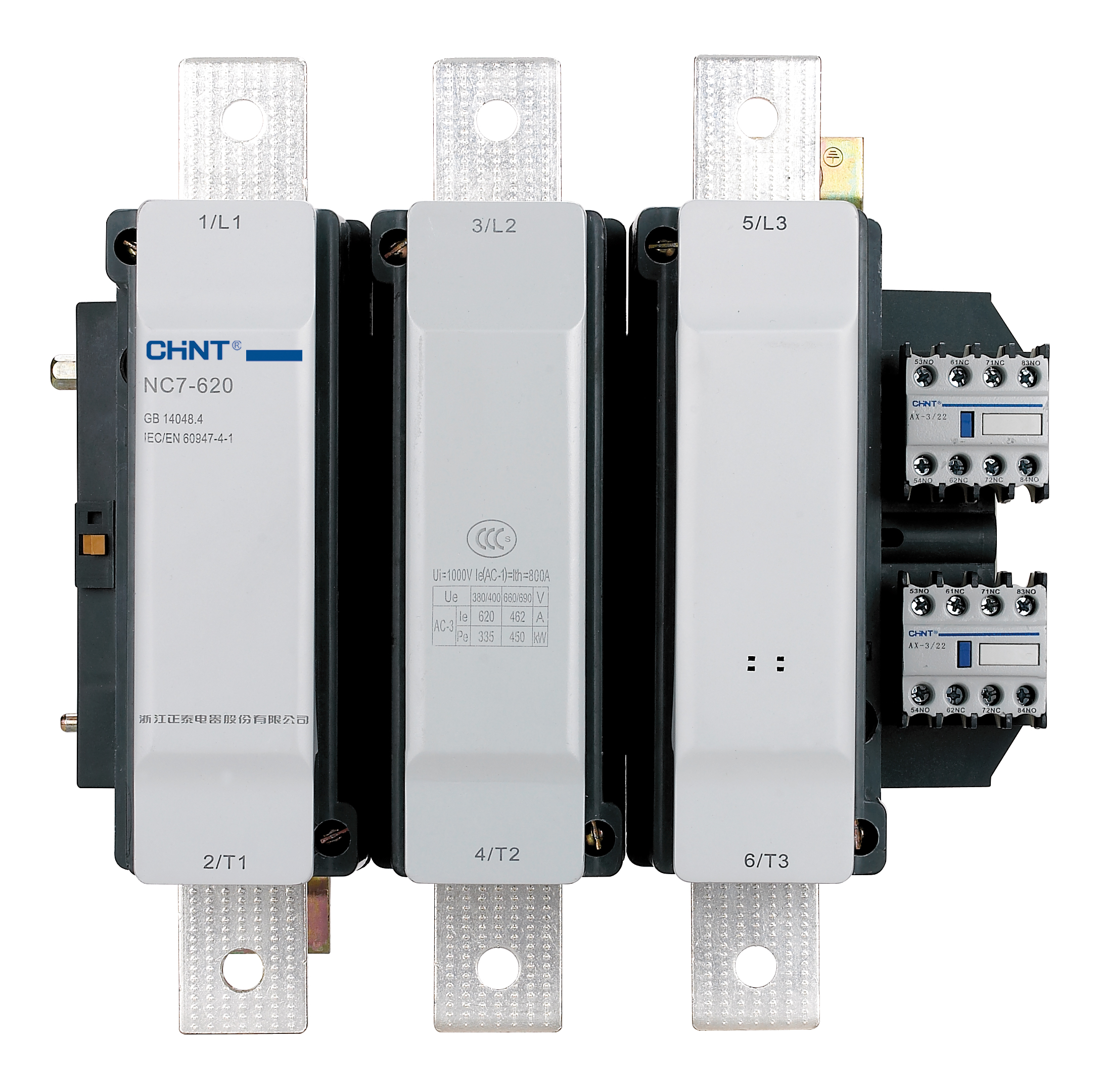

The CHINT NC7 AC Contactor is a compact, high-efficiency contactor designed for switching and controlling AC circuits up to 690 V and 25 A. It is ideal for frequent remote operations in motor control, lighting, and power systems. Engineered for reliability and long service life, the NC7 features a modular design, low coil consumption, and quiet operation. Built to IEC/EN 60947-4-1 standards, it delivers safe, stable performance and compatibility with auxiliary blocks, thermal overload relays, and protective devices for industrial and commercial applications.

Product Information

Standard: IEC/EN 60947-4-1
Certifications: CE, UL, CCC, RoHS
Utilization Category: AC-1, AC-3
Rated Operational Voltage (Ue): Up to 690 V
Rated Insulation Voltage (Ui): 690 V
Rated Impulse Withstand Voltage (Uimp): 6 kV
Rated Operational Current (Ie):
- AC-3 (400 V): 9 A, 12 A, 18 A, 25 A
Motor Power Ratings (AC-3):
- 220/230 V: 2.2–5.5 kW
- 380/400 V: 4–11 kW
- 660/690 V: 5.5–15 kW
Rated Frequency: 50/60 Hz

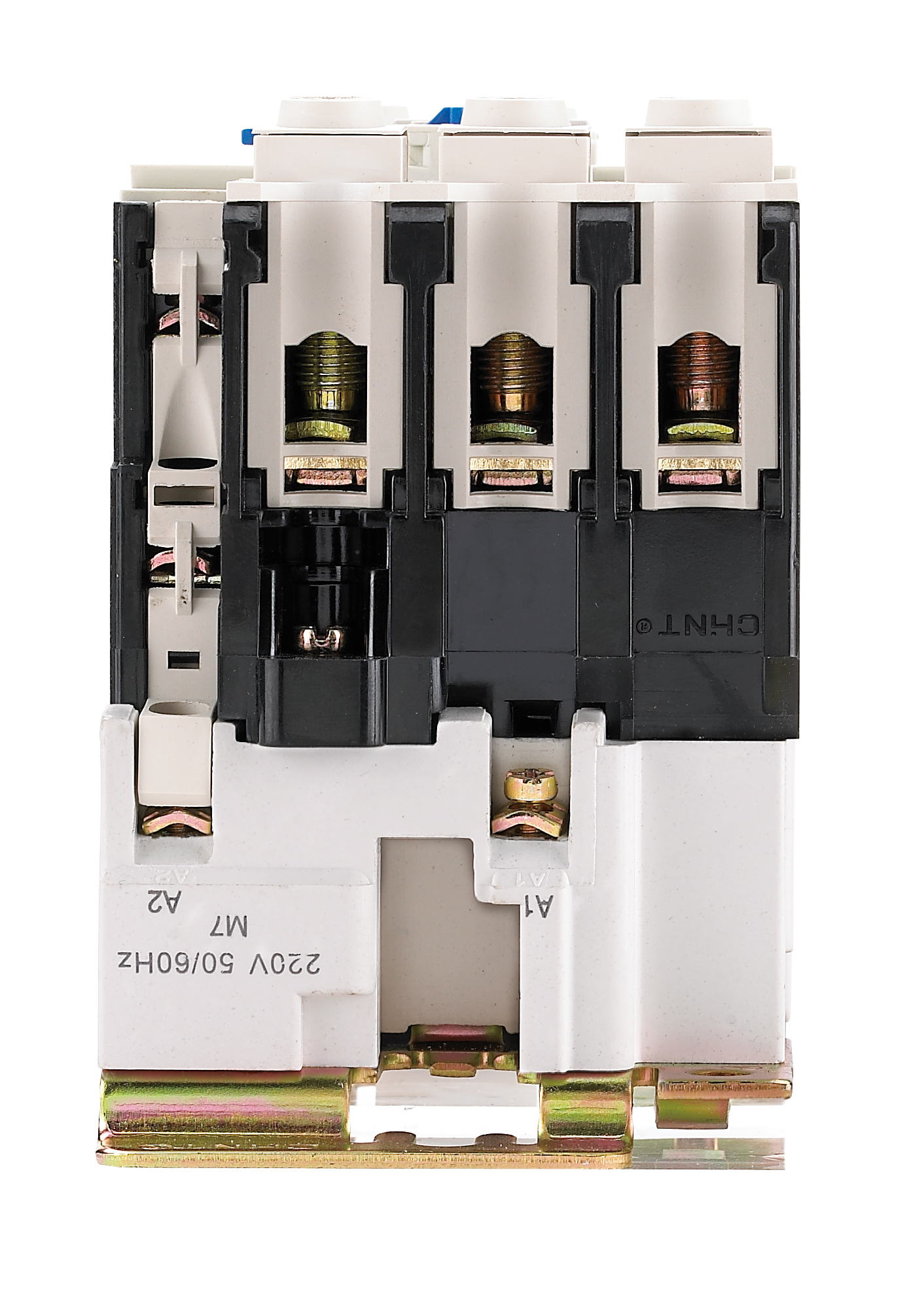

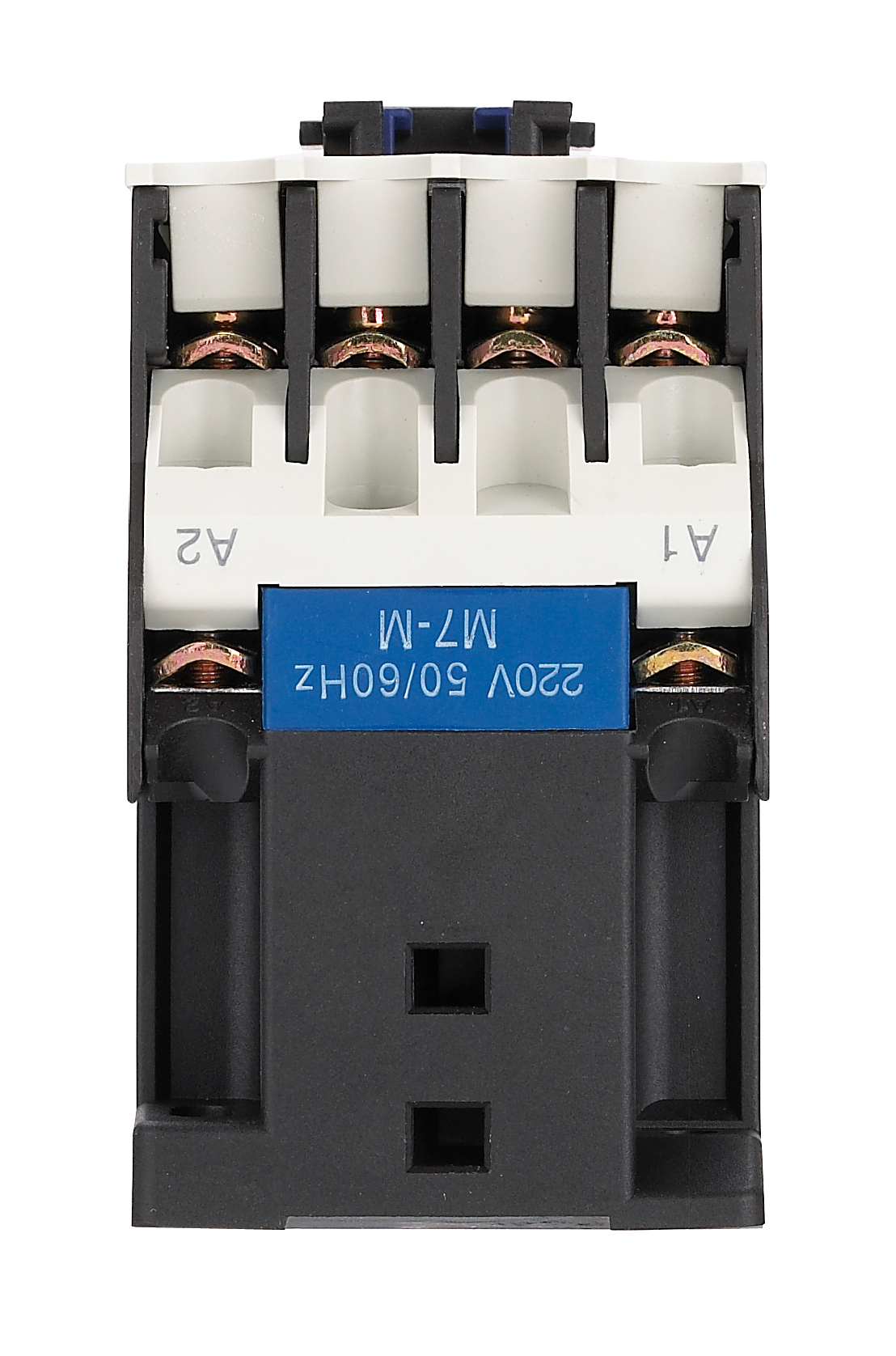

Control Circuit Voltages:
- AC: 24, 48, 110, 127, 220, 230, 380, 400 V
- DC: 12, 24, 48, 110, 220 V
Coil Power Consumption:
- Inrush: 50–70 VA (AC) / 3.5–5 W (DC)
- Holding: 4–10 VA (AC) / 2.5 W (DC)
Mechanical Life: 10 million operations
Electrical Life (AC-3): 1 million operations
Operating Cycles per Hour:
- AC-3: 600
Mechanical: 3,600
Ambient Temperature: −5 °C to +40 °C
Altitude: ≤ 2,000 m
Mounting Position: Vertical ±30° inclination
Protection Degree: IP20
Connection Type: Screw or fast terminal (for NC7K versions)
Terminal Capacity: 1.5–6 mm²
Tightening Torque: 0.8–1.2 N·m
Auxiliary Contact Configuration:
- Standard: 1NO + 1NC
- Optional: 2NO + 2NC
Auxiliary Contact Ratings:
- AC-15: 380 V / 0.95 A
- DC-13: 220 V / 0.15 A

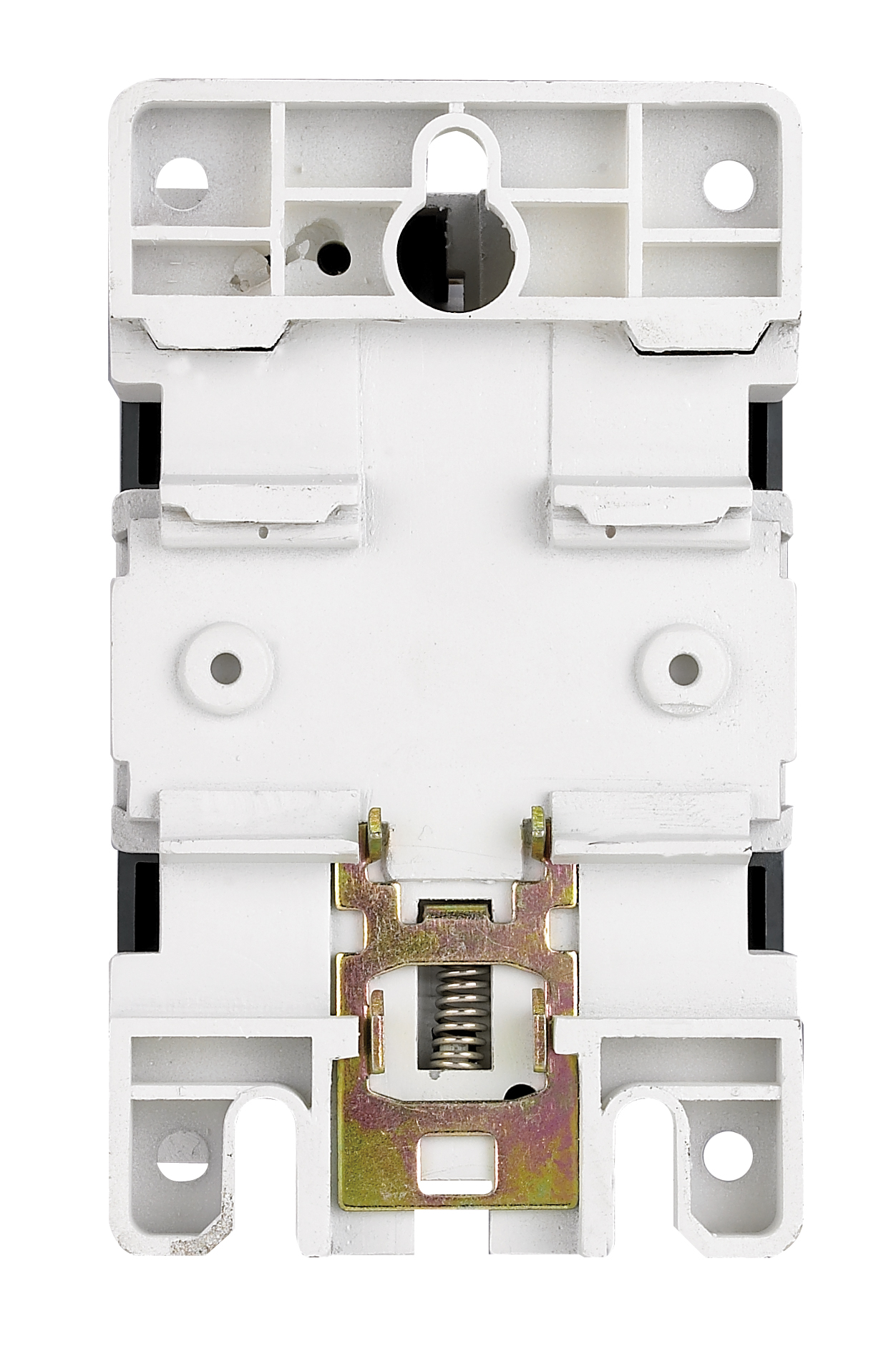

Mounting Type: DIN rail (TH35-7.5) or panel mounting

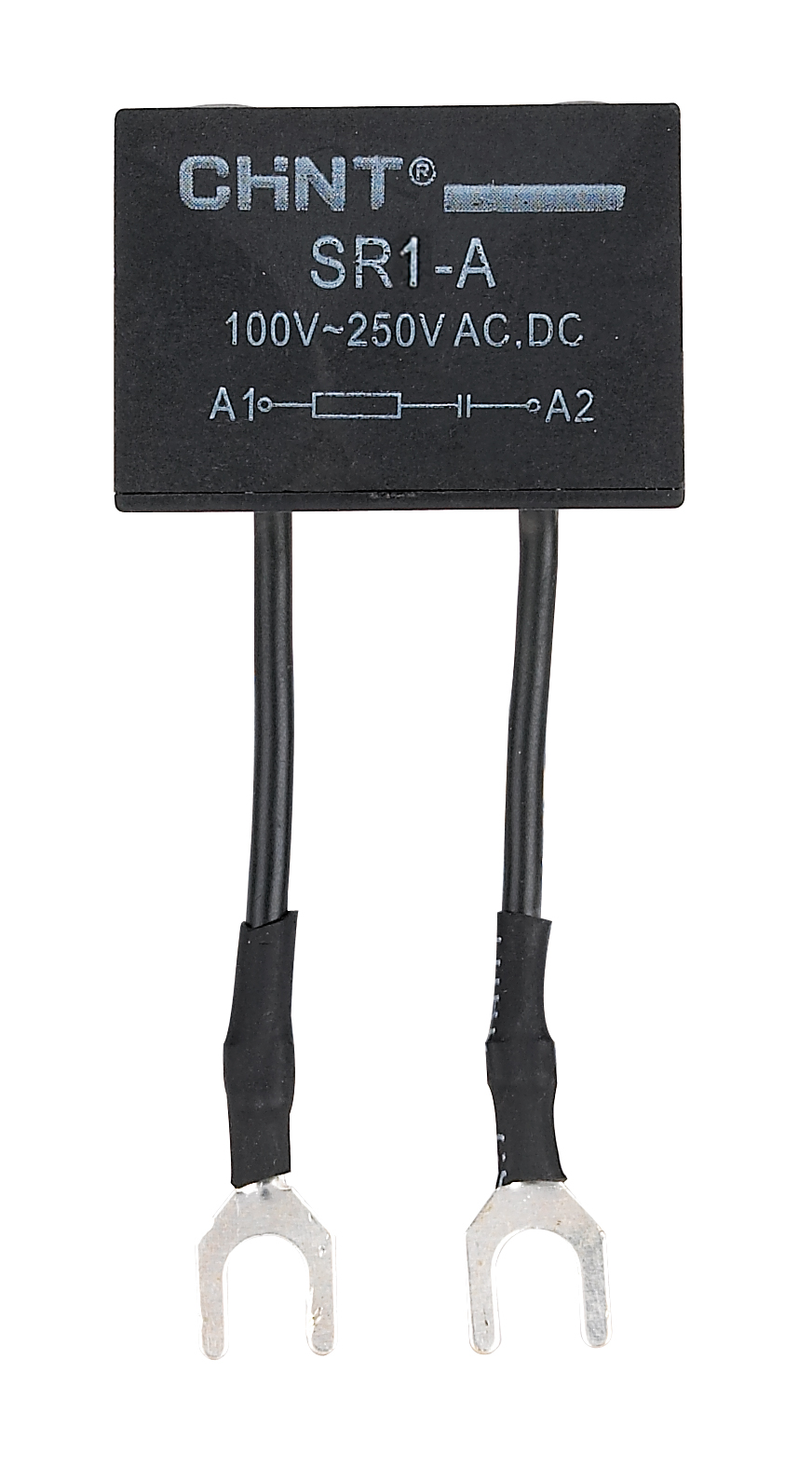

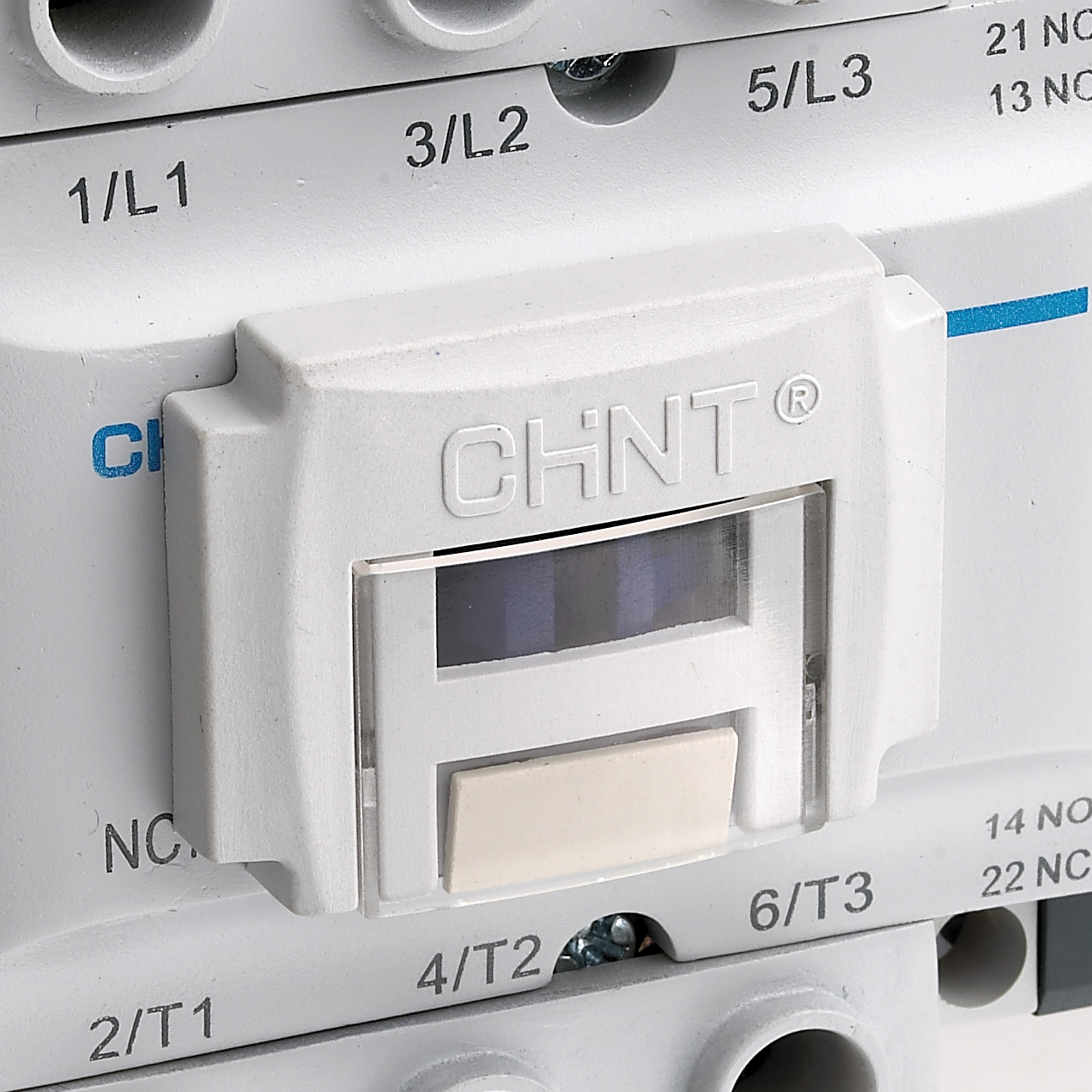

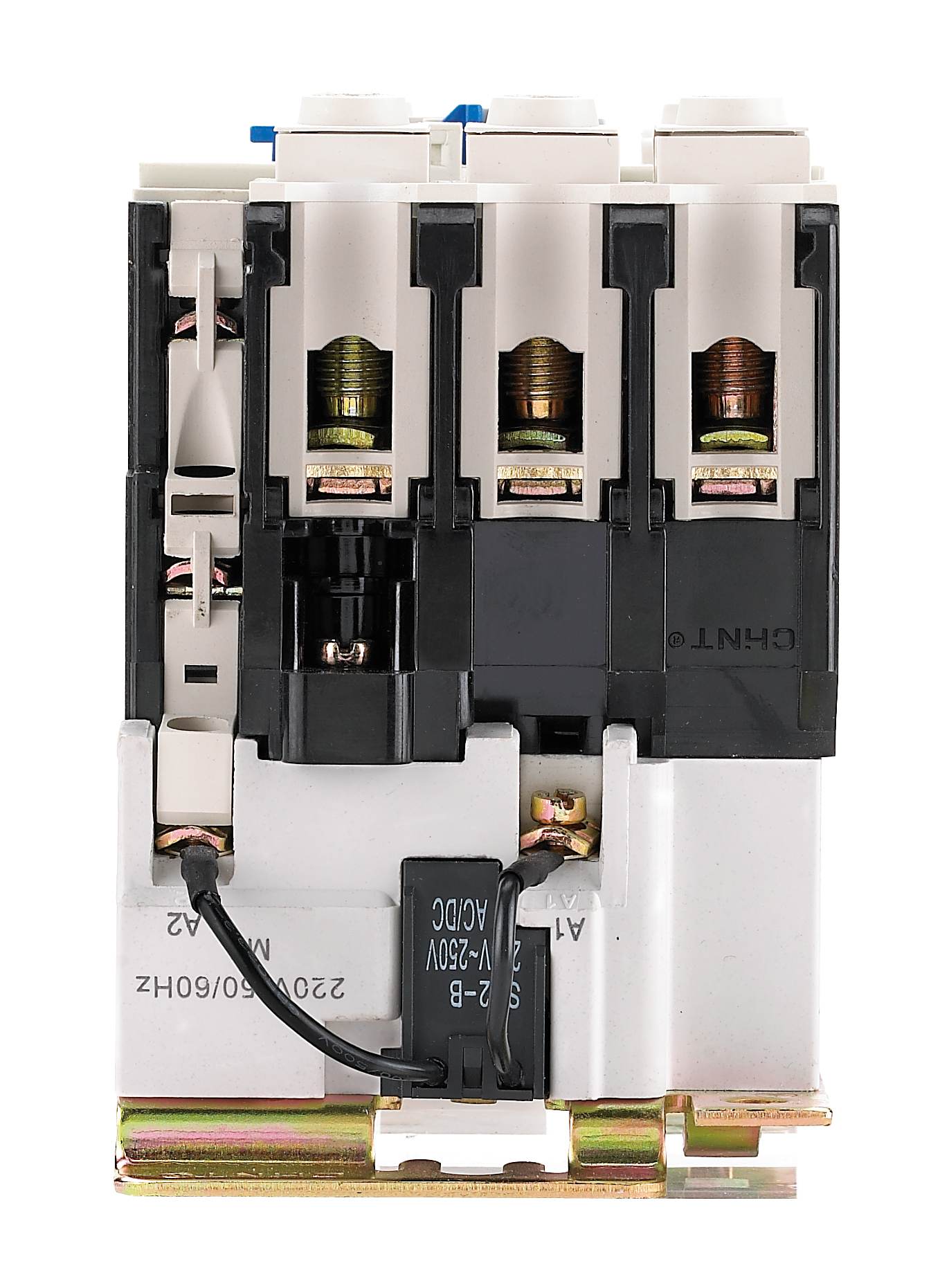

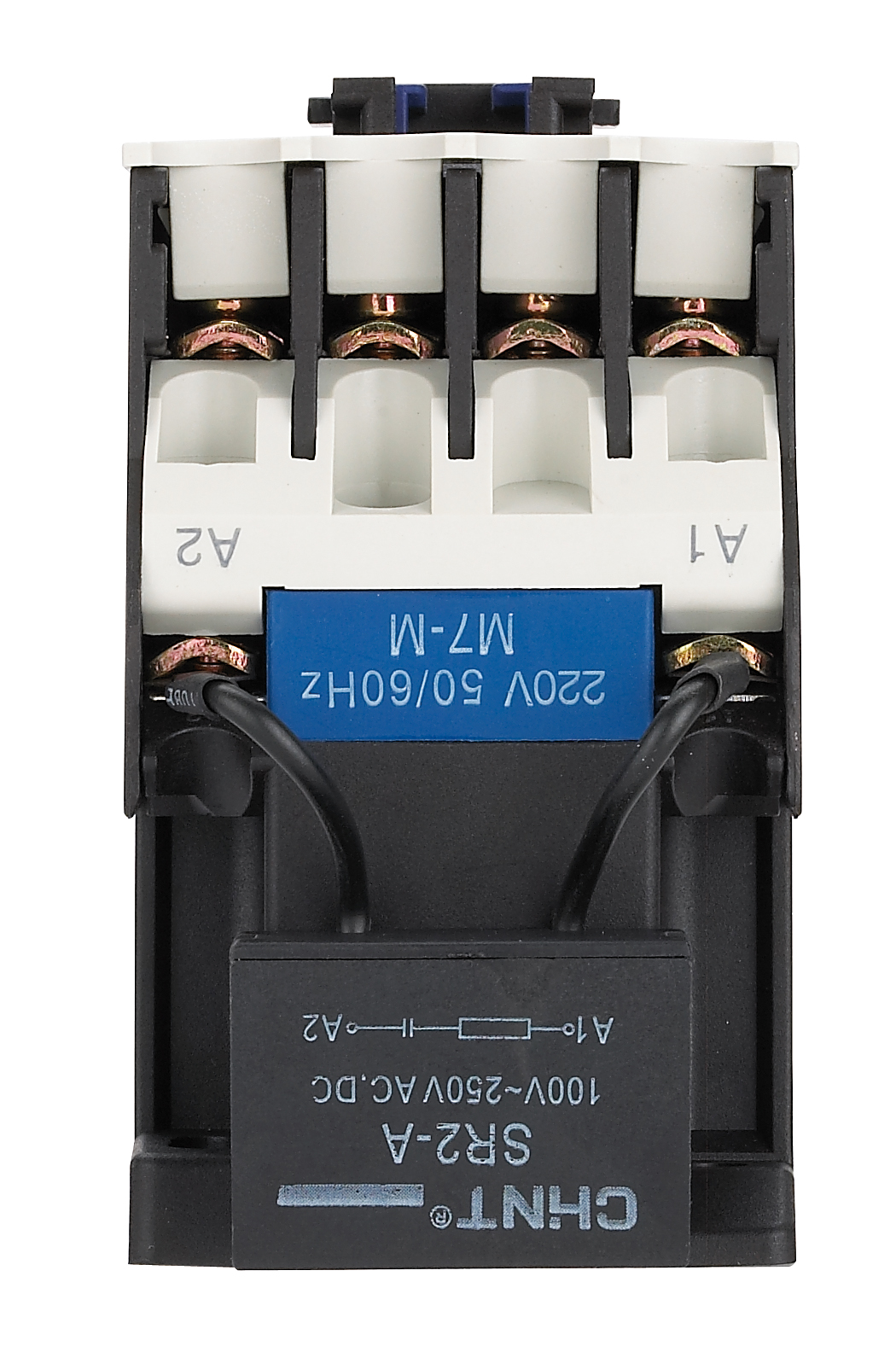

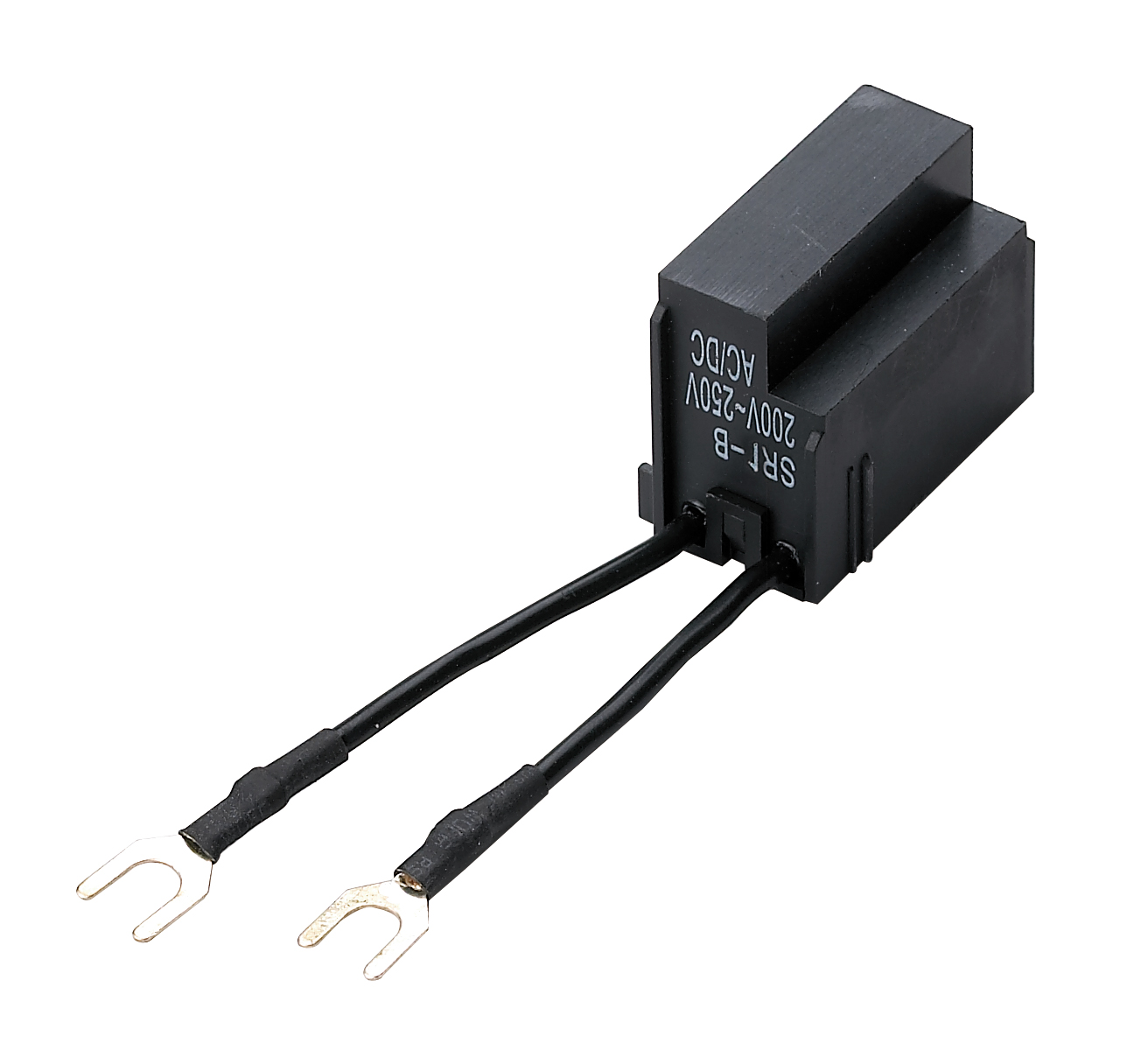

Compatible Accessories:

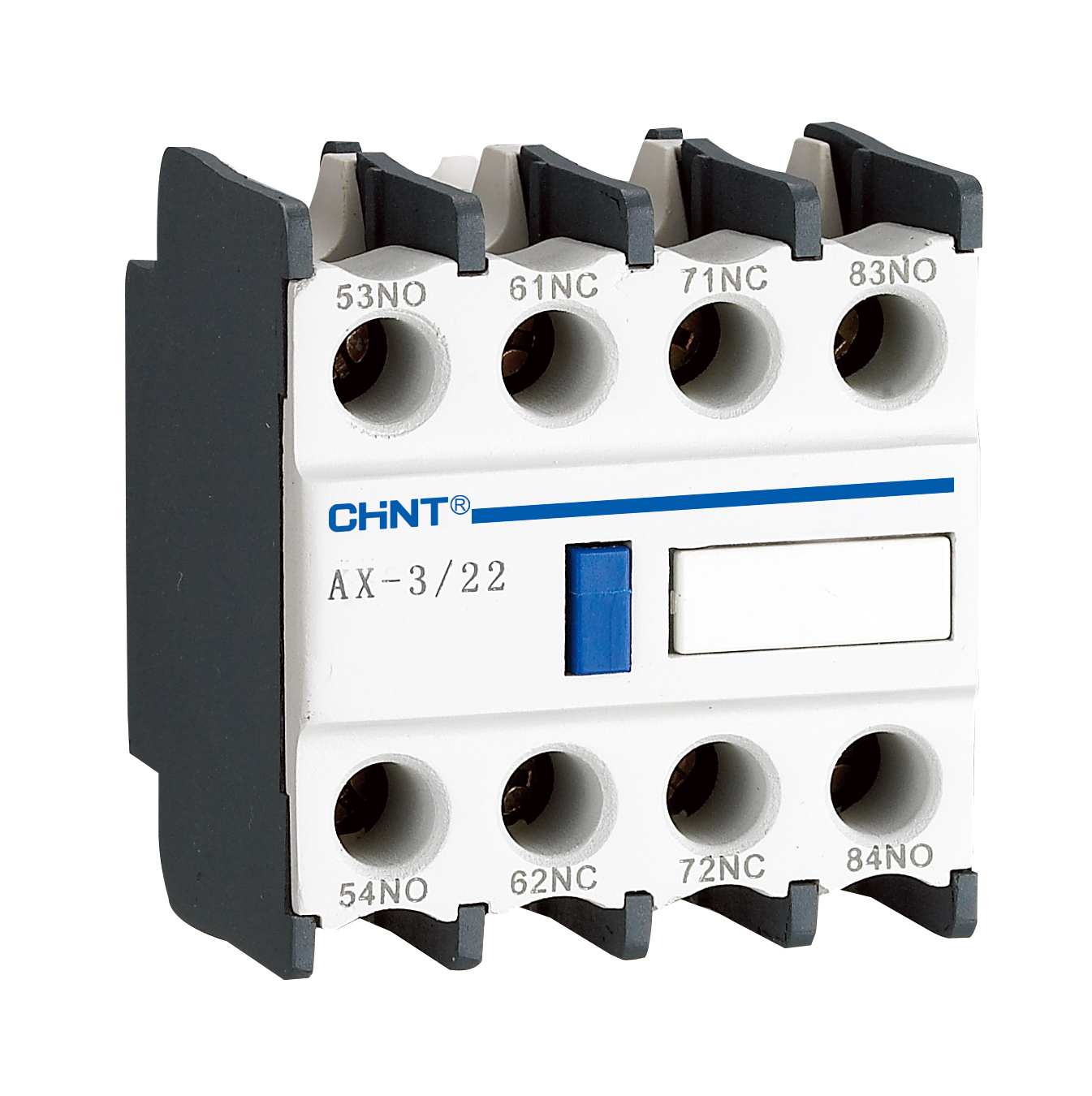

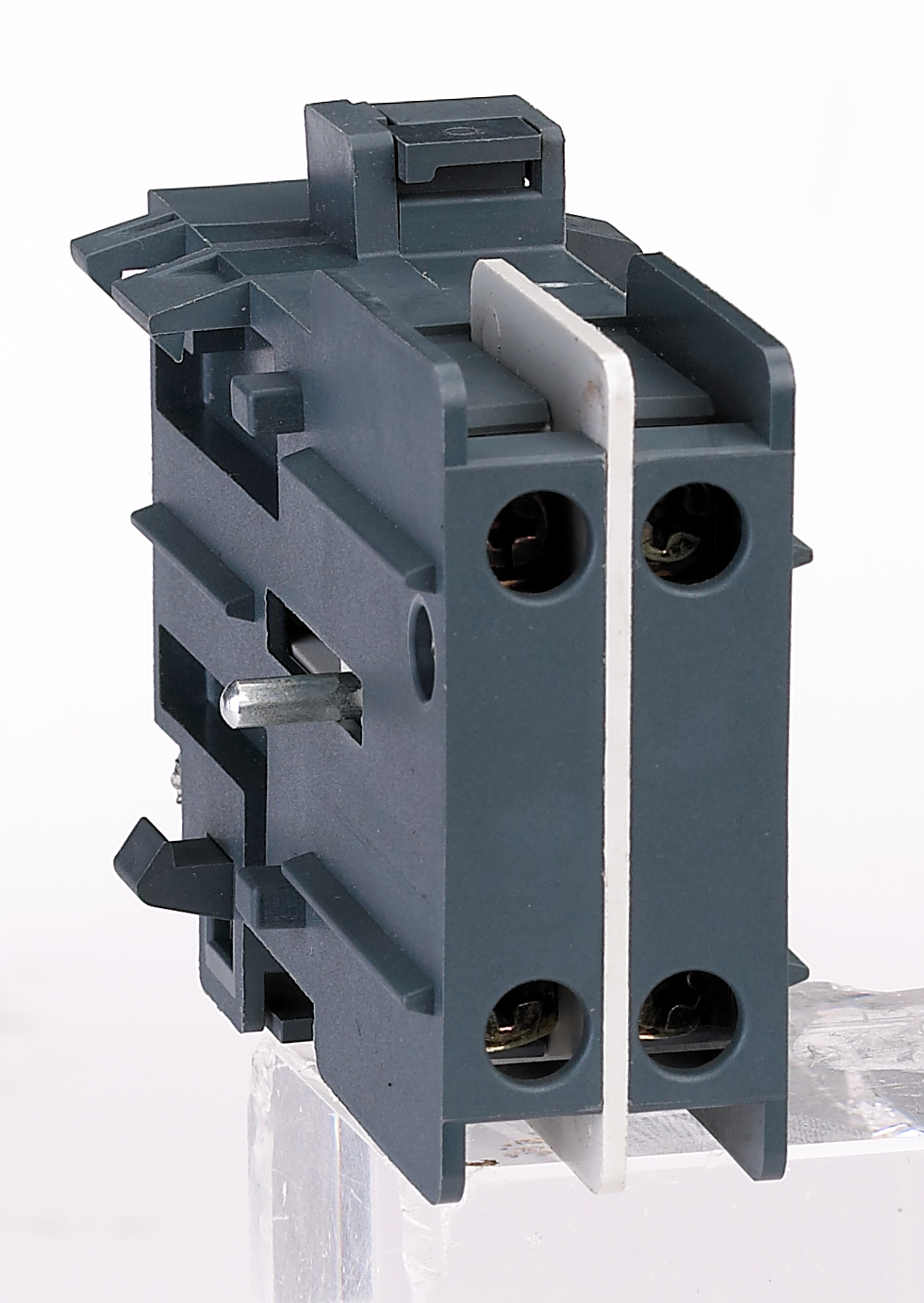

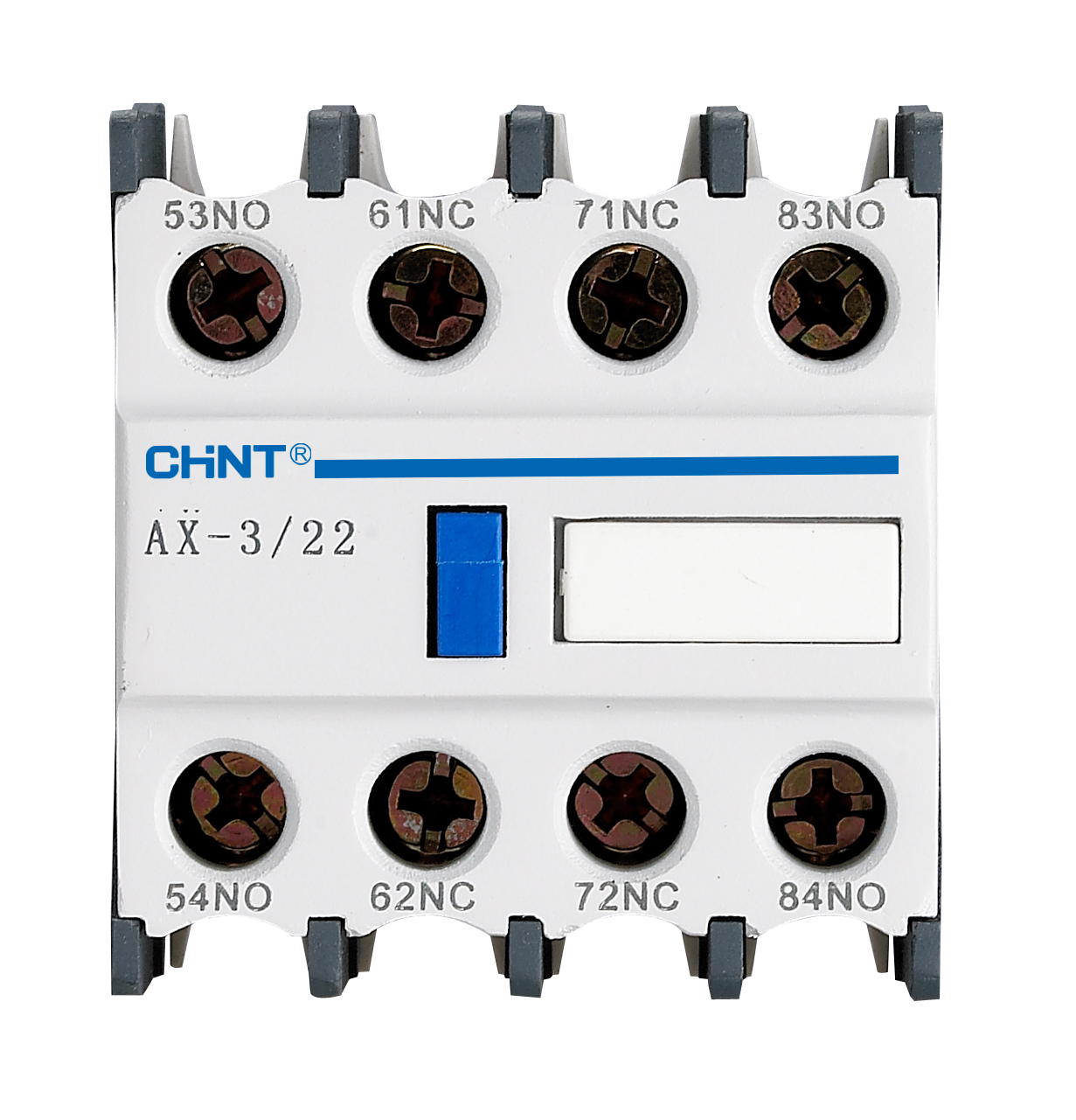

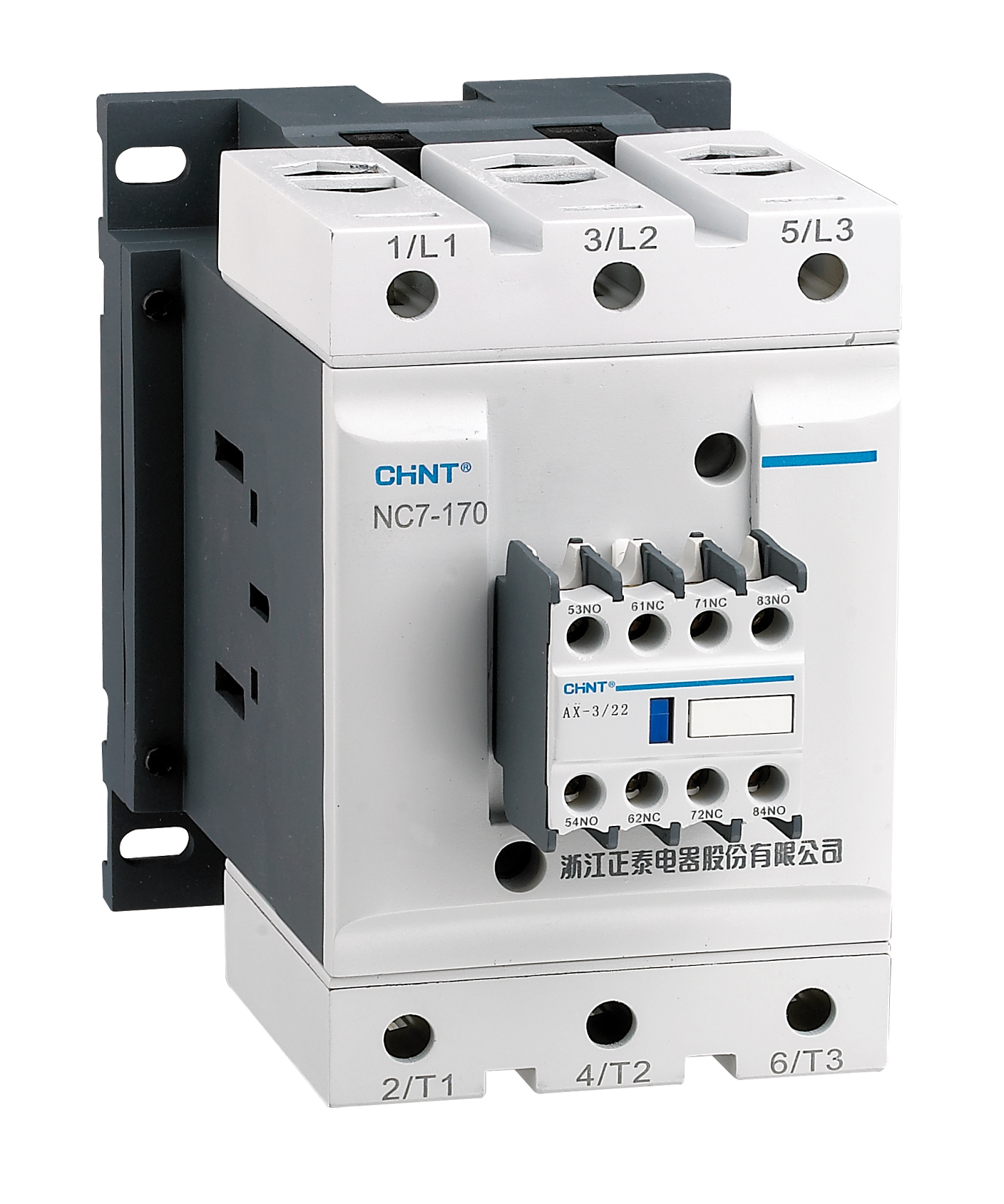

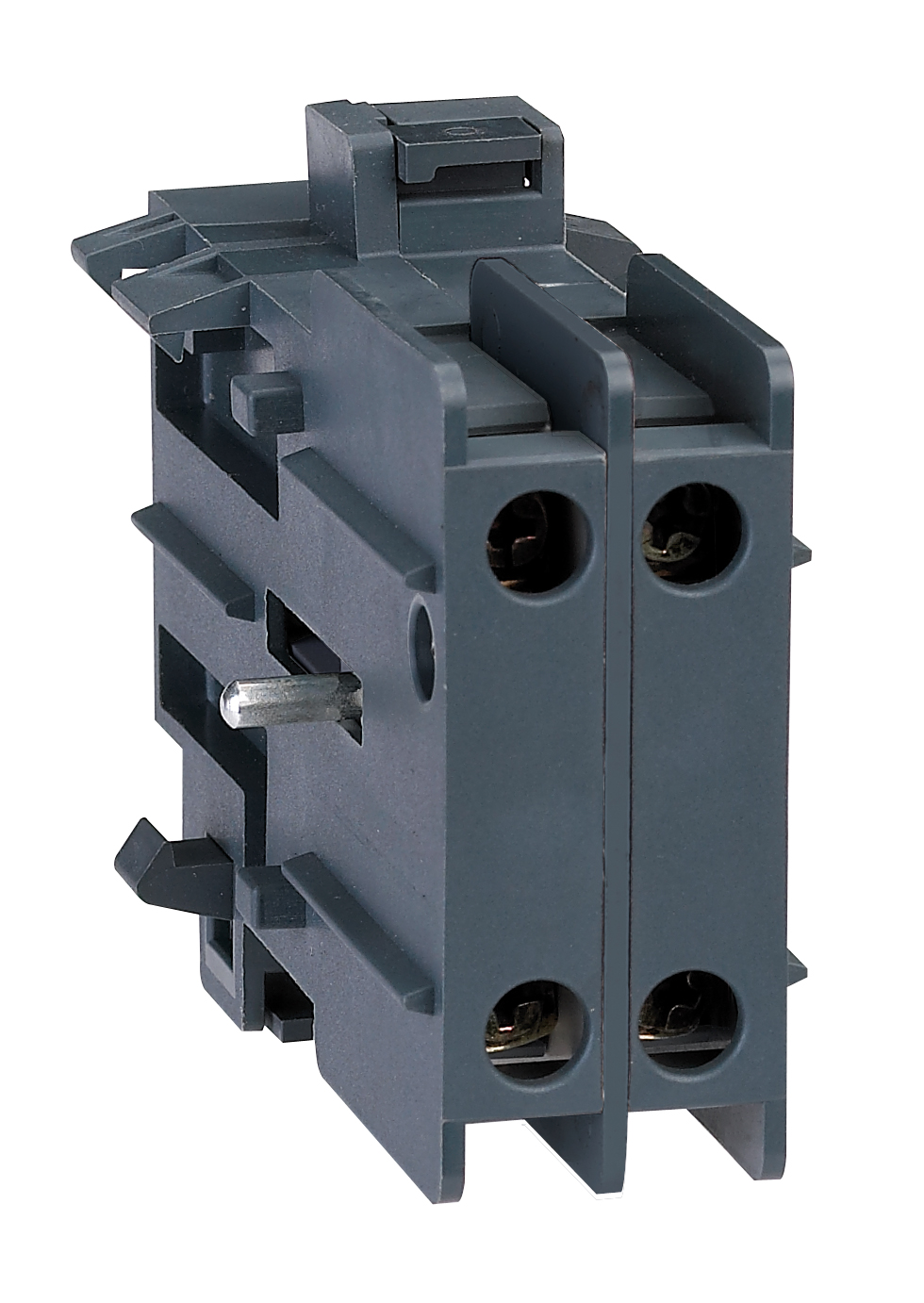

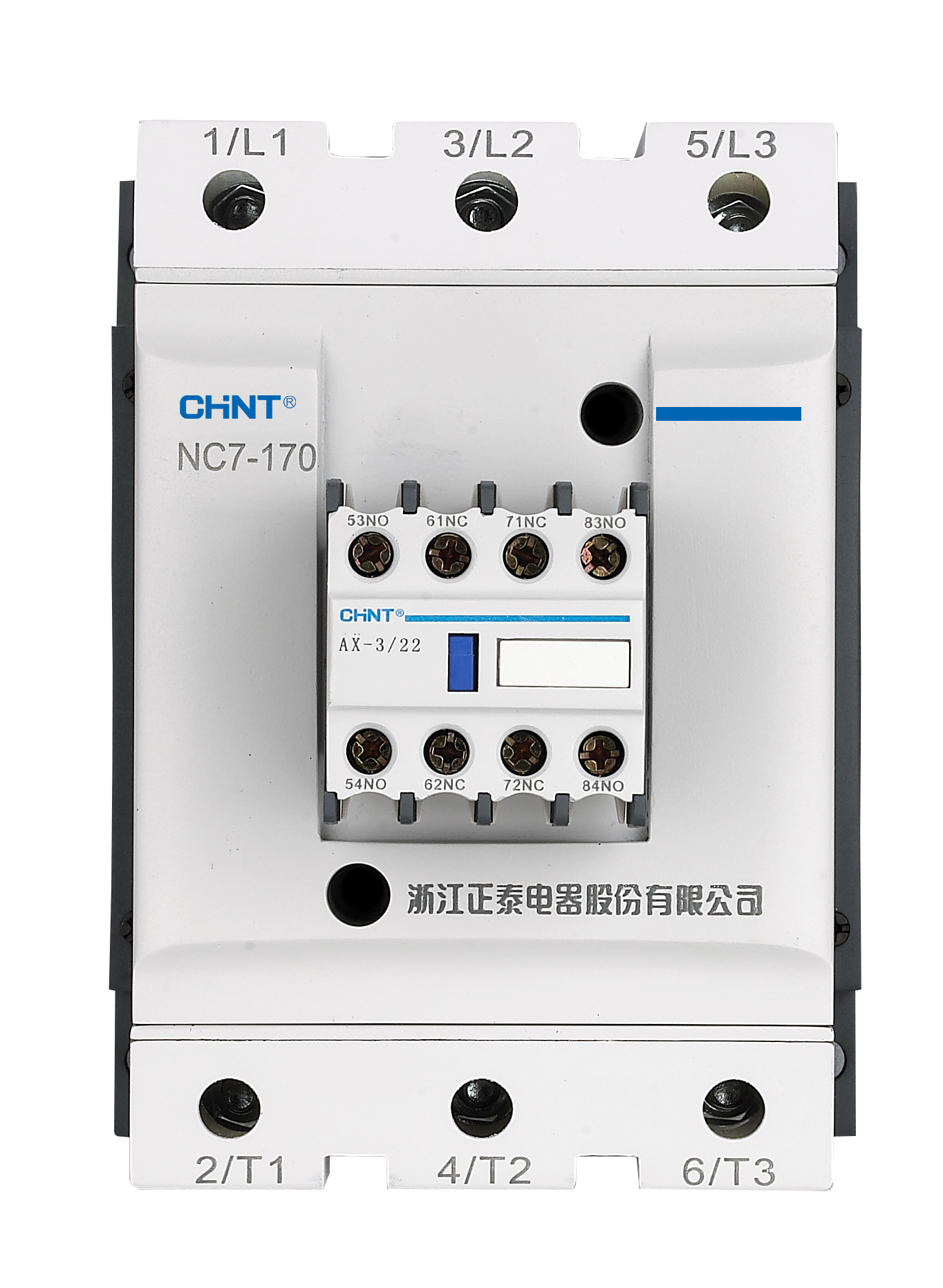

- Auxiliary blocks: F4 or F5 series

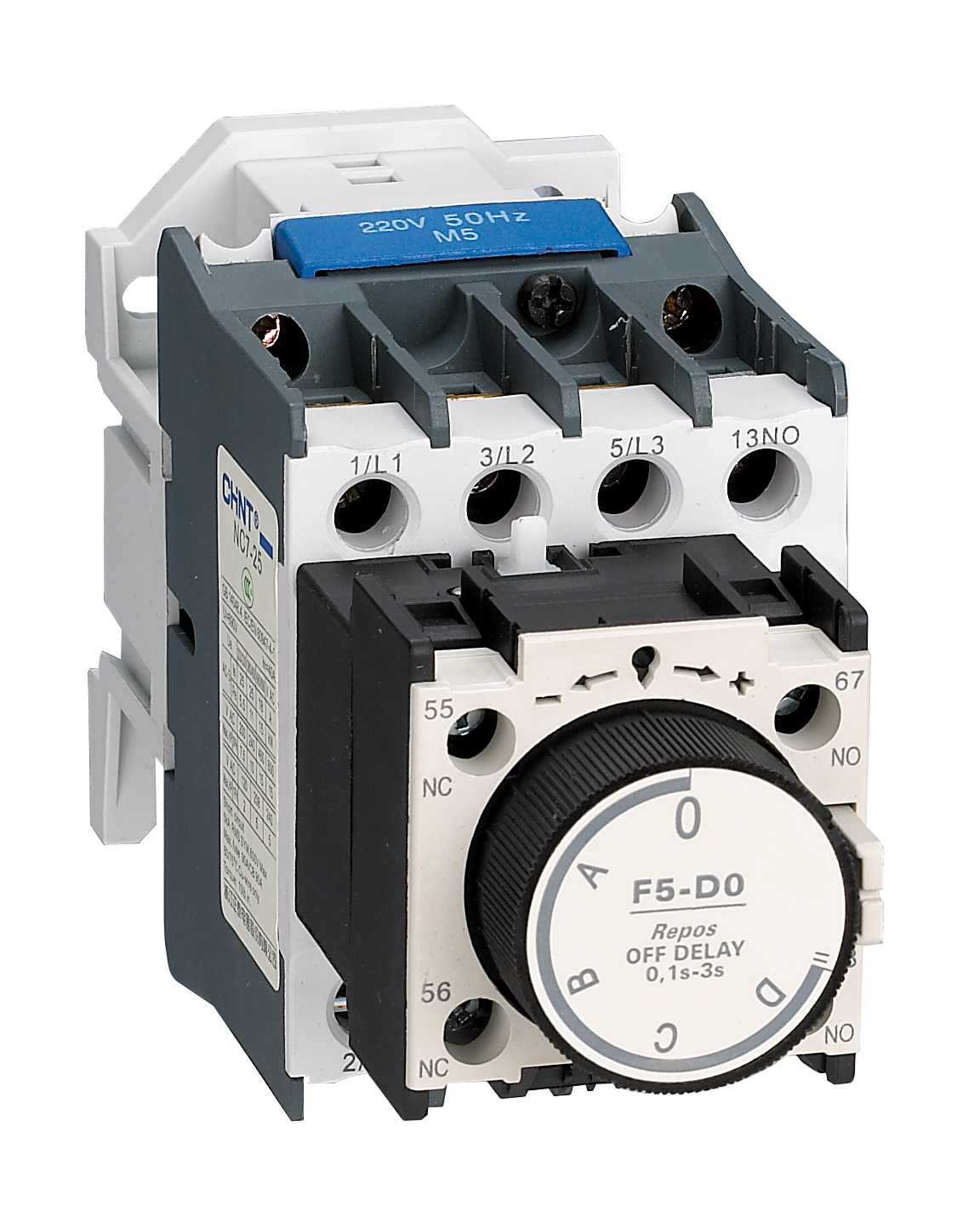

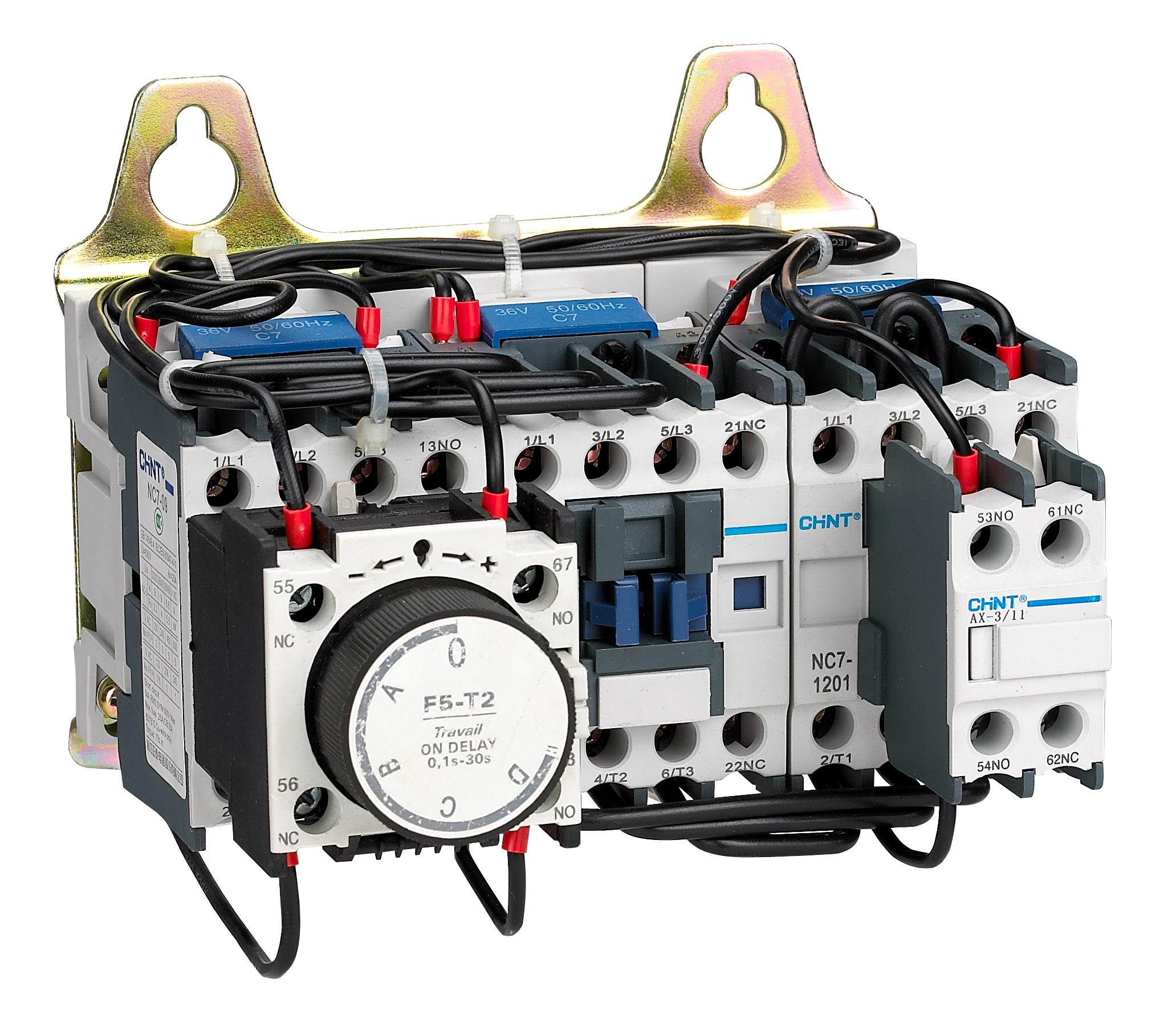

- Time-delay blocks: F5-T0/F5-T2 (0.1–180 s)

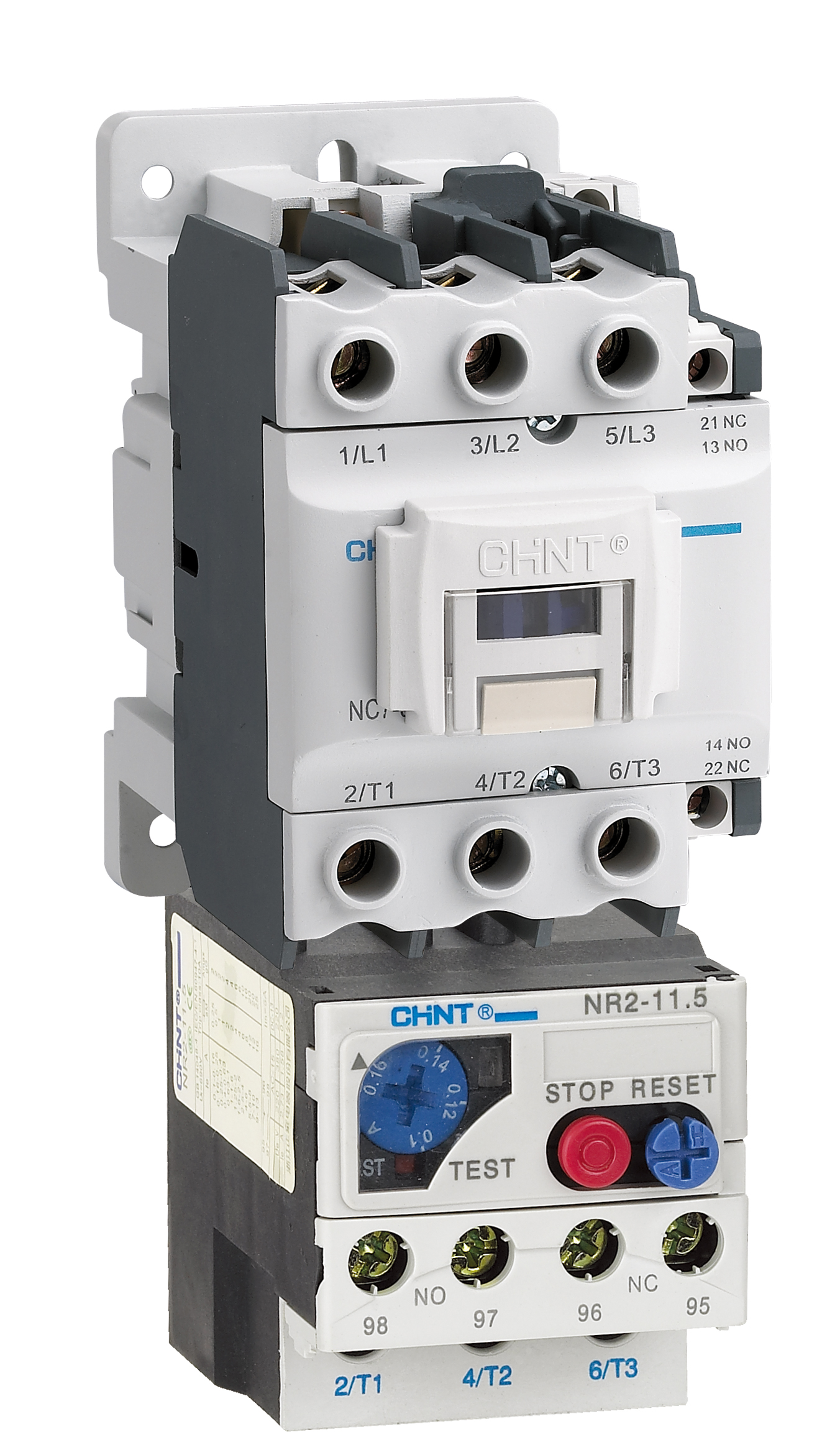

- Thermal overload relays: NR2 series (up to 25 A)

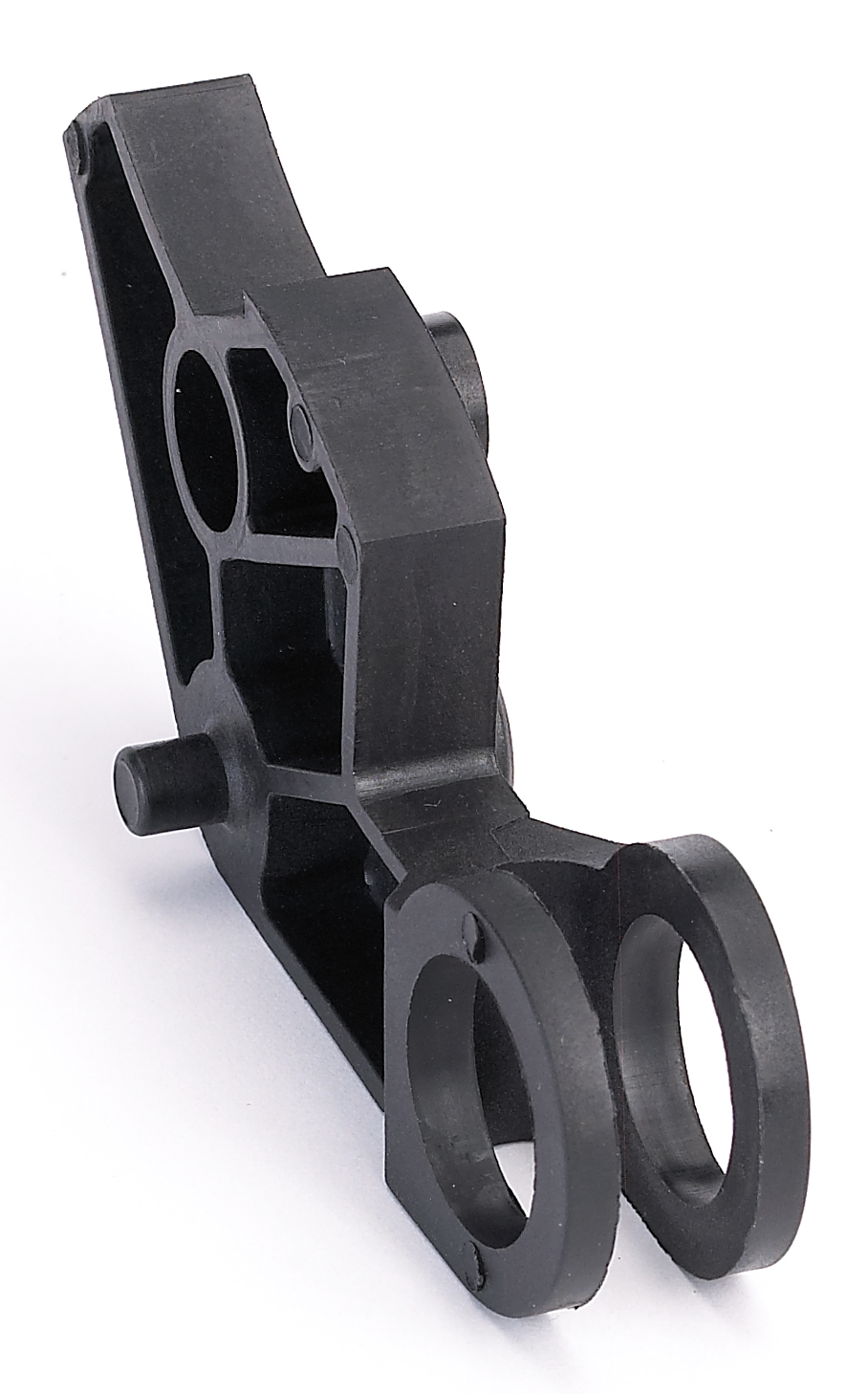

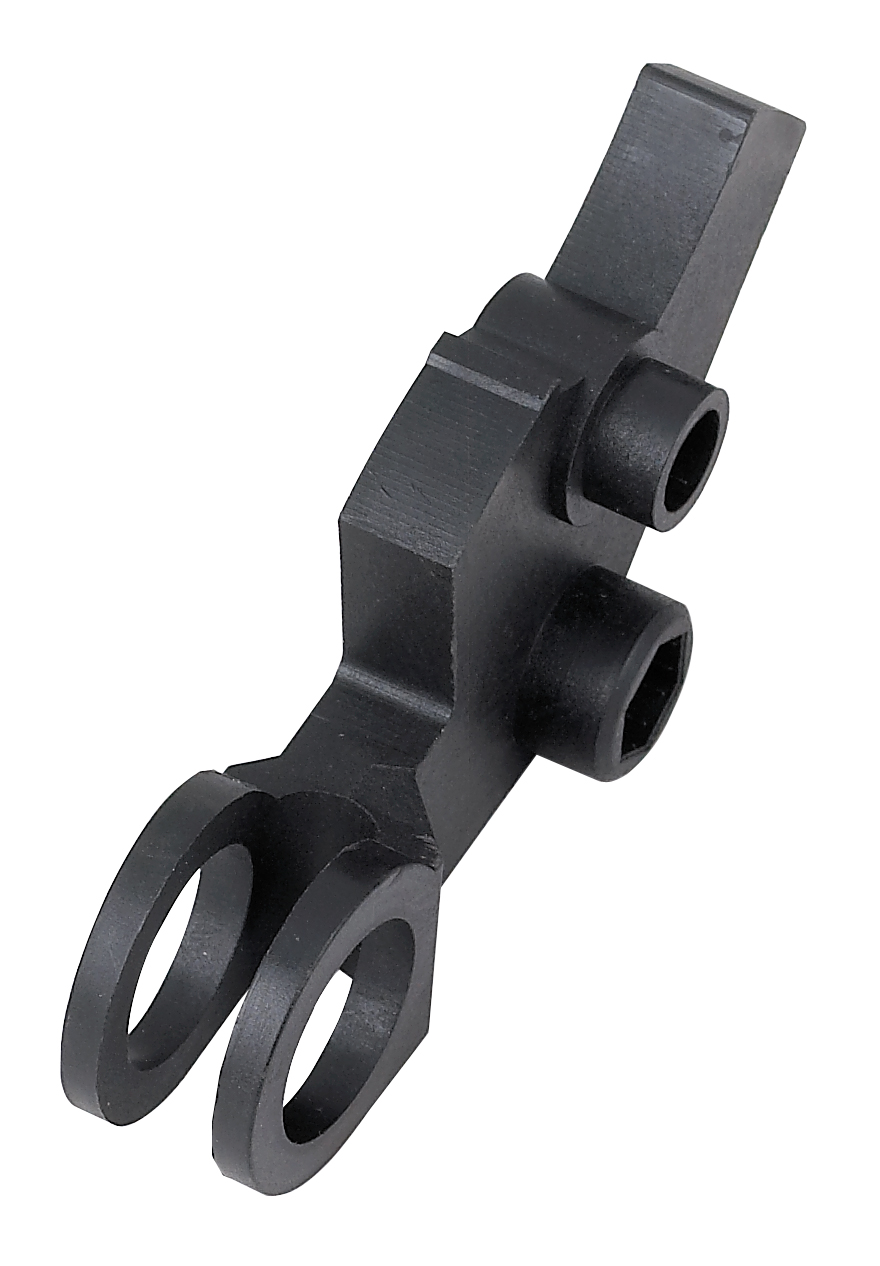

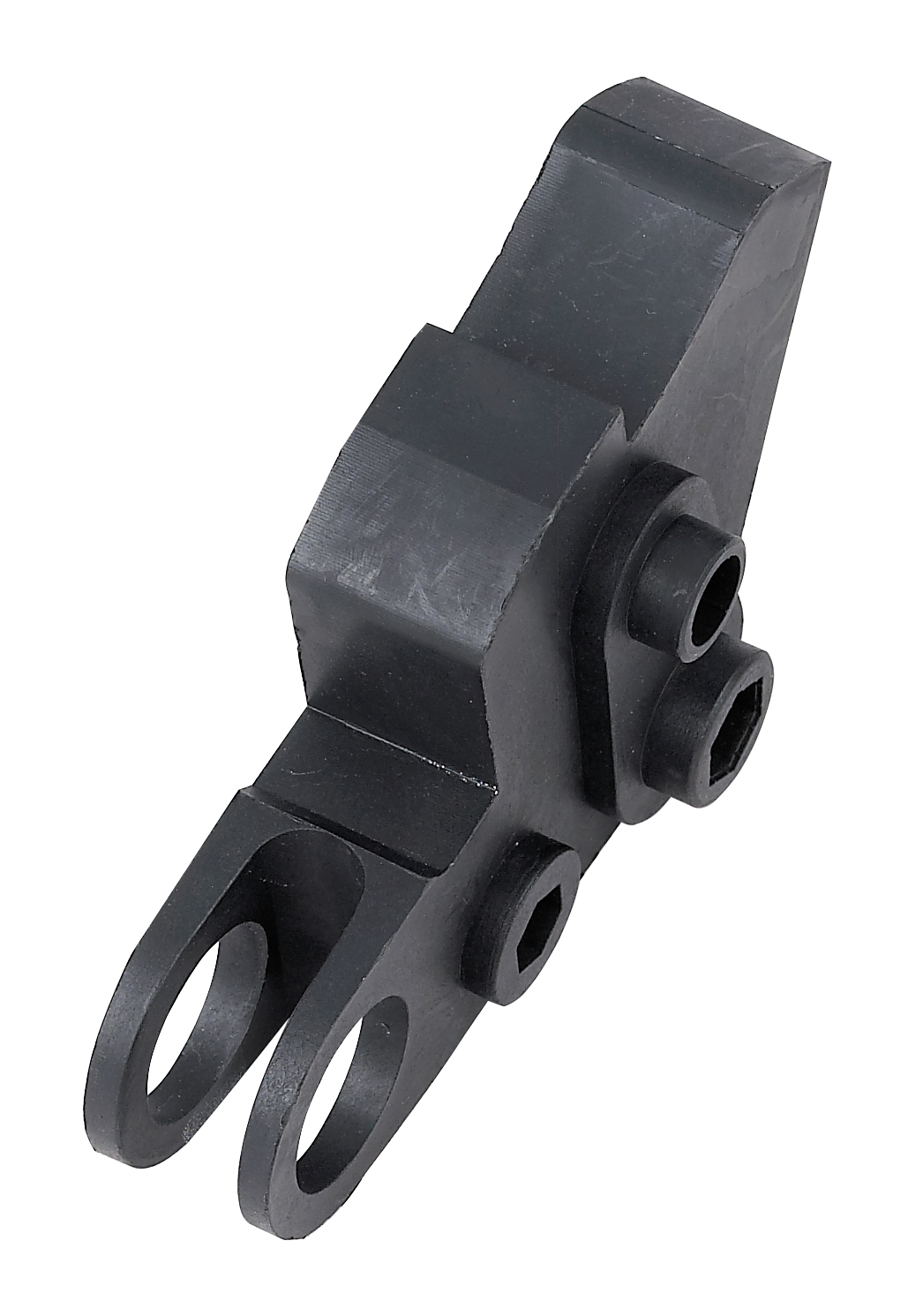

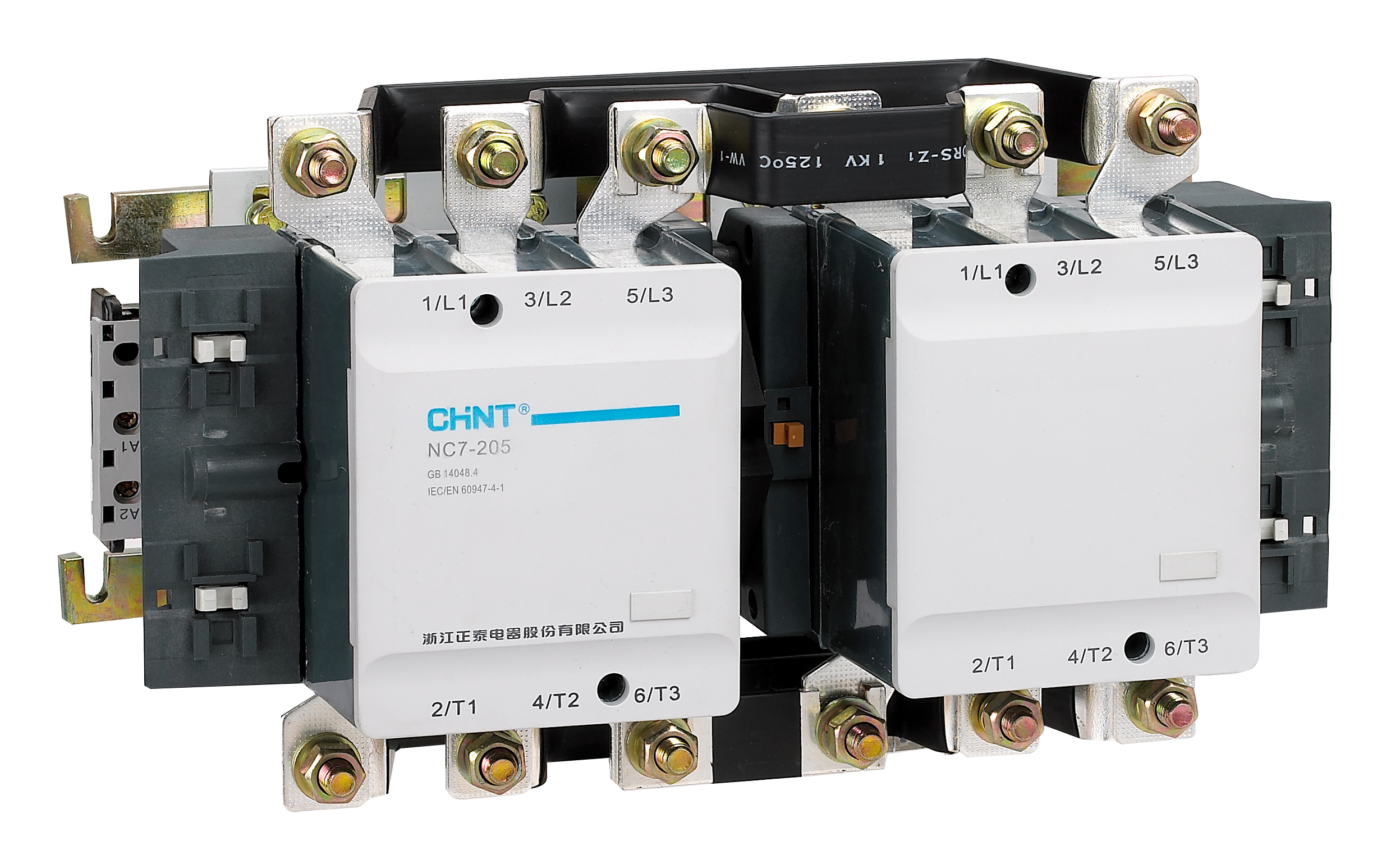

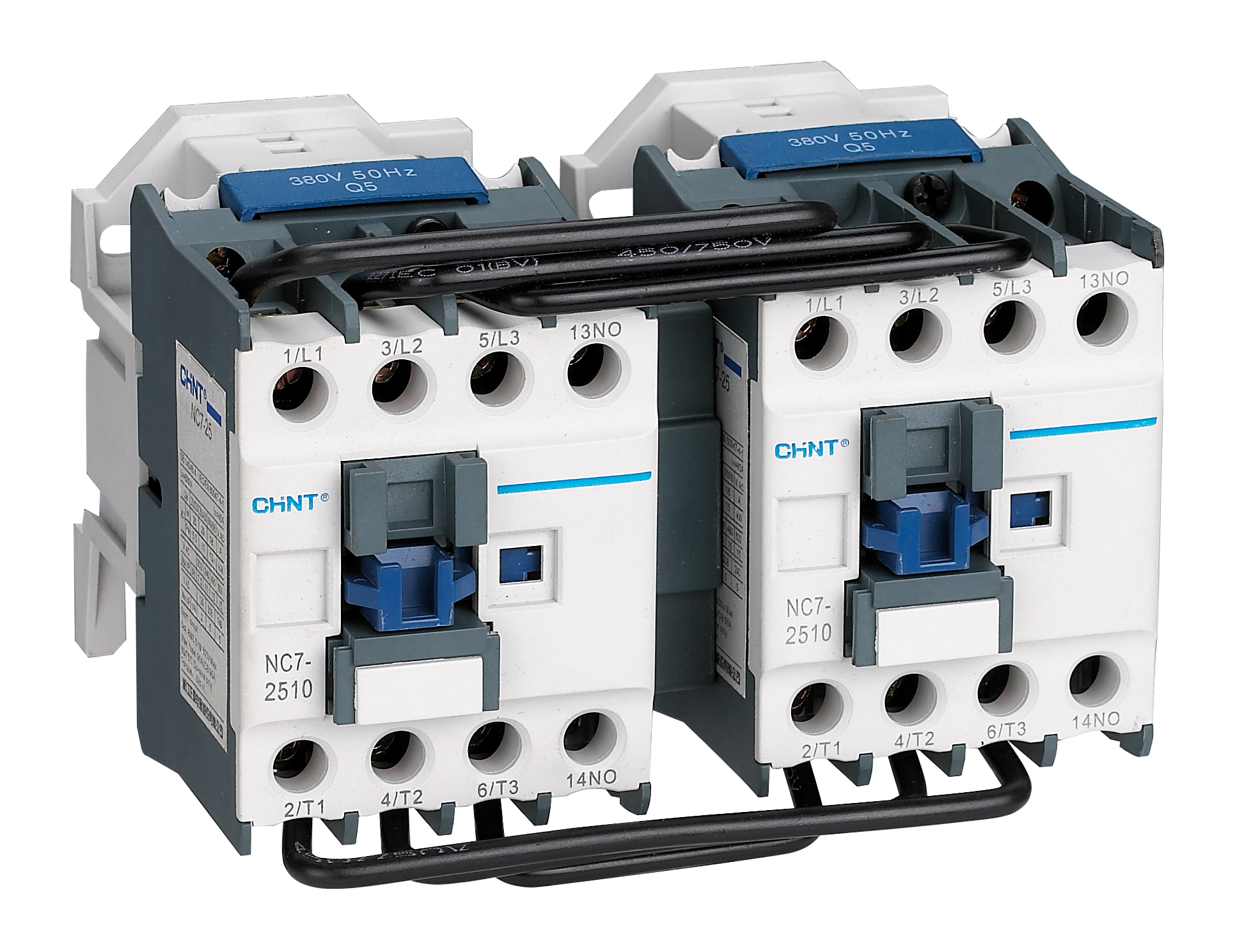

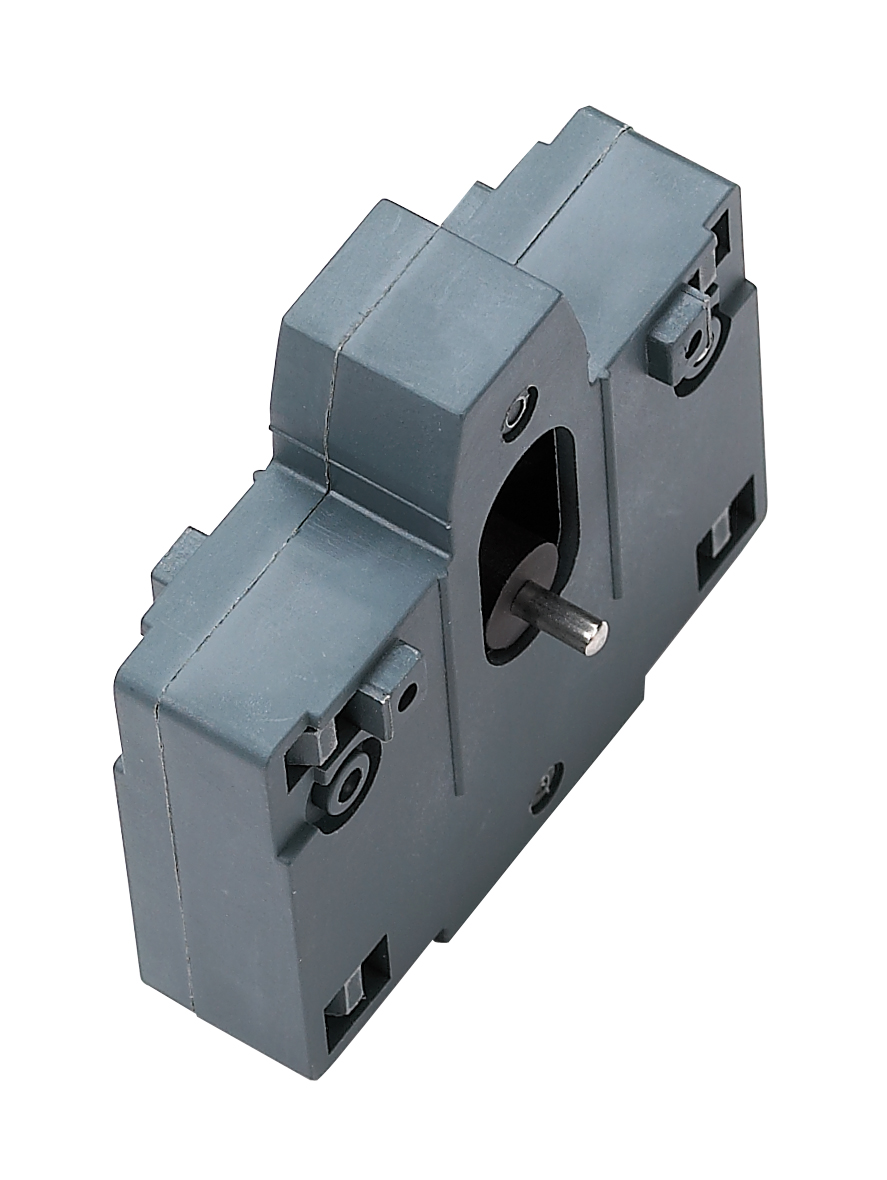

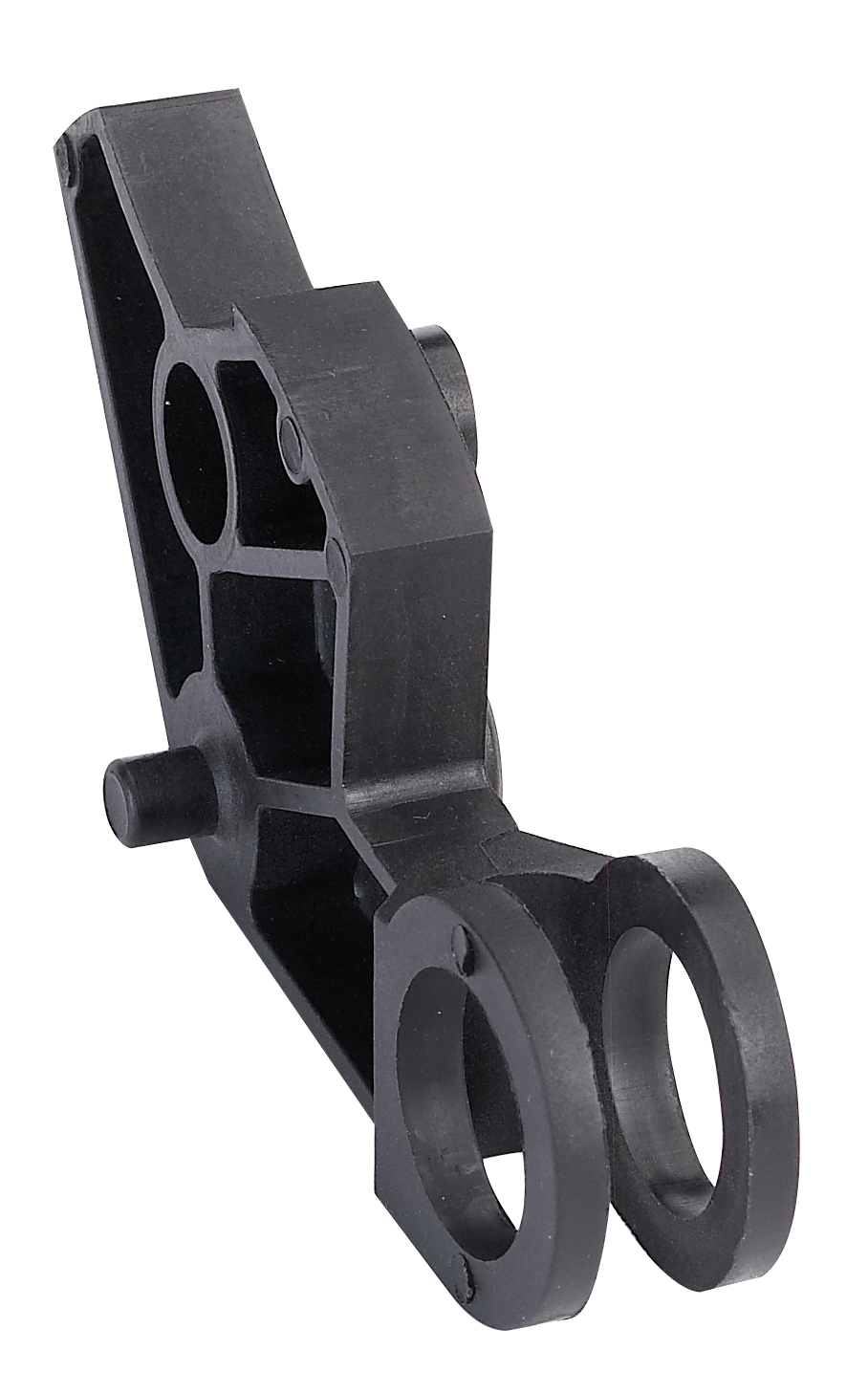

- Mechanical interlocks: NJL7 series
Applications: Motor starters, lighting circuits, HVAC systems, and control panels
