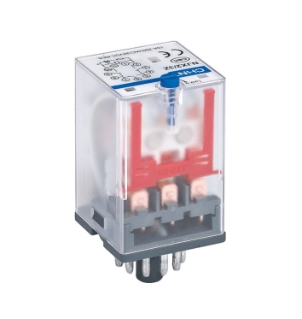

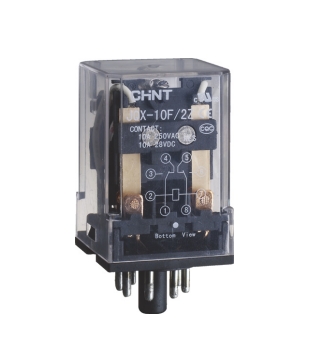

The CHINT JQX-10F Miniature Power Relay is a compact, high-performance electromagnetic relay designed for efficient control of AC and DC circuits. Featuring 10A switching capacity, wide coil voltage range (DC 6–220V / AC 6–380V), and multiple socket options, it delivers reliable operation across industrial automation, lighting, and power control systems. Built to international standards, the JQX-10F ensures durability and precision for demanding control applications.

Product Information

Standards Compliance: IEC 60947-5-1, UL, CE certified
Contact Arrangement: 2Z (2 changeover) or 3Z (3 changeover)
Contact Material: Silver alloy
Rated Load (Resistive): 10 A at 250 VAC / 10 A at 30 VDC
Maximum Switching Voltage:
- AC: 250 V
- DC: 125 V
Maximum Switching Current: 10 A
Maximum Switching Power:
- AC: 2500 VA
- DC: 300 W
Electrical Life: 100,000 operations
Mechanical Life: 10 million operations
Initial Contact Resistance: ≤ 100 mΩ
Insulation Resistance: ≥ 100 MΩ (at 500 VDC)
Dielectric Strength:
- Between Coil & Contacts: 1500 VAC
- Between Open Contacts: 500 VAC
Operate Time (at 25 °C): ≤ 20 ms
Release Time (at 25 °C): ≤ 20 ms
Shock Resistance: 100 m/s² (11 ms pulse)
Vibration Resistance: 10–55 Hz, amplitude 1 mm
Ambient Temperature Range: −25 °C to +55 °C
Humidity: 98% RH at +20 °C
Mounting Type: Plug-in
Dimensions: 35 × 35 × 52.5 mm
Coil Voltage Range:
- DC: 6 V–220 V
- AC: 6 V–380 V
Power Consumption:
- DC: 1.6 W
- AC: 3 VA
Coil Operation Range: 80%–110% of rated voltage
Holding Voltage: 80% Un
Drop-Out Voltage:
- DC: ≥ 10% Un
- AC: ≥ 20% Un
Termination: Plug-in base (compatible with various socket models)
Protection Rating: IP40 (with transparent dust cover)
Certifications: CE, UL marked for quality and safety assurance
Typical Applications:
- Industrial control panels
- HVAC and lighting systems
- Electrical equipment automation
- Power distribution networks

Name

Size

Release time

Operate

JQX-10F-Electromagnetic Relay-Catalog.pdf

376.29KB

2024-09-19

Download

Name

Size

Release time

Operate

2101-JQX-10F-Miniature Electromagenetic Relay-CE Certificate.pdf

2.45MB

2025-03-13

Download

1906-JQX-10F-Miniature Electromagenetic Relay-UL Certificate.pdf

245.61KB

2025-03-13

Download

Need Support From Us?

Blog

Blog

Find expert perspectives on the trends and technologies driving your business.

View Now

Download Center

Download Center

Download new and previously released documents including product document, solutions, cases, coporate report.

View Now

Contact Us

Reach out to us to receive more information, technical support, assistance with complaints and more.

Collapsed

Expand

FAQs

What is the purpose of the JQX-10F Miniature Power Relay?

It functions as a compact switching relay for controlling AC/DC electrical circuits in automation, lighting, and control systems.

What are the available contact configurations?

The JQX-10F is available in 2Z (two changeover contacts) and 3Z (three changeover contacts) versions.

What coil voltage options are supported?

The relay offers a wide range of coil voltages:

DC: 6 V to 220 V

AC: 6 V to 380 V

How much load can it handle?

Each contact supports 10 A at 250 VAC or 30 VDC, making it suitable for moderate power switching in industrial and commercial applications.

Is it compatible with socket mounting?

Yes, it supports plug-in sockets for quick installation and replacement, enhancing wiring flexibility and maintenance efficiency.
