NHR40

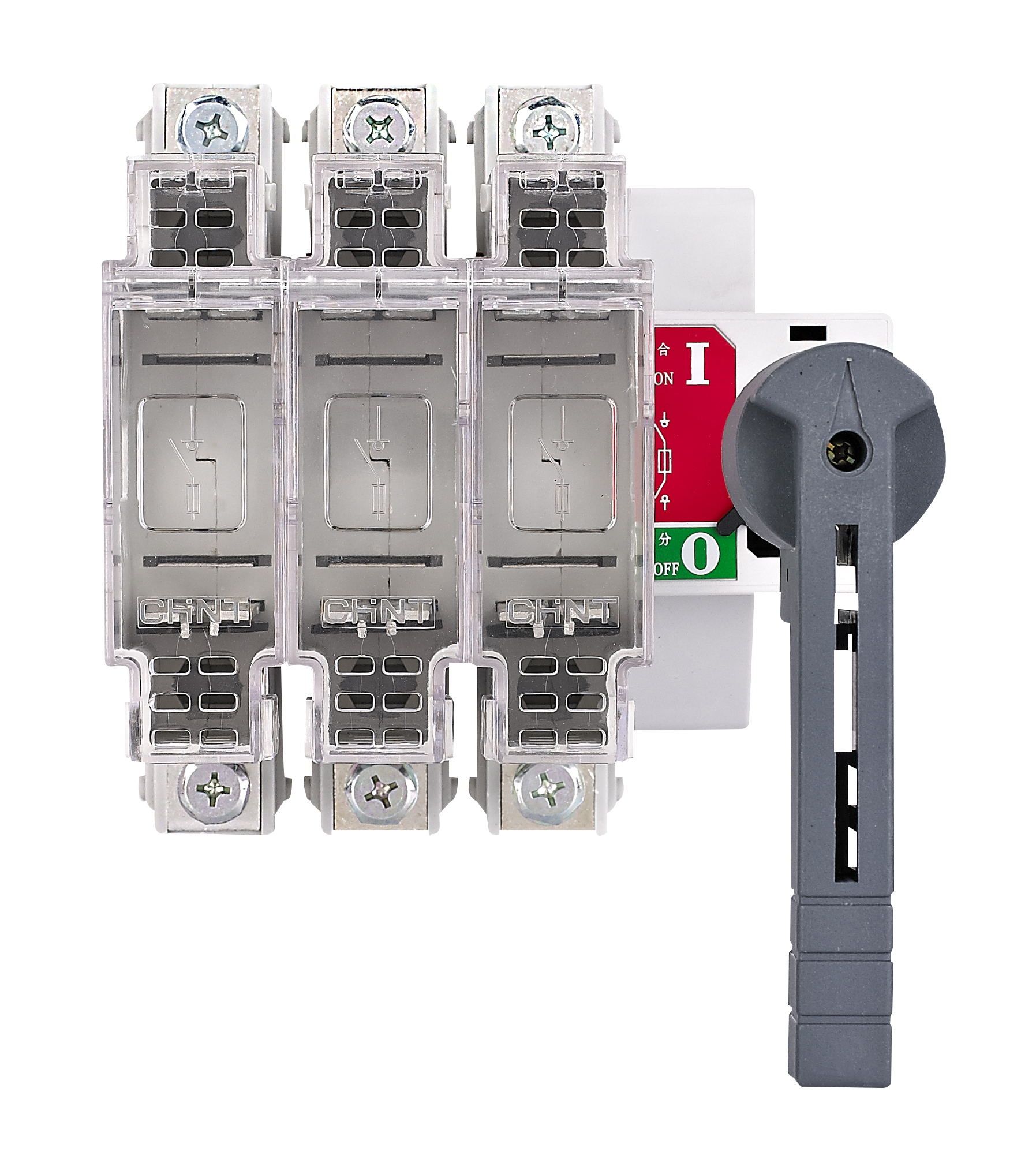

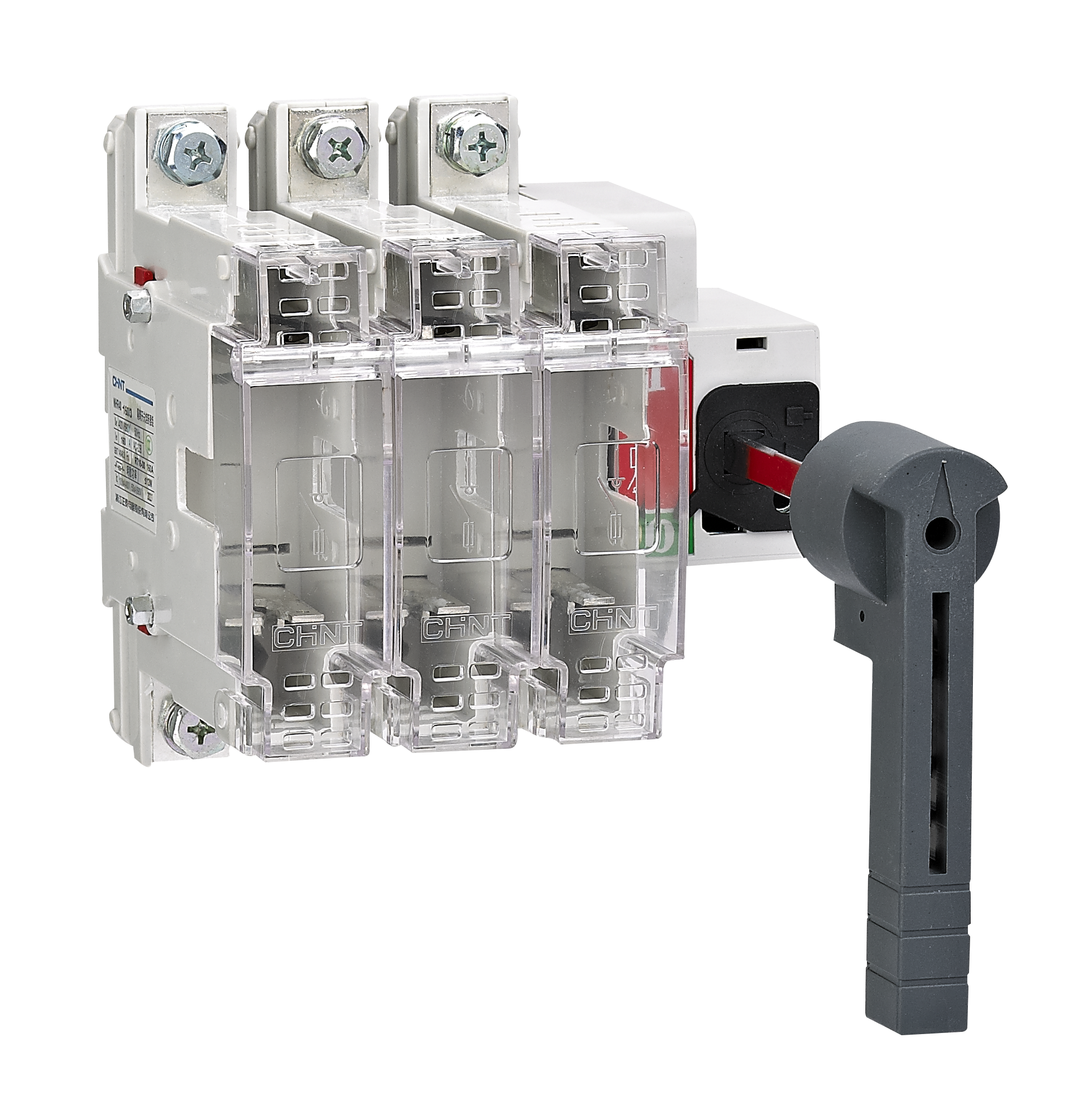

NHR40-160-3-Switch-disconnector-fuse

NHR40-160-3-Switch-disconnector-fuse

NHR40-Switch-disconnector-fuse

NHR40-160-3-Switch-disconnector-fuse

NHR40-160-3-Switch-disconnector-fuse

NHR40-Switch-disconnector-fuse

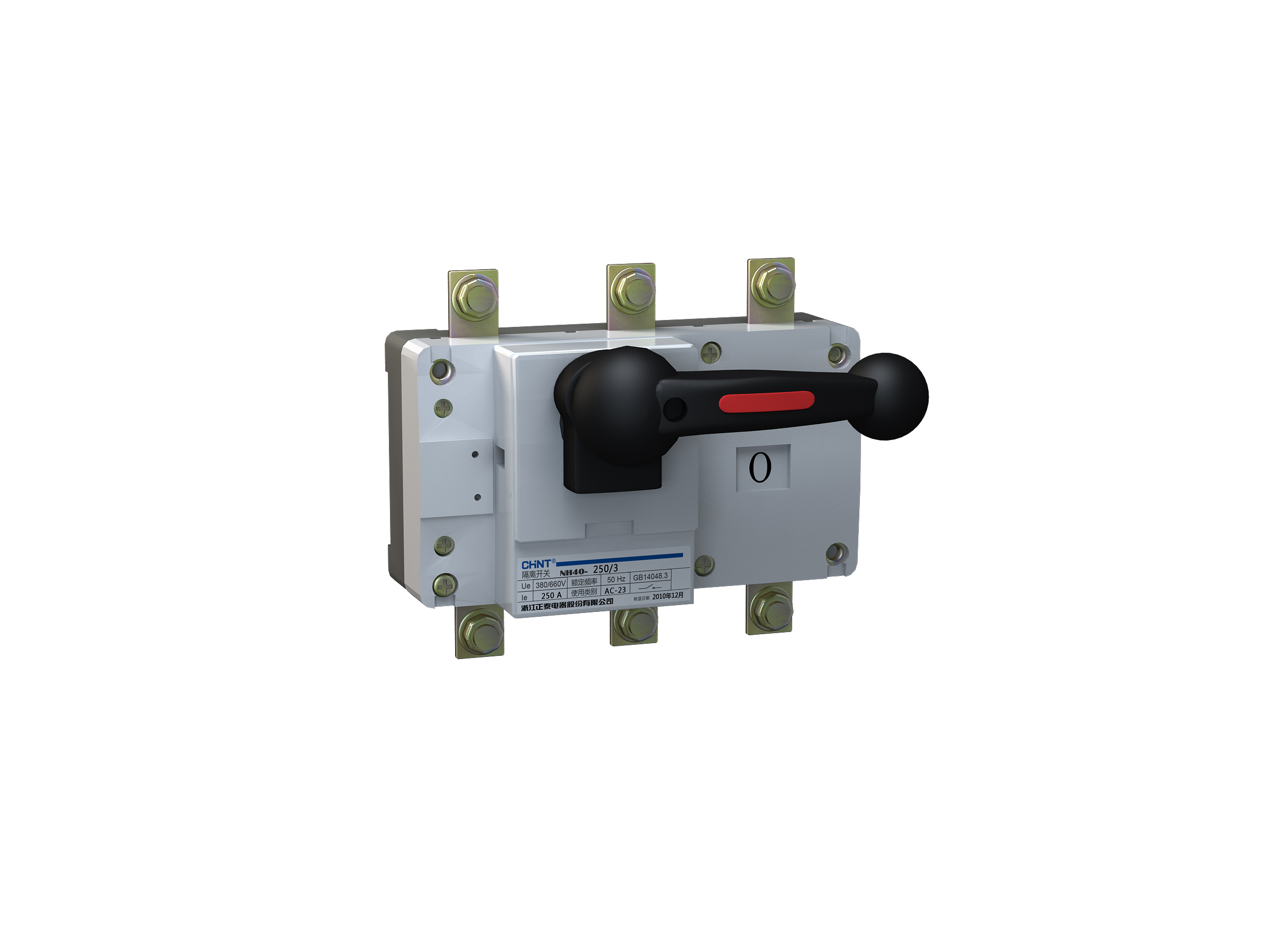

NHR40

The NHR40 Fuse-switch Disconnector provides reliable manual isolation and circuit protection for AC 50Hz systems up to 690V and DC systems up to 440V, with rated currents up to 630A. Designed for infrequent manual operation, it safely breaks or isolates electrical circuits under load. The compact, fully enclosed structure enhances thermal stability, while the dual-contact, double-break design ensures dependable performance in industrial power distribution and switchgear systems.

Product Information

Overview
Catalog

Rated Operational Voltage:
- AC: 690V and below
- DC: 440V and below
Rated Current: 20A – 630A (depending on model size)
Conventional Thermal Current (Ith): 63A, 160A, 250A, 400A, 630A
Rated Insulation Voltage (Ui): 1000V
Associated Fuse Types: RT36 (NT/RT16) or RT20 fuses
Utilization Category:
- AC-22A and AC-23A (400V / 690V)
Operation Force: 60–230 N depending on model size
Operation Mode: Manual rotary handle (front or lateral operation)
Poles: 3P / 4P options
Breaking System: Double-break contacts in series for improved breaking capacity and safety
Thermal Design: Fully enclosed structure for better heat dissipation and insulation performance
Operation Mechanism: Energy storage spring ensures rapid contact movement, independent of manual speed
Installation Options:
- Front or facade operation inside/outside switchgear
- Rail-mounted (≤63A)
- Box-type enclosure available for ≤63A models
Standards Compliance: IEC/EN 60947-3

Name

Size

Release time

Operate

NHR40-Switch-disconnector-fuse-Catalog.pdf

958.82KB

2024-10-21

Download

Need Support From Us?

Blog

Blog

Find expert perspectives on the trends and technologies driving your business.

View Now

Download Center

Download Center

Download new and previously released documents including product document, solutions, cases, coporate report.

View Now

Contact Us

Reach out to us to receive more information, technical support, assistance with complaints and more.

Collapsed

Expand

FAQs

What is the function of the NHR40 Fuse-switch Disconnector?

It serves as a manual isolation and protection device, allowing operators to safely disconnect circuits under load and protect against overcurrent or short-circuit faults.

What makes the NHR40 design reliable in industrial applications?

Each phase contains two contact groups with double breaking points, improving its current-breaking capacity and ensuring a reliable power isolation mechanism.

What fuse types can be used with this disconnector?

It is compatible with RT36 (NT/RT16) and RT20 fuse series, which users can select based on application voltage and current needs.

How does the operating mechanism improve safety?

The built-in energy storage spring ensures that contact operation speed is independent of manual rotation, guaranteeing consistent and safe opening/closing.

What installation options are available?

The NHR40 can be installed inside switchgear (front operation) or outside panels (facade operation). Models ≤63A can also be mounted on DIN rails or boxed for protection.
