1. General

1.1 Scope of Application

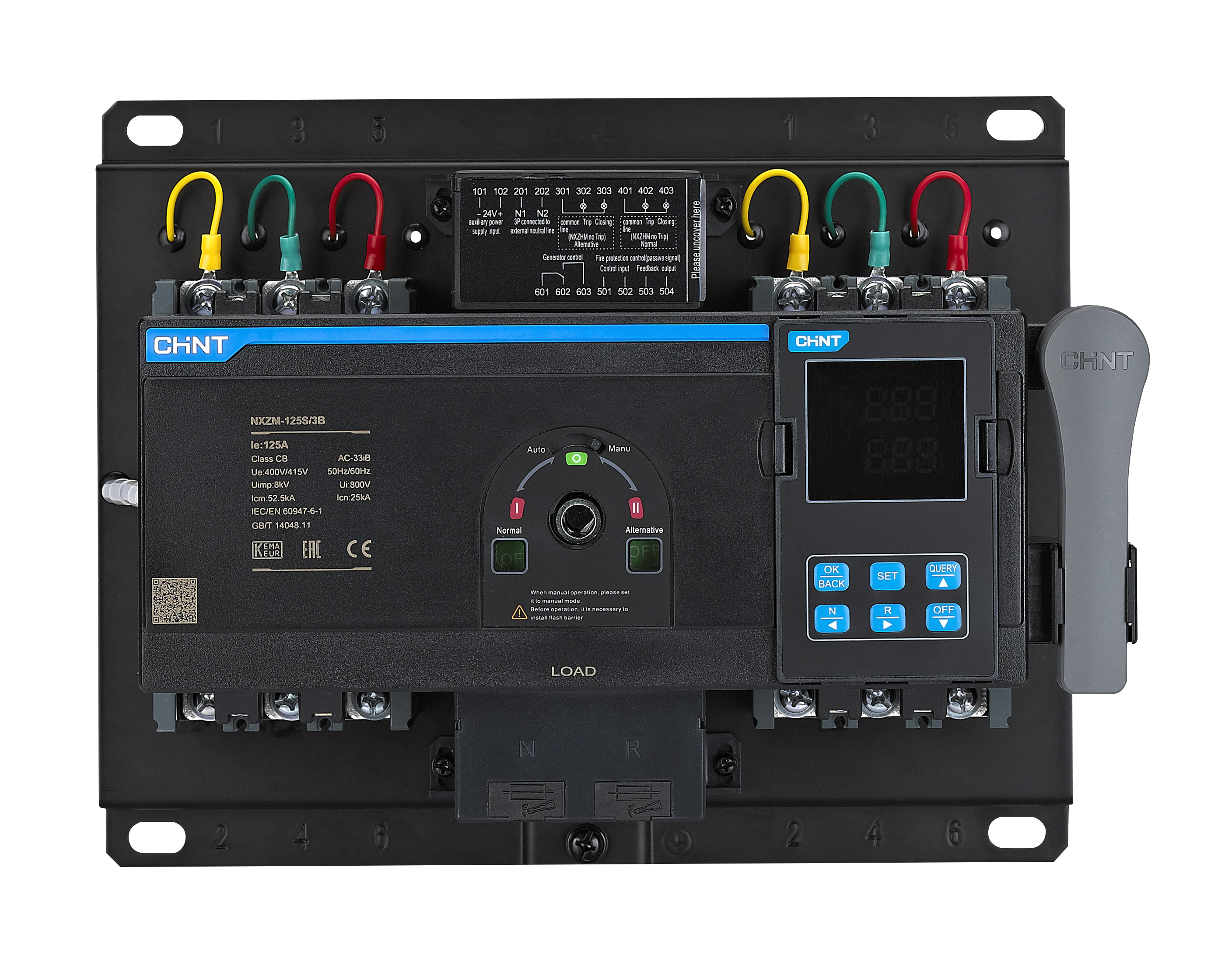

1.1.1 NXZ series Automatic Transfer Switching Equipment is applicable to the three-phase four-wire duplicate supply power grid of AC 50Hz, rated voltage 400V/415V and below, and rated current up to 630A . It can automatically connect one or several load circuits from one power source to the other to ensure the normal power supply for the load circuit.

1.1.2 This product is applicable to industrial and commercial power use places, high-rise buildings, and residential houses.

1.2 Applicable standards

1.2.1 Product standard

IEC 60947-1.

IEC 60947-6-1.

1.2.2 Standards for use in extreme environment

IEC 60068-2-1. (Low Temperature)

IEC 60068-2-2. (High Temperature)

IEC 60068-2-30. (Cyclic Damp Heat)

IEC 60068-2-11. (Salt mist)

1.2.3 Certification ：CB、CE、KEMA

1.3 Normal working conditions

1.3.1 Ambient temperature 5° C~+40° C; Users can custom-tailor relevant product to be used in the environment of -25° C~+70° C, and use the product according to the temperature compensation table.

1.3.2 Sea level elevation Equal to 2000m or below; if it needs to work above 2000m altitude, it shall be used according to the table of capacity reduction of different altitudes.

1.3.3 Atmospheric conditions The relative humidity shall not exceed 50% when the surrounding air temperature is +40° C; the relative humidity can be higher when the temperature is lower; the average monthly maximum relative humidity in the wettest month is 90%, and the average monthly minimum temperature shall be +20 ° C. Special measures may be necessary in cases of occasional condensation due to variations in temperature.

1.3.4 Pollution degree: class 3

1.3.5 Installation category Installation category of the switching equipment of main circuit is category IV. Installation category of auxiliary circuit is category III. Installation category of conversion controller is category II.

1.3.6 Utilization category: AC-33B Electromagnetic compatibility (EMC) Electrostatic discharge (IEC 61000-4-2) Level 2 Radio-frequency electromagnetic field-radiated electromagnetic field immunity (IEC 61000-4-3) Level 3, Fast transient bursts (IEC 61000-4-4) Level 3, Surges (IEC 61000-4-5) Level 3, Radio-frequency electromagnetic field-conducted immunity (IEC 61000-4-6) Level 3, Radiation grade (CISPR11) grade B,

Product Information

1. General

1.1 Scope of Application

1.1.1 NXZ series Automatic Transfer Switching Equipment is applicable to the three-phase four-wire duplicate supply power grid of AC 50Hz, rated voltage 400V/415V and below, and rated current up to 630A . It can automatically connect one or several load circuits from one power source to the other to ensure the normal power supply for the load circuit.

1.1.2 This product is applicable to industrial and commercial power use places, high-rise buildings, and residential houses.

1.2 Applicable standards

1.2.1 Product standard

IEC 60947-1.

IEC 60947-6-1.

1.2.2 Standards for use in extreme environment

IEC 60068-2-1. (Low Temperature)

IEC 60068-2-2. (High Temperature)

IEC 60068-2-30. (Cyclic Damp Heat)

IEC 60068-2-11. (Salt mist)

1.2.3 Certification ：CB、CE、KEMA

1.3 Normal working conditions

1.3.1 Ambient temperature 5° C~+40° C; Users can custom-tailor relevant product to be used in the environment of -25° C~+70° C, and use the product according to the temperature compensation table.

1.3.2 Sea level elevation Equal to 2000m or below; if it needs to work above 2000m altitude, it shall be used according to the table of capacity reduction of different altitudes.

1.3.3 Atmospheric conditions The relative humidity shall not exceed 50% when the surrounding air temperature is +40° C; the relative humidity can be higher when the temperature is lower; the average monthly maximum relative humidity in the wettest month is 90%, and the average monthly minimum temperature shall be +20 ° C. Special measures may be necessary in cases of occasional condensation due to variations in temperature.

1.3.4 Pollution degree: class 3

1.3.5 Installation category Installation category of the switching equipment of main circuit is category IV. Installation category of auxiliary circuit is category III. Installation category of conversion controller is category II.

1.3.6 Utilization category: AC-33B Electromagnetic compatibility (EMC) Electrostatic discharge (IEC 61000-4-2) Level 2 Radio-frequency electromagnetic field-radiated electromagnetic field immunity (IEC 61000-4-3) Level 3, Fast transient bursts (IEC 61000-4-4) Level 3, Surges (IEC 61000-4-5) Level 3, Radio-frequency electromagnetic field-conducted immunity (IEC 61000-4-6) Level 3, Radiation grade (CISPR11) grade B,

Name

Size

Release time

Operate

Next Series ATSE Catalog_En_2023.pdf

48.66MB

2025-03-27

Download

Name

Size

Release time

Operate

1801-NXZ(H)M NXZB-ATSE-Manual-2.pdf

344.18KB

2025-03-27

Download

2104-NXZ(H)M-ATSE-Manual.pdf

2.14MB

2025-03-27

Download

Name

Size

Release time

Operate

NXZ(H)M-ATSE-Drawing-125(63),4P.stp

18MB

2025-03-27

Download

NXZ(H)M-ATSE-Drawing-800,3P.stp

36.74MB

2025-03-27

Download

NXZ(H)M-ATSE-Drawing-630(400),4P.stp

11.79MB

2025-03-27

Download

NXZ(H)M-ATSE-Drawing-125(63),3P.stp

17.11MB

2025-03-27

Download

NXZ(H)M-ATSE-Drawing-250H,4P.dwg

272.86KB

2025-03-27

Download

NXZ(H)M-ATSE-Drawing-63H,4P.dwg

276.98KB

2025-03-27

Download

NXZ(H)M-ATSE-Drawing-630(400),3P.stp

12.01MB

2025-03-27

Download

NXZ(H)M-ATSE-Drawing-250S,4P.dwg

274.61KB

2025-03-27

Download

NXZ(H)M-ATSE-Drawing-250H,3P.dwg

265.51KB

2025-03-27

Download

NXZ(H)M-ATSE-Drawing-63H,3P.dwg

268KB

2025-03-27

Download

NXZ(H)M-ATSE-Drawing-250S,3P.dwg

268.51KB

2025-03-27

Download

NXZ(H)M-ATSE-Drawing-400S,H,3P.dwg

241.45KB

2025-03-27

Download

NXZ(H)M-ATSE-Drawing-800S,H,4P.dwg

158.98KB

2025-03-27

Download

NXZ(H)M-ATSE-Drawing-160H,3P.dwg

252.72KB

2025-03-27

Download

NXZ(H)M-ATSE-Drawing-63S,4P.dwg

283.24KB

2025-03-27

Download

NXZ(H)M-ATSE-Drawing-160S,4P.dwg

301.73KB

2025-03-27

Download

NXZ(H)M-ATSE-Drawing-63S,3P.dwg

268.58KB

2025-03-27

Download

NXZ(H)M-ATSE-Drawing-160,3p.stp

24.26MB

2025-03-27

Download

NXZ(H)M-ATSE-Drawing-250,4P.stp

18.47MB

2025-03-27

Download

NXZ(H)M-ATSE-Drawing-400S,H,4P.dwg

236.85KB

2025-03-27

Download

NXZ(H)M-ATSE-Drawing-800S,H,3P.dwg

159.17KB

2025-03-27

Download

NXZ(H)M-ATSE-Drawing-800,4P.stp

12.29MB

2025-03-27

Download

NXZ(H)M-ATSE-Drawing-250,3P.stp

15.08MB

2025-03-27

Download

NXZ(H)M-ATSE-Drawing-160,4p.stp

25.85MB

2025-03-27

Download

NXZ(H)M-ATSE-Drawing-160S,3P.dwg

254.81KB

2025-03-27

Download

NXZ(H)M-ATSE-Drawing-160H,4P.dwg

301.55KB

2025-03-27

Download
