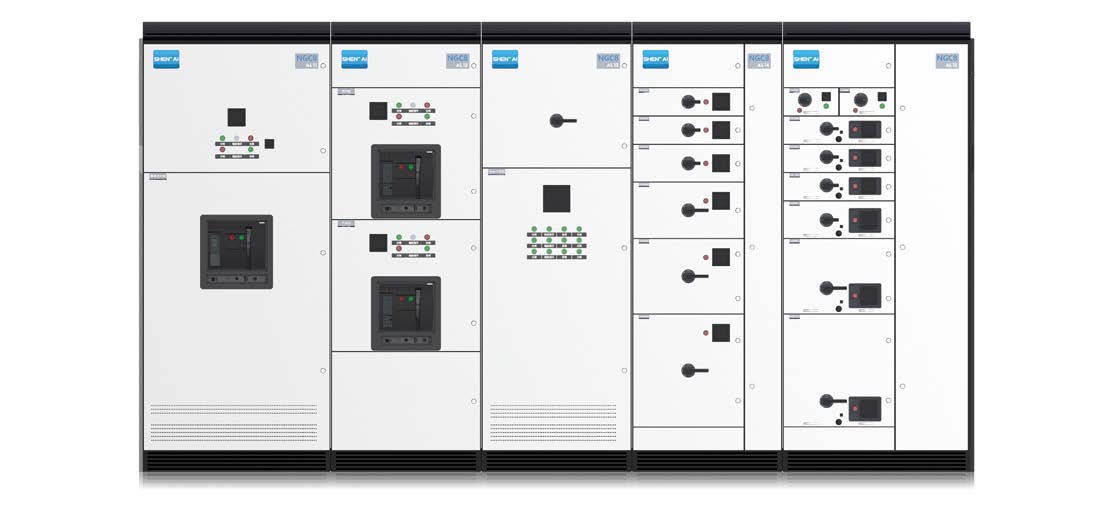

Application: for circuit control, protection, monitoring and power distribution in power distribution system.
Standards: IEC 61439-1/2
Parameters: Rated insulation voltage: 1000V.
Rated operational voltage: 690V.
Features: 1.Rated current up to 6300A. High impact resistance and high protection level.
2. Efficient distribution circuit configuration. A single standard panel can be installed with 48 circuits.
3. NJZ3.0D intelligent power control system adopted.
4. Maintenance-free. High safety protection performance, protection degree of the enclosure can be up to IP54.
5. Raw material is non-CFC and non-halogen, which is environment-friendly.
6. Structural design and material selection greatly pay attention to preventing the production of arc.
7. Modular design and flexible assembly.
